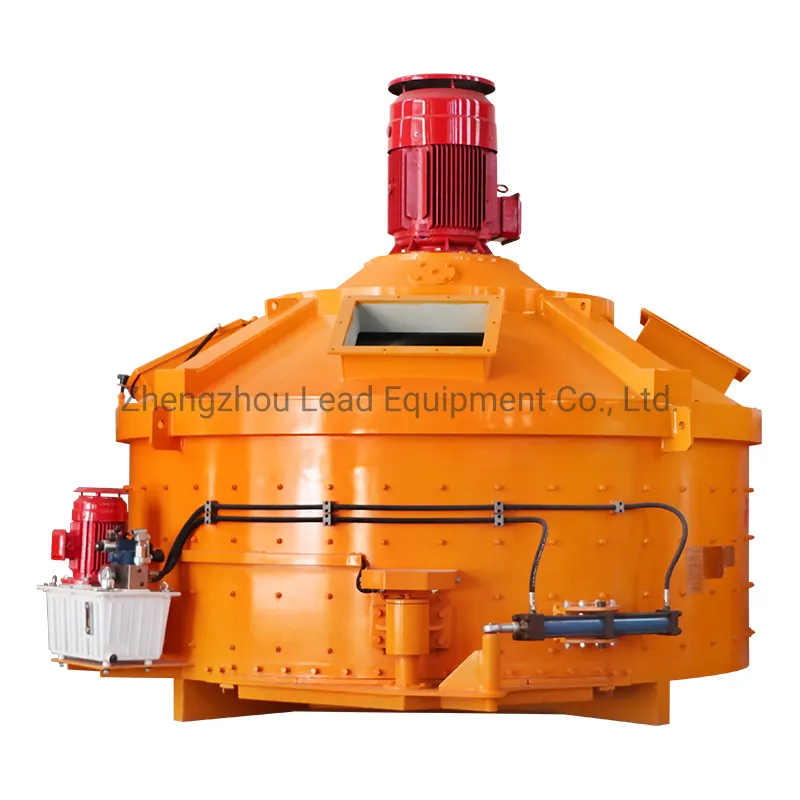

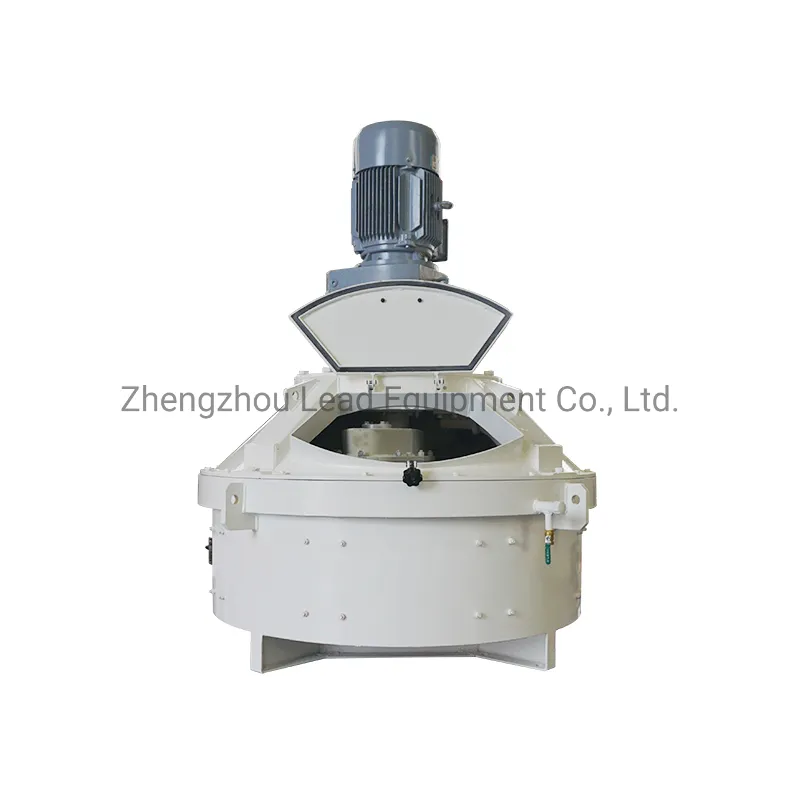

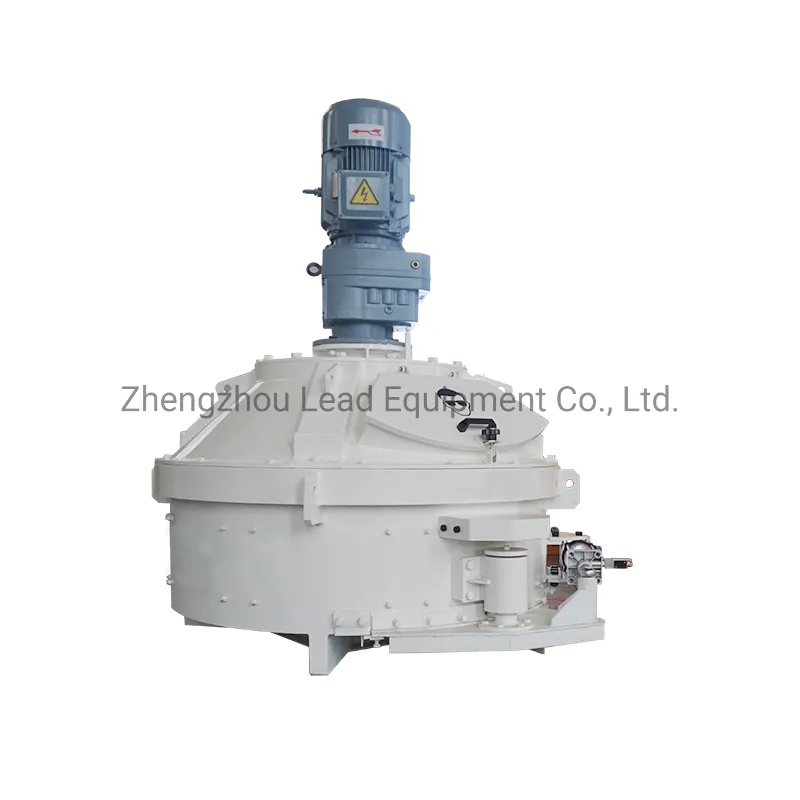

Refractory planetary concrete mixer machine price for sale
Description
LCPM counter-current planetary mixer can mix all kinds of high-quality and high-performance concrete, and which can reach homogenous mixing at shortest time. It can also be widely used for glass, ceramics, refractories, fertilizer and concrete, etc.
Counter-current Gearing System
The rotate direction of mixing stars is reversed with revolution direction, and each mixing star's direction is also different. The circulation movement and convective movement make the material severely mixing and achieve the uniform distribution.
Convection Mixing Device
★High mixing efficiency, low energy consumption.
★Compared with traditional planetary mixer, the mixing time of LCMP could be reduce 15~20%.
★The no-load current and load current with same material can be 15~20% lower.
Technical Parameter
| Item | LCPM50 | LCPM100 | LCPM150 | LCPM250 | LCPM330 | LCPM500 |
| Feeding Volume (L) | 75 | 150 | 225 | 375 | 500 | 750 |
| Feeding Capacity (Kg) | 120 | 240 | 360 | 600 | 790 | 1200 |
| Output Volume (L) | 50 | 100 | 150 | 250 | 330 | 500 |
| Mixing Power (Kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 |
| Discharging Power (KW) | Pneumatic Discharging | 2.2 | 2.23 | 2.2 | ||
| Weight (Kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 |
| Item | LCPM750 | LCPM1000 | LCPM1250 | LCPM1500 | LCPM2000 | LCPM2500 | LCPM3000 |
| Feeding Volume (L) | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 |
| Feeding Capacity (Kg) | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7250 |
| Output Volume (L) | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
| Mixing Power (Kw) | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
| Mixing Star*Blade | 1*3 | 2*3 | 2*3 | 2*3 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Discharging Power (Kw) | 3 | 3 | 3 | 3 | 4 | 4 | 4 |
| Weight (Kg) | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 |

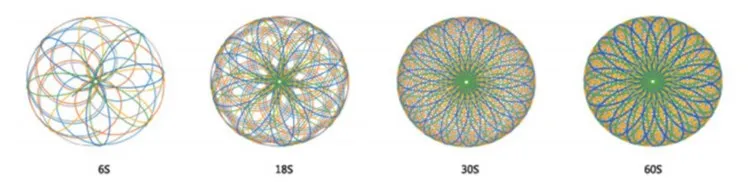

The diagram show the prefect mixing action of the counter-current planetary mixer from 6 to 60 seconds after materials added. Note that the floor is completely swept by the mixing star's action every 4 revolutions (6 seconds) and that each zone is covered at regular interval in time.

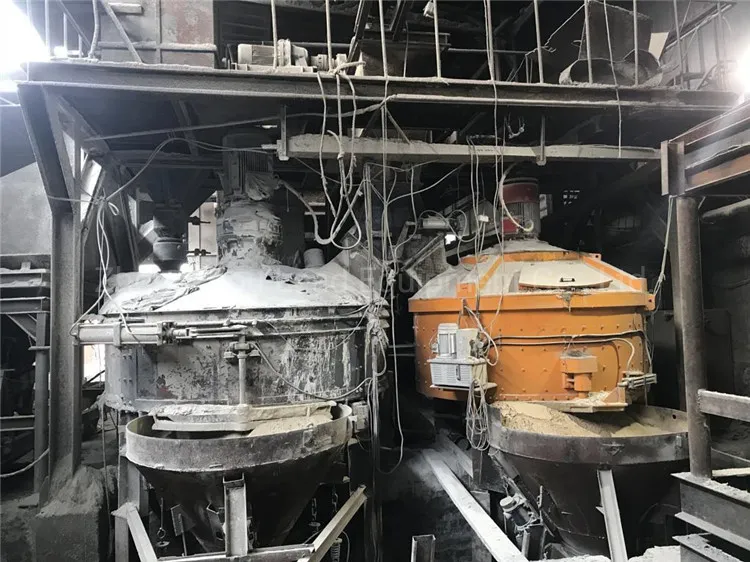

Application
| Concrete | Other Construction Material | Refractory Materials | Others |
| Ready-mixed Concrete | Dry Mortar | Shaped refractory | Glass |
| Precast Concrete | Wet Mortar | Unshaped refractory | Fertilizer |
| Foam Concrete | Gypsum | Water treatment | |
| Color Concrete | Aggregate Mixing | Mine backfill | |
| Light Concrete | Emulsified asphalt | ||
| Shotcrete | Cement adhesive |
Can be customized according to your project, please contact us!Related Category
