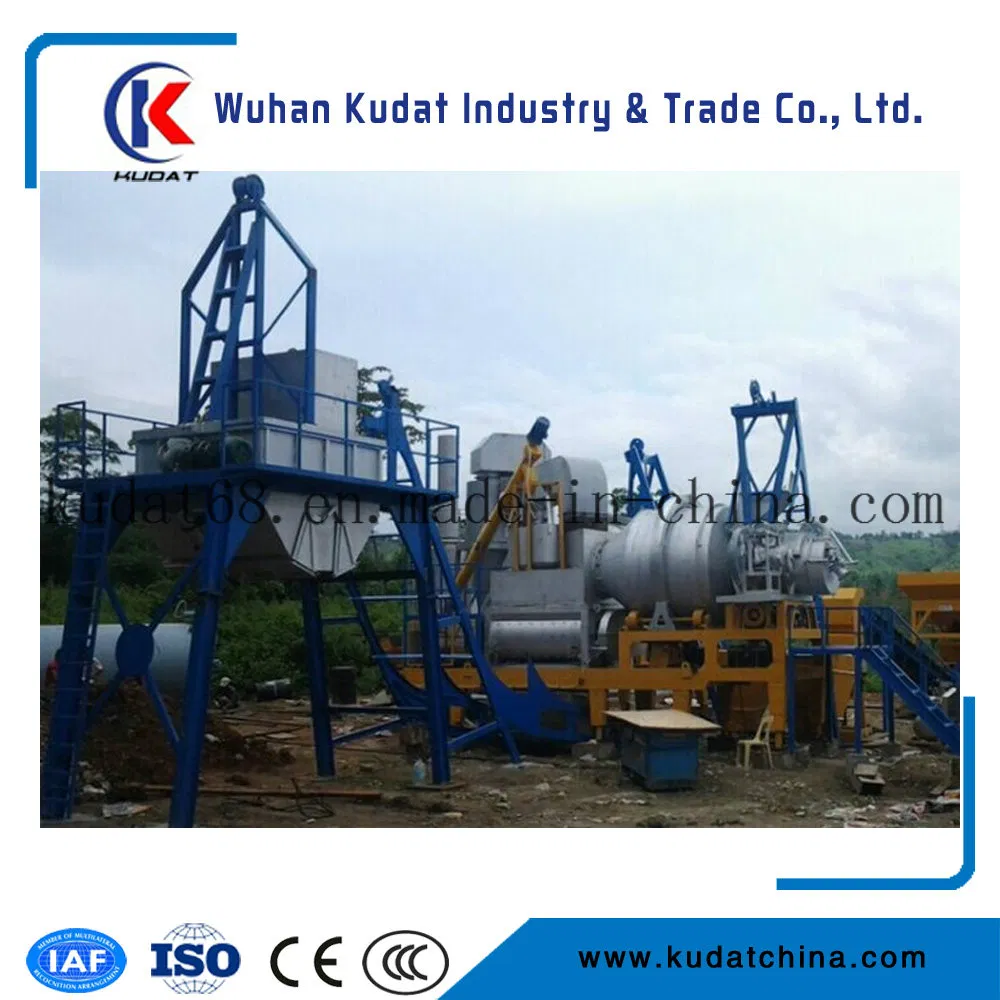

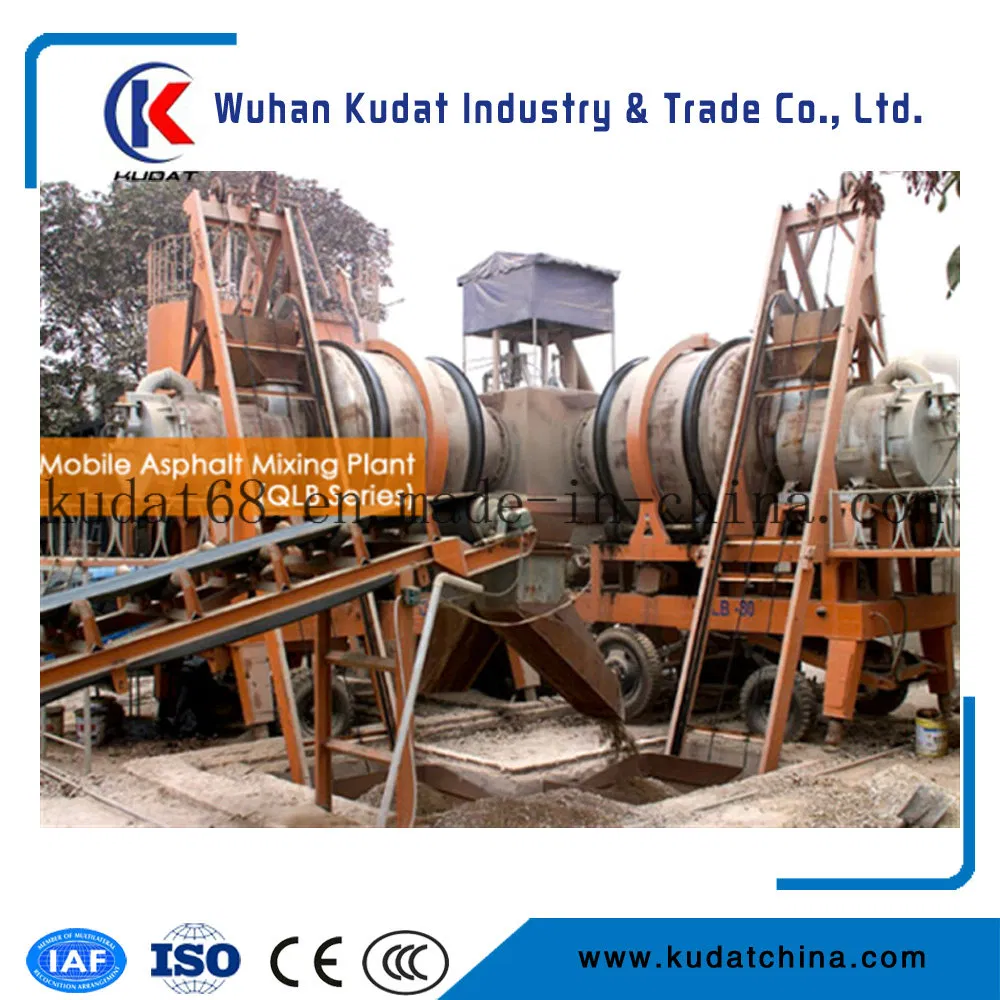

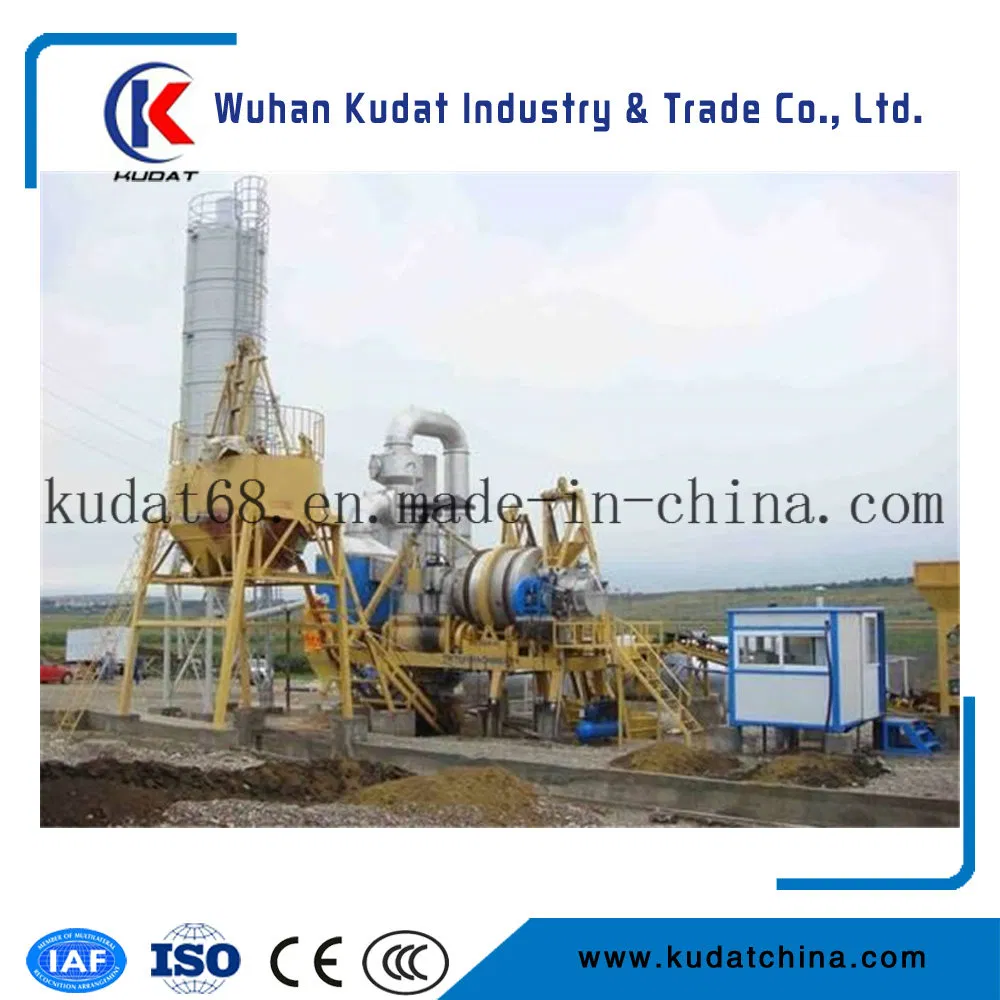

Qlb80 80tph Mobile Asphalt Batch Mixing Plant with Hot Sale

QLB40:
Rated productivity: 40tph
Mobile asphalt batching plant using twin-horizontal shafts force mixer saves stirring time and makes bitumen wrapping in a high degree. It blade, vane and mixing arms are made of special wear-resisting material and they can work longer. Material-added gate with double air cylinder is in turning form which saves time and increase the sealing. It consists of dryer drum, burner, central venting, forced mixer, finished silo and three bin feeder for cold aggregates.
1) Rated productivity: 40tph
2) Suitable material: Bitumen, aggregate
3) Feeder hopper capacity: 1, 600kg
4) Main power: Oil burner 115kW, coal burner 147kW
5) Product temperature: 120~165° C, adjustable
6) Burner: Oil, coal and oil
7) Control system: PLC, auto-control and manually, electronic cabin and control panel, touch screen, control room.

QLB60:
Rated productivity: 60tph, 80tph
Mobile asphalt batching plant using twin-horizontal shafts force mixer saves stirring time and makes bitumen wrapping in a high degree. It blade, vane and mixing arms are made of special wear-resisting material and they can work longer. Material-added gate with double air cylinder is in turning form which saves timeand increase the sealing. It consists of dryer drum, burner, central venting, forced mixer, finished silo and three bin feeder for cold aggregates.
1) Rated productivity: 60tph, 80tph
2) Suitable material: Bitumen, aggregate
3) Feeder hopper capacity: 1, 500kg x 2, 1, 600kg x 2
4) Main power: Oil burner 153kW, 176kW, coal burner 200kW, 239kW
5) Product temperature: 120~165° C, adjustable
6) Burner: Oil, coal and oil
7) Control system: PLC, auto-control and manually, electronic cabin and control panel, touch screen, control room.


QLB20:
Rated productivity: 20tph
Mobile asphalt batching plant using twin-horizontal shafts force mixer saves stirring time and makes bitumen wrapping in a high degree. It blade, vane and mixing arms are made of special wear-resisting material and they can work longer. Material-added gate with double air cylinder is in turning form which saves timeand increase the sealing. It consists of dryer drum, burner, central venting, forced mixer and finished silo and three bin feeder for cold aggregates.

1) Rated productivity: 20tph
2) Suitable material: Bitumen, aggregate
3) Feeder hopper capacity: 1000kg
4) Main power: Oil burner 63.5kW, coal burner 86.5kW
5) Product temperature: 120~165° C, adjustable
6) Burner: Oil, coal and oil
7) Control system: PLC, auto-control and manually, electronic cabin and control panel,
Touch screen, control room

QLB30:

Rated productivity: 30tph

Mobile asphalt batching plant using twin-horizontal shafts force mixer saves stirring time and makes bitumen wrapping in a high degree. It blade, vane and mixing arms are made of special wear-resisting material and they can work longer. Material-added gate with double air cylinder is in turning form which saves timeand increase the sealing. It consists of dryer drum, burner, central venting, forced mixer, finished silo and three bin feeder for cold aggregates.

1) Rated productivity: 30tph
2) Suitable material: Bitumen, aggregate
3) Feeder hopper capacity: 1, 500kg
4) Main power: Oil burner 97kW, coal burner 121kW
5) Product temperature: 120~165° C, adjustable
6) Burner: Oil, coal and oil
7) Control system: PLC, auto-control and manually, electronic cabin and control panel,
Touch screen, control room

Main technical data for batch mixing type
