Powder Mixer / Granules Mixer / Bin Blender
1. General description of Bin BlenderHGD Bin Blender is mainly used for granules and granules, powder and powder, granules and powder in solid dosage production. The equipment features steady running, stable structure, large capacity and high mixing evenness. It is the ideal in pharmaceutical factor......
Send Inquiry
Product Description
1. General description of Bin Blender
HGD Bin Blender is mainly used for granules and granules, powder and powder, granules and powder in solid dosage production. The equipment features steady running, stable structure, large capacity and high mixing evenness. It is the ideal in pharmaceutical factory for final blending. And it is also widely used in food and chemical industry.
2. Work principle of Bin Blender
This equipment consists of machine frame, drive system, control system, and blending hopper, etc. When working, first load the material into bin and then lock the bin cover. Set the blending time, blending speed, and start the control system, the blending process begins. When reaching the set blending time, the equipment will stop automatically, and the blending process is finished.
3. Technical parameters of Blender
4. Pictures of Bin Blender
5. Company profile
Changzhou Welldone Machinery Technology Co., Ltd is a technical researching & Package solution integrating company based on two real factories (one dryer factory and one granulator factory) which has over 20 years manufacturing experiences. We are now also associating with other factory such as extractor factory, crystallization tank factory, evaporator factory, package machine factory etc to become a business league. We are able to provide more than just a single equipment, but becoming a package solution provider. Our products are widely used in pharmaceutical industry, food industry, chemical industry, environmental protection industry and so on.
Welldone actively participates in international competition, products has been exported to USA, Canada, Russia, Australia, Italy, France, Spain, Japan, Korea, Indonesia, India, Sri Lanka, Malaysia, Viet Nam, Bangladesh, Phillippines, Pakistan, Thailand, Columbia, Ecuador, Mexico, Brazil, Tajikistan, Turkey, Ukraine, Tunisia, Egypt, Algeria, South Africa, Nigeria and so on. We have won the praise of our customers with good quality and high quality service, and established a long-term win-win relationship with our customers
Welldone focuses on technology, institution and cultural precipitation. In new historical time, Welldone will continuously unfold far seeing plan, unceasingly deepen strategic idea and strongly propel production management. Based on the development of enterprises, the growth of multi-security growing way and the wisdom of the workers, Welldone will rapidly upgrade comprehensive competitive power and struggle unremittingly to create itself an innovative and cultural enterprise.
Factory
Test Center
HGD Bin Blender is mainly used for granules and granules, powder and powder, granules and powder in solid dosage production. The equipment features steady running, stable structure, large capacity and high mixing evenness. It is the ideal in pharmaceutical factory for final blending. And it is also widely used in food and chemical industry.
2. Work principle of Bin Blender
This equipment consists of machine frame, drive system, control system, and blending hopper, etc. When working, first load the material into bin and then lock the bin cover. Set the blending time, blending speed, and start the control system, the blending process begins. When reaching the set blending time, the equipment will stop automatically, and the blending process is finished.
3. Technical parameters of Blender
| Model | Blending speed (rpm) | Volume (L) | Max loading volume (L) | Max loading capacity (Kg) | Total power (Kw) | Weight (Kg) |
| HGD-400 | 3-20 | 400 | 320 | 200 | 2.2 | 600 |
| HGD-600 | 3-20 | 600 | 480 | 300 | 3 | 700 |
| HGD-800 | 3-20 | 800 | 640 | 400 | 3 | 800 |
| HGD-1000 | 3-15 | 1000 | 800 | 500 | 4 | 1000 |
| HGD-1200 | 3-15 | 1200 | 960 | 600 | 4 | 1200 |
| HGD-1500 | 3-15 | 1500 | 1200 | 750 | 5.5 | 1500 |
| HGD-2000 | 3-15 | 2000 | 1600 | 1000 | 5.5 | 2000 |
| HGD-3000 | 2-10 | 3000 | 2400 | 1500 | 7.5 | 2900 |
| HGD-4000 | 2-10 | 4000 | 3200 | 2000 | 11 | 3500 |
| HGD-5000 | 3-8 | 5000 | 4000 | 2500 | 11 | 4000 |
| HGD-6000 | 3-8 | 6000 | 4800 | 3000 | 11 | 5200 |
| HGD-8000 | 1-6 | 8000 | 6400 | 4000 | 15 | 6300 |
| HGD-10000 | 1-6 | 10000 | 8000 | 5000 | 15 | 7500 |

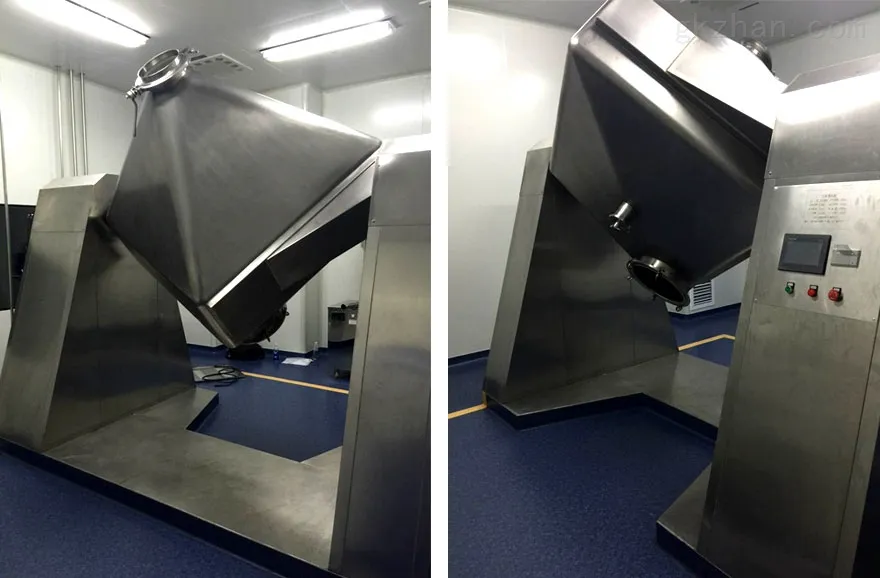

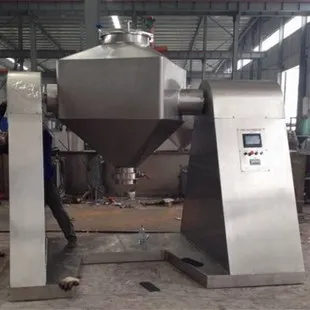

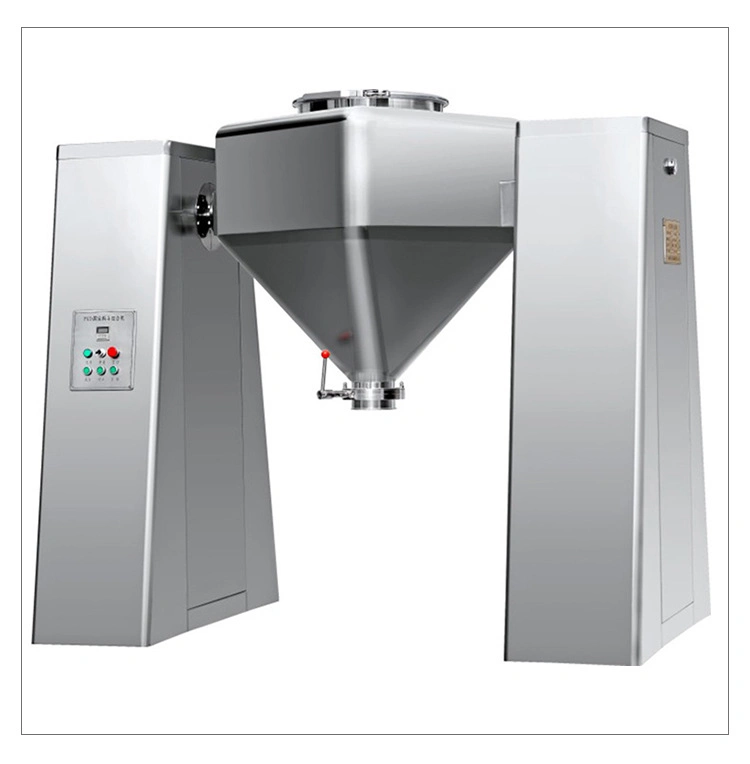

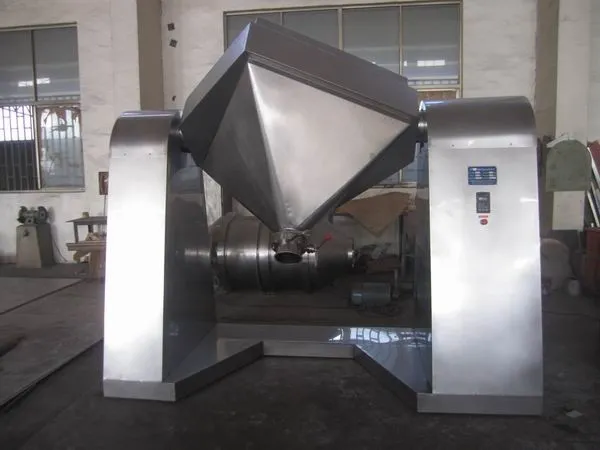

4. Pictures of Bin Blender
5. Company profile
Changzhou Welldone Machinery Technology Co., Ltd is a technical researching & Package solution integrating company based on two real factories (one dryer factory and one granulator factory) which has over 20 years manufacturing experiences. We are now also associating with other factory such as extractor factory, crystallization tank factory, evaporator factory, package machine factory etc to become a business league. We are able to provide more than just a single equipment, but becoming a package solution provider. Our products are widely used in pharmaceutical industry, food industry, chemical industry, environmental protection industry and so on.
Welldone actively participates in international competition, products has been exported to USA, Canada, Russia, Australia, Italy, France, Spain, Japan, Korea, Indonesia, India, Sri Lanka, Malaysia, Viet Nam, Bangladesh, Phillippines, Pakistan, Thailand, Columbia, Ecuador, Mexico, Brazil, Tajikistan, Turkey, Ukraine, Tunisia, Egypt, Algeria, South Africa, Nigeria and so on. We have won the praise of our customers with good quality and high quality service, and established a long-term win-win relationship with our customers
Welldone focuses on technology, institution and cultural precipitation. In new historical time, Welldone will continuously unfold far seeing plan, unceasingly deepen strategic idea and strongly propel production management. Based on the development of enterprises, the growth of multi-security growing way and the wisdom of the workers, Welldone will rapidly upgrade comprehensive competitive power and struggle unremittingly to create itself an innovative and cultural enterprise.

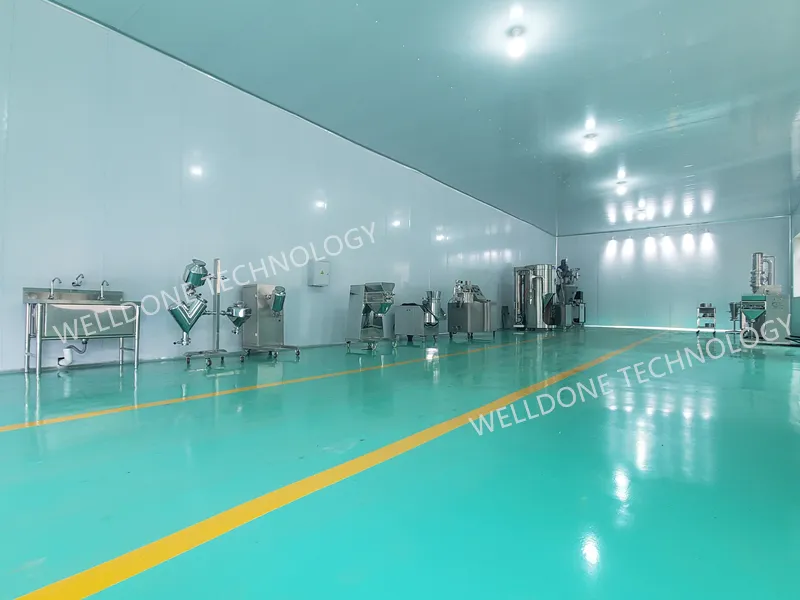

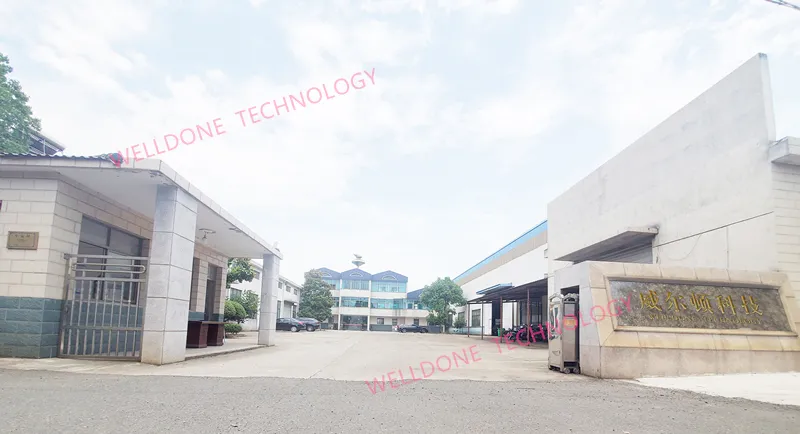

Factory Test Center
