Product Description

Plastic powder/rubber SRL-W800/2000L horizontal 304 stainless steel barrel hot and cold mixing unit high speed mixer ABB frequency inverter

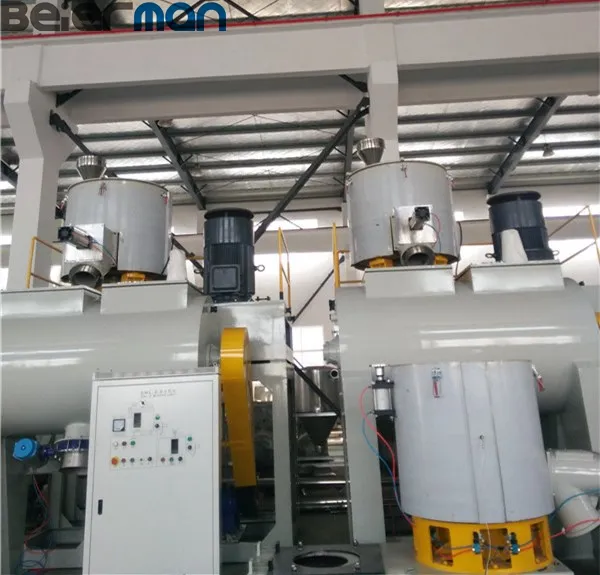

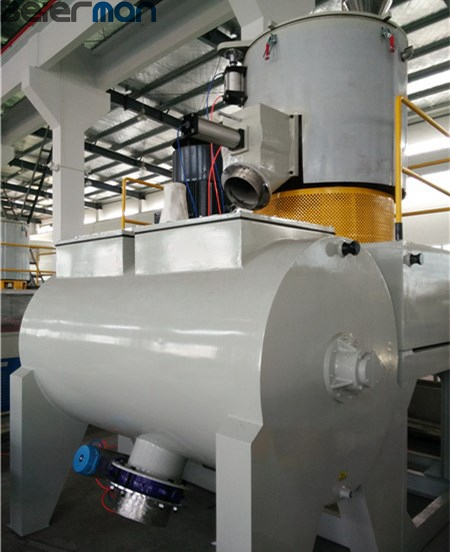

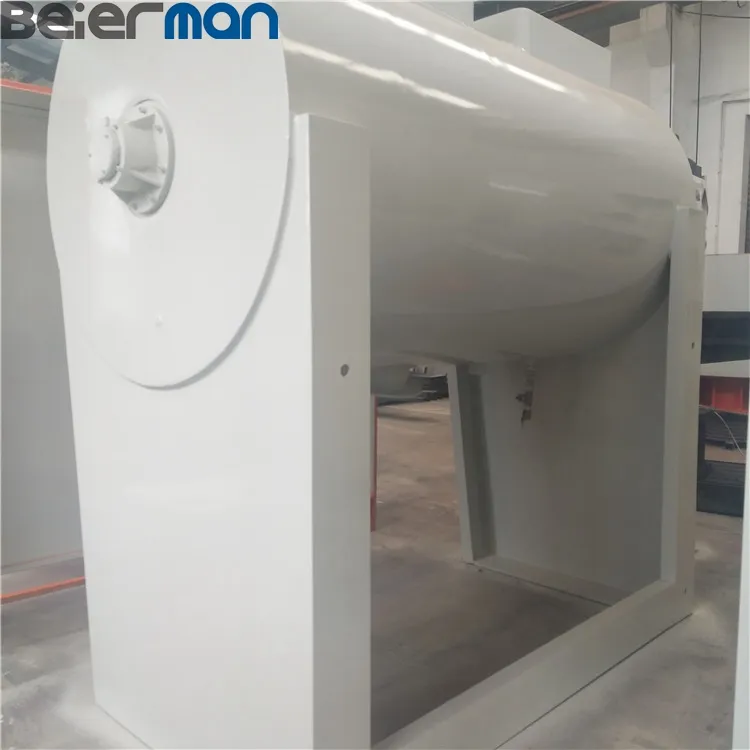

Horizontal mixer is applicable for mixing, colouiring and drying of various resin such as polyethylene, polypropylene, polyvinyl chloride ect , this unit combines heat mixing and cool mixing craft together, the materials after heat mixing can be got into cool mixer for cooling automaticlly, exhausts remaining gases and prevent agglomeration.

Model

SRL-W300/1000	SRL-W500/1600	SRL-Z800/2000	SRL-W1000/3000	SRL-W800X2/4000
Total Volume (L)	300/1000	500/1600	800/2000	1000/3000	800X2/4000
Effective Volume(L)	225/700	330/1000	600/1500	700/2100	1200/2700
Mixing Speed(rpm)	475/950/80	430/860/70	330/660/60	300/600/50	350/700/65
Heating/Cooling Method	Electric/self-friction/recycling water
Mixing Time(minutes)	8-12	8-12	8-12	8-12	8-12
DS Driving Motor(kw)	40/55/7.5	55/75/15	86/110/22	110/160/30	83/110X2/45
Inveter Driving Motor(kw)	55/7.5	75/15	110/22	160/30	110X2/45
Weight(kg)	2200	3400	3600	6500	9800

compare with vertical high speed mixer unit, horizontal mixer has advantages of higher capacity, faster mixing speed.

the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment

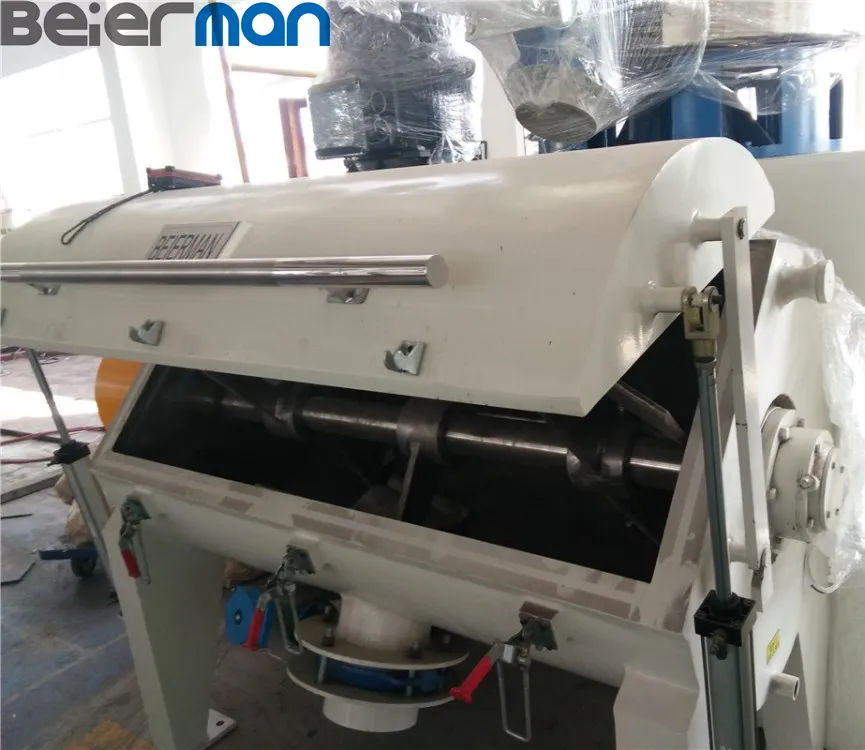

- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design

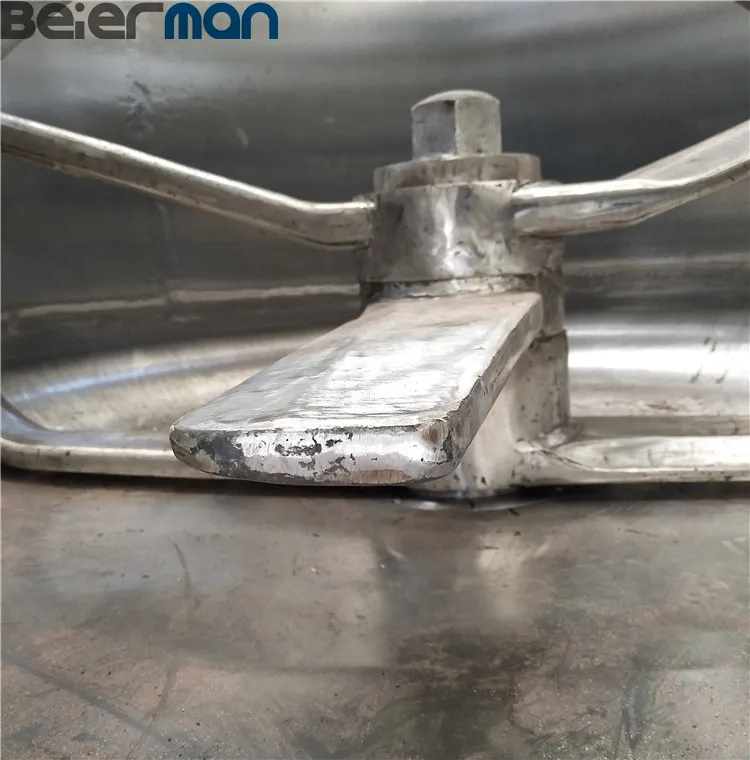

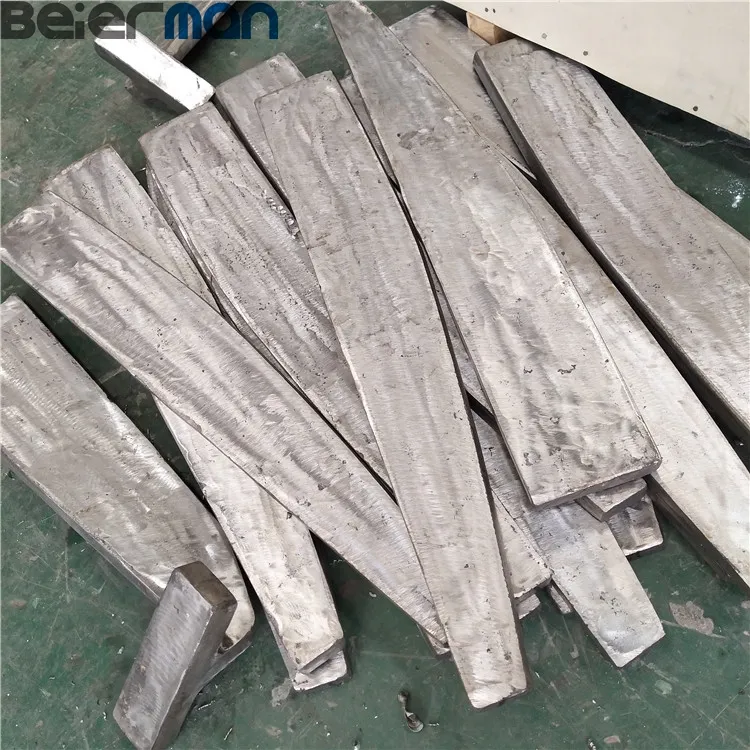

mixing paddles after strict balance test

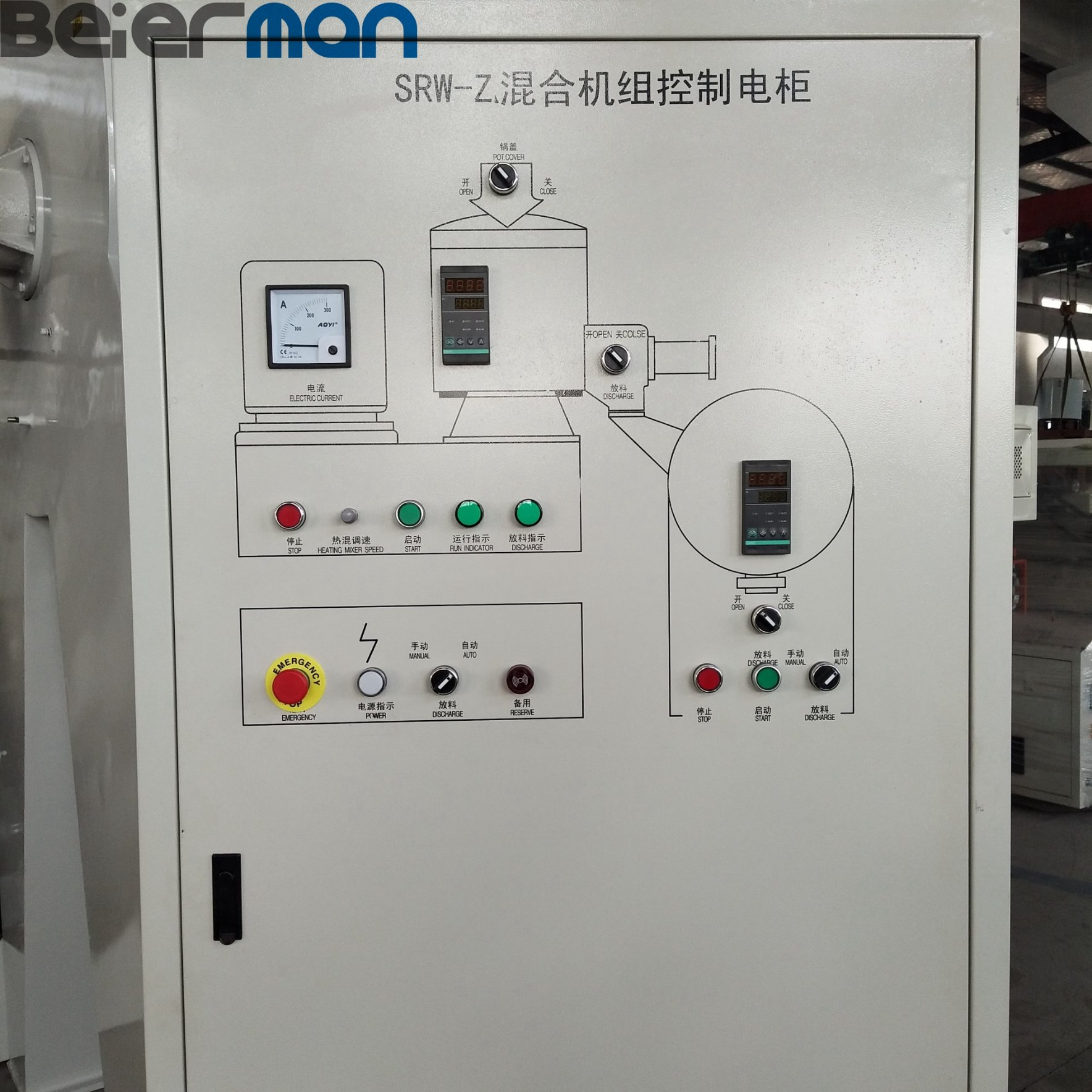

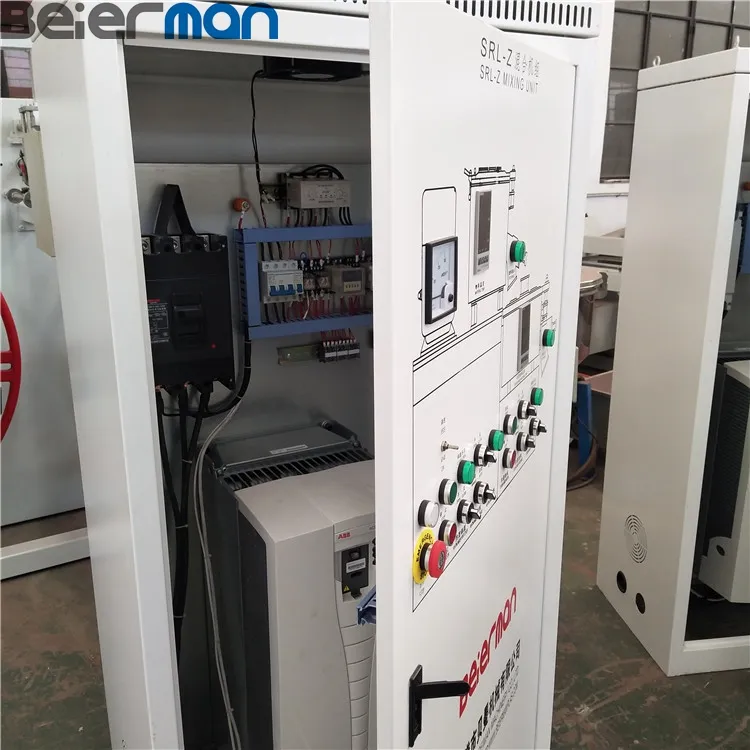

electrical cabinet, ABB or other famous brand frequency inverter, Siemens motor.

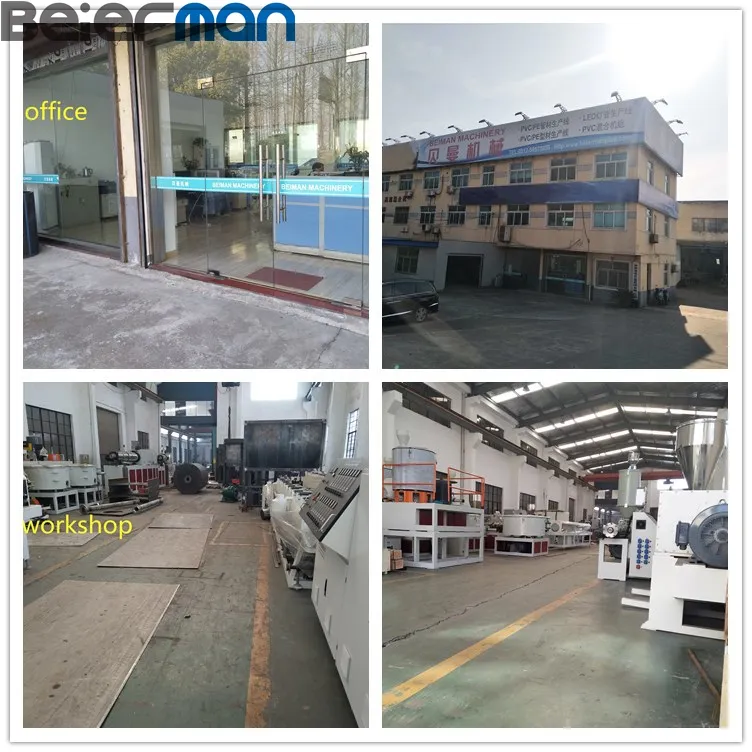

company informations
