Product Description
Brief Introduction

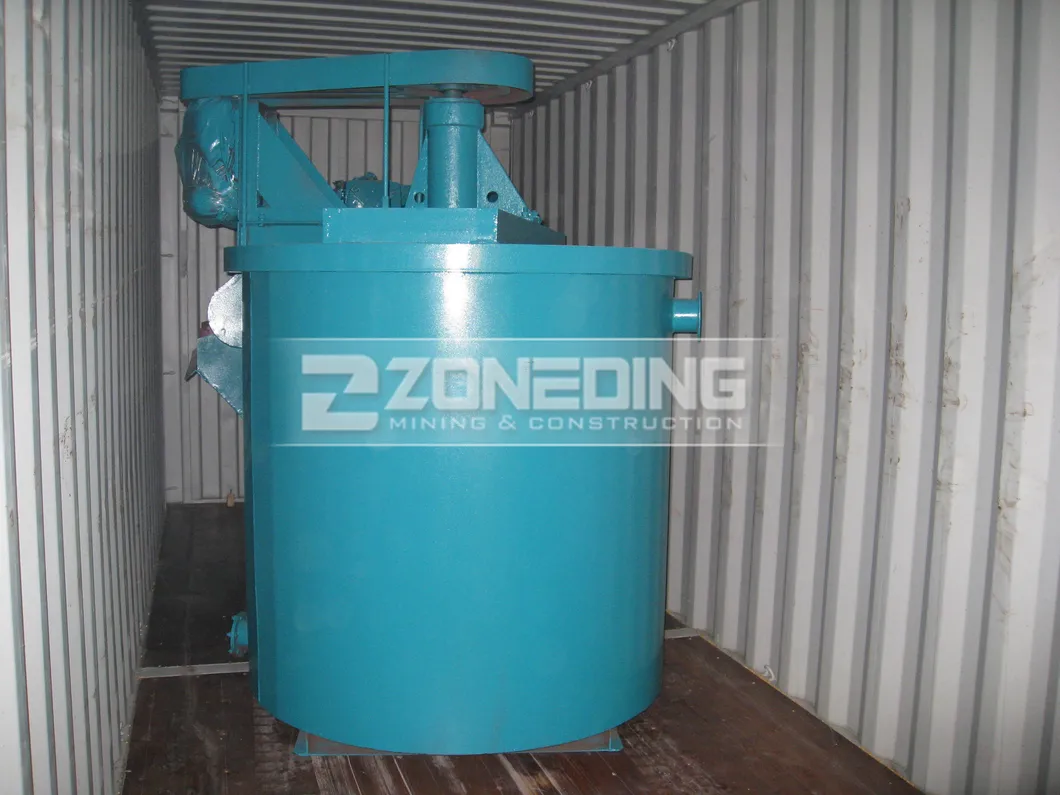

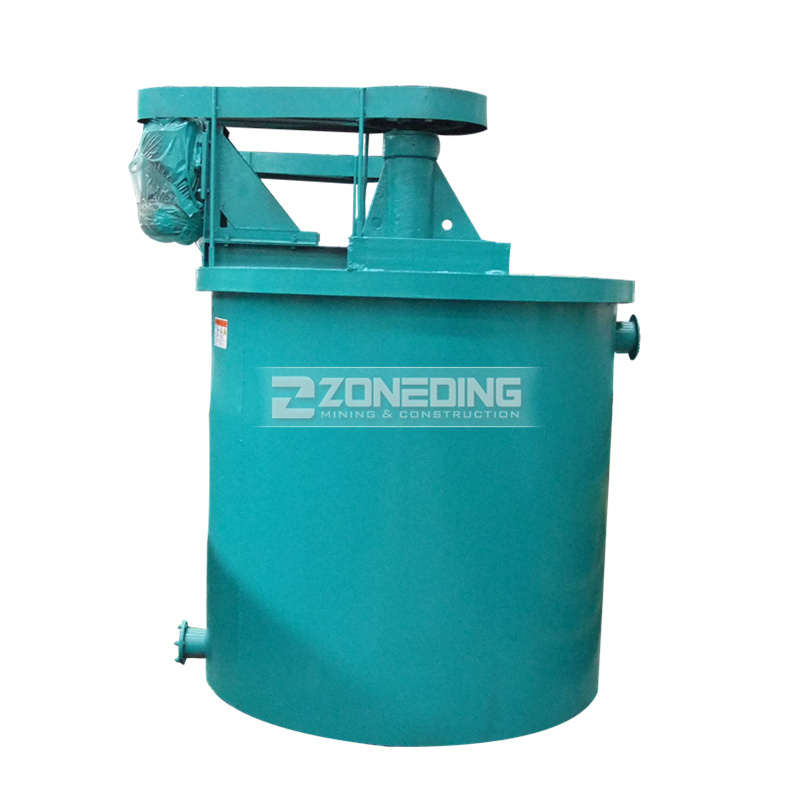

Mining mixing tank

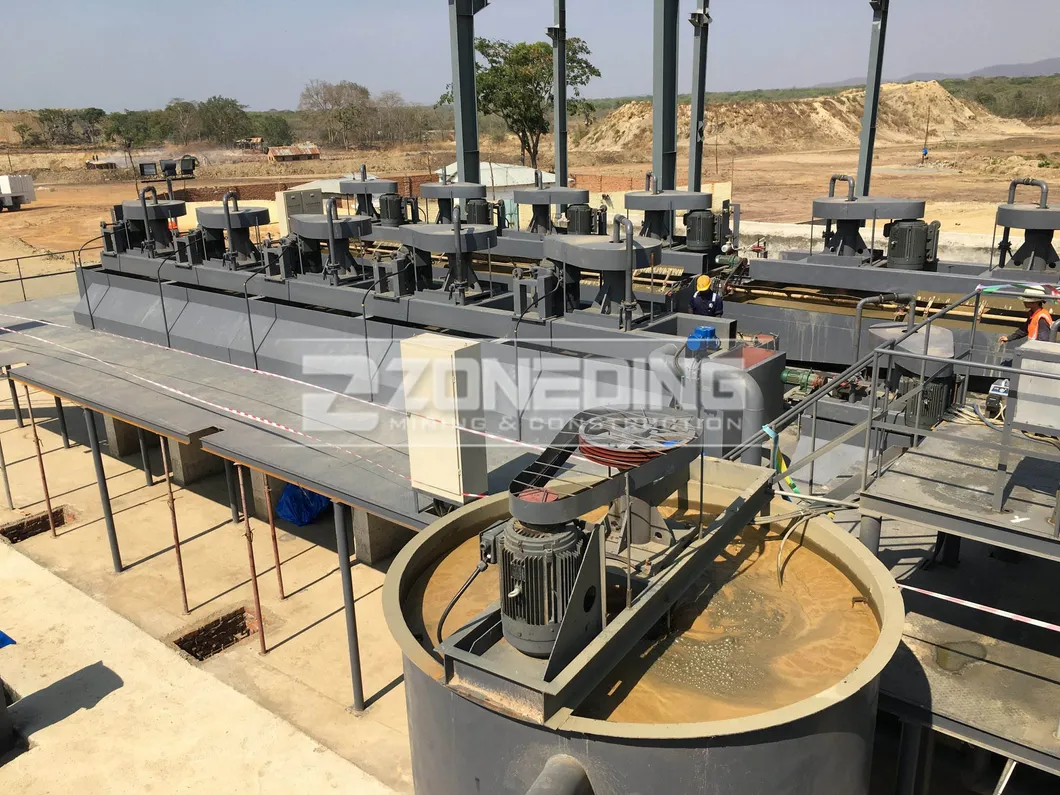

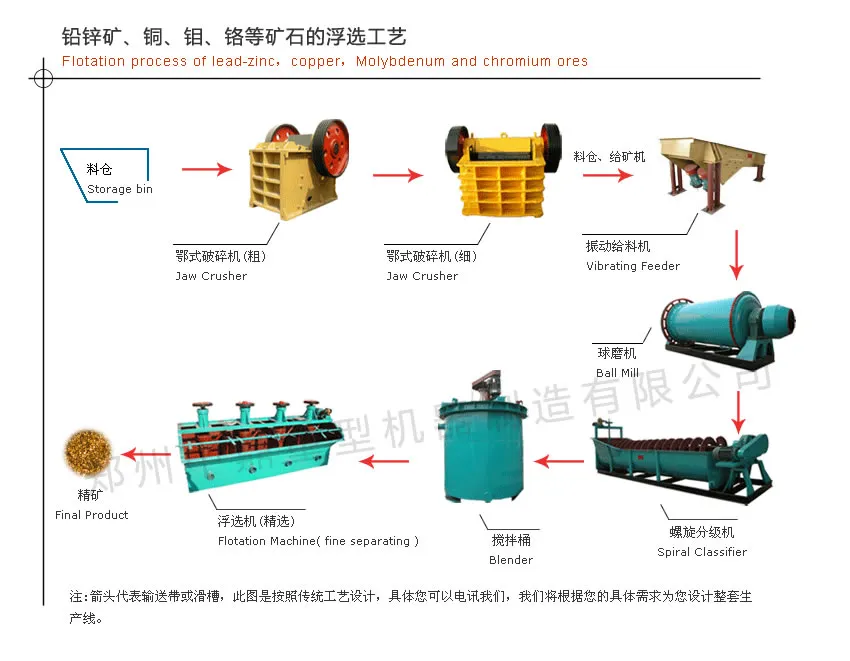

Mining mixing tank is suitable for various metal ores, mainly used for stirring before flotation, so that the reagent and ore slurry are fully mixed, and can also be used for stirring other non-metallic minerals.
Working principle of mixing tank

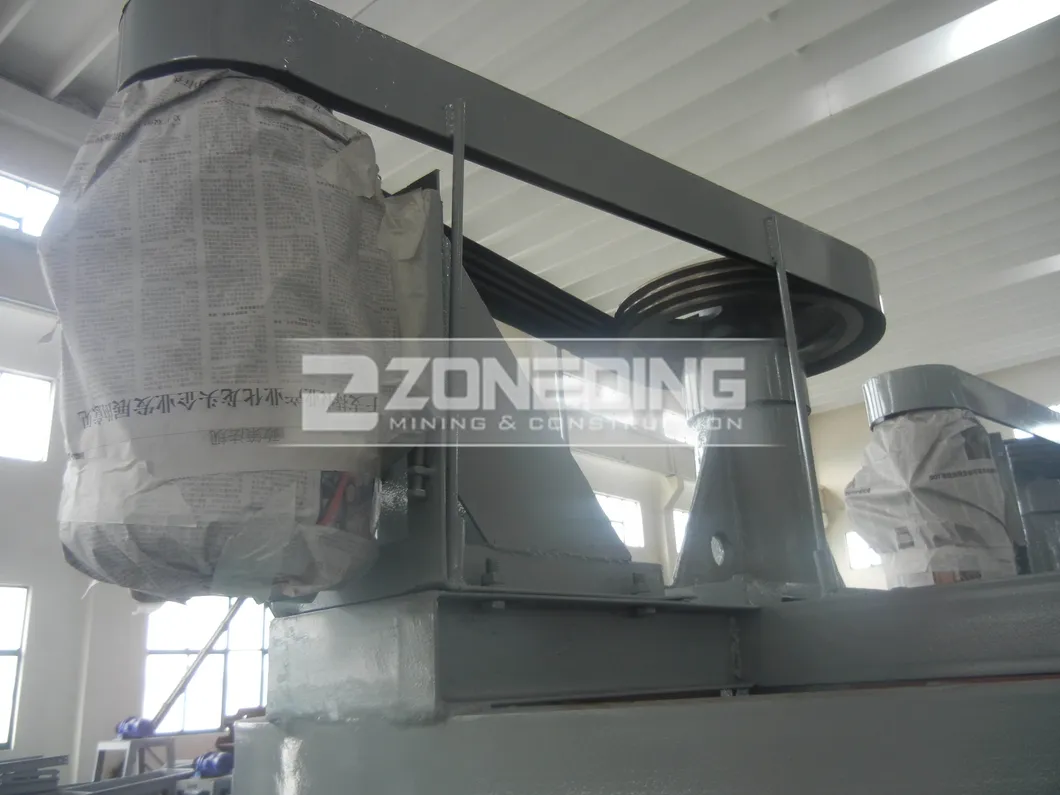

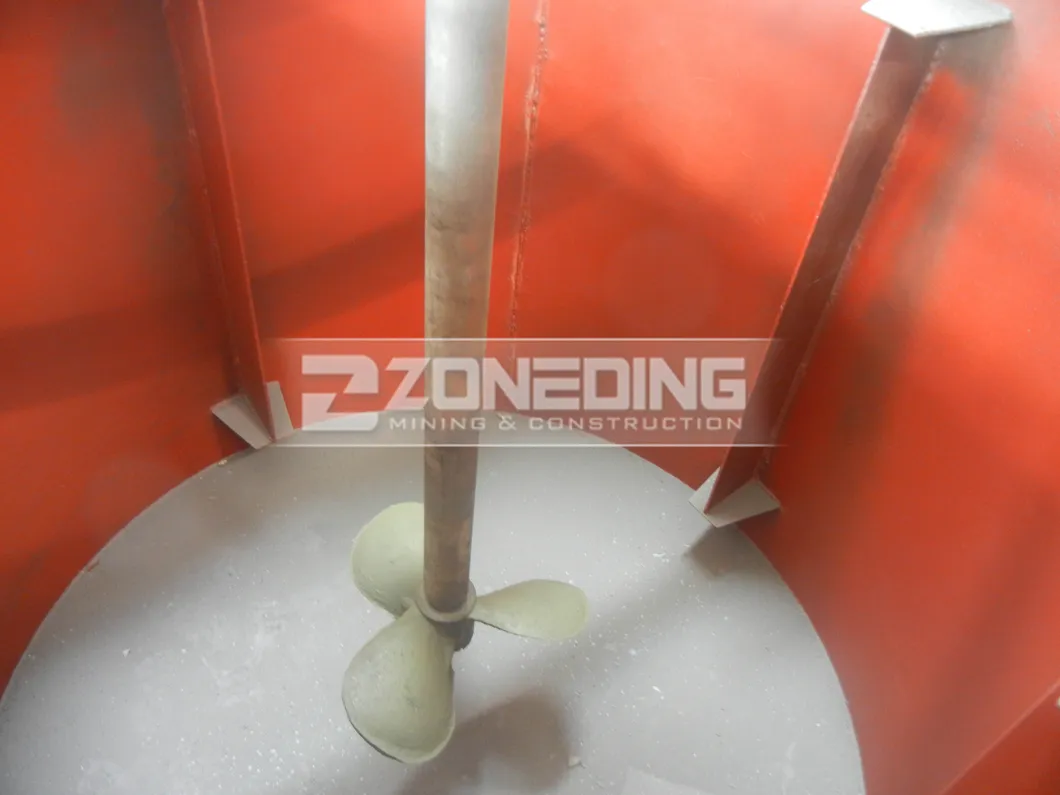

The motor is driven by the V-belt drive instead of the rotating impeller to rotate. The medicine and the pulp are fully mixed and uniform, and the reaction time of the medicine is increased. The necessary equipment for strengthening the quality of the medicine reaction. The mixing tank is suitable for all kinds of metal ores, mainly used for mixing before flotation. It is to mix the agent and the slurry fully, and it can also be used for mixing other non-metallic minerals. It is used for the concentration of not more than 30% (calculated by weight) and the particle size of the fixed component is less than 1mm. Its form is a flat-bottomed barrel with a circulating spiral impeller mechanical stirring type.
Main Features
1.Smooth movement, pulp mixing, less power consumption.
2.air after driving hollow shaft into the groove, and the blade agitation, air dispersion evenly.
3, compact structure, convenient maintenance.
4, to the bottom of the hollow shaft ventilation, air through it into the slot, uniform dispersion, small air bubbles.
5, the two new type of impeller, the impeller diameter, low speed, small power consumption, can reduce carbon wear.
6, stirring intensity, moderate groove pulp density, fineness distribution is consistent, can improve the rate of pass in and out of cyanide and charcoal adsorption rate.
Technical parameters
If you need other product, contact us freely!
Mining mixing tank
Mining mixing tank is suitable for various metal ores, mainly used for stirring before flotation, so that the reagent and ore slurry are fully mixed, and can also be used for stirring other non-metallic minerals.
Working principle of mixing tank
The motor is driven by the V-belt drive instead of the rotating impeller to rotate. The medicine and the pulp are fully mixed and uniform, and the reaction time of the medicine is increased. The necessary equipment for strengthening the quality of the medicine reaction. The mixing tank is suitable for all kinds of metal ores, mainly used for mixing before flotation. It is to mix the agent and the slurry fully, and it can also be used for mixing other non-metallic minerals. It is used for the concentration of not more than 30% (calculated by weight) and the particle size of the fixed component is less than 1mm. Its form is a flat-bottomed barrel with a circulating spiral impeller mechanical stirring type.
Main Features
1.Smooth movement, pulp mixing, less power consumption.
2.air after driving hollow shaft into the groove, and the blade agitation, air dispersion evenly.
3, compact structure, convenient maintenance.
4, to the bottom of the hollow shaft ventilation, air through it into the slot, uniform dispersion, small air bubbles.
5, the two new type of impeller, the impeller diameter, low speed, small power consumption, can reduce carbon wear.
6, stirring intensity, moderate groove pulp density, fineness distribution is consistent, can improve the rate of pass in and out of cyanide and charcoal adsorption rate.
Technical parameters

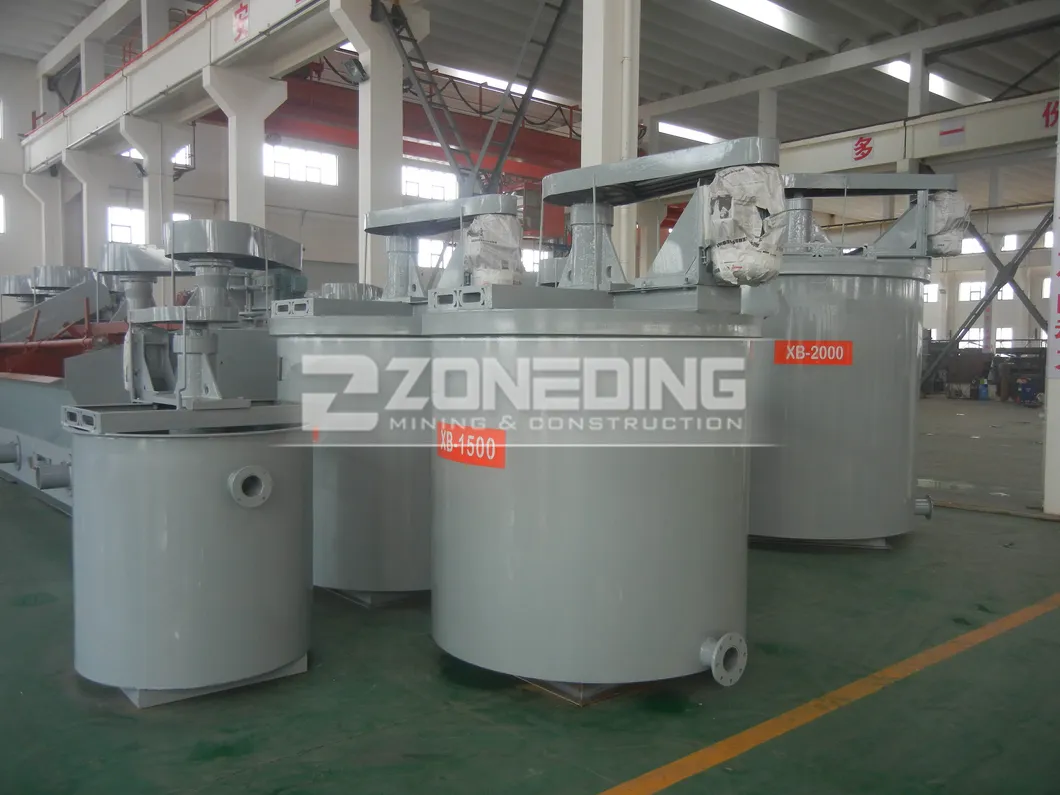

| Model | Internal diameter (mm) | Internal Height (mm) | Volume (m3) | Impeller speed (r/min) | Impeller diameter (mm) | Weight (t) | Motor power | Dimension (LxWxH) (mm) | |
| Model | Power (KW) | ||||||||
| XB-500 | 500 | 500 | 0.098 | 600 | 200 | 0.15 | Y90S-6 | 1.1 | 600×566×954 |
| XB-750 | 750 | 750 | 0.33 | 530 | 255 | 0.6 | Y90L-4 | 1.5 | 1131×880×1241 |
| XB-1000 | 1000 | 1000 | 0.58 | 530 | 255 | 0.99 | Y90L-4 | 1.5 | 1131×1130×1492 |
| XB-1200 | 1200 | 1200 | 1.4 | 300 | 400 | 1.05 | Y132S-6 | 3 | 1500×1480×1800 |

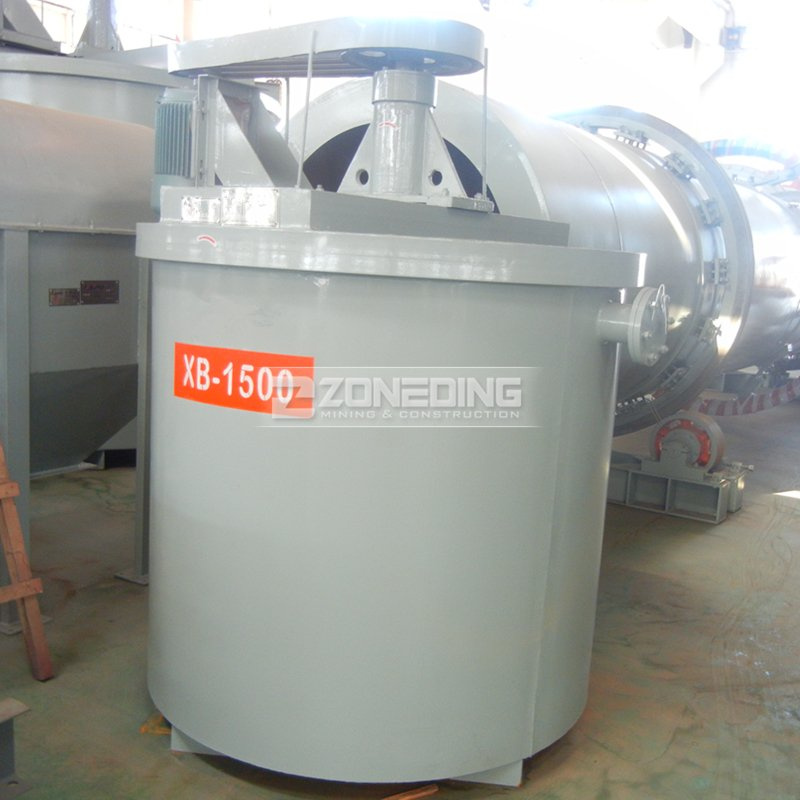

| XB-1500 | 1500 | 1500 | 2.2 | 320 | 400 | 1.2 | Y132S-6 | 3 | 1750×1640×2190 |

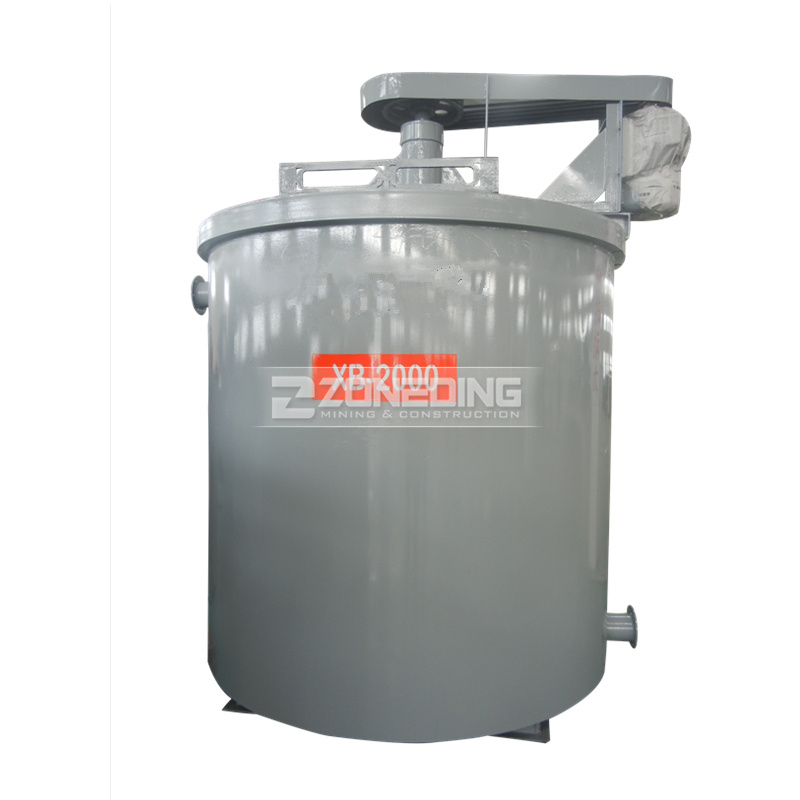

| XB-2000 | 2000 | 2000 | 5.46 | 230 | 550 | 1.6 | Y132M2-6 | 5.5 | 2380×2162×2850 |
| XB-2500 | 2500 | 2500 | 11.2 | 230 | 650 | 3.44 | Y160L-6 | 11 | 3036×2716×3543 |
| XB-3000 | 3000 | 3000 | 19.1 | 210 | 700 | 4.61 | Y225S-8 | 18.5 | 3604×3216×4250 |
| XB-3500 | 3500 | 3500 | 30 | 230 | 850 | 7.28 | Y225M-8 | 22 | 3940×3766×5386 |
If you need other product, contact us freely!
