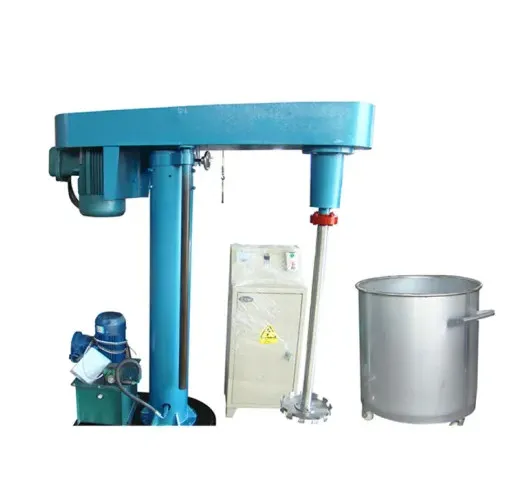

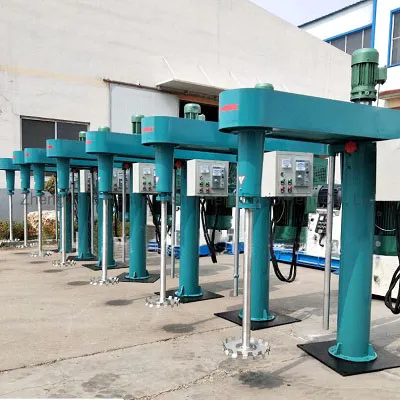

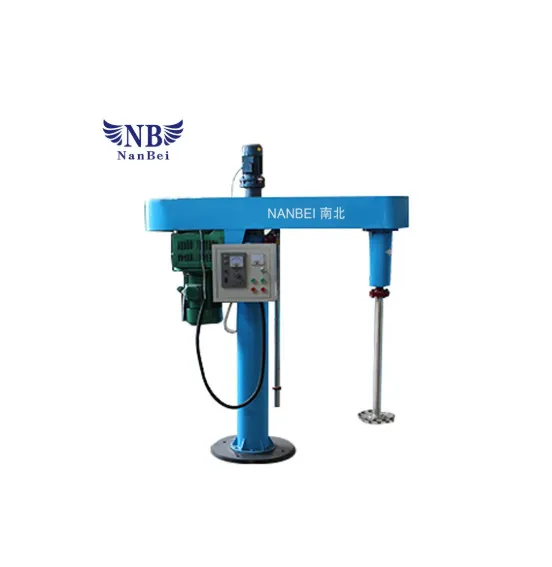

Paint Dispersion Machine High Speed Disperser

Product Description

Electric Lifting High Speed Paint Disperser

Application:
High speed disperser is mainly used for Paint,Coating,Printing-ink,Resin,Food,Pigment, Glue, Adhesive, Dye, Cosmetic, etc.

Description:
electric lifting
2.Material:stainless steel
3.Whole cooper wire motors
4.Magnetic speed adjustable
5.The voltage and plug can be changed to same as your local voltage, this is for free.
Voltage:110V/60HZ 220V/60HZ 220V/50HZ 380V/50HZ
Plug:EU,UK,America,Italy,Switzerland,South Africa.
It's better you can tell us your local voltage and send plug pictures.
6.If you can not decision to choose suitable model, please feel free contact Angelina.
She will reference suitable model to you according to your material and capacity.

Technical data:

Type		NFS-2.2	NFS-4	NFS-5.5	NFS-7.5	NFS-11	NFS-15	NFS-18.5	NFS-22
Main Motor Power (Kw)		2.2	4	5.5	7.5	11	15	18.5	22
Impeller Rotational Speed (rpm)		80~1250 or customized
Dispersion Plate Diameter(mm)		150~200	150~200	200~250	250~300	300	350	350	350~400
Stirring-axis Max Stroke (mm)		1000 or customized
Installation Height (mm)		3100	3100	3100	3100	3100	3200	3200	3200
Overall Dimensions(mm)	L	1500	1500	1500	1500	1500	2000	2000	2000
	W	550	550	550	550	550	700	700	700
	H	2100	2100	2100	2100	2100	2200	2200	2200
Weight (Kg)		600	640	710	730	830	930	1050	1070
