                            Nuts Cocoa Beans Paddle Blender Mixer
                            • Nuts Cocoa Beans Paddle Blender MixerNuts Cocoa Beans Paddle Blender Mixer
                            • Nuts Cocoa Beans Paddle Blender MixerNuts Cocoa Beans Paddle Blender Mixer
                            • Nuts Cocoa Beans Paddle Blender MixerNuts Cocoa Beans Paddle Blender Mixer
                            • Nuts Cocoa Beans Paddle Blender MixerNuts Cocoa Beans Paddle Blender Mixer

                            Nuts Cocoa Beans Paddle Blender Mixer

                            Nuts Cocoa beans Paddle blender mixerDescriptive abstractNuts Cocoa beans Paddle blender mixer is suitable use for powder and powder,granule and granule or add a little liquid to mixing.it is widely applied in nuts,beans,feed or other kinds of granule material, Inside of the machine have different a......

                            Send Inquiry

                            Product Description

                            Nuts Cocoa Beans Paddle Blender Mixer
                            Nuts Cocoa Beans Paddle Blender Mixer
                            Nuts Cocoa Beans Paddle Blender Mixer
                            Nuts Cocoa Beans Paddle Blender Mixer

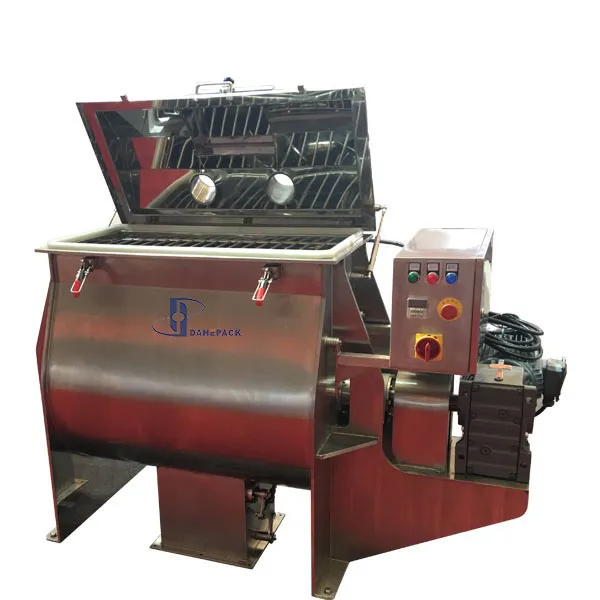

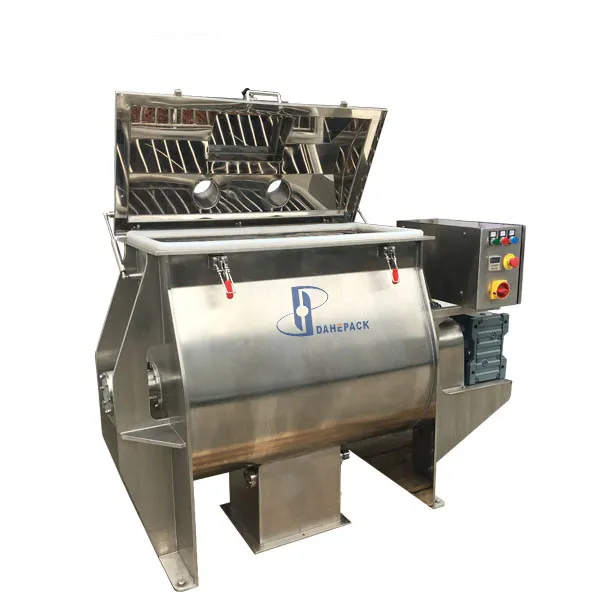

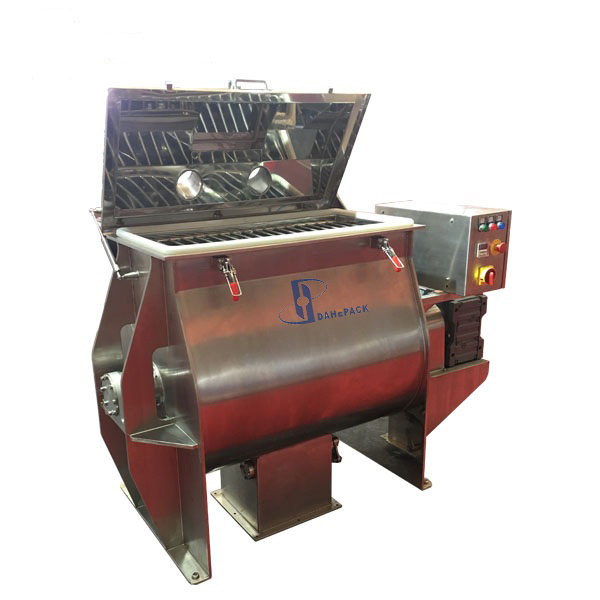

                            Nuts Cocoa beans Paddle blender mixer

                            Descriptive abstract

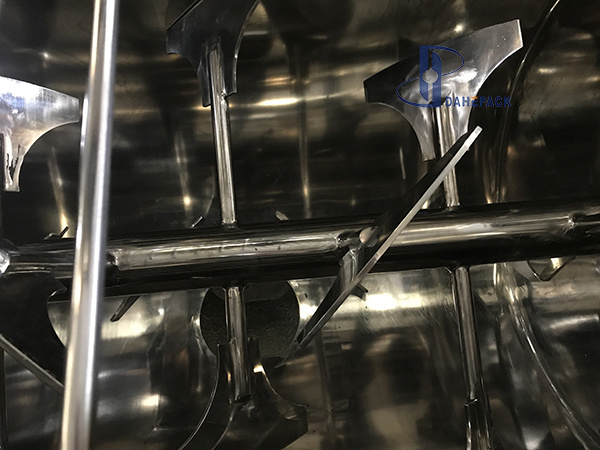

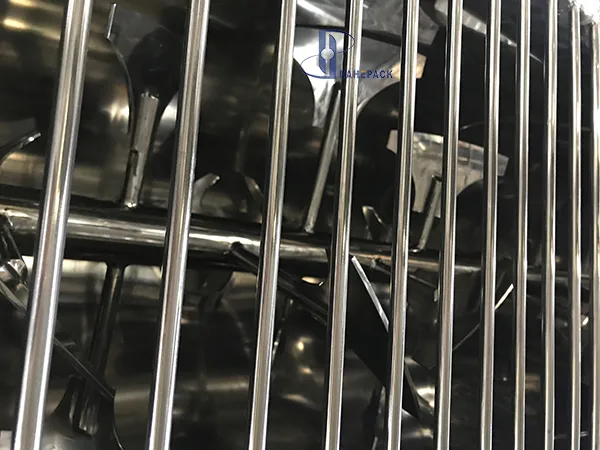

                            Nuts Cocoa beans Paddle blender mixer is suitable use for powder and powder,granule and granule or add a little liquid to mixing.it is widely applied in nuts,beans,feed or other kinds of granule material, Inside of the machine have different angle of blade thrown up the material thus cross mixing.

                            Main features

                            1,High active :Rotate reversely and throw materials to different  angles,mixing time 1-3min

                            2,High uniformity:Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%

                            3,Low residue:Only 2-5mm gap between shafts and wall, open-type discharging hole

                            4,Zero leakage: Patent design and ensure the rotating axle & discharing hole w/o leakage

                            5,Full clean:Full weld and polishing process for mixing hopper, w/o any fastening piece like screw,nut.

                            6,Nice profile: the whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.



                            Main Technical Date

                            Model

                            TDS-200

                            TDS-300

                            TDS-500

                            TDS-1000

                            TDS-1500

                            TDS-2000

                            Effective Volume

                            200L

                            300L

                            500L

                            1000L

                            1500L

                            2000L

                            Fully Volume

                            280L

                            400L

                            680L

                            1280L

                            1820L

                            2450L

                            Loading factor

                            0.6-0.8

                            0.6-0.8

                            0.6-0.8

                            0.6-0.8

                            0.6-0.8

                            0.6-0.8

                            Turning Speed

                            53rpm

                            53rpm

                            45rpm

                            45rpm

                            39rpm

                            39rpm

                            Total Weight

                            450kg

                            680kg

                            980kg

                            1350kg

                            1650kg

                            2300kg

                            Total Power

                            4kw

                            5.5kw

                            7.5kw

                            11kw

                            15kw

                            17.5kw

                            Length(L)

                            1630

                            1850

                            2030

                            2550

                            2900

                            3200

                            Width(W)

                            850

                            950

                            1000

                            1230

                            1330

                            1460

                            Height(H)

                            1100

                            1180

                            1330

                            1570

                            1760

                            1880

                            Radius(R)

                            277

                            307

                            377

                            450

                            485

                            534

                            Power Supply

                            3P AC208-415V 50/60Hz


                            Factory

                            Nuts Cocoa Beans Paddle Blender Mixer
                            nuts herb mixing machine Paddle mixer
