Laboratory Liquid Mixer Agitator Machine Mixing Overhead Stirrer

Product Description

Product description

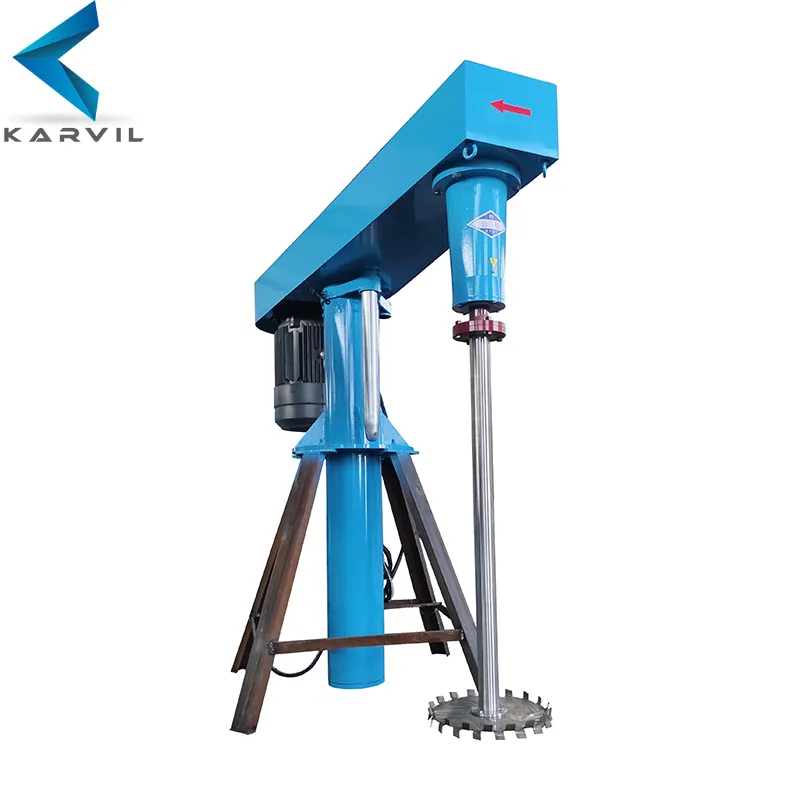

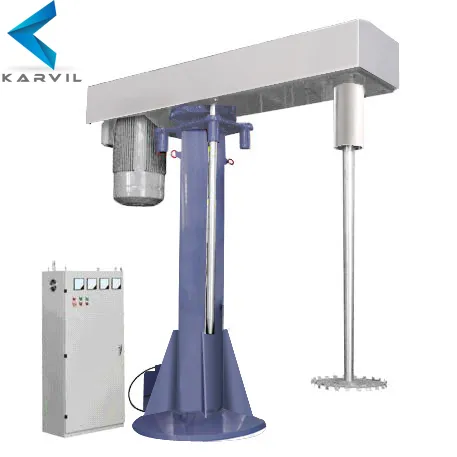

Disperser is a kind of machine which is used for stirring, mixing, dissolving and dispersing the materials in liquid and powder solid.

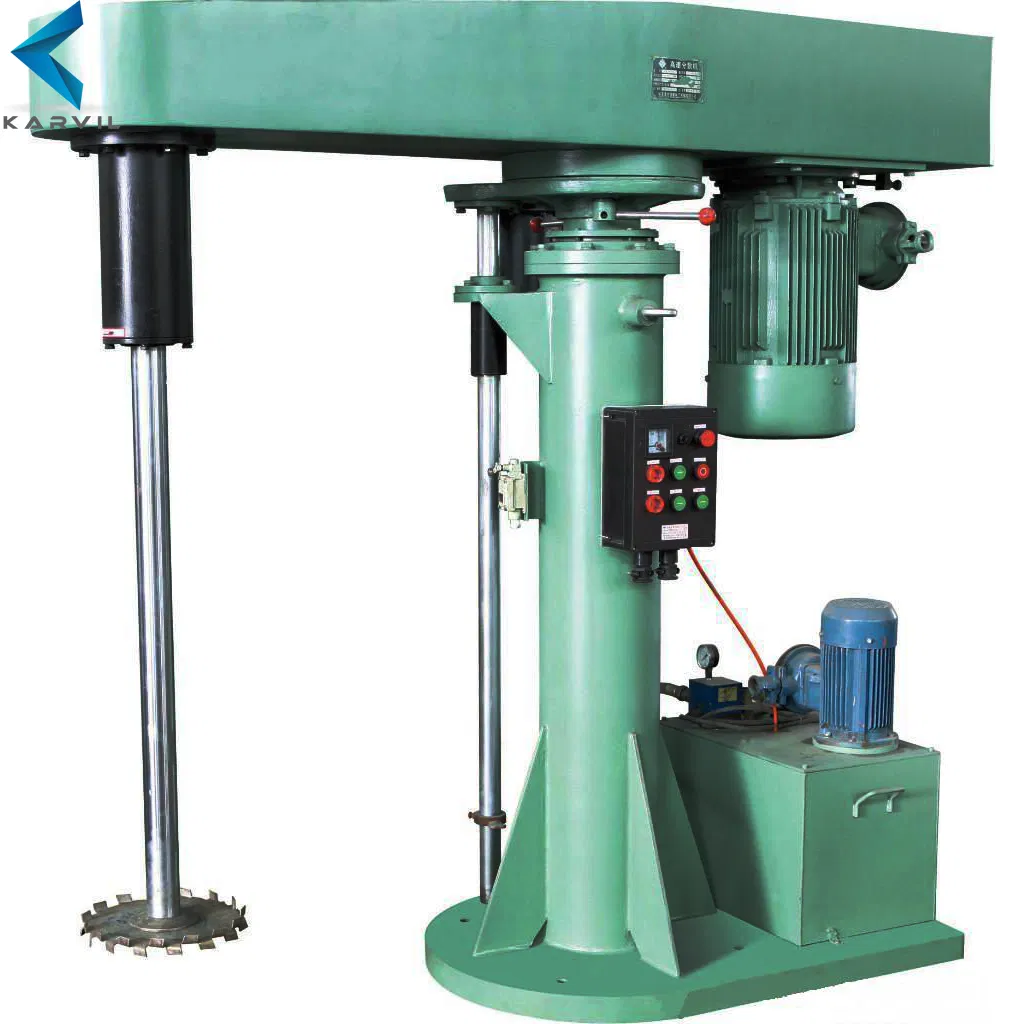

This series of agitators can be easily operated with hydraulic elevation and rotation frame. The high speed of the mixing head makes the raw materials turn over and over so as to shear and mix the materials completely.

Main features and advantages

1. Hydraulic lifting.
2. Reliable frequency rotation speed control for various producing materials.
3. 360 degrees can be achieved for convenient producing position.
4. Equipment materials which touch the processed material: SS304/316L.

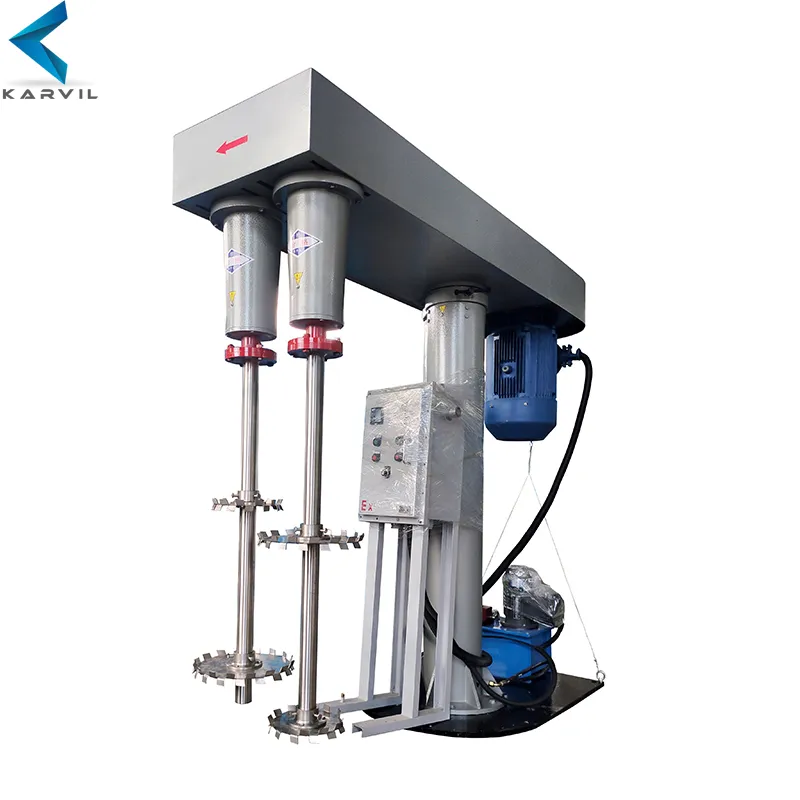

5. Mixer shaft: single shaft/ double shaft/ customized.

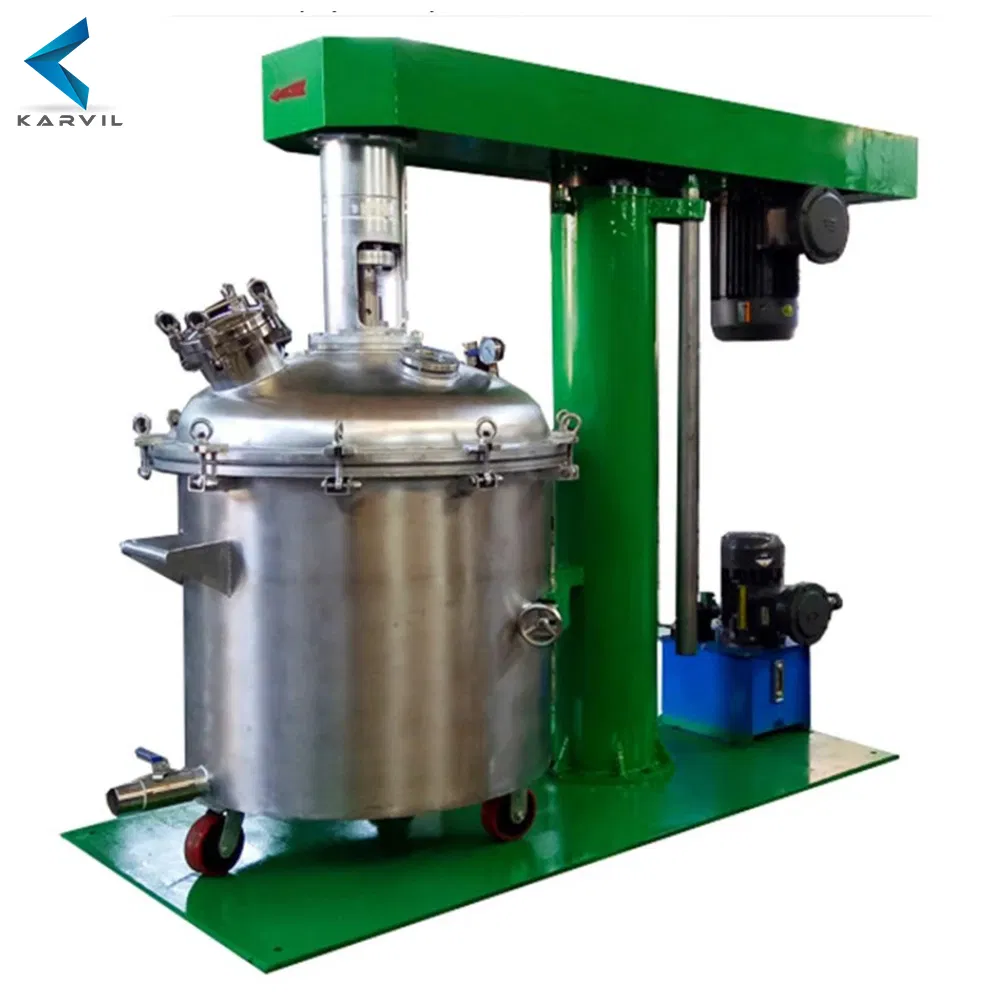

6. Mixing tank: single layer/ jacket heating/ jacket cooling/ vacuum system.
7. Ex-proof system can be optional as required.

Technical Parameters

Model	Power (KW)	Capacity (L)	Disc Dia (mm)	Speed (rpm)	Stroke (mm)	Hydraulic Power (KW)
LM2.2	2.2	50-150	150	0-1440	600	0.75
LM4	4	50-200	200	0-1440	600	0.75
LM5.5	5.5	80-250	200	0-1440	800	0.75
LM7.5	7.5	100-300	250	0-1440	800	0.75
LM11	11	100-400	250	0-1440	800	0.75
LM15	15	150-500	300	0-1440	800	0.75
LM18.5	18.5	200-800	300	0-1440	1100	1.1
LM22	22	200-1000	300	0-1440	1100	1.1
LM30	30	300-1500	350	0-1440	1100	1.1
LM37	37	400-2000	400	0-1440	1100	1.5
LM45	45	500-2500	450	0-1440	1100	1.5
LM55	55	600-3000	450	0-1440	1300	2.2
LM75	75	800-4000	550	0-1440	1800	2.2
LM90	90	1200-6000	600	0-1440	1800	2.2
LM110	110	1600-8000	700	0-1440	2100	3
LM132	132	2000-10000	800	0-1440	2300	3

Applicantion Area
Laboratory Liquid Mixer Agitator Machine Mixing Overhead Stirrer

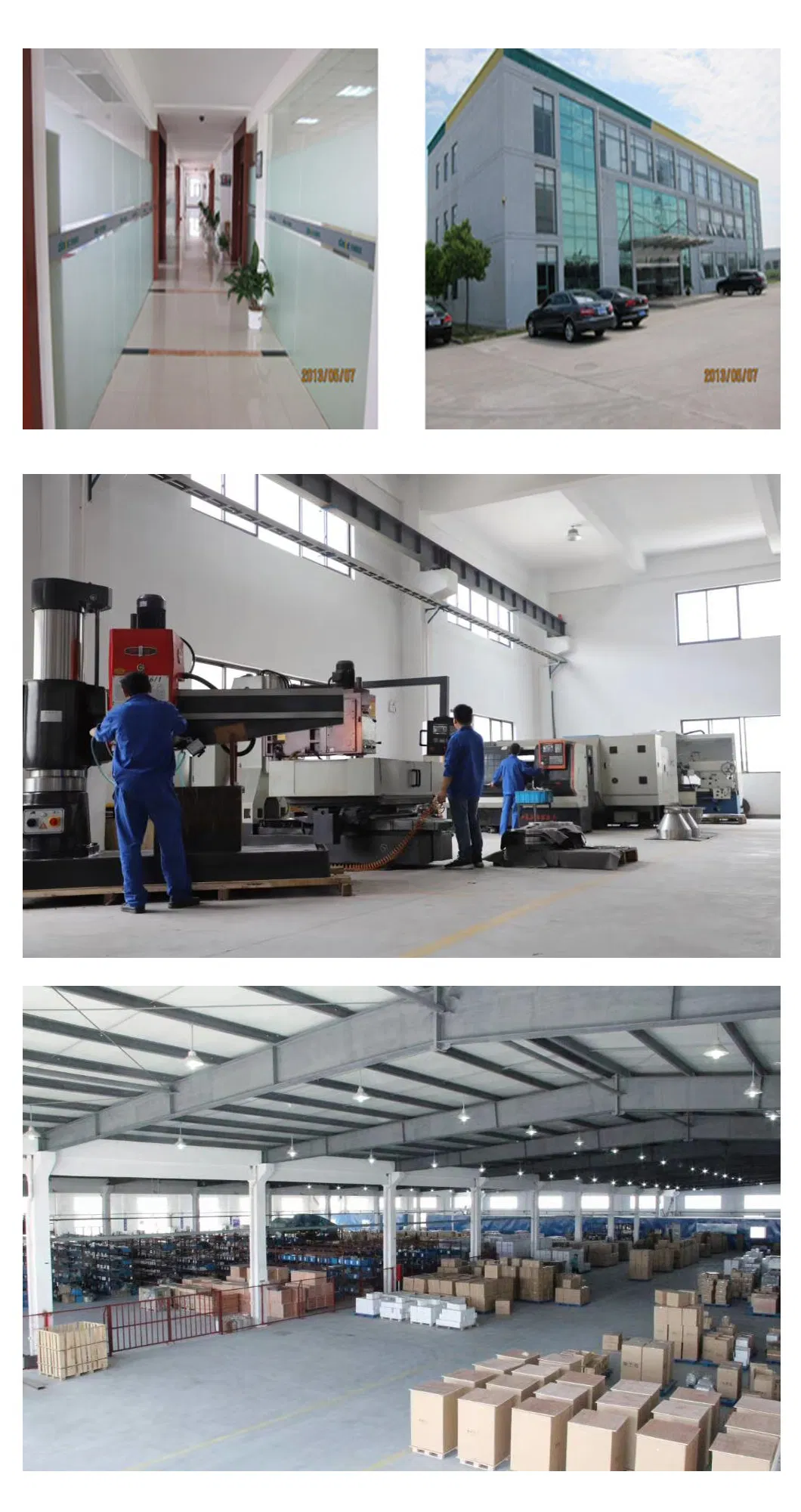

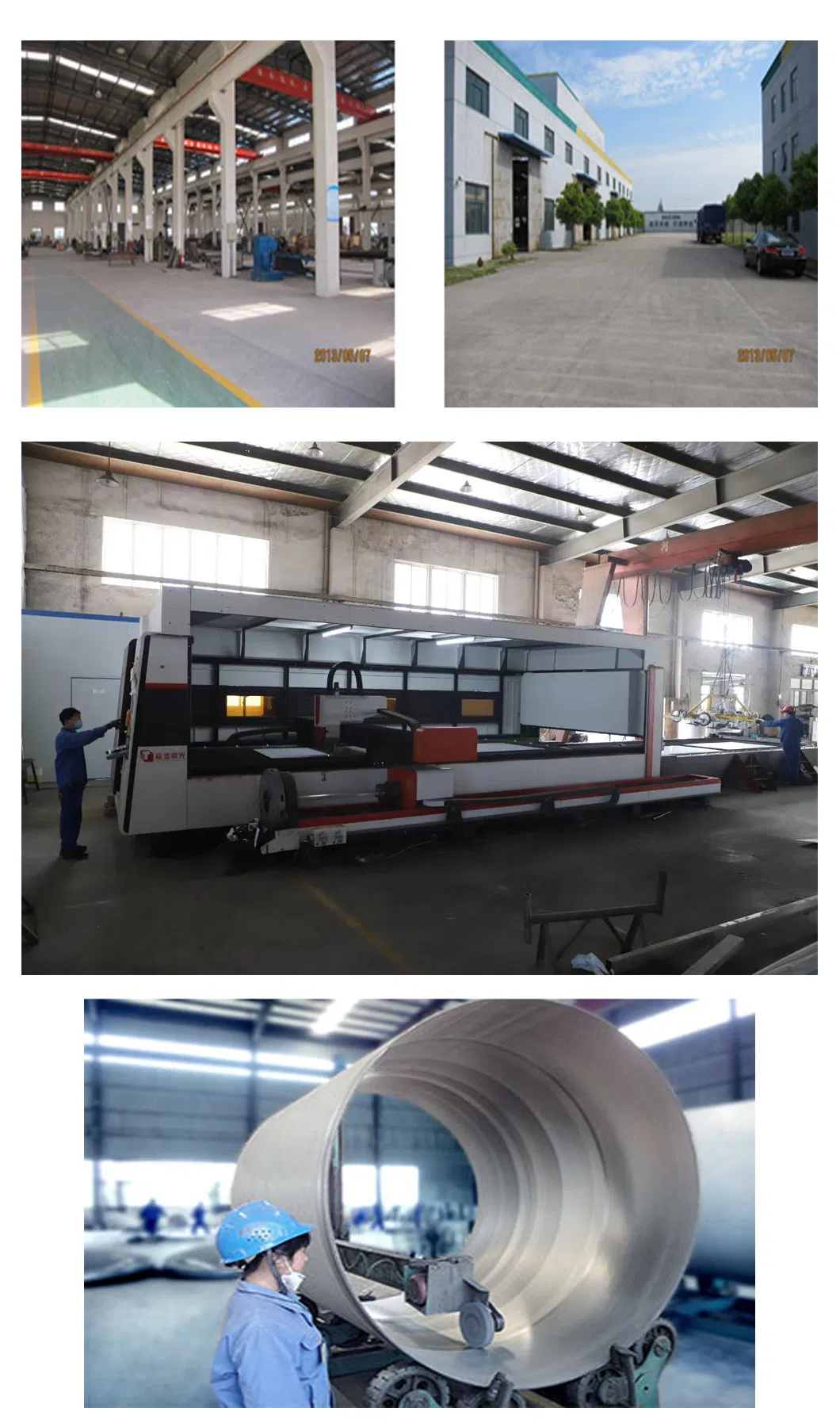

About US

Shandong Karvil Machinery Technology Co., Ltd. is specializing in the research, design, manufacturing and sales of mixing machine, grinding equipment and reaction machine. The company is committed to advanced technology of machine, strict quality control standards and perfect sales service experience to achieve a win-win situation with our customers.
Karvil products have been successful used in the field of powder processing, food, medicine, fine chemical industry, cosmetic, adhesives, paints, inks, dyes, pastes, organic solvents and ceramics, etc.
Karvil engineering team constantly explore new technical points and promote perfect solutions for our clients through efficient communication according to the production application.

Our company has a series of strict standards system to control the purchase of raw materials, the rationality of design, manufacturing process, during inspection, product inspection, which could ensure the high quality of our products and create value for our clients.
