Industrial Stainless Steel Small Scale High Shear Milk Batch Homogenizer
Industrial Stainless Steel Small Scale High Shear Milk Batch HomogenizerIntrodutionMaterial: 304(L) or 316(L)Finish: Mirror or Matt Polish; Ra<0.8umCertification: CE ISO1)Easy operation and elastic movement. 2)Adopt compressed air motor, no leakage pollution, safe and explosion-proof3)Special ......
Send Inquiry
Product Description
Industrial Stainless Steel Small Scale High Shear Milk Batch Homogenizer
Introdution
Material: 304(L) or 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO
1)Easy operation and elastic movement.
2)Adopt compressed air motor, no leakage pollution, safe and explosion-proof
3)Special processing adopted in appearance, abrasion proof
4)Body use carbon steel print coloring matter, it can also be designed as stainless steel polished body
5)Match sterring wheel with brake for convenient movement
Application
It is used for homogenizing and emulsifying creams with middle and low viscosity and suitable for most ingredients. Special stator and rotor generate strong cutting, milling, hitting and turbulence so that emulsifies water and oil, and then granule diameter reach stable status(1-2um)
Working Method
High Shear Batch Emulsifier(mixer) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.
Features
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase

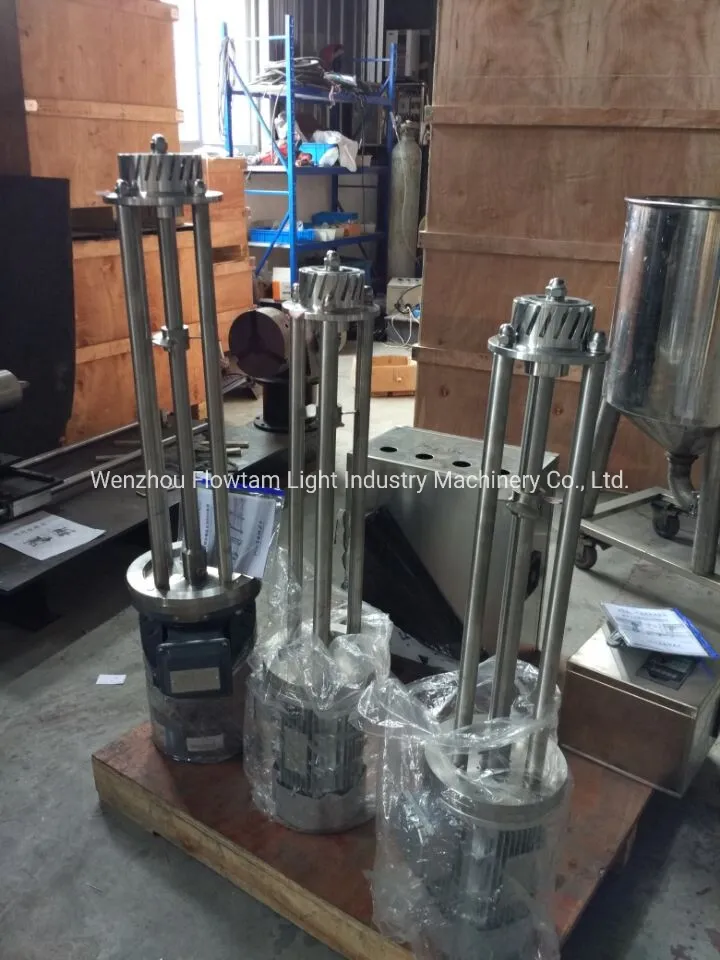

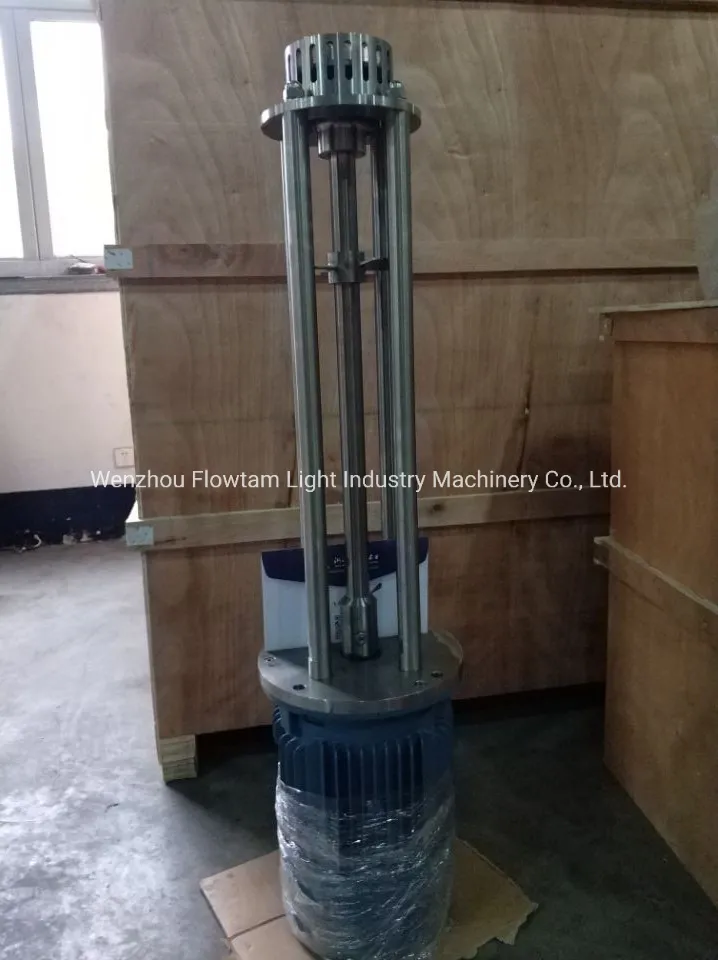

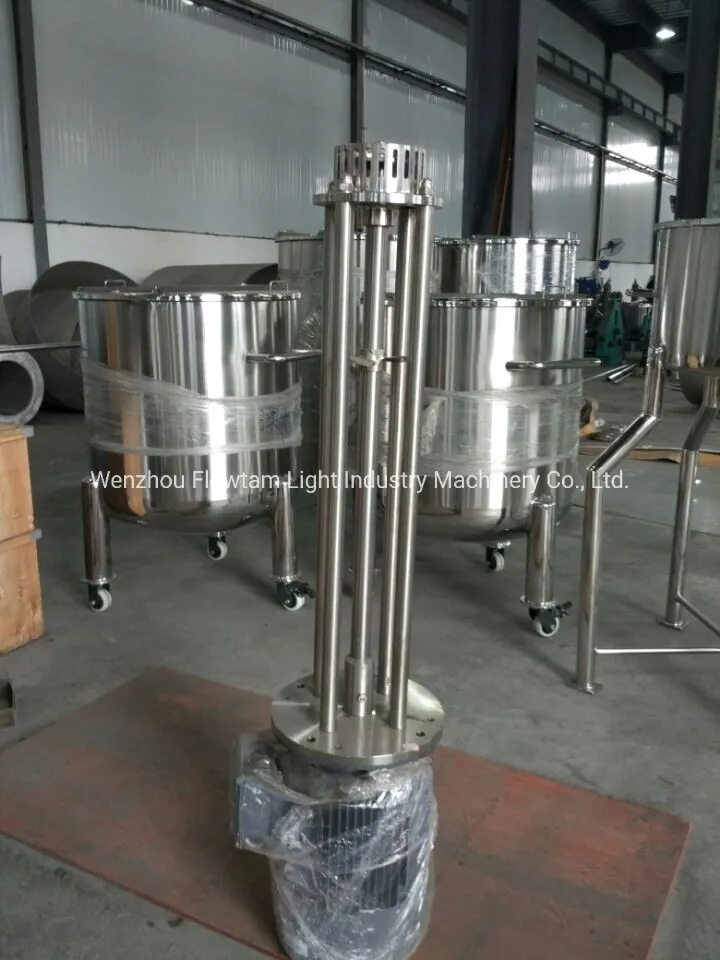

Mixer pictures for your reference:
Teachnical Parameters

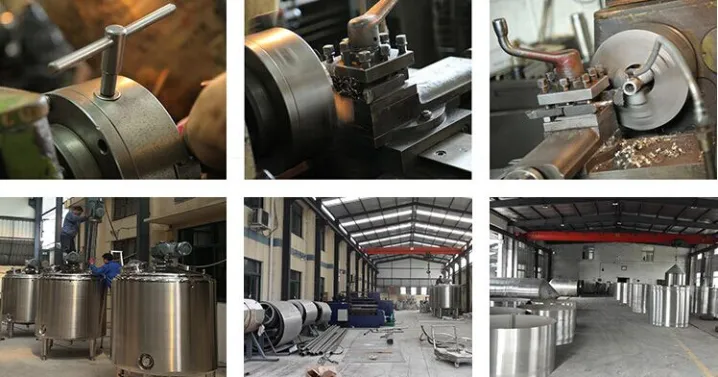

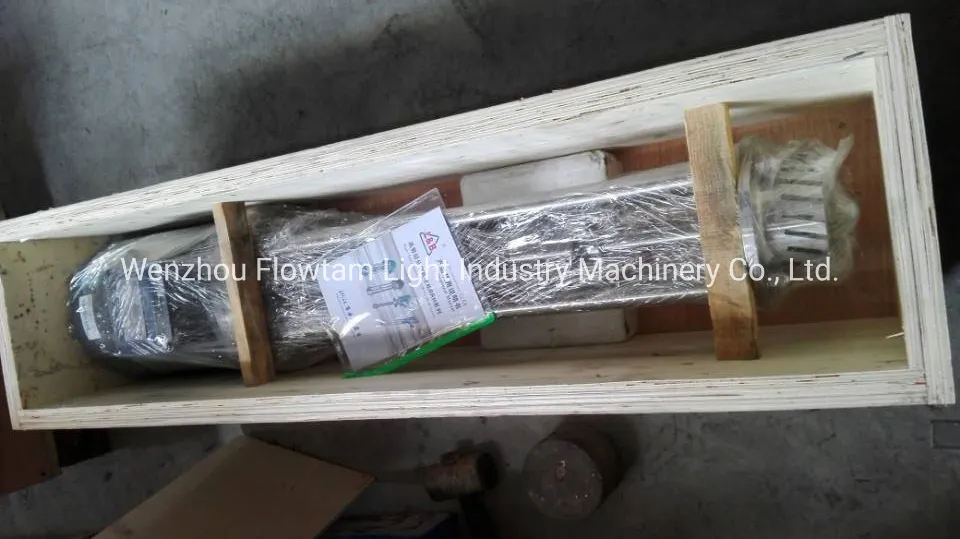

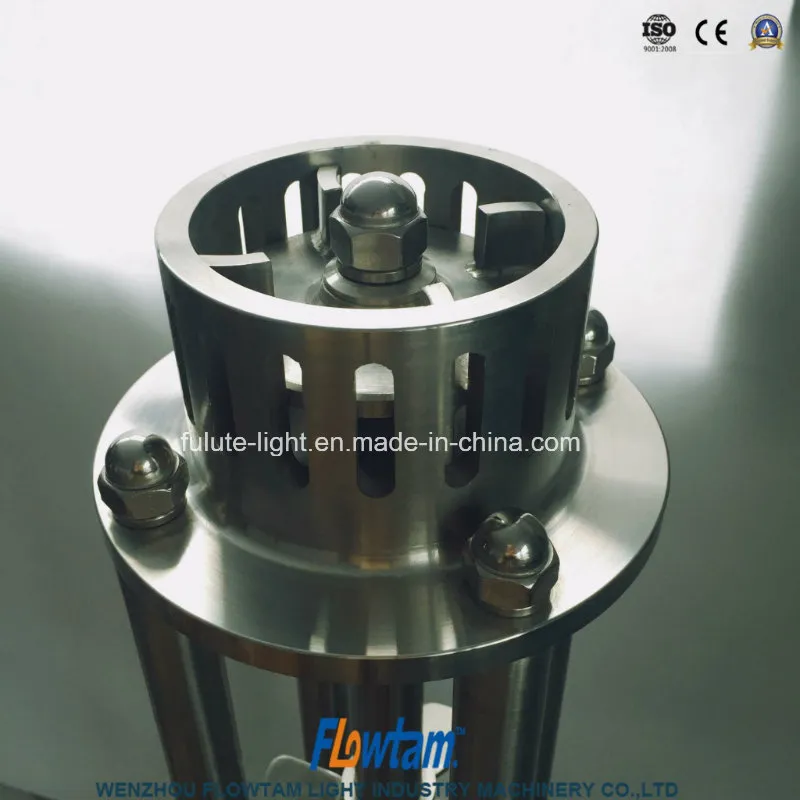

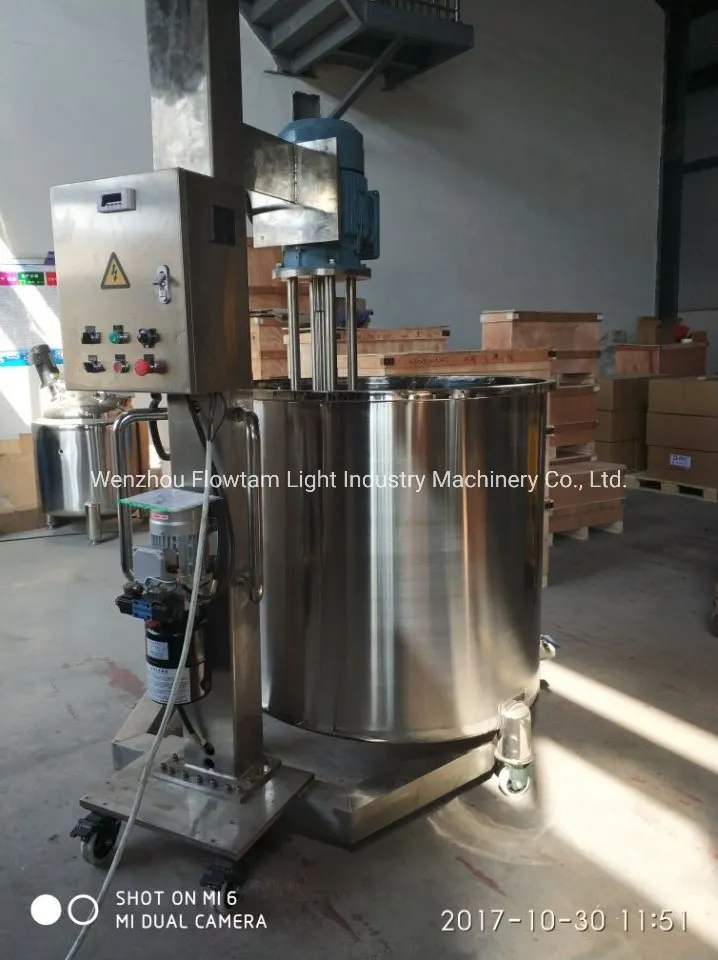

More Pictures for your reference
Company Info:
Feel Free To Contact Us For More Details And Welcome To Visit Our Factory!
Introdution
Material: 304(L) or 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO
1)Easy operation and elastic movement.
2)Adopt compressed air motor, no leakage pollution, safe and explosion-proof
3)Special processing adopted in appearance, abrasion proof
4)Body use carbon steel print coloring matter, it can also be designed as stainless steel polished body
5)Match sterring wheel with brake for convenient movement
Application
It is used for homogenizing and emulsifying creams with middle and low viscosity and suitable for most ingredients. Special stator and rotor generate strong cutting, milling, hitting and turbulence so that emulsifies water and oil, and then granule diameter reach stable status(1-2um)
Working Method
High Shear Batch Emulsifier(mixer) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.
Features
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase
Mixer pictures for your reference:
Teachnical Parameters
| Model | Power(kw) | Speed(rpm) | Length(mm) | Handing Capacity(L/H) |
| BRH-80 | 1.1 | 2800 | 350 | 10-40 |
| BRH-90 | 1.5 | 2800 | 350 | 10-50 |
| BRH-100 | 2.2 | 2800 | 650 | 50-100 |
| BRH-120 | 3 | 2800 | 750 | 100-200 |
| BRH-120A | 4 | 2800 | 750 | 100-300 |
| BRH-140 | 5.5 | 2800 | 900 | 200-600 |
| BRH-140A | 7.5 | 2800 | 900 | 200-800 |
| BRH-160 | 11 | 2800 | 1050 | 500-1500 |
| BRH-180 | 18.5 | 2800 | 1200 | 600-2000 |
| BRH-200 | 22 | 1400 | 1200 | 800-2500 |
| BRH-220 | 30 | 1400 | 1355 | 1000-3500 |
| BRH-240 | 45 | 1400 | 1395 | 1500-5000 |
| BRH-270 | 55 | 1400 | 1600 | 2000-8000 |
| BRH-290 | 75 | 1400 | 1650 | 3000-10000 |
