Hot Sell Vacuum Homogenizing Mixing Emulsifier Petroleum Jelly Making Machine

Product Description

Hot Sell Vacuum Homogenizing Mixing Emulsifier Petroleum Jelly Making Machine

Petroleum Jelly Making Machine Product Description:

Model	Effective capacity	Homogenizer motor		Stir motor			Vacuum pump		Heating power
Model	Effective capacity	kW	r/min	kW	r/min	kW	Limit vacuum	Electric heating	Steam heating
FME-200	200	5.5	0-3300	1.5	0-65	2.2	-0.09	28	10
FME-300	300	5.5	0-3300	2.2	0-65	2.2	-0.085	32	12
FME-500	500	7.5	0-3300	4	0-60	4	-0.085	50	16
FME-800	800	11	0-3300	5.5	0-60	4	-0.08	65	25

(The parameters are for reference only,the product depend on actual items.)

Petroleum Jelly Making Machine Field And Usage:

The vacuum emulsifier is professionally designed according to the ointment manufacturing process of
cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump,
hydraulic system, dumping system, electric control system and work platform etc. The machine unit is
featured by simple operation, stable performance, good homogenizing performance, high production
efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.

Petroleum Jelly Making Machine Main Composition:

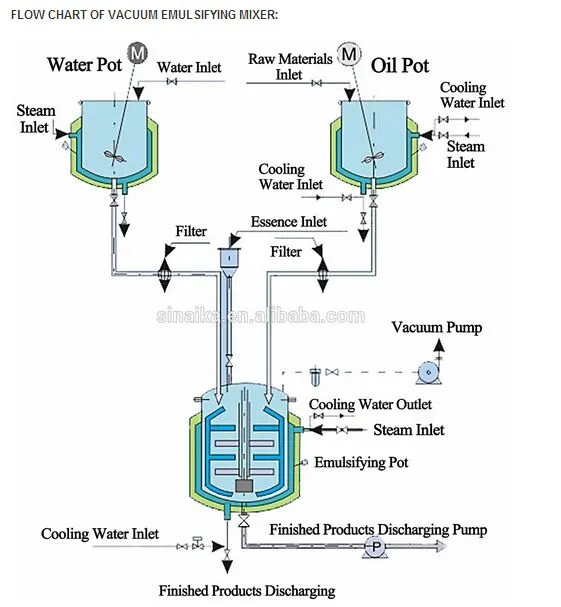

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), electric control system (PLC is optional), operation platform, etc.

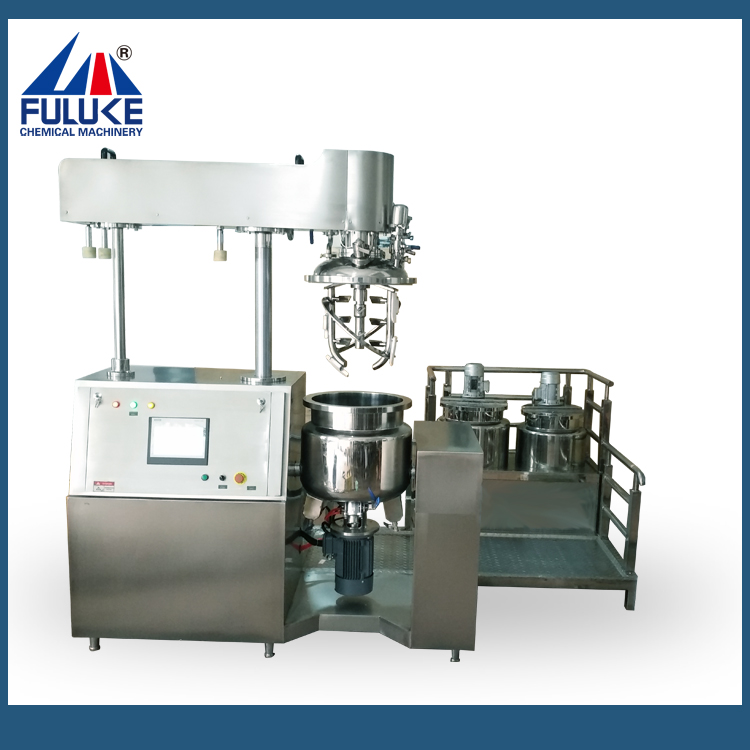

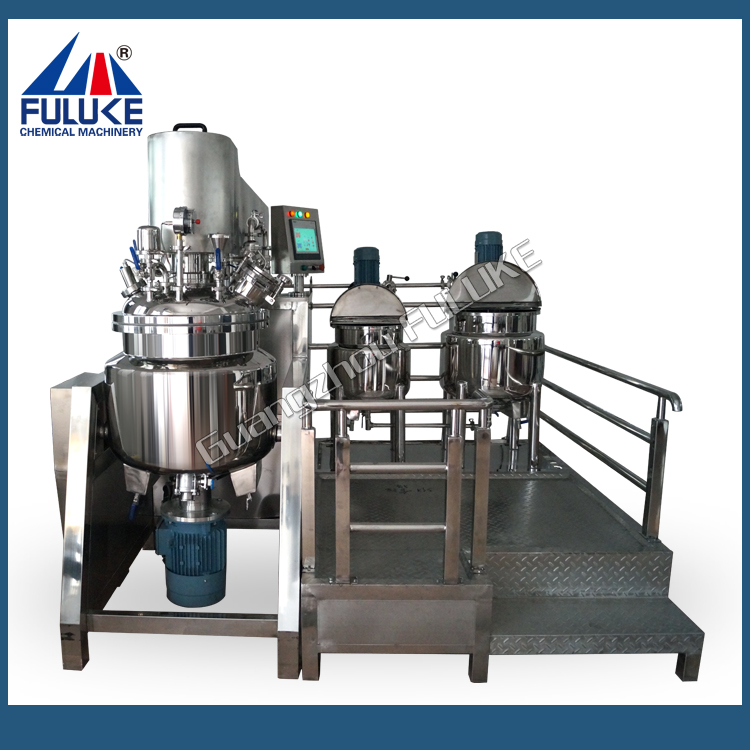

Petroleum Jelly Making Machine Product Picture:

Petroleum Jelly Making Machine And Features:

1. The vacuum emulsifiers produced by our company include many varieties. The homogenizing systems include upper homogenization, lower homogenization, internal and external circulating homogenization. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single -cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customer's requirements.
2. The triple mixing adopts the imported frequency converter for speed adjusment, which can meet different technological demands.
3. The homogenizing structure made through German technology adopts the improted double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4,200rpm and highest shearing fineness can reach 0.2-5μm.
4. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust.
5. The emulsifying pot lid can adopt lifting system, easy to clean and the cleaning effect is more abvious, the emulsifying pot can adopt tilt discharge.
6. The pot body is welded by imported three-layer stainless steel plate. The tank body and pipes adopt mirror polishing, which fully meet the international standards.

Petroleum Jelly Making Machine Analysis table:

Petroleum Jelly Making Machine Packing & Delivery:

Packaging Details:	Packaging Details:Wooden case Delivery Detail:15days
Delivery Detail:	15days for multifunctional mixer

Petroleum Jelly Making Machine Characteristics:

1.The pot can heat by steam and cool by water efficiency.
2.The material sucking (AES) homogenizer is adopted to accelerate the dissolution and alleviate labor intensity.
3.The whole machine has compact structure with convenient operation.
4.If it is allocated with heating water furnace , the plate type heat exchanger will make the using effect better .

Characteristic
Model	FLK-FMB-500 emulsifying cosmetic machine
Inner Pot	Material :Stainless Steel 316L ;Thickness:6mm
Jacket	Material :Stainless Steel 304L ;Thickness:3mm
Pot Cover	Material :Stainless Steel 316L ;Thickness:6mm
Mixing motor	2.2KW
Blending rotation speed	0~65 r/min
Homogenizer power	7.5KW
Homogenizing rotation speed	3000 r/min
Heating	Steam/ Electric

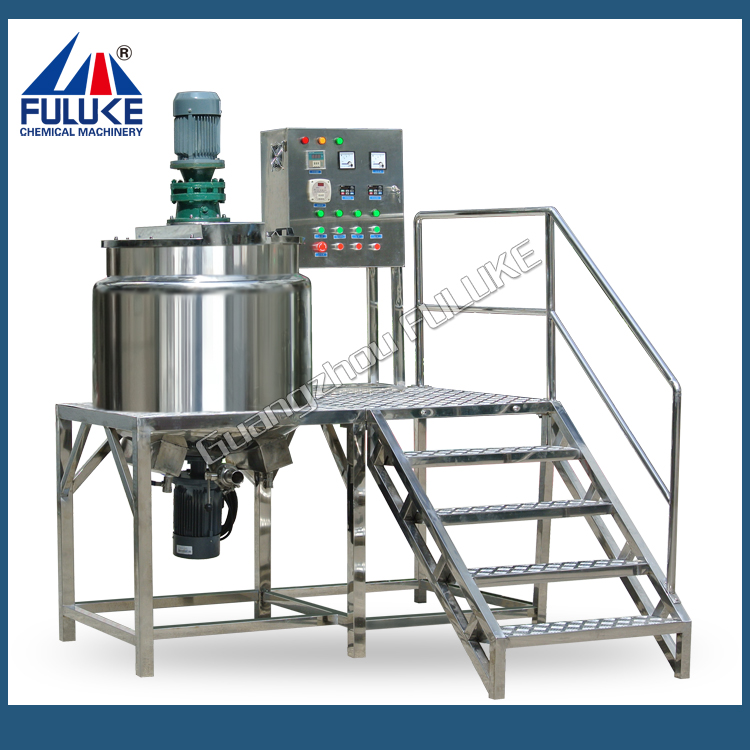

Petroleum Jelly Making Machine Detail Picture :

Petroleum Jelly Making Machine Material Sources & Certificates:

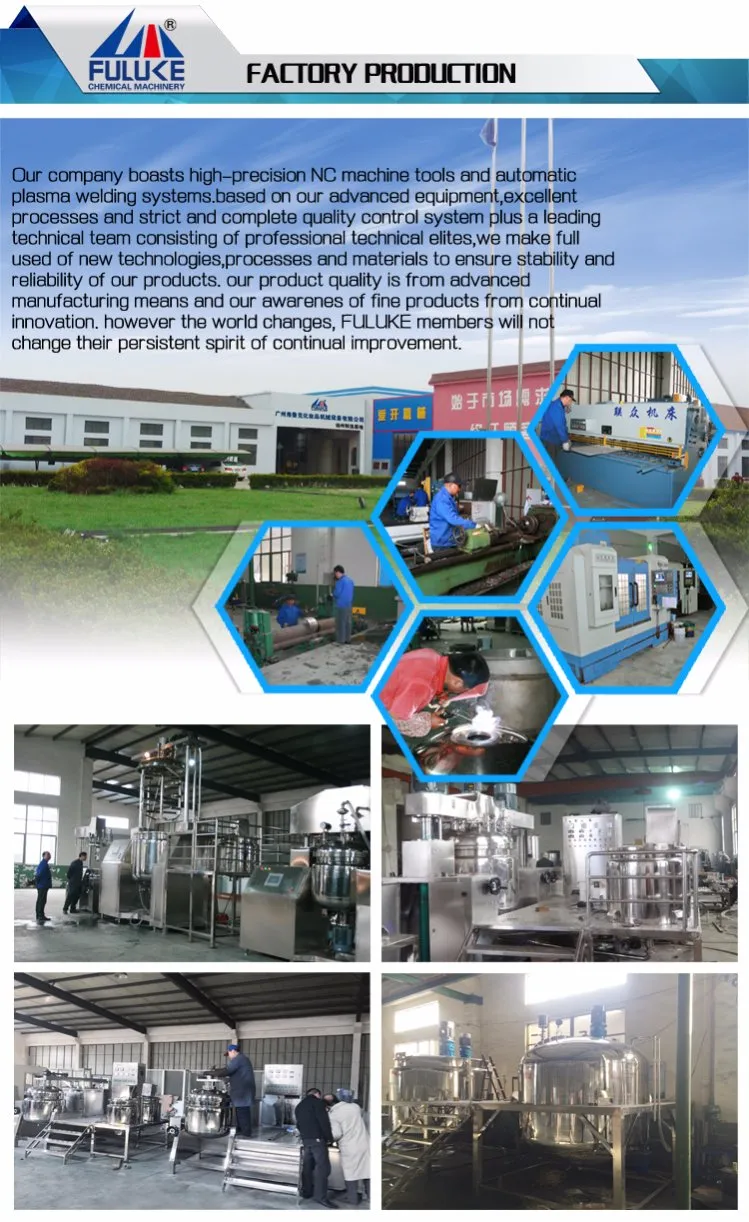

Petroleum Jelly Making Machine Company & Factory:

Hot Sell Vacuum Homogenizing Mixing Emulsifier Petroleum Jelly Making Machine

Hot Sell Vacuum Homogenizing Mixing Emulsifier Petroleum Jelly Making Machine

Petroleum Jelly Making Machine FAQ:

1.Q:Are you a factory?

A:Yes,our factory is in Guangzhou, China,warmly welcome to visit us.

2.Q:Do you provide after-sale service?

A:Sure, we have a good after sale service.

3.Q:what is your advantage?

A:We have the high quality ,and the good factory price.

4.Q:What about the installation?

A: Our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.

5.Q:How can you control the quality and delivery?

A: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .

Petroleum Jelly Making Machine service:
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.We will send our technical enginner to your country to do installation, and training.
3.After our machine arrived to your country, we can send our technician to do the installation and training, and your part bear the airplane fee, the local accommadation and time fee.
4.One year free spare part free with our machine.
5.One year warranty
