High Speed Emulsifier Mixer Homogenizer Machine for Shampoo Lotion Cream
High speed emulsifier mixer homogenizer machine for shampoo lotion creamHigh speed emulsifier mixer homogenizer machine for shampoo lotion cream Application widely useHigh speed emulsifier mixer homogenizer machine for shampoo lotion cream intorudceMaterial: 304 stainless steel. Inner wall, jacket, ......
Send Inquiry
Product Description

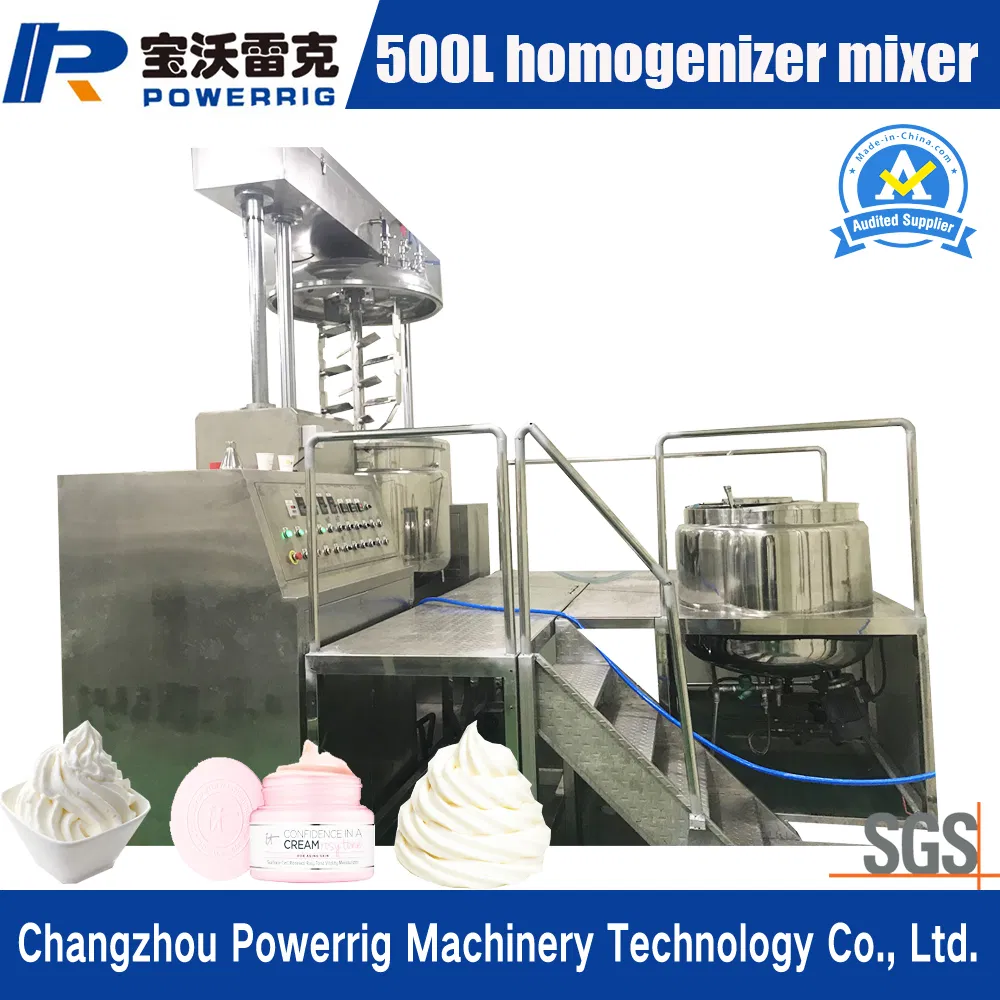

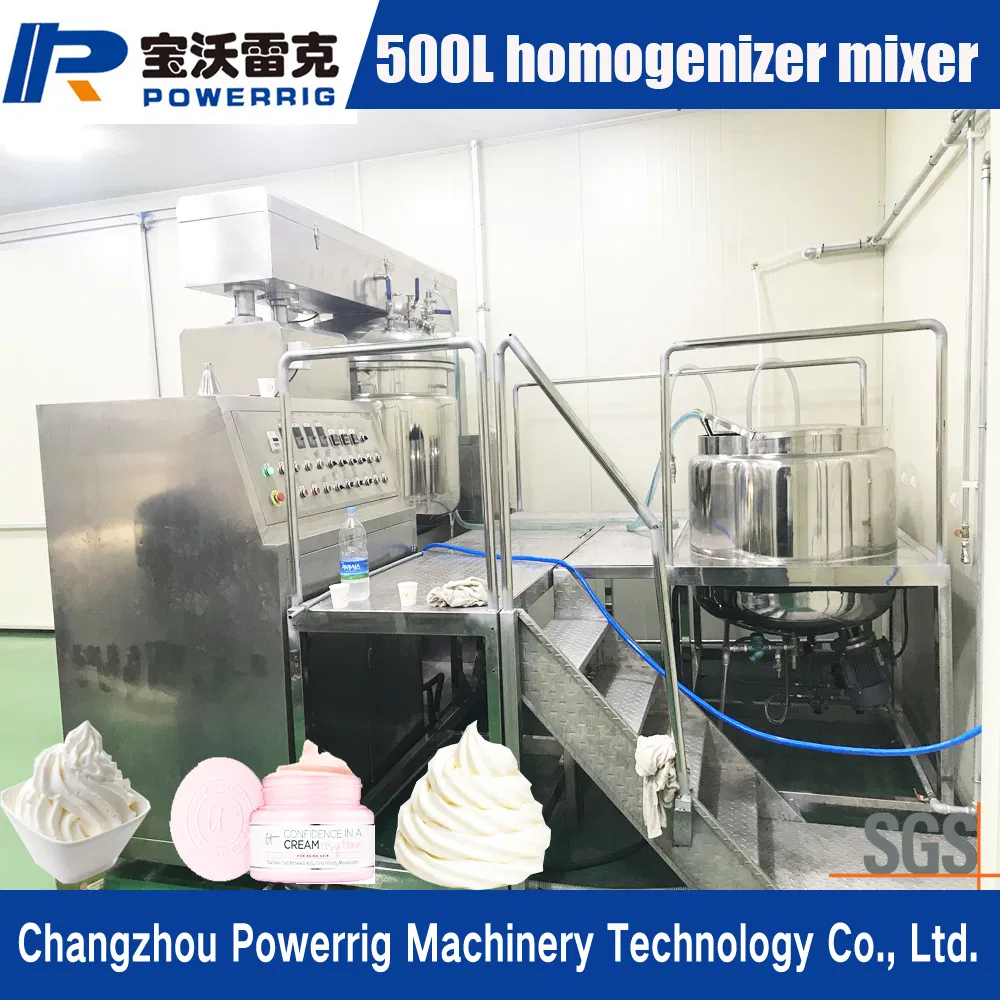

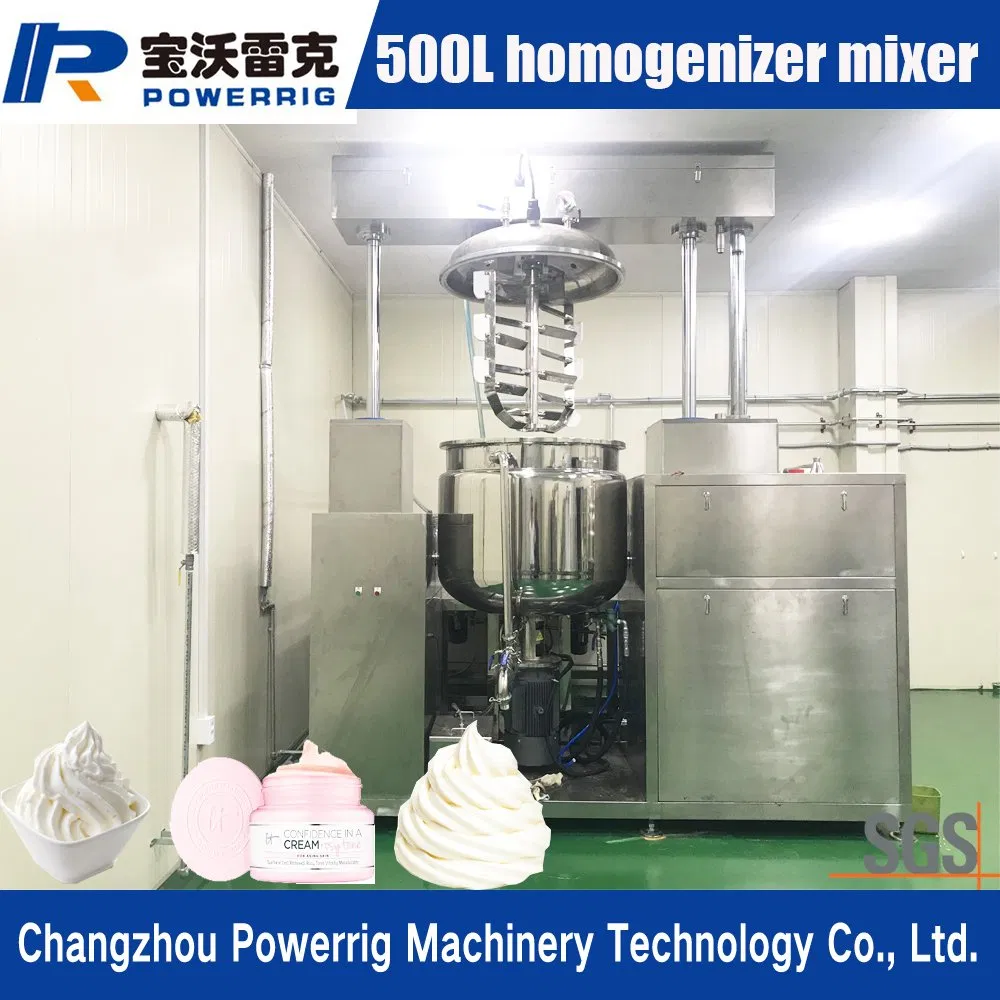

High speed emulsifier mixer homogenizer machine for shampoo lotion cream
High speed emulsifier mixer homogenizer machine for shampoo lotion cream Application widely use
High speed emulsifier mixer homogenizer machine for shampoo lotion cream intorudce
Material: 304 stainless steel. Inner wall, jacket, outer layer all made by 304 stainless steel, inner and outer are polished, the surface handled by special light treatment.
Oil tank and water tank are both double deck, inner and middle wall thickness 5mm, outer layer thickness 3mm.
Heating system: interlayer electric or steam heating, the outer layer covers by asbestos to insulate heat, reducing heat lost and avoiding scalding employees.
Mixing system: both toil tank and water tank assemble disperser of 1.1KW, to make the water and oil heated more quickly and evenly.
Vacuum Emulsifying pot: made of three decks 304 stainless steel. Interlayer thickness 6mm, middle layer thickness 6mm, outer layer thickness 3mm, special light treatment The homogenizer is on the top of the emulsifying pot, adjustable time setting depends on the product homogenization need, voltage 380V, power 7.5KW, made in Shanghai and uses German technology, the highest speed 3500 r/min. The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. A lighting hole on the pot cover to observe the states of homogeneity. Entrance for spots of material provide possibility to add essence and suchlike materials. Either pour-out the material by tilting the pot or from the bottom, the latter way can make the materials enter the filling machine directly for quantitative filling. Easy to clean.
Oil tank and water tank are both double deck, inner and middle wall thickness 5mm, outer layer thickness 3mm.
Heating system: interlayer electric or steam heating, the outer layer covers by asbestos to insulate heat, reducing heat lost and avoiding scalding employees.
Mixing system: both toil tank and water tank assemble disperser of 1.1KW, to make the water and oil heated more quickly and evenly.
Vacuum Emulsifying pot: made of three decks 304 stainless steel. Interlayer thickness 6mm, middle layer thickness 6mm, outer layer thickness 3mm, special light treatment The homogenizer is on the top of the emulsifying pot, adjustable time setting depends on the product homogenization need, voltage 380V, power 7.5KW, made in Shanghai and uses German technology, the highest speed 3500 r/min. The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. A lighting hole on the pot cover to observe the states of homogeneity. Entrance for spots of material provide possibility to add essence and suchlike materials. Either pour-out the material by tilting the pot or from the bottom, the latter way can make the materials enter the filling machine directly for quantitative filling. Easy to clean.
High speed emulsifier mixer homogenizer machine for shampoo lotion cream parameter
| Factory | MIC Machinery Co., Ltd |
| Device Name | 500L Emulsifying Machine |
| Working ability | Design volume: 550L |
| Working volume:450L | |
| Minimum operating volume: 150L | |
| Material | Contact Parts: 304 stainless steel thickness: 6mm |
| Interlayer: 304 stainless steel thickness: 6mm | |
| Outer layer: 304 stainless steel thickness: 3mm | |
| Weight | 2500kg |
| Size | 3000mm×2500mm×3200-4500 mm |
| Service life | 10 years |
| Stirring | Fixed paddle stirring, PE blade Scraping |
| Homogenizer | Power: 7.5KW |
| Motor speed: 3500r/min | |
| Particle size: 0.2-0.6um | |
| Uncapping | Hydraulic lift |
| Heating | Electric heating or steamy heating |
| Discharge | Tilt pot discharge and bottom valve discharge |
| Process parameters | Working pressure: -0.09MPa |
| Flimsy parts | 1 year renewal except artificial |
| Warranty period | 1 year |
High speed emulsifier mixer homogenizer machine for shampoo lotion cream details introduce

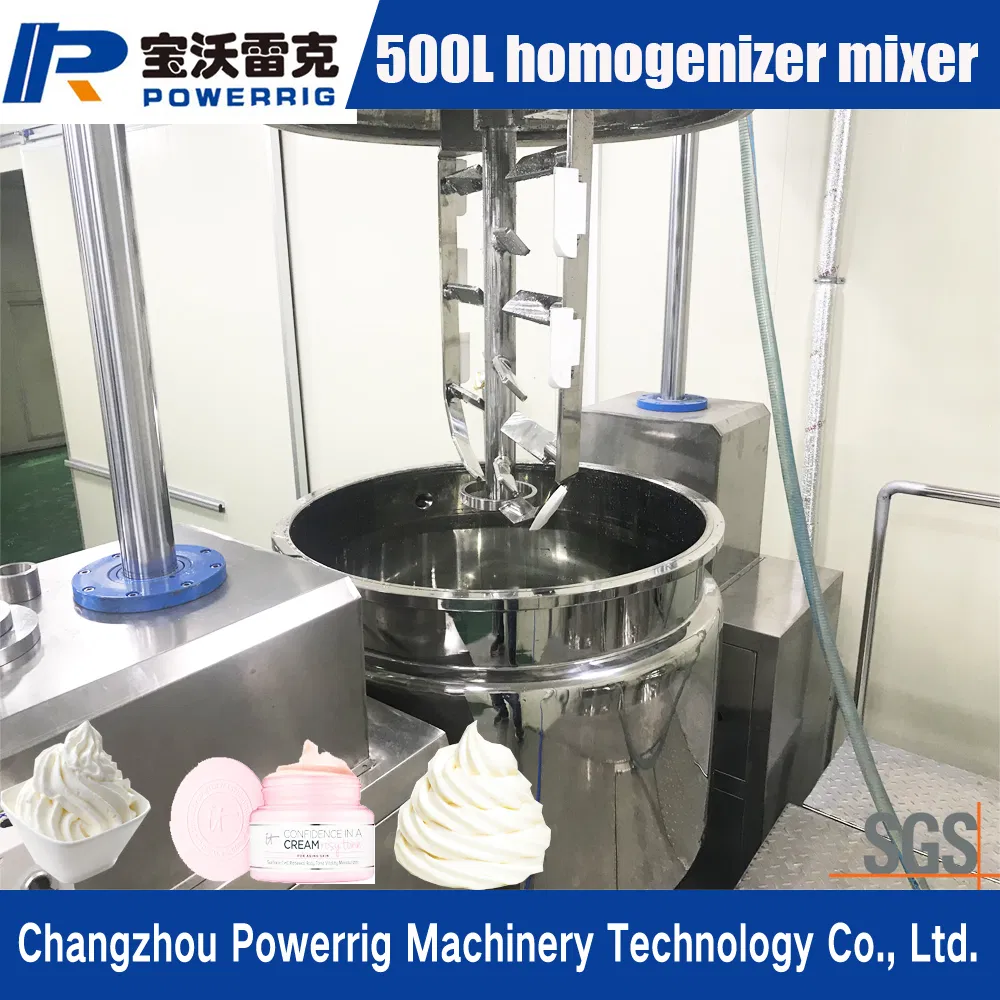

Vacuum Emulsifying pot: Contacting material use SUS316. Other parts use SUS 304.
The homogenizer is on the top of the emulsifying pot, adjustable time setting depends on the product homogenization need.The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. A lighting hole on the pot cover is to observe the states of homogeneity. Entrance for spots of material provides possibility to add essence and suchlike materials. Either pour-out the material by tilting the pot or from the bottom, the latter way can make the materials enter the filling machine directly for quantitative filling. Easy to clean.

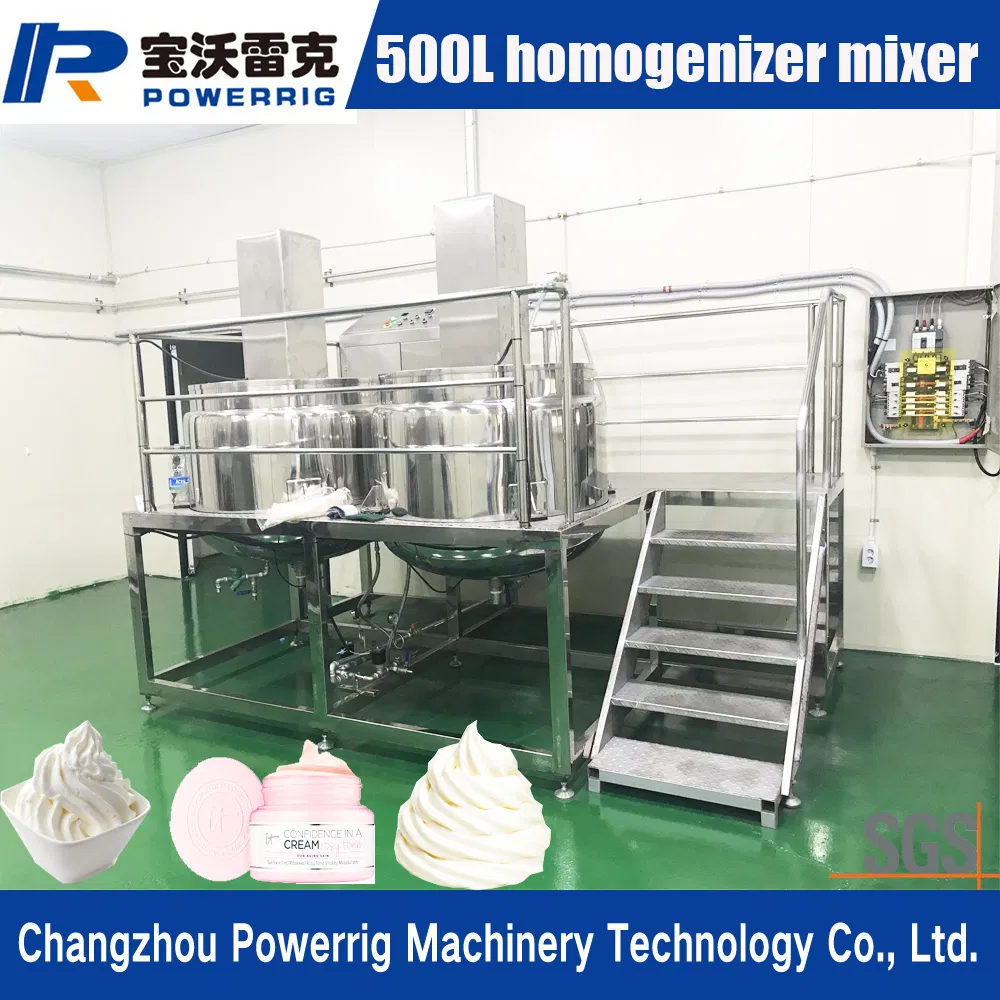

Oil and water tank
Oil and water tank connect with main tank, used to transport Quantitative water and oil to main pot when product material.
Mixing and homogenizer system:The material moves in a high speed between the rotor and stator, what can engender a strong hydraulic shear power to dispersing materials, meanwhile it can engender centrifugal power to extrude, milling, crash the material, ultimately make the material mixing, stirring, diminution to the desired requirements. voltage 380V, power 2.2KW, 10-120 r / min. Monitoring with transparent filter, scraping the interlayer when mixing, frequency control.
Machine packing shipping
After-sale serivce
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
FAQ
Q:How Can I get a detailed quotation ofHigh speed emulsifier mixer homogenizer machine for shampoo lotion cream from you?
Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.
Q:Can your company able to offer 2 years gurantee?
Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.
Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime.
Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line?
I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components.
We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.
Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person.
