Product Description

high quality electric heating mixing tank liquid mixer tank conditioner agitator vessel liquid soap making machine

To be choose best suitable mixing machine in your factory , please follow bellow guide to do :
1. What produce is going to process in this machine?
2. The capacity is ?
3. Pls update above question to our mail or Whataspp , it can save more time to find out which mixing machine will be best for u.

High Quality Electric Heating Mixing Tank Liquid Mixer Tank Conditioner Agitator Vessel Liquid Soap Making Machine

Description

   stainless steel mixing tank could be used in food, beverage, pharmacy, wine and alcohol etc industries. The inside surface finish of stainless steel mixing tank is Mirror polished, Ra<0.4um. The welding are polished to ground smooth.

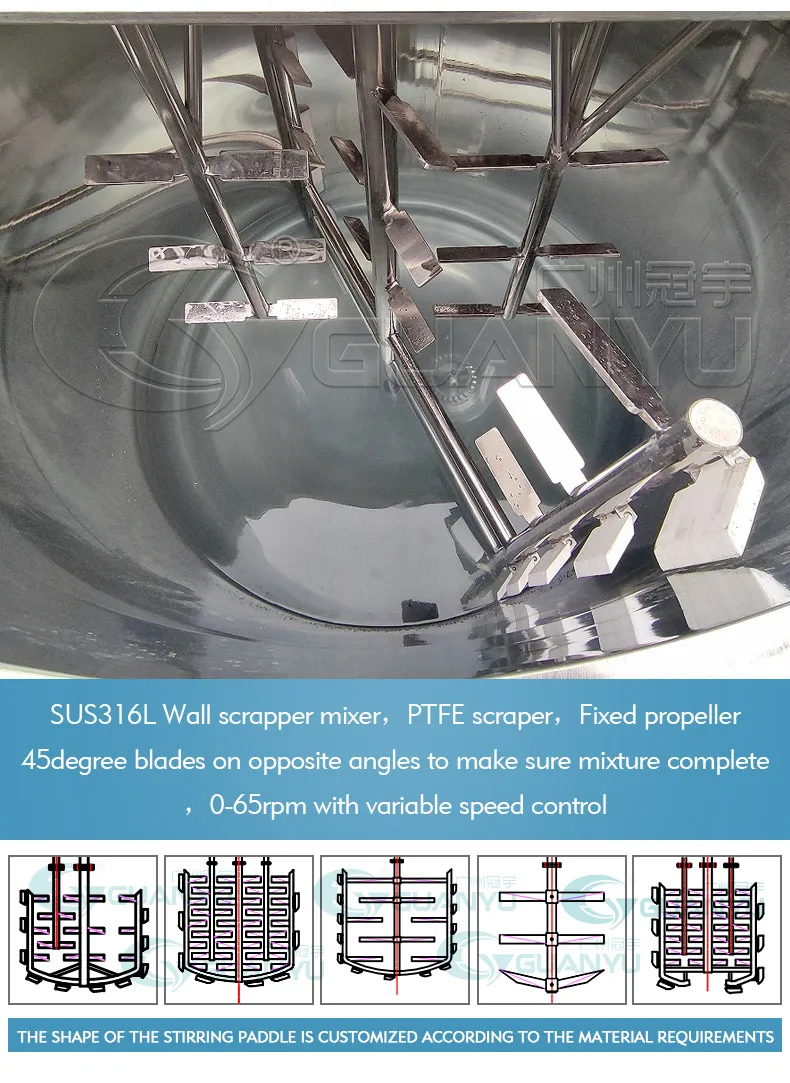

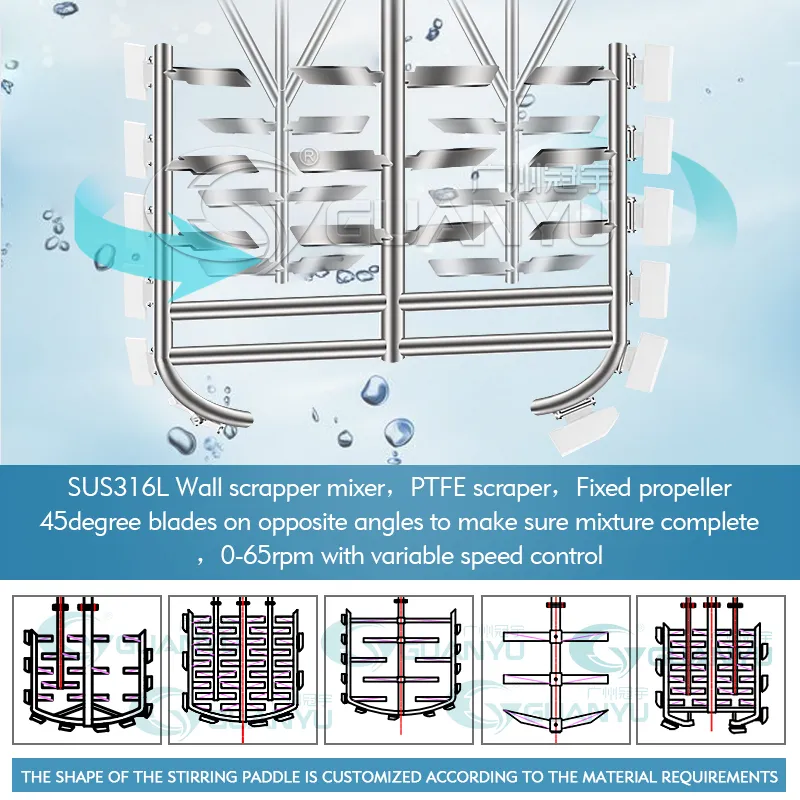

  There are various agitator options of stainless steel mixing tank: impeller type, Anchor type, Turbine type, High shear mixer, magnetic mixer. The mixing tank could be made with or without jacket.

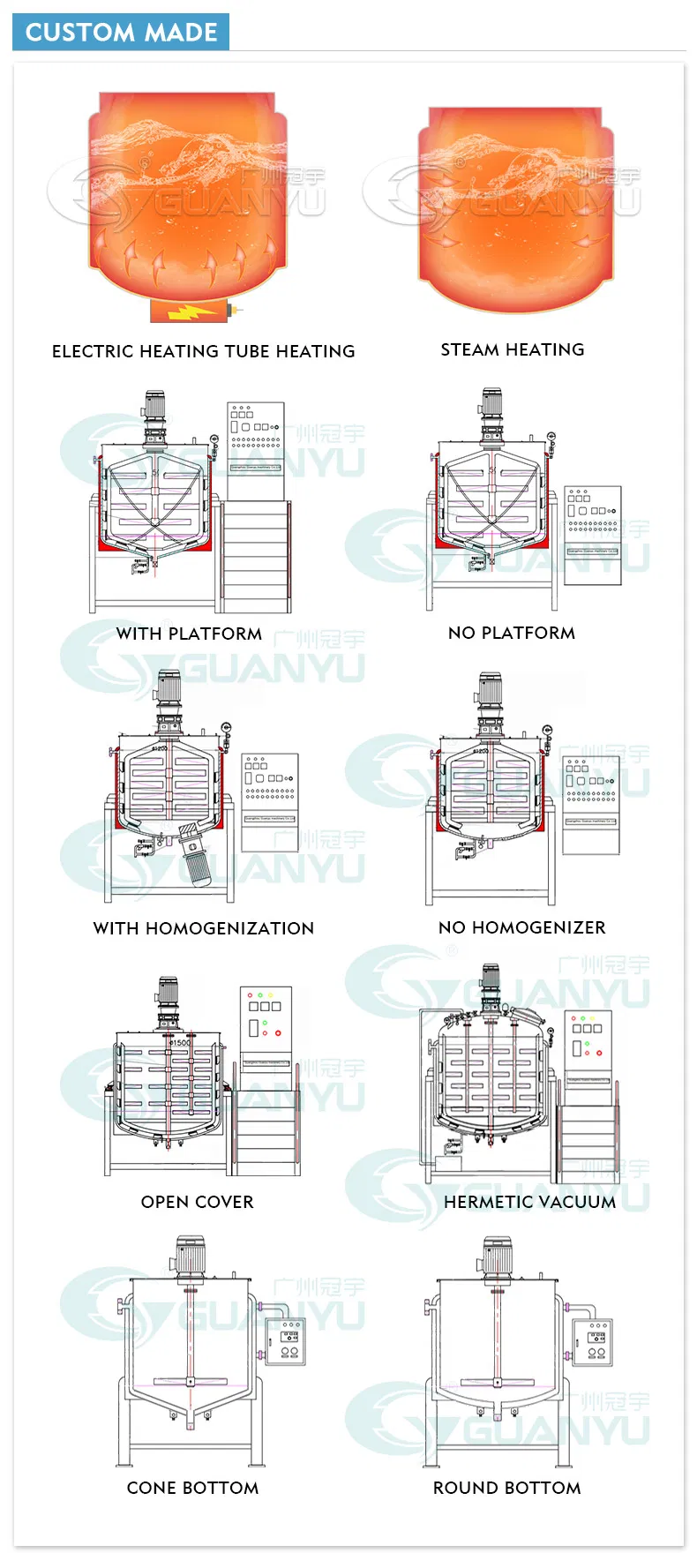

  stainless steel food grade mixing tank could be made with or without jacket. Jacket type including full jacket, Dimple jacket, Heating coils. Heating and cooling type including steam heating and electric heating.

Model	Volume(L)	Blending Power(KW)	Blending Speed(r/min)	Homogenizing Power(KW)	Homogenizing Rotation Speed(r/min)	Heating Method
GYM-200	200	1.5	0-63	4.0	0-3200	Steam Heating Or Electric Heating
GYM-500	500	3.0	0-63	7.5	0-3200
GYM-1000	1000	4.0	0-63	11	0-3200
GYM-1500	1500	5.5	0-63	11-15	0-3200
GYM-2000	2000	7.5	0-63	15-18.5	0-3200
GYM-3000	3000	7.5-11	0-63	18.5-22	0-3200
GYM-5000	5000	11-15	0-63	18.5-22	0-3200

Feature

1.   The mixing tank is made of all stainless steel materials. Its inner wall is made of high-quality 316L stainless steel (The part in contact with the material). The tank and pipe are mirror polished. Complying with GMP requirements and specifications.

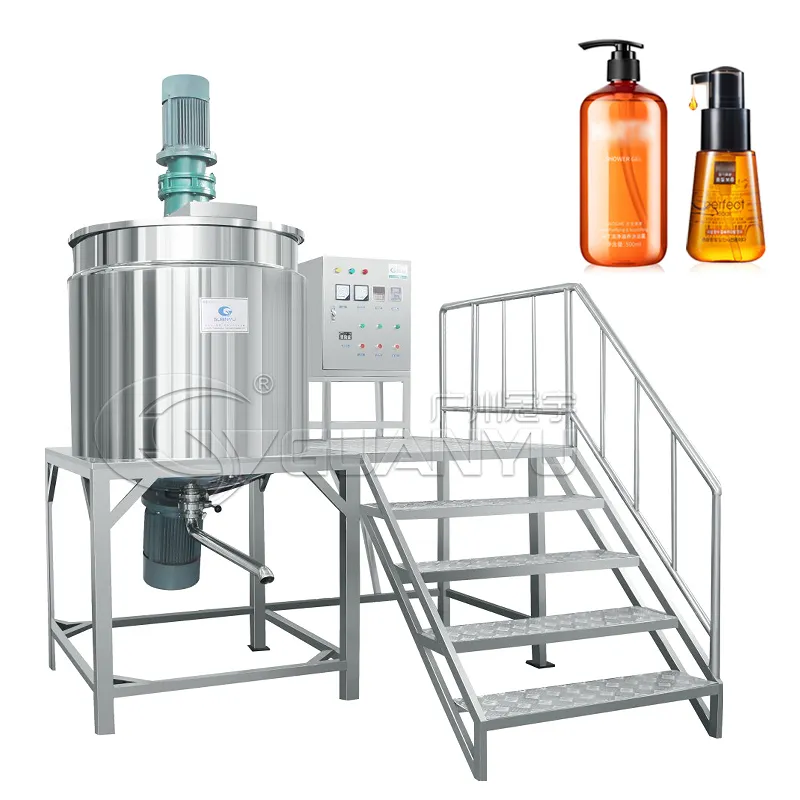

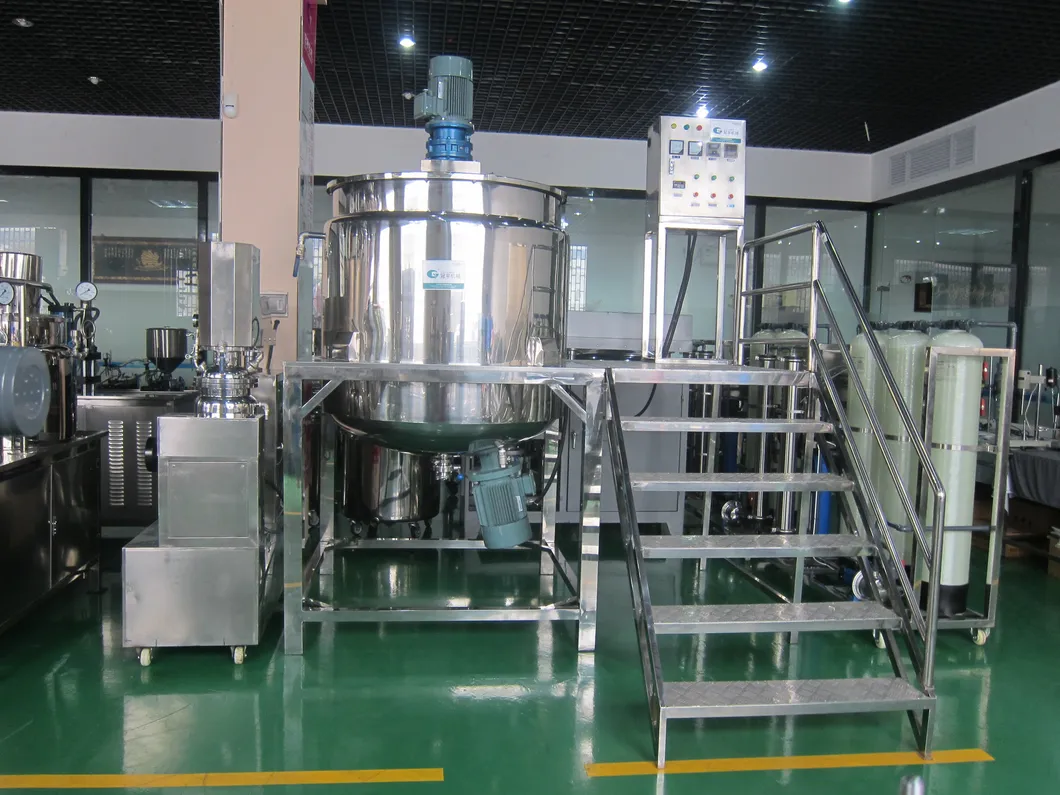

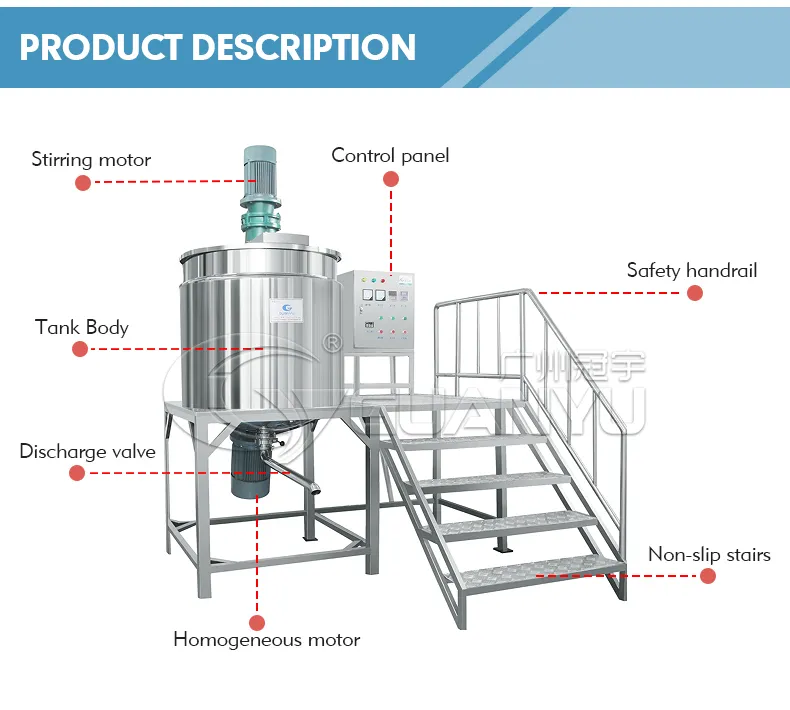

2.   The equipment consists of a stainless steel electric control cabinet and a main pot. The whole machine has a compact structure and it is easy to operate.
3.   You can configure heating pot and cooling pot separately according to actual requirements. The materials can be heated or cooled according to process requirements. The heating method can be steam heating or electric heating.
4.   There are various types of durable agitator blade, with strong mixing strength. It is suitable for the production of different products.
5.   The motor is equipped with an advanced frequency converter, which can adjust the stirring speed according to production requirements.

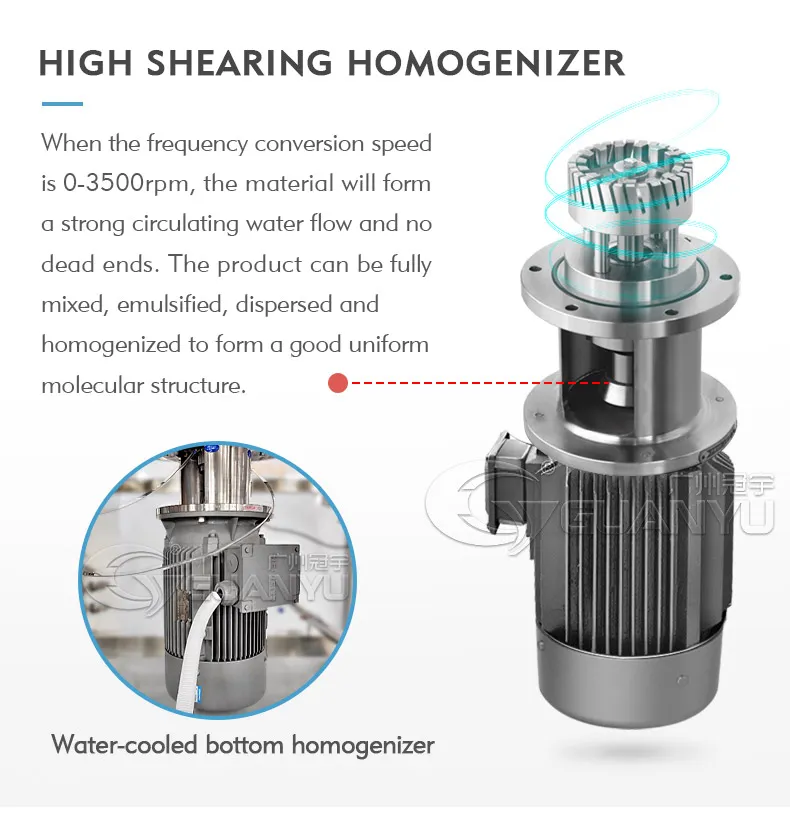

6.   You can choose to configure a AES dissolver to accelerate material dissolution and emulsification. It can save time and labor for you.
7.   The stainless steel electric control cabinet can comprehensively monitor its operation, and it can display data, such as temperature and stirring speed, etc.
8.   It can be equipped with vacuum pump for vacuum bubble extraction (optional).
