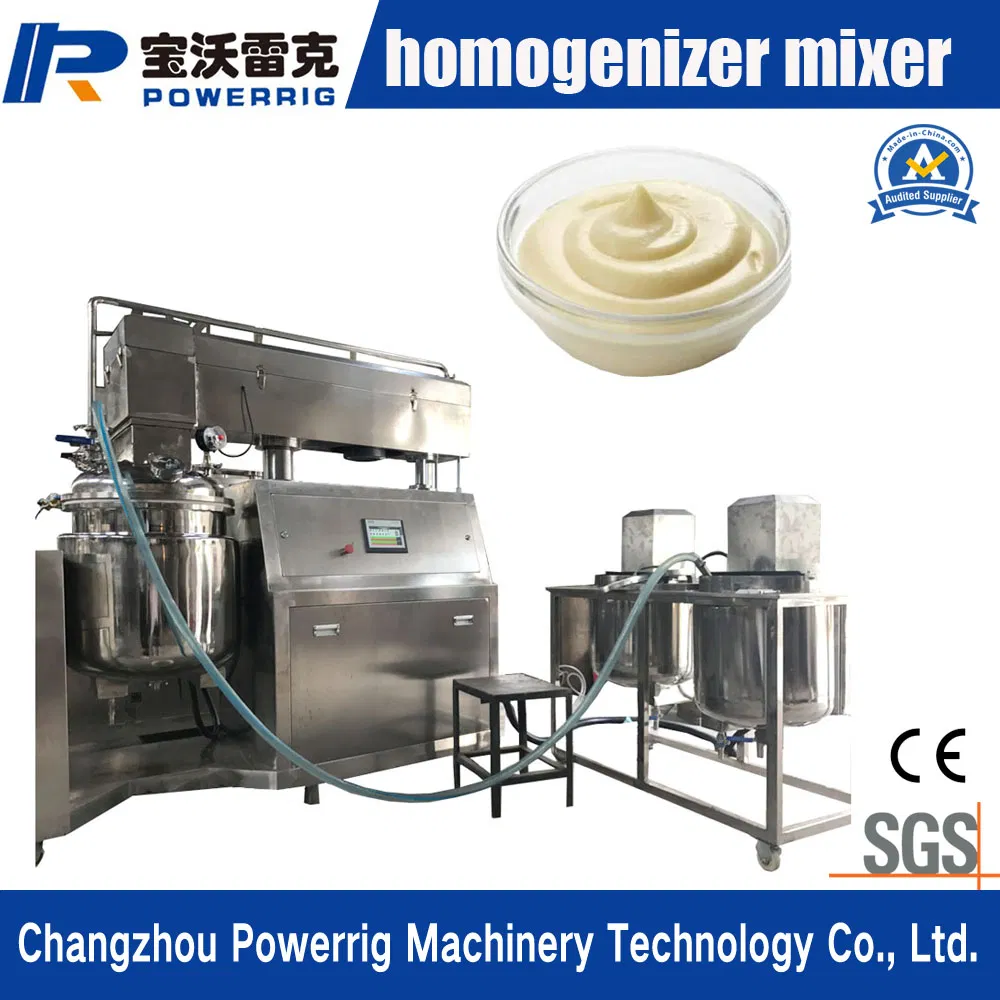

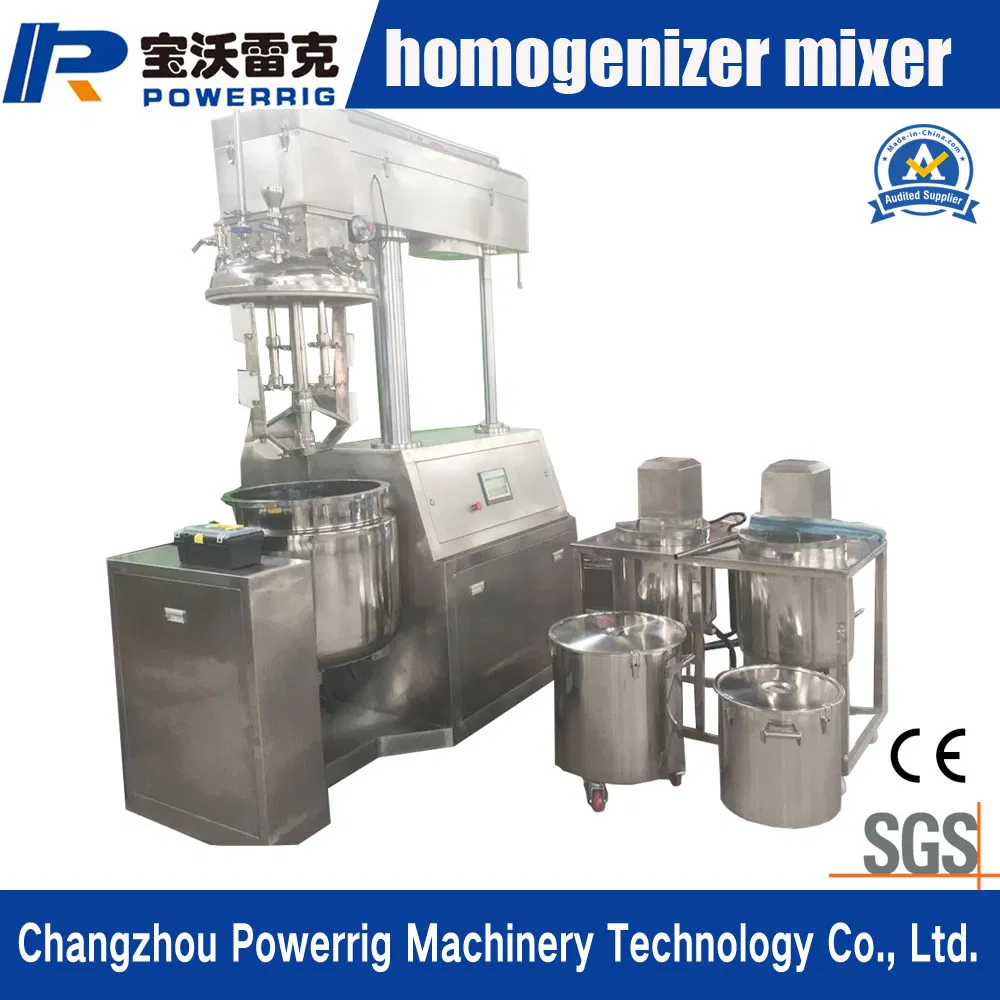

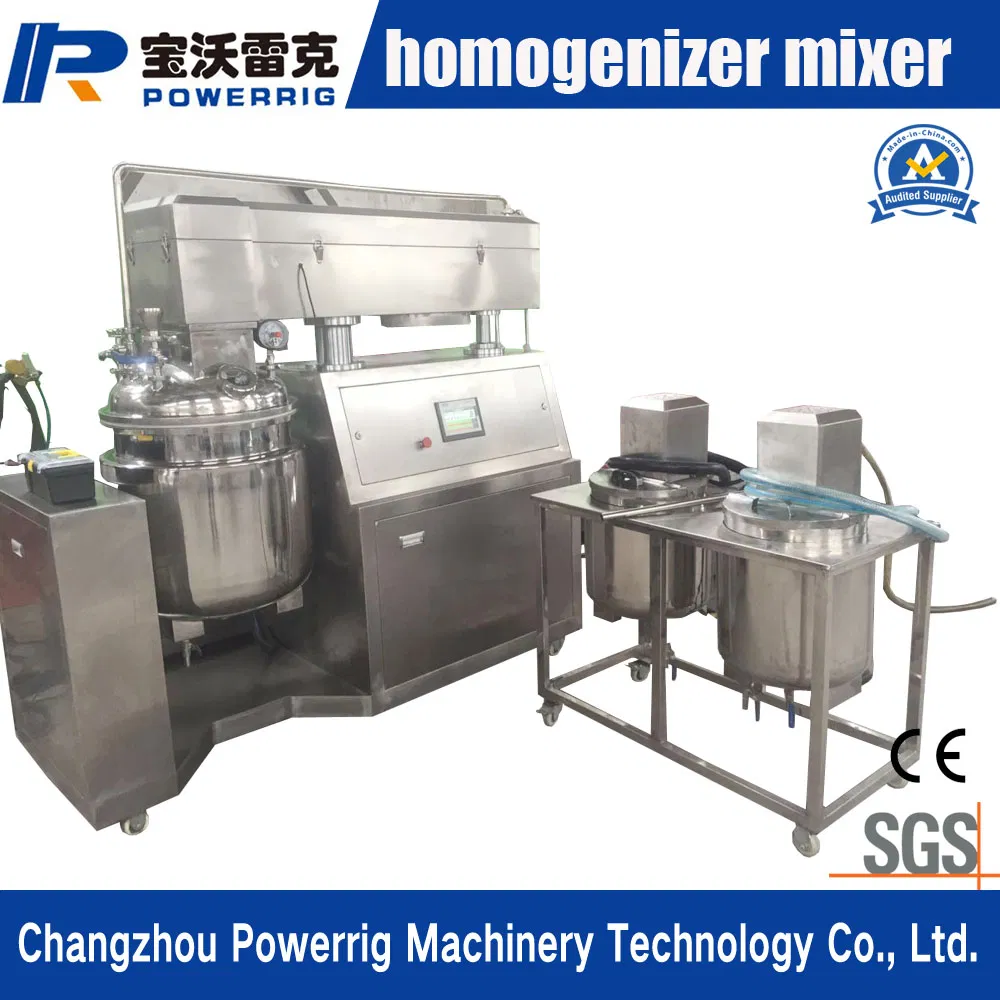

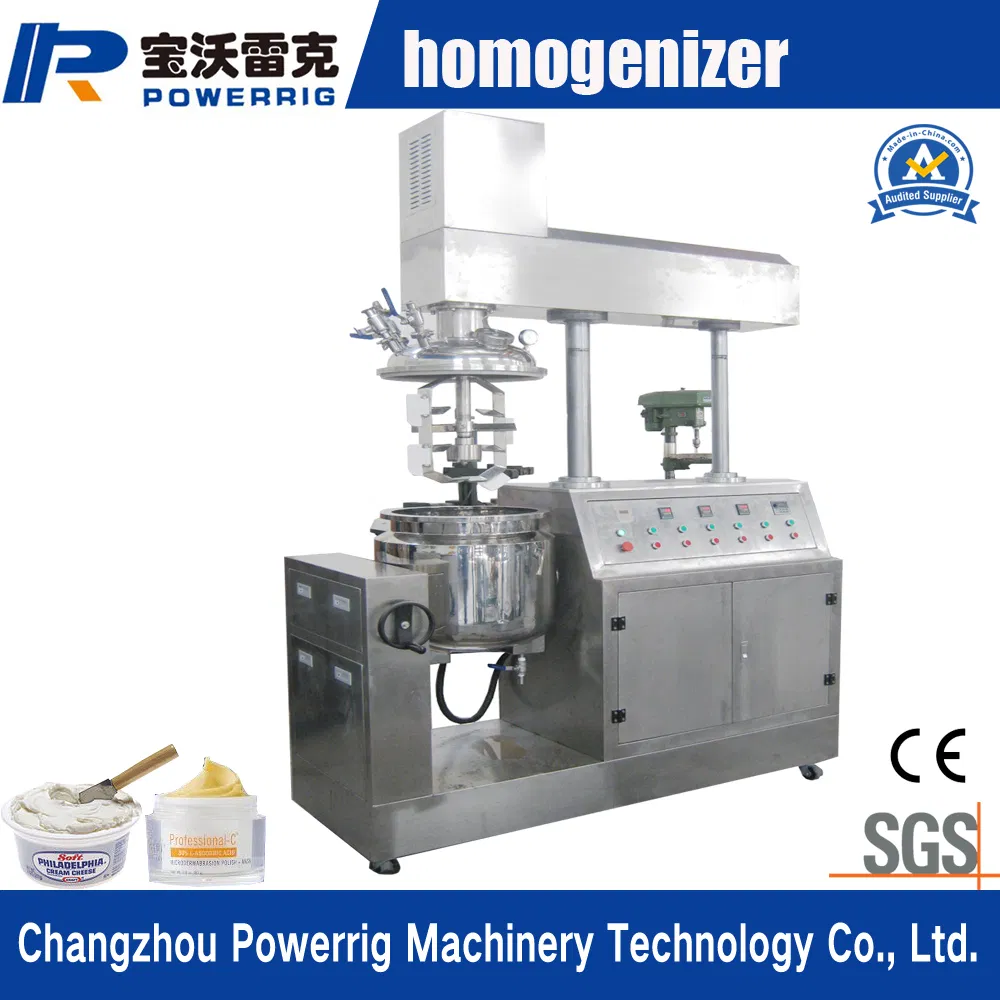

High Quality Cosmetic Cream Vacuum Homogenizer Mixer Machine
High quality cosmetic cream vacuum homogenizer mixer machineApplication widely useHigh quality cosmetic cream vacuum homogenizer mixer machine :The vacuum emulsifying homogenizer and mixer is widely used in Food, Chemical, Medical, Cosmetics, Agrochemical industry and also it is applicable for fill......
Send Inquiry
Product Description
Main Featurs:
1) Heating system: steam heating device attaching at the bottom. Heating with temperature display, easy to control.
2) Electric lifting: (voltage 220V, power 120W) Lifting is easy to operate, so the material can be effectively emulsified in a closed condition.

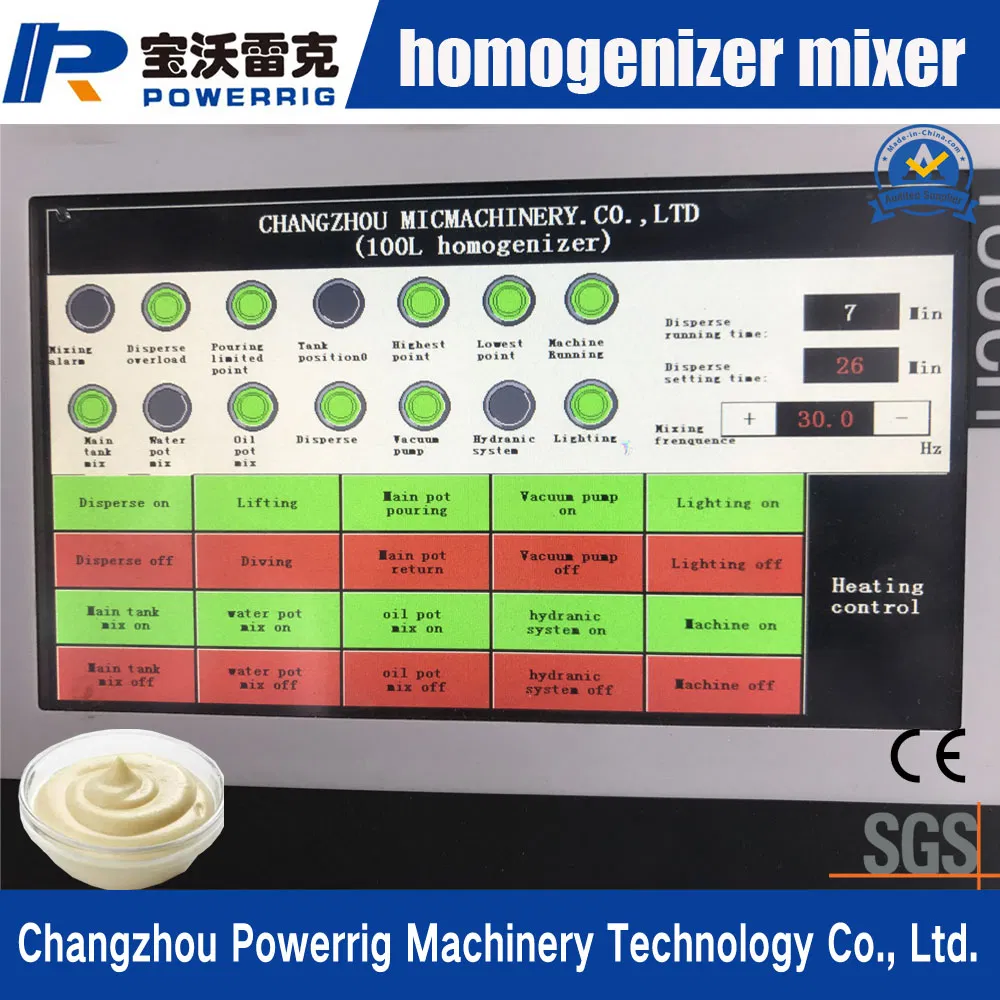

3) Control System: The control system is equipped with digital time relay device, so it can adjust time and speed of homogenizer based on different material. All control buttons are concentrated together, clear at a glance.
4) Homogenizing system: (voltage 380V, power 15KW, 2800r/min)
5) Mixing system: (voltage 380V, power 5.5KW, 10-120 r / min) Monitoring with transparent filter, scraping the interlayer when mixing, frequency control.

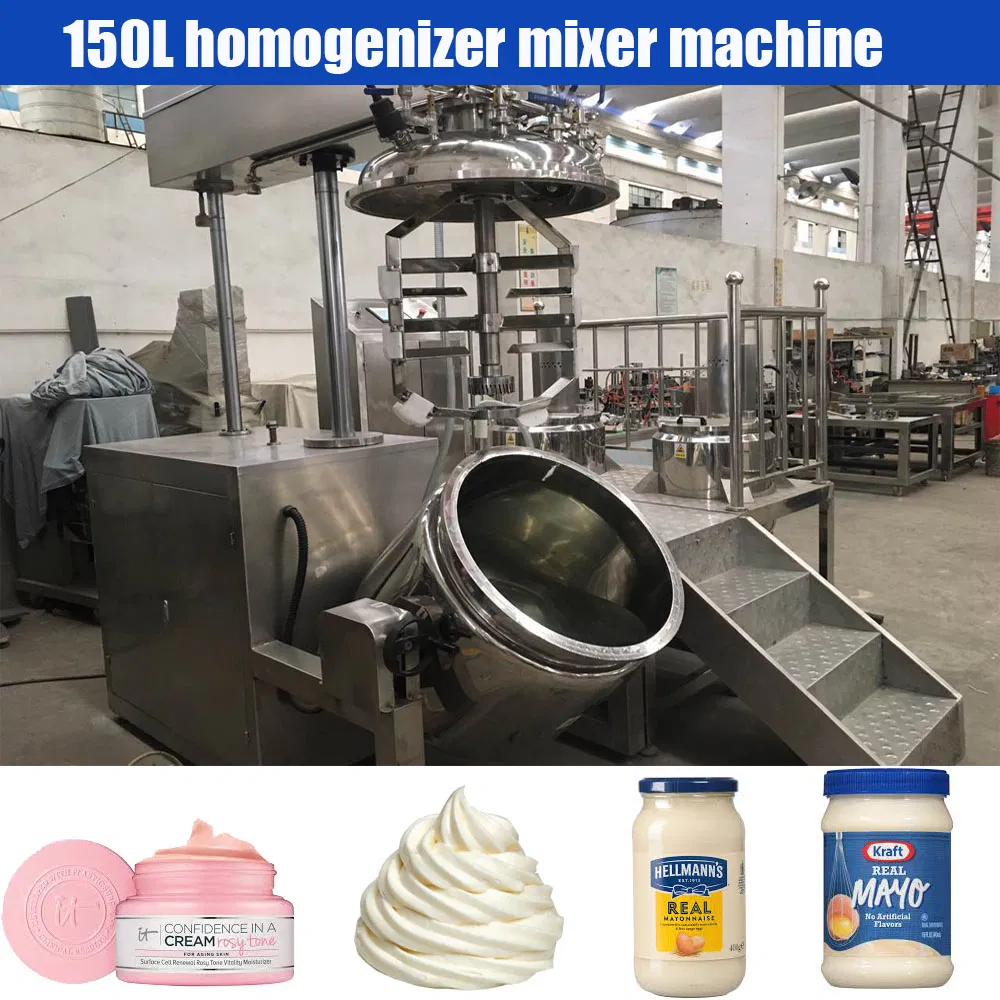

| Device Name | 150L Emulsifying Machine |
| Working ability | Design volume: 150L |
| Working volume:100L | |
| Minimum operating volume: 80L | |
| Material | Contact Parts: 304 stainless steel thickness: 4mm |
| Interlayer: 304 stainless steel thickness: 4mm | |
| Outer layer: 3 04 stainless steel thickness: 3mm | |
| Weight | 1200kg |
| Size | 2600mm×1900mm×2500-3500 mm |
| Service life | 10 years |
| Stirring | Fixed paddle stirring, PE blade Scraping |
| Homogenizer | Power: 4KW |
| Motor speed: 2800r/min | |
| Particle size: 0.2-0.6um | |
| Uncapping | Electric lift |
| Heating | Electric heating |
| Discharge | Tilt pot discharge and bottom valve discharge |
| Process parameters | Working pressure: -0.09MPa |
| Flimsy parts | 1 year renewal except artificial |
| Warranty period | 1 year |

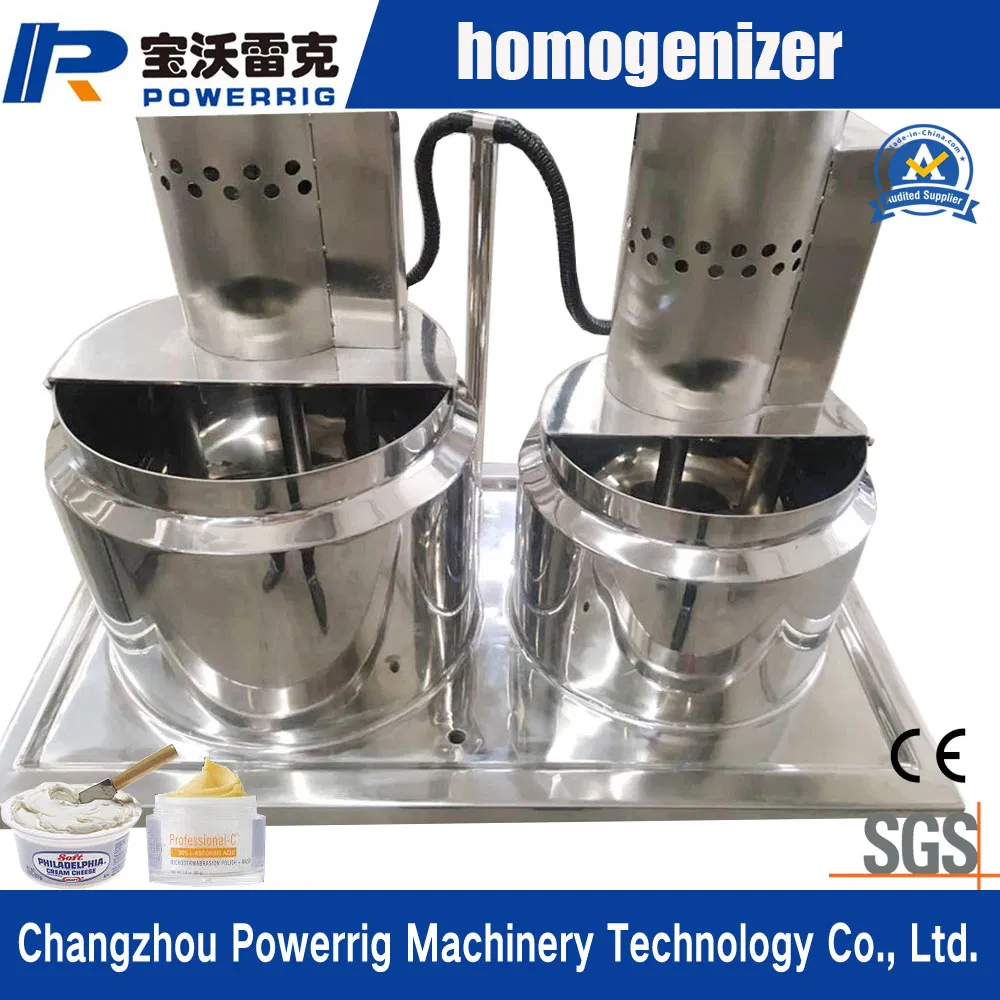

Oil and water tank
Oil and water tank connect with main tank and it will be used to transport water and oil to main pot when the material is emulsified.

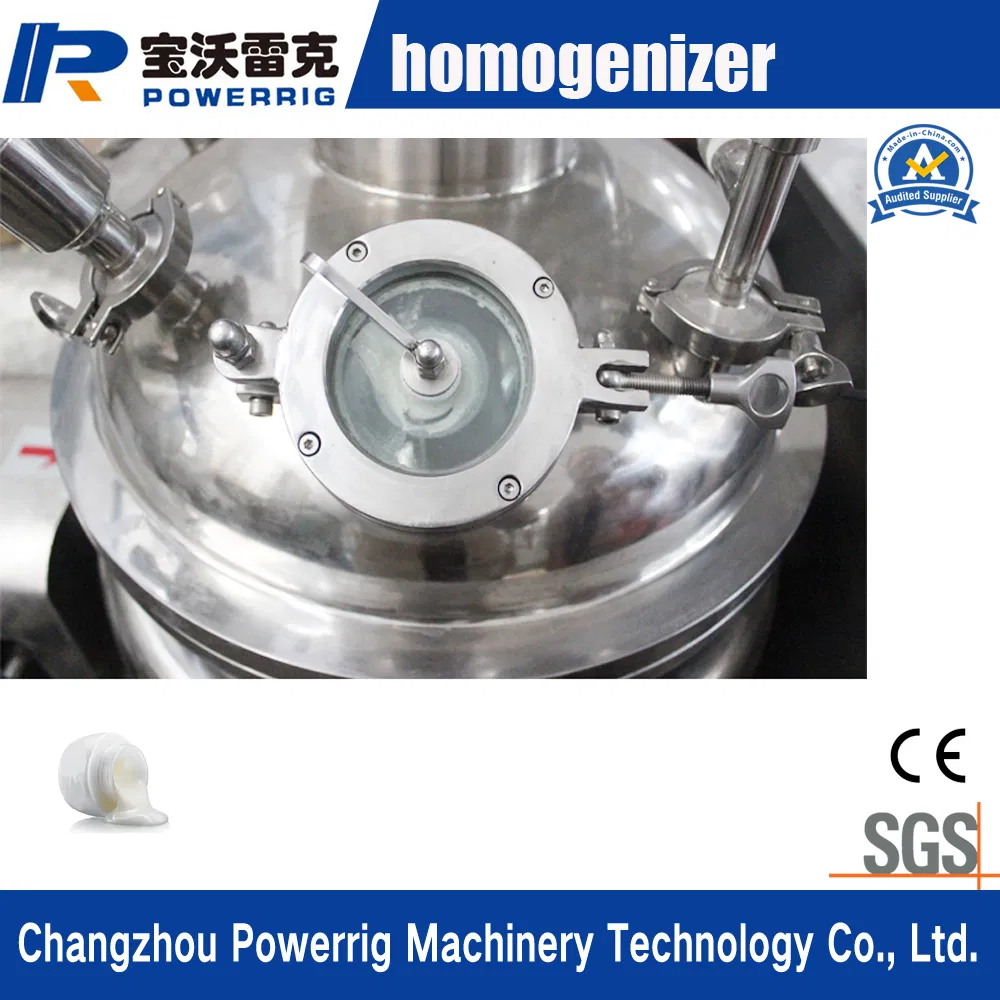

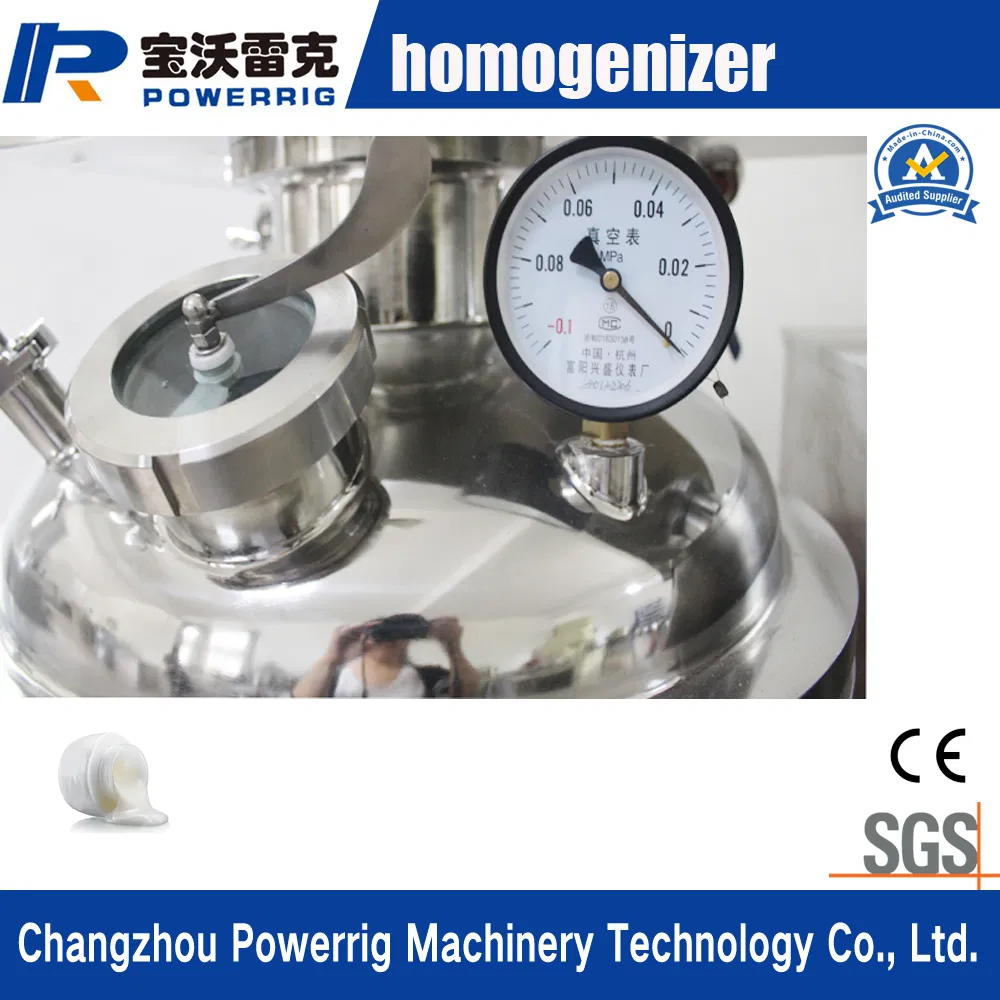

Vacuum Gauge and Material Checking Hole
see and check the material effect through the glass.
Vacuum gauge is used for measuring and controllig the vacuum degree of vacuum system.

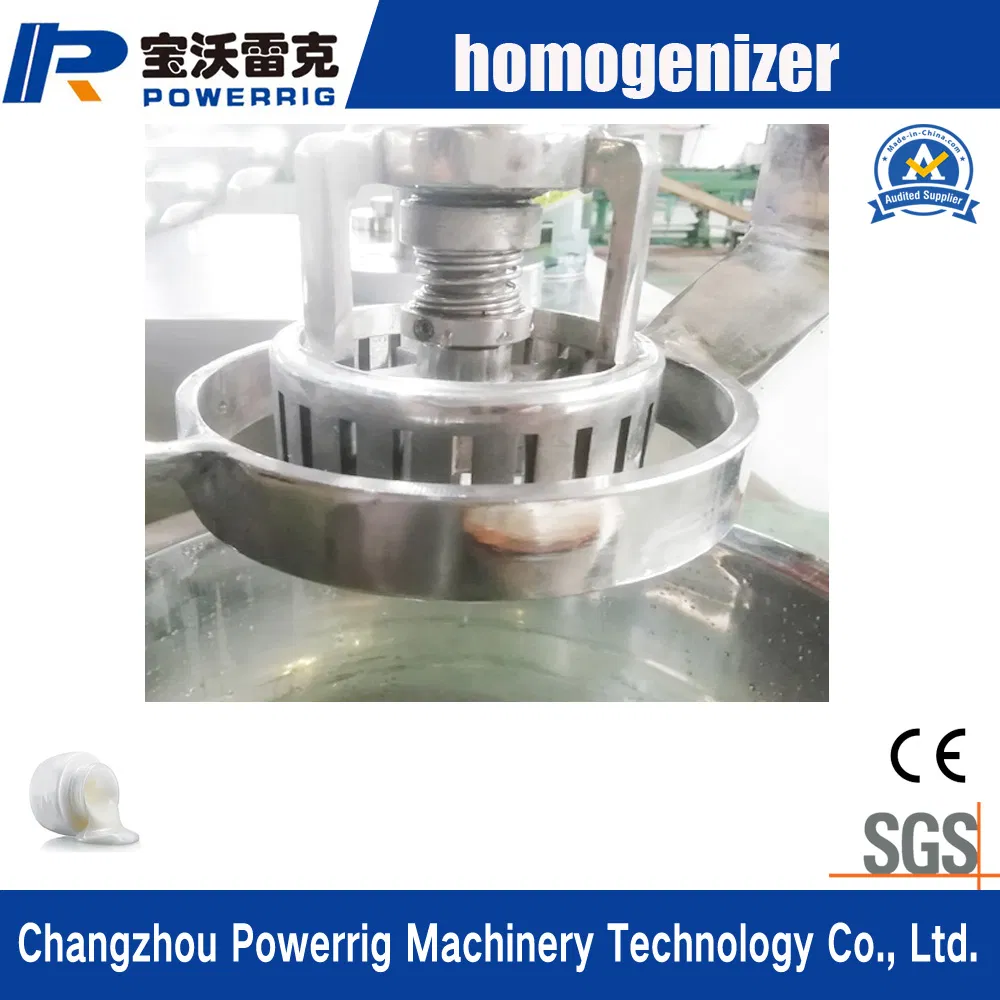

Emulsification Head
The emulsification head rotates at high speed to emulsify the material. So the material will become more small and exquisite.
Machine packing shipping
Pre-sale service
1. Inquirying and consulting support
2. Sample testing support
3..Veiw our factory. You are welcome to come to visit our factory,and see the machine running.
After-sales Service
1. Sample service
2. Installation of service
2. Engineers available to service machinery overseas
3. Show you the video of the running machine.
4. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
5. One year warrant.
FAQ
Q: Are you trading company or manufacturer ?
A:We are factor lie in Jiangsu province, all machine is made by ourself and the service can be customized according to your requirement.
Q: How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.
Q: How can I install my machine when it arrives?
A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube that need the mold, we will send you video of how to adjust it . Also , we can offer over sea technical service to come your factory install machine.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:Payment
A:T/T,30% deposit and 70% balance before delivery.
Remark: Pls provide me the infos of your material, volume, electric heating or steam heating, hydraulic lift or electric lift, touch screen or control pannel. liters and oil pot and water pot if it is needed then i can make good quotation for you.
