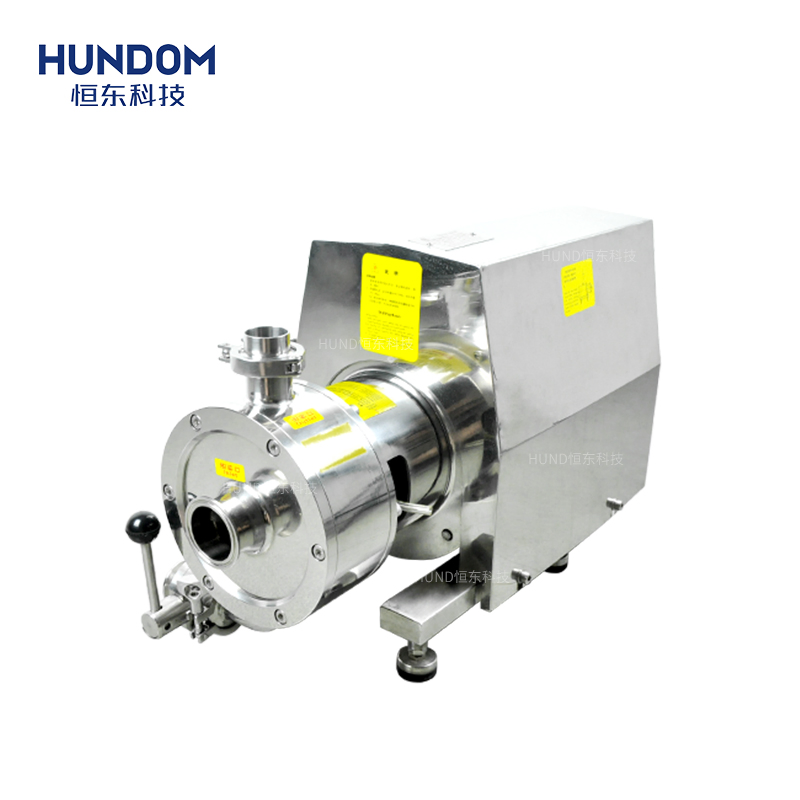

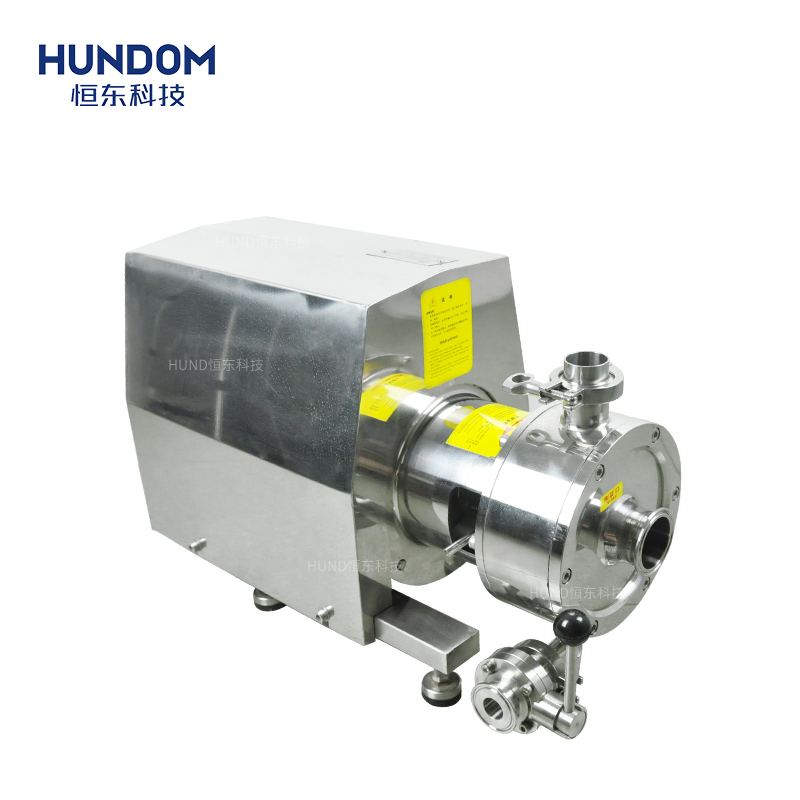

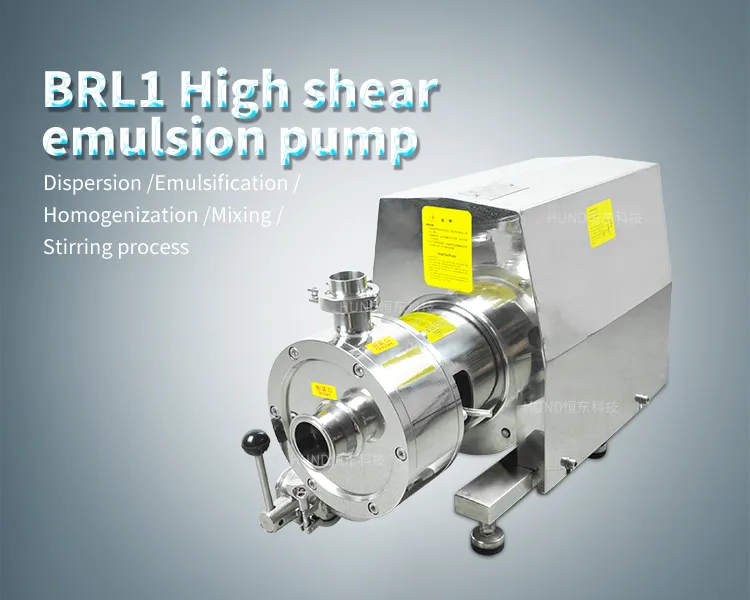

Food Grade Stainless Steel High Shear in-Line Homogenizer Emulsifier Pump for Chocolate Mustard
Food Grade Stainless Steel High Shear in-line Homogenizer Emulsifier Pump for Chocolate mustard*BRL High-Speed Shearing emulsification pump is a new product researched and developed by our company after assimilating foreign advanced techniques and processes.*Its various indicators can reach the dom......
Send Inquiry
Product Description
*BRL High-Speed Shearing emulsification pump is a new product researched and developed by our company after assimilating foreign advanced techniques and processes.
*Its various indicators can reach the domestic advanced level and quality can meet GMP
technical requirements for IS09001 certified products.
*It is especially suitable to emulsification homogeneous machine of essential mixed liquor for
re-provision, drinking, chemical engineering, biochemistry, pigment, dye, coating and pharmacy,
etc.
Features

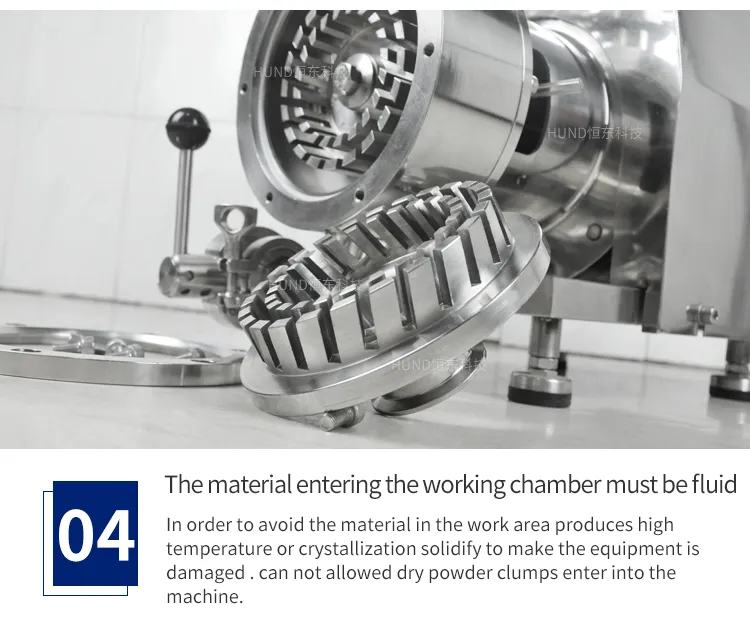

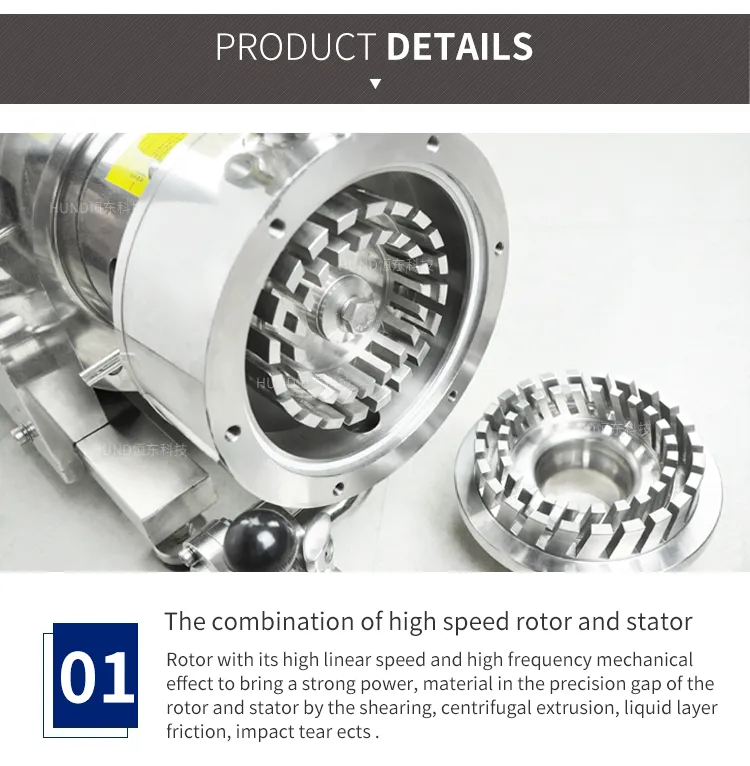

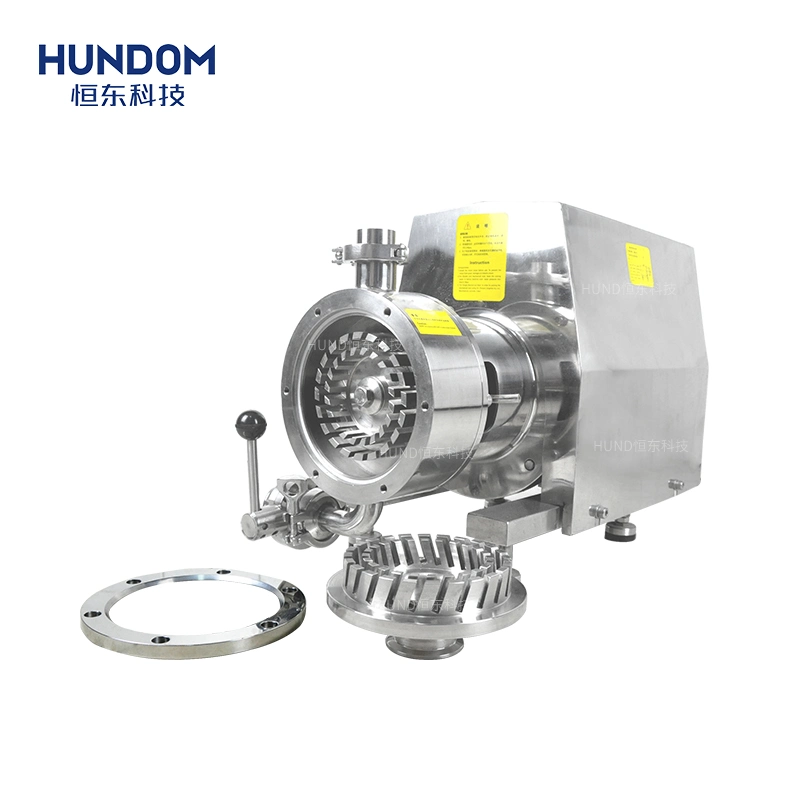

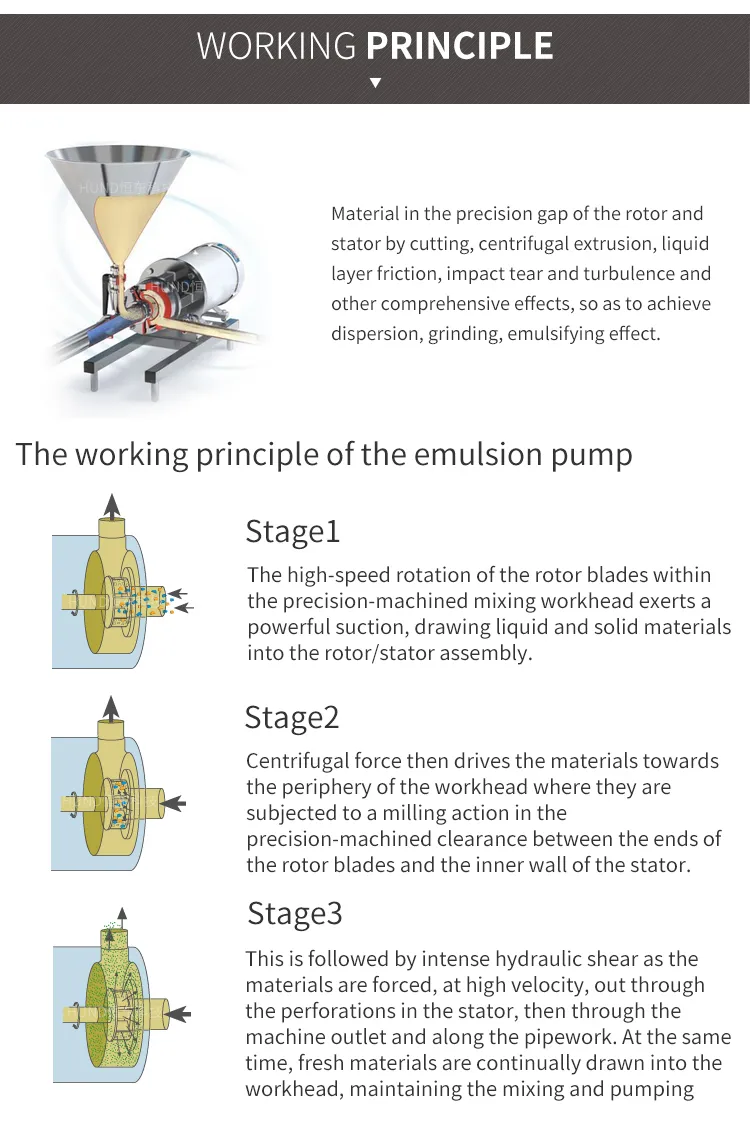

<<Inline High Shear Emulsion Pump consists of one set of precision engineered stator and rotor inside the chamber.
<<The strong centrifugal forces generated by the high speed rotation rotor absorb the materials into the working chamber of the rotor and stator from axial direction.
<<All the materials dispersed, sheared and emulsified by the multi-layers Stator & Rotor and
then ejected from the axial direction.
<<Stable finished products with high quality are produced after one time circulation or times.
Technical Parameter:
*Flow listed on the table refers to the datas measured when the medium is water, the exit
pressure≤0.2Mpa of the model listed in the table.
*If have high temperature, high pressure, flammability, explosion and erosion, relevant
parameters must be provided clearly for selecting customization precisely.
*For poor liquid medium, a pump which has a matching flow is suggested to feed at the inlet, input pressure≤0.2Mpa.
*If the data in the table is modified, no further notification will be given, and the right parameters as per the provided sample.
| Model | Power(kw) | Speed(rpm) | Capacity(L/H) |
| BRL1-60 | 1.5 | 2800 | 0-1.5 |
| BRL1-100 | 2.2 | 0-3 | |
| BRL1-130 | 4 | 0-4 | |
| BRL-140 | 5.5 | 0-5 | |
| BRL-165 | 7.5 | 0-8 | |
| BRL1-180 | 11 | 0-12 | |
| BRL1-185 | 15 | 0-18 | |
| BRL1-200 | 22 | 0-25 | |
| BRL1-210 | 30 | 0-35 | |
| BRL1-230 | 45 | 0-50 | |
| BRL1-245 | 55 | 0-75 | |
| BRL1-260 | 75 | 0-90 | |
| BRL1-270 | 90 | 0-110 | |
| BRL1-280 | 132 | 0-130 |
