Emulsion Paint Manufacturing Equipment

Product Description

Accept Customized 50L To 10,000L , Contact Us For The Offer

Emulsifying tank is the most advanced blending equipments in fields of Chemical, pharmaceutical, food, etc. When the high-speed super-fine emulsification paddle works, it throws the materials in the center of rotor to stator at a high speed,then through tooth clearance of stator,and shearing,collision and crushing between rotor and stator,the super-fine emulsification is realized. therefore,it is an integrated equipment comprising functions such as blending,emulsifying,homogenizing,solving and crushing.

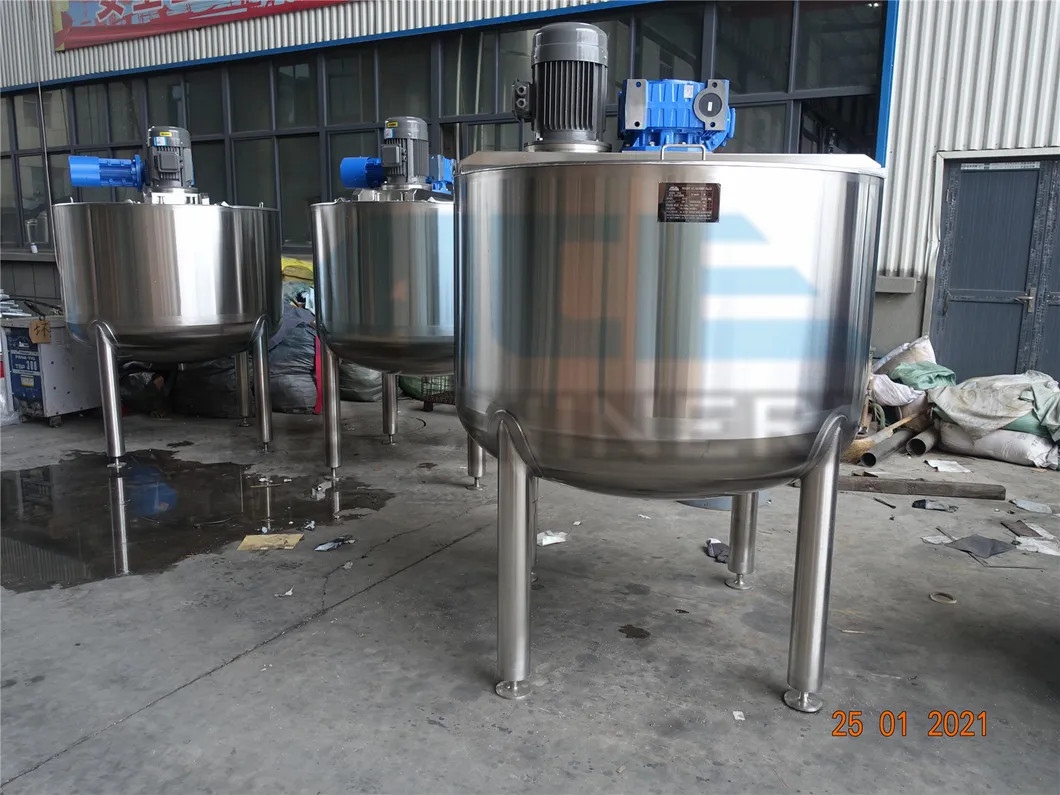

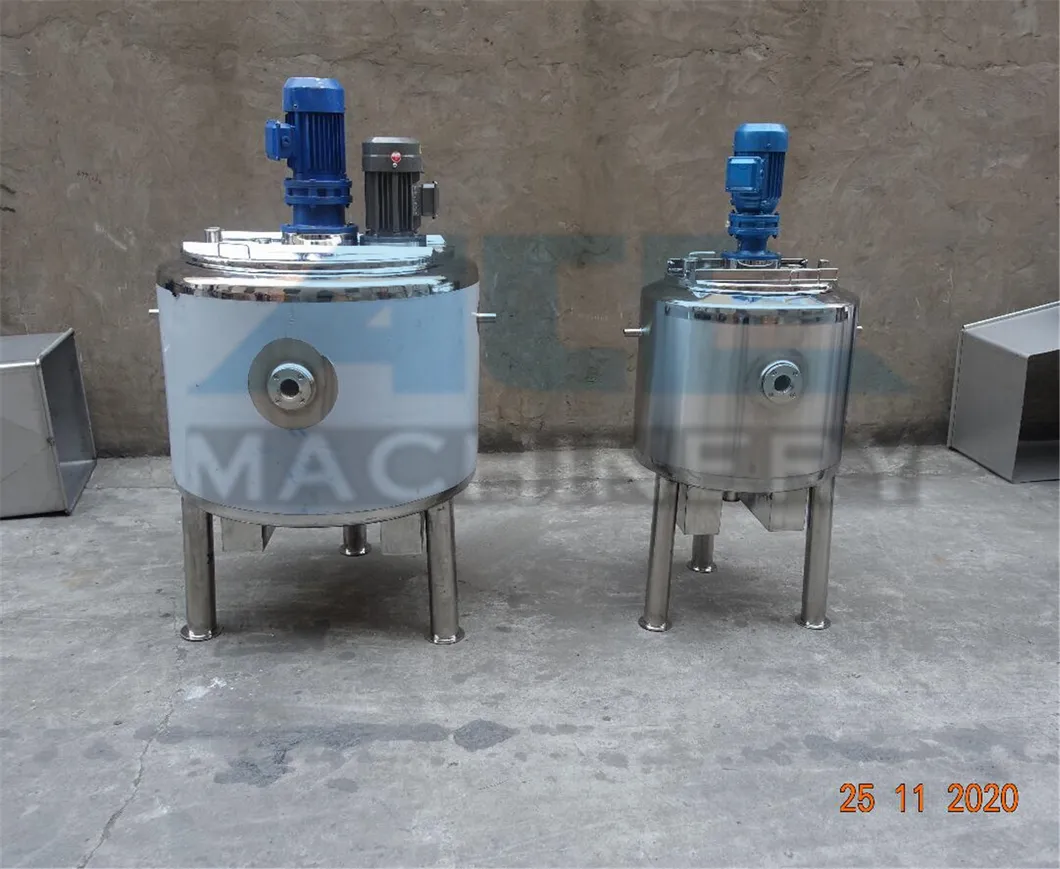

Emulsion Paint Manufacturing Equipment

We can customize the equipment according to customer requirements.
Tank Volume	From 50L upto 10,000L
Material	304 or 316 Stainless steel
Insulation	Single layer or with insulation
Top Head type	Dish top, Open lid top, Flat top
Bottom type	Dish bottom, Conical bottom, Flat bottom
Agitator type	impeller, Anchor , Turbine , High shear, magnetic mixer, Anchor mixer with scraper
Agitator type	magnetic mixer, Anchor mixer with scraper
Inside Finsh	Mirror polished Ra<0.4um
Outside Finish	2B or Satin Finish

Applicable Products.

1. Cosmetics industry:skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, facial cleanser, nutrition dense, detergent, shampoo, hair cream, conditioner, serum, moisturizing cream, Hand cream and so on.

2 Daily chemical industry: Laundry liquid production, hand sanitizer, toilet net, car glass water.
3. Pharmaceutical Industry: Latex, emulsion, ointment (ointment), oral syrup, oral liquid and the like.
4. Food Industry: Sauces, cheese, nutritional liquid, baby food, chocolate, sugar and so on.
5. Chemical Industry: Latex, Sauce, saponified products, paints, coatings, resins, adhesives, lubricants and so on.

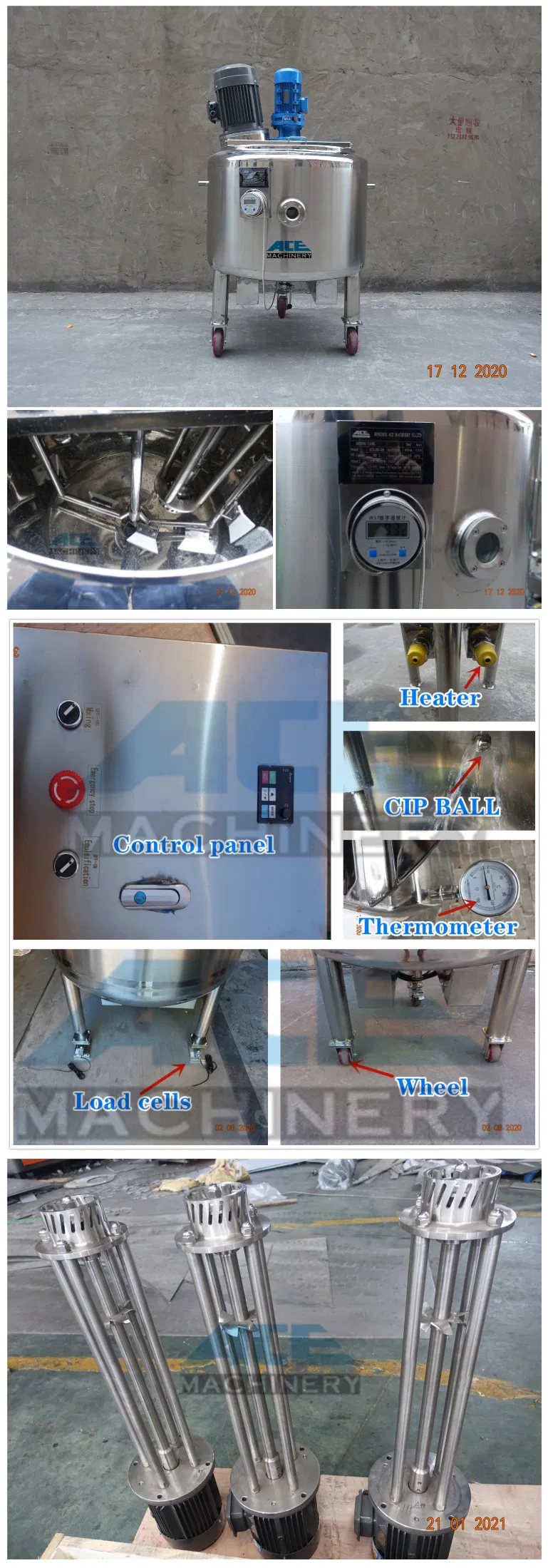

Configuration:

1. Quick opening manhole.
2. Various types of CIP cleaners.
3. Sanitary ventilation hood to defend against flies insects.
4. Adjustable triangular bracket.
5. Detachable feeding tubes.
6. Thermometer (According to the customer's requirements).
7. Ladder (According to the customer's requirements).
8. Advancing side blender
9. Level meter and level controller (According to the customer's requirements).
10. Anti-vortex plate.

Model	Effective	Stirring power and speed		Homogeneous power and speed		Heating power
Model	Capacity	KW	R/MIN	KW	R/MIN	Electric heating	Steam heating
ACE-50	50	0.75	0-65	3	3600	6KW	selected according to need
ACE-100	100	1.5	0-65	1.5	3600	12KW
ACE-150	150	1.5	0-65	1.5	3600	12KW
ACE-200	200	1.5	0-65	3	3600	18KW
ACE-300	300	1.5	0-65	3	3600	18KW
ACE-500	500	2.2	0-65	4	3600	27KW
ACE-1000	1000	4	0-65	7.5	3600	36KW
ACE-1500	1500	4	0-65	11	3600	45KW
ACE-2000	2000	5.5	0-65	11	3600	Recommend steam heating
ACE-3000	3000	7.5	0-65	15	3600
ACE-5000	5000	11	0-65	22	3600
The parameters for reference ONLY, all the machines can be customized accordingly.

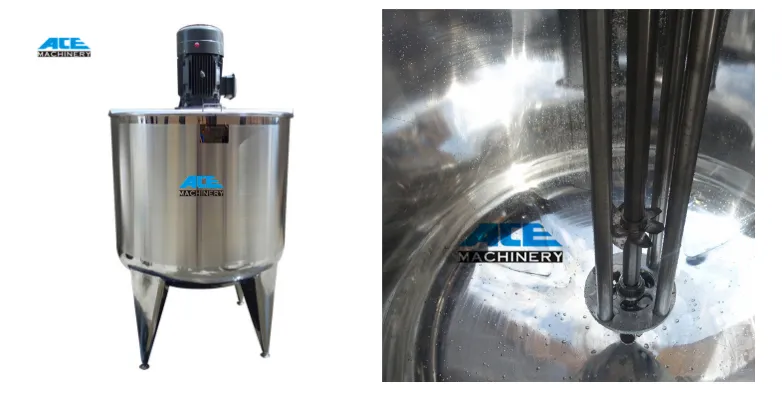

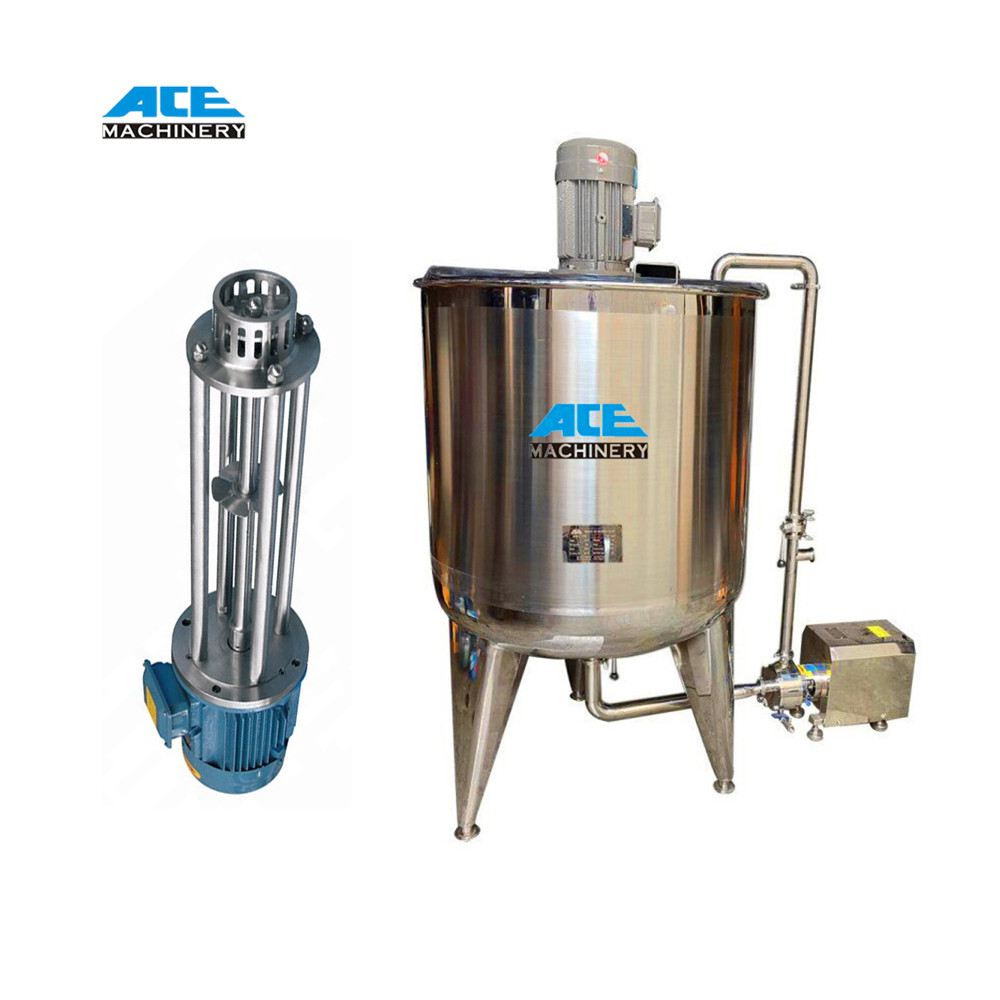

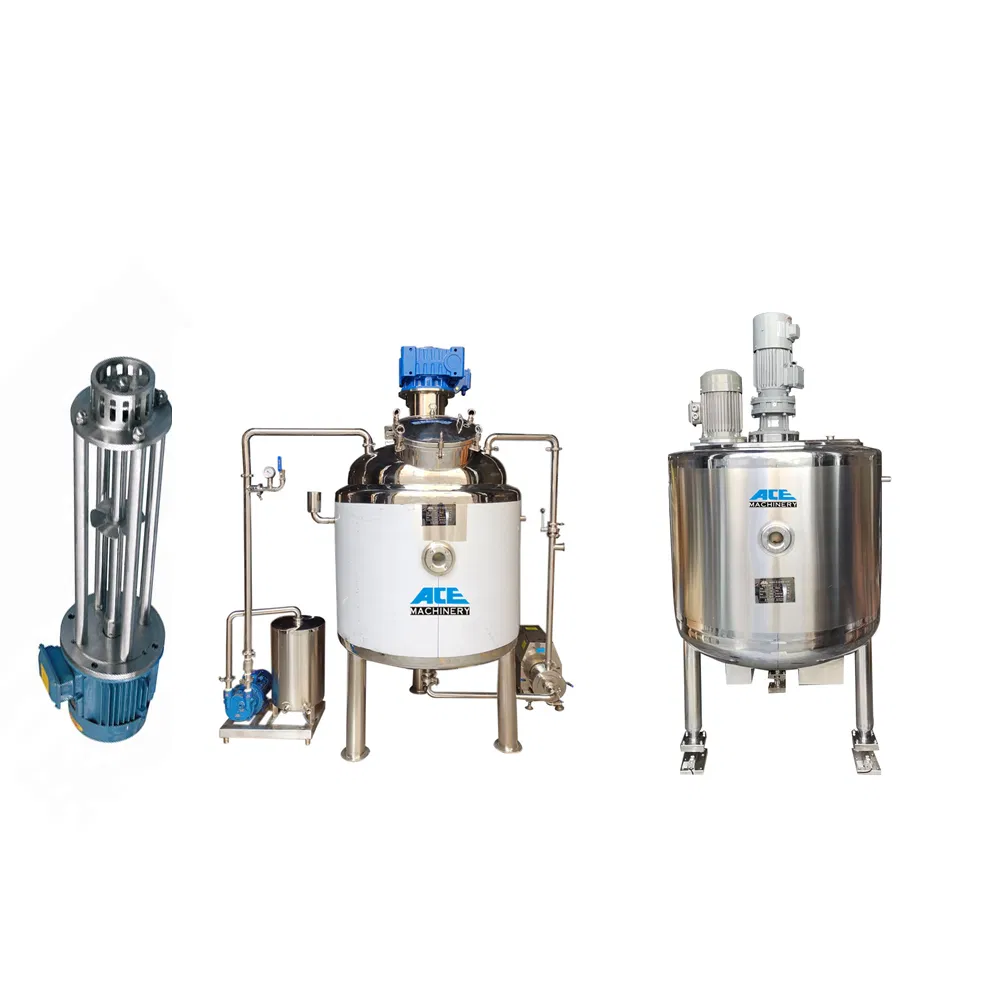

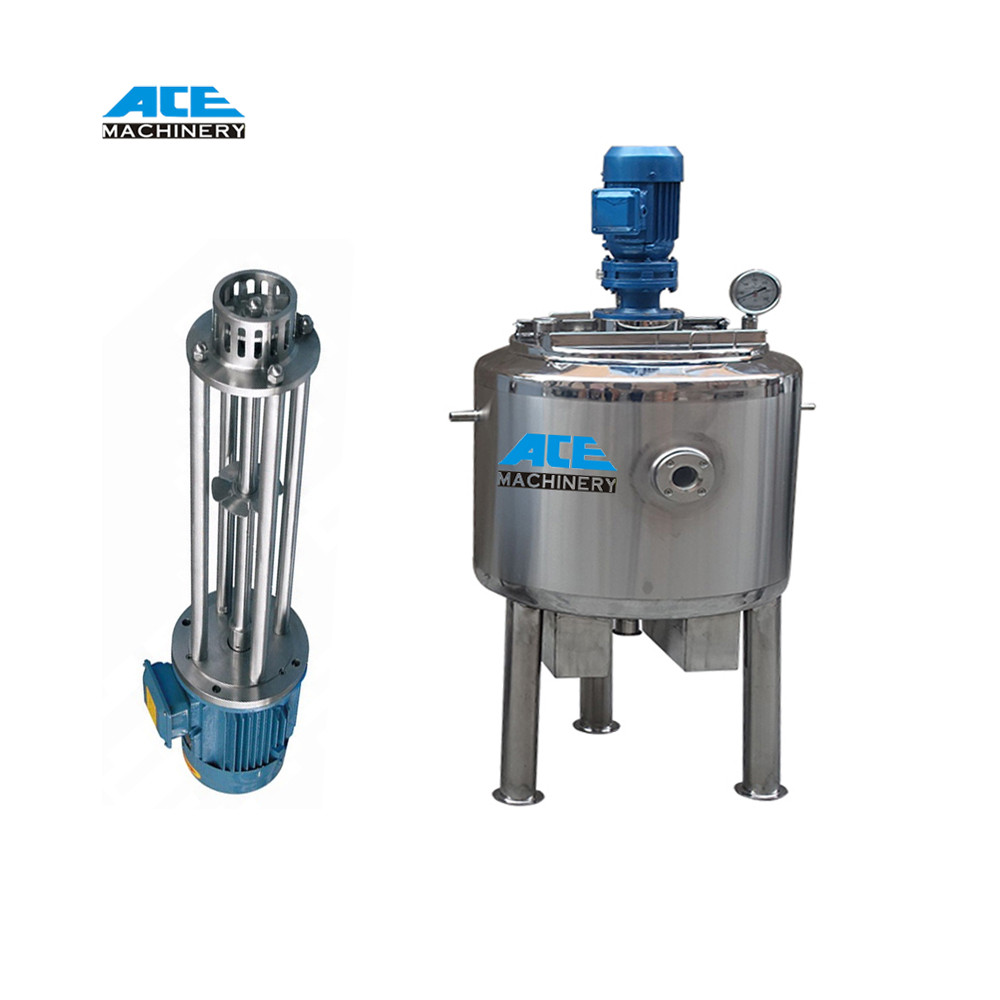

Top Homogenizer with scraper mixer

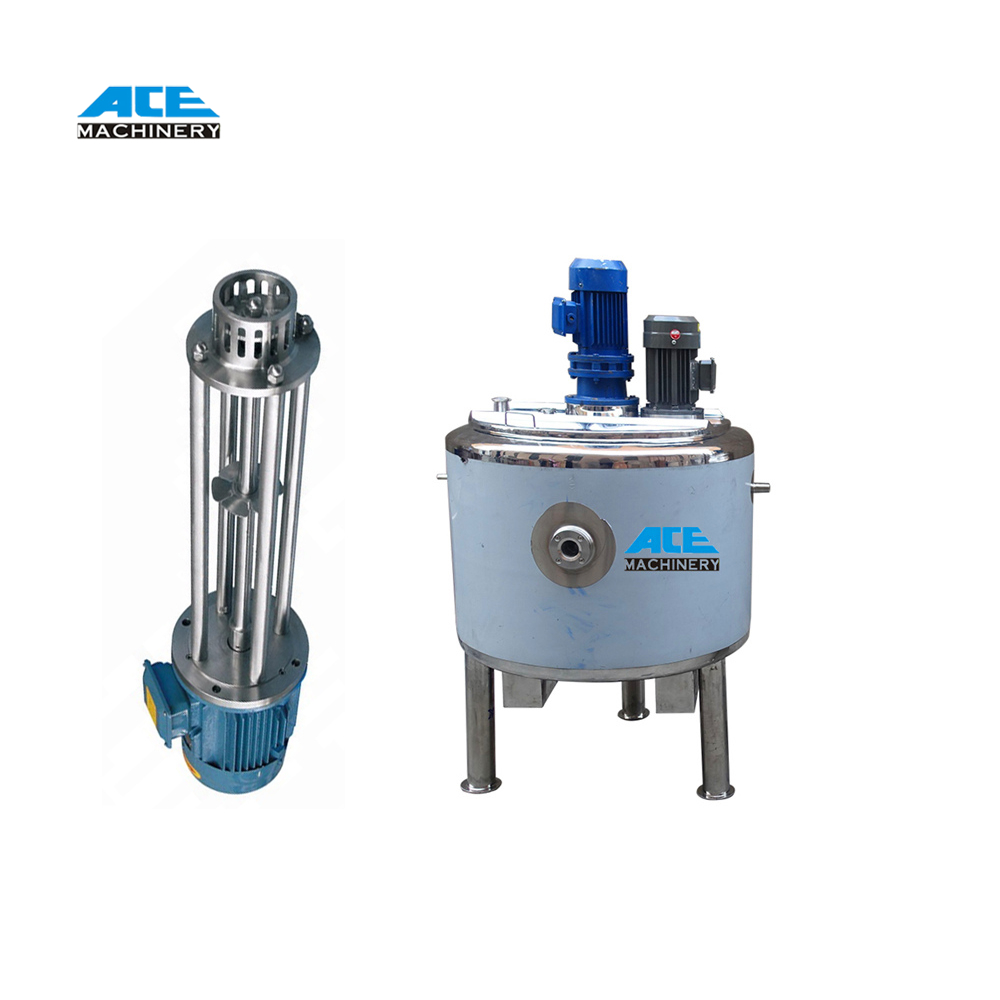

bottom Homogenizer with scraper mixer

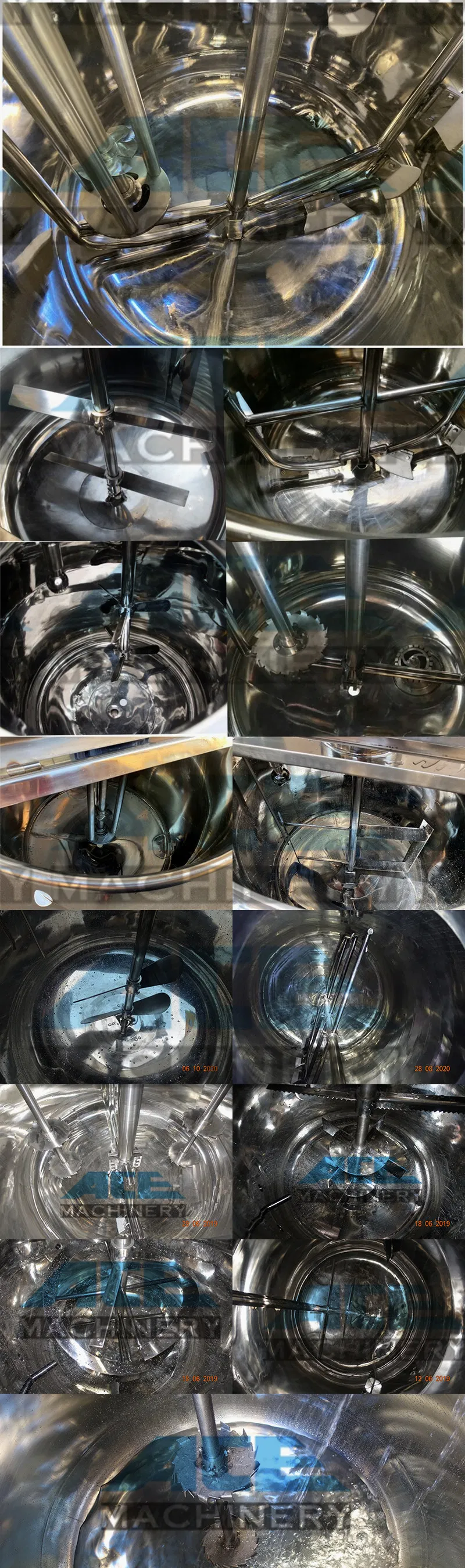

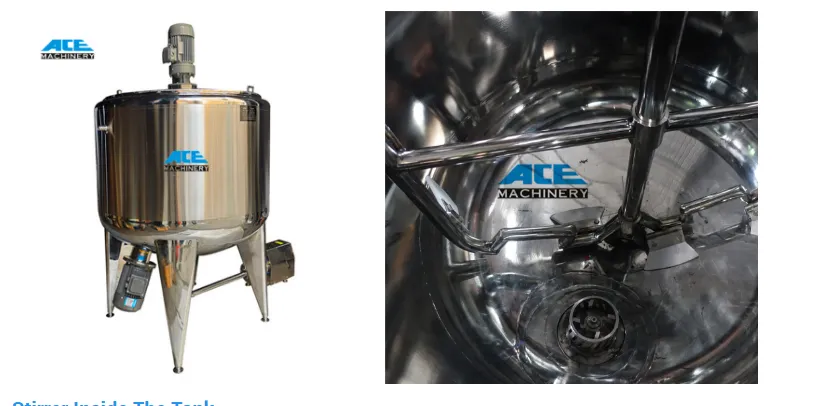

Stirrer Inside The Tank

We Have Different Types: Homogenizer, Paddle, Frame, Propeller, Anchor With Scraper ( Other Stirrer can be customized )

Q	Are you trade or manufacturer?
A	We are a factory with an international sales company specialized in support for global distributors.
Q	Can you provide instant technical consulting services?
A	We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days.
Q	What's the difference between Ready-To-Ship and Customized products?
A	Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production.
Q	What is the payment terms?
A	We accept Alibaba Trade Assurance Order, also can T/T and L/C.
Q	How to choose the shipment way?
A	It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)
Q	How about the after-sales service?
A	Fast after-sales support. Our products have a one-year warranty and free permanent consulting services.
