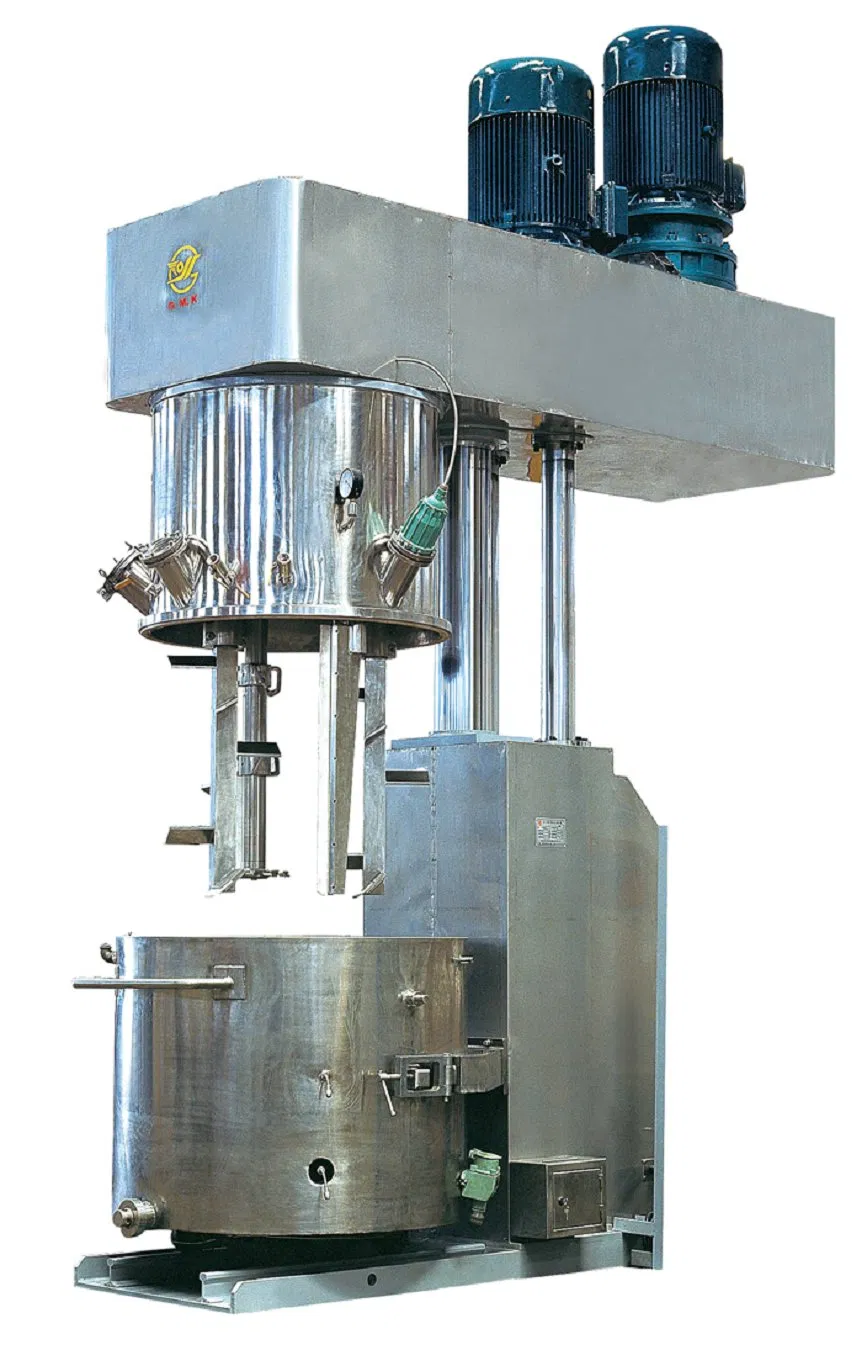

Double Planetary Mixer for Silicone Sealant
Summary:

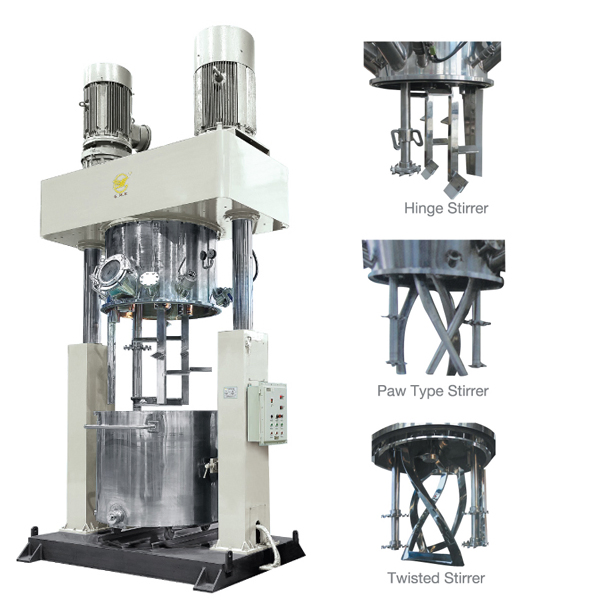

DLH series power mixer is a kind of new no-dead-point power mixing and dispersion equipment. It combines functions of planet mixer and power dispersion, adopts unique stirring mechanism, with charging barrel fixed and unmoved, with dispersion plate and stirring paddle realizing planet movement of revolution and rotating, with frequency conversion speed regulation. It makes the materials to move complicatedly, with strong shearing and kneading, for full dispersion and mixing of materials without mixing dead point. An automatic wall scraper mechanism is designed in the kettle, which continuously scrapes the materials adhering to the wall. The equipment is uniquely sealed, can be pressurized or vacuumed. It is extensively used in solid-solid, solid-fluid and fluid-fluid mixing, reaction, dispersion, dissolving, homogenizing and emulsification, etc., in chemical, light industry, medicine, food, building materials, farm chemical industries, etc. It is ideal equipment for production of ink, pigment, adhesive sealant, paste, paste-type material, lubricant, paint, paste cosmetics, emulsion, cream food and additive, etc
Model | Nominal Capacity | Vacuum Degree | Vessel type | Discharge mode |
QLF-2.5 | 2.5L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -5 | 5L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -10 | 10L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -20 | 20L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -50 | 50L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -100 | 100L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -200 | 200L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -300 | 300L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -500 | 500L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -1000 | 1000L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -1500 | 1500L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |
QLF -3500 | 3500L | -0.098MPa | Electric,steam, oil heating/oil, water cooling jacket | Plug/No neck ball valve |

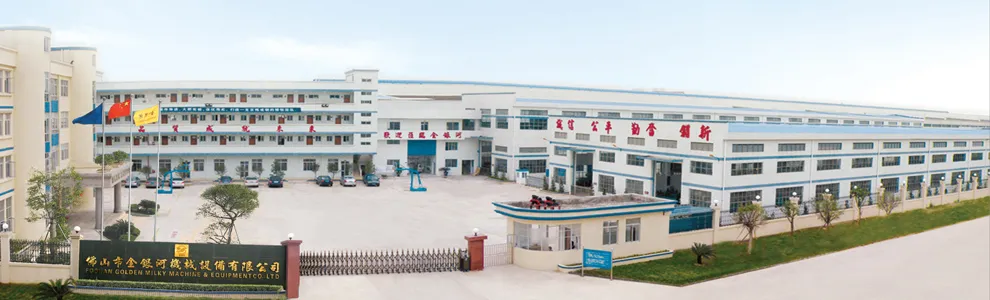

Established in 2002, Foshan Golden Milky Way Intelligent Equipment Co.,LTD(GMK)covers an area of
19,253squaremeters. Company existing staff 310 people,of which 101 people are technical personnel with
high education background (accounting for 32.58% of total staff), 38 people are whole-time researcher
(accounting for 12.26%of total staff).
GMK company mainly manufacture high-tech intelligent complete sets of equipment, including Silicone
Sealant Continuous Automatic Production Line, HTV Continuous Automatic Production Line, Planetary
dispersing power mixer, Static mixer, Automatic cartridge filling machine, Lithium battery pole
sheet coating machine, Lithium battery pole sheet rolling machine and so on. GMK company
has a good reputation in Fluorosilicone industry, Construction Sealant industry, Solar Power
and Wind Power specialized Sealant industry. Domestic market share in silicone sealant industry
reaches 25%.
GMK company is an innovation based company. It possesses 10 authorized invention patents, 31 authorized
utility patents, copyright of 7 computer software, 1 national key new product and 14 new and high-tech
products of Guangdong province.
Packaging & Shipping
Delivery details: 2 months after your deposit.
Package details: Export standard package
- One years (12 months) quality guarantee service . from the date when machine was shipped. Duringthe warranty period, our company will provide replaced parts free of charge because of quality issue.
- Our technicians are available for oversea services. We have a professional aftersale service team, who are experienced in oversea technical service.
