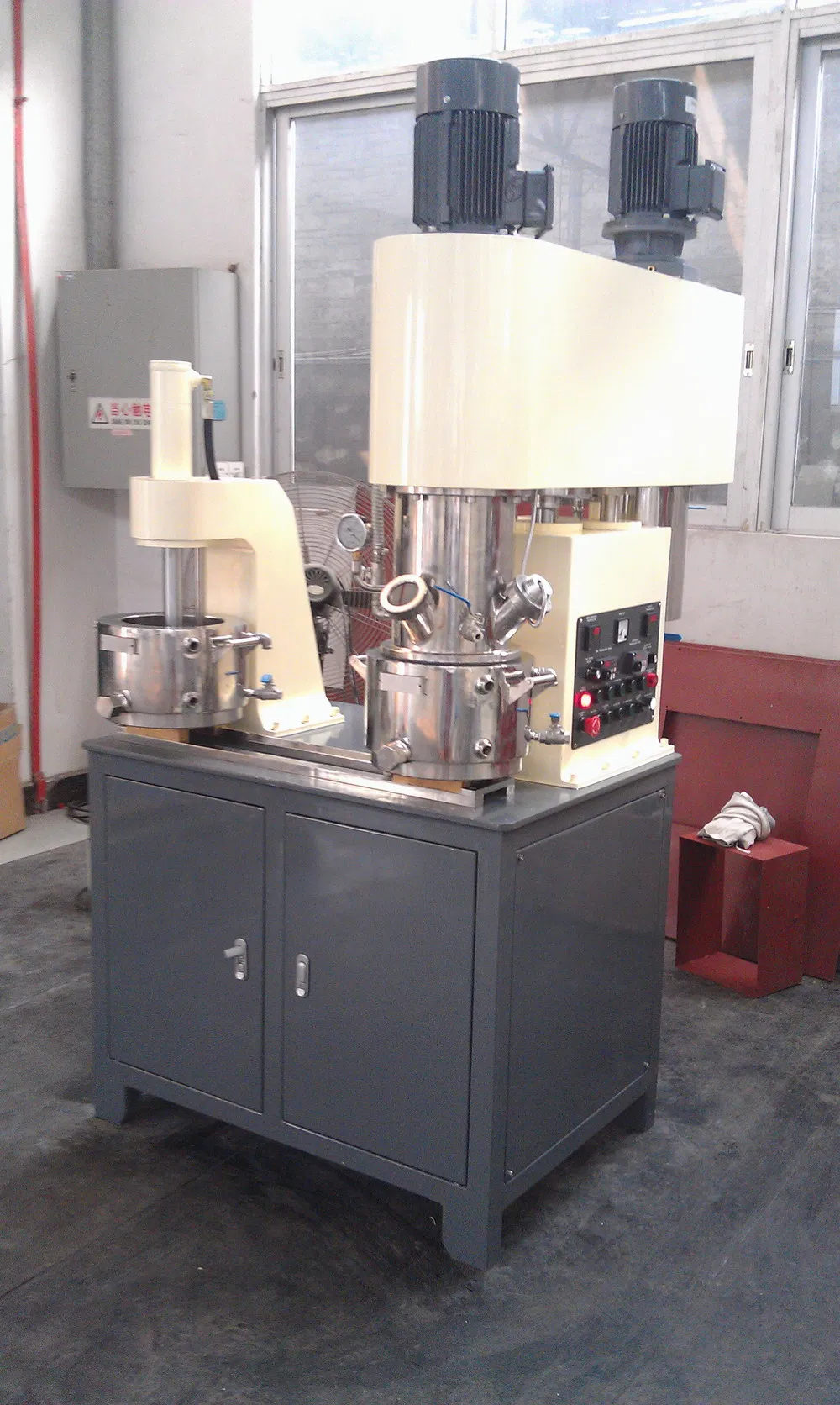

                            Dlh -5L Laboratory Lab Use Planetary Power Mixer Silicon Sealant
                            • Dlh -5L Laboratory Lab Use Planetary Power Mixer Silicon SealantDlh -5L Laboratory Lab Use Planetary Power Mixer Silicon Sealant

                            Dlh -5L Laboratory Lab Use Planetary Power Mixer Silicon Sealant

                            G.M. K planetary power mixer is a kind of new high-efficiency mixing and stirring equipment without dead spot.XJB series planetary power mixer is a kind of new high-efficiency mixing and stirring equipment without dead spot. It features unique and novel stirrer mode, with two or three stirrers as we......

                            Send Inquiry

                            Product Description

                            Dlh-5L Laboratory Lab Use Planetary Power Mixer Silicon SealantG.M. K planetary power mixer is a kind of new high-efficiency mixing and stirring equipment without dead spot.


                            XJB series planetary power mixer is a kind of new high-efficiency mixing and stirring equipment without dead spot. It features unique and novel stirrer mode, with two or three stirrers as well as one or two auto scrapers inside the vessel. While revolving around the axle of the vessel, the stirrers also rotate around its own axis at different speeds, to achieve complicated movement of strong shearing and kneading for materials inside the vessel. Besides, the scraper inside the equipment revolves around the axle of the vessel, scraping the materials adhering to the wall for mixing and achieving better effects. The vessel adopts special sealing structure, capable of pressurized and vacuumized mixing, with excellent exhaust and bubble removal effects. Vessel jacket can be heating or cooling according customer's requirements. The equipment is sealed excellently. The vessel cover can be hydraulically lifted and lowered, and vessel can be moved freely for ease of operation. Furthermore, the stirrers and scraper can rise with the beam and fully detach from vessel body, for ease of cleaning. This machine is suitable for solid-solid, solid-fluid and fluid-fluid mixing, reaction, dispersion, dissolving and modification, etc., for production of ink, pigment, adhesive, sealant, paste-type material, lubricant, paint, paste cosmetics, and additives, etc. In chemical, light industry, pharmacy, foodstuff, battery, building materials, farm chemical industries, etc. Applicable viscosity range is about 10, 000CP-1, 000, 000CP. According to material requirements, the stirrer types can be divided into multi-layer hinge type, frame type, butterfly type and impeller type, etc.

                            Available capacity: 2.5L, 5L, 10L, 20L, 50L, 100L, 200L, 300L, 600L, 1100L, 1500L, 2000L, 3000L

                            MODELNOMINAL CAPACITYVACUUM DEGREEVESSEL TYPEDISCHARGE MODE
                            DLH-2.5L2.5L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-5L5L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-10L10L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-20L20L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-50L50L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-100L100L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-200L200L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-300L300L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-600L600L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-1100L1100L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-1500L1500L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            DLH-2000L2000L-0.098MPaElectric, steam, oil heating/ oil, water cooling jacketPlug / No neck ball valve
                            Dlh-5L Laboratory Lab Use Planetary Power Mixer Silicon Sealant
