                            DJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB Motor
                            • DJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB MotorDJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB Motor
                            • DJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB MotorDJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB Motor
                            • DJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB MotorDJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB Motor
                            • DJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB MotorDJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB Motor

                            DJ-Zj1 Homogeneous Single-Stage Mixing Pump with Hoper ABB Motor

                            DJ-ZJ1 Homogeneous Single-Stage Mixing Pump with Hoper ABB MotorSpecification:Product Name:Single -Stage Homogeneous Emulsifying PumpMaterial:Stainless steel 316L/1.4404Seal Material:FPM(Viton)Max. Flow:50 m3/HMax. Power:90KWTemperature:-20~140 degree centigradeMedia refinement:≤ 100 GRIT (......

                            Send Inquiry

                            Product Description

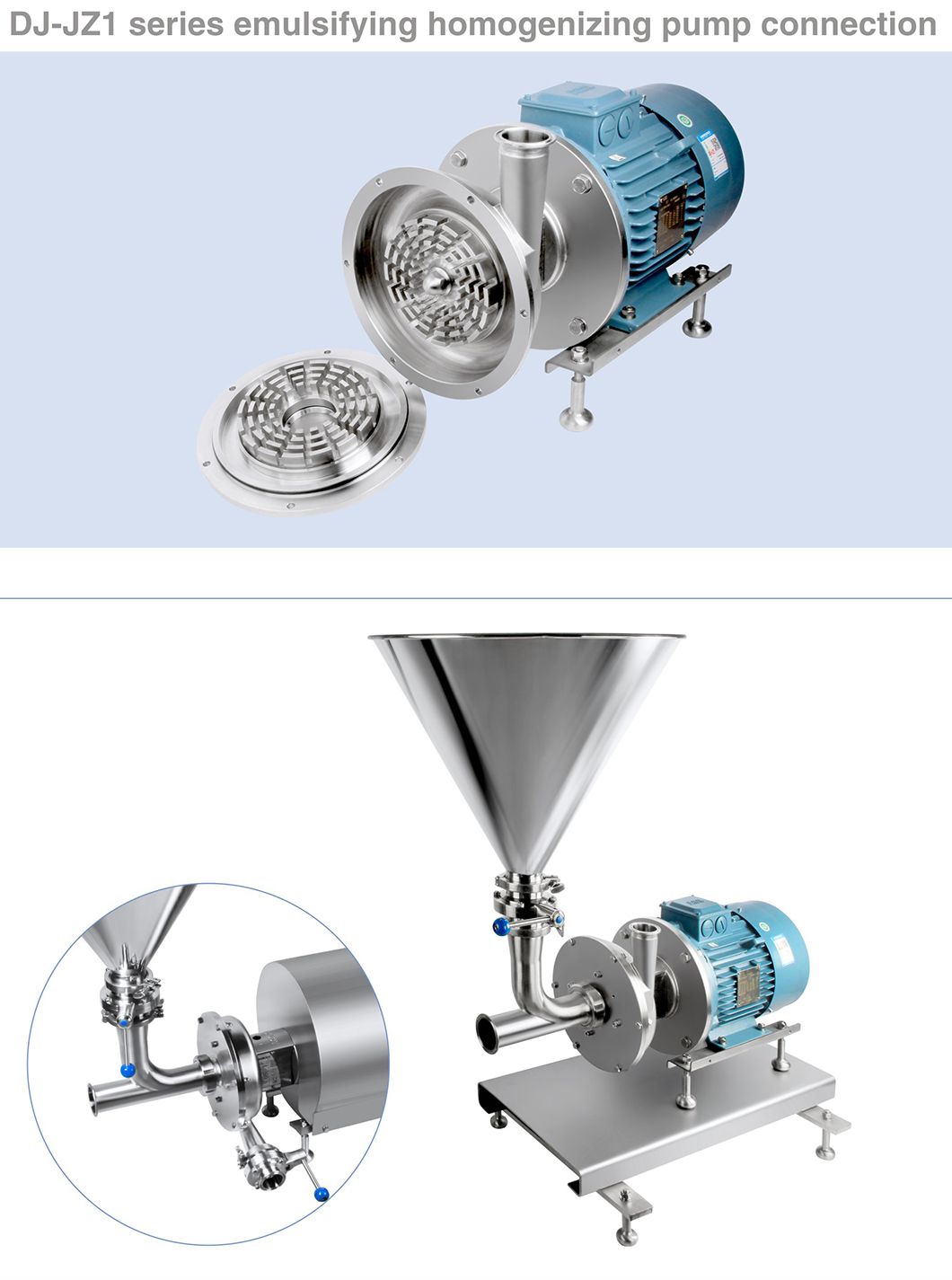

                            DJ-ZJ1  Homogeneous Single-Stage  Mixing Pump with Hoper ABB Motor

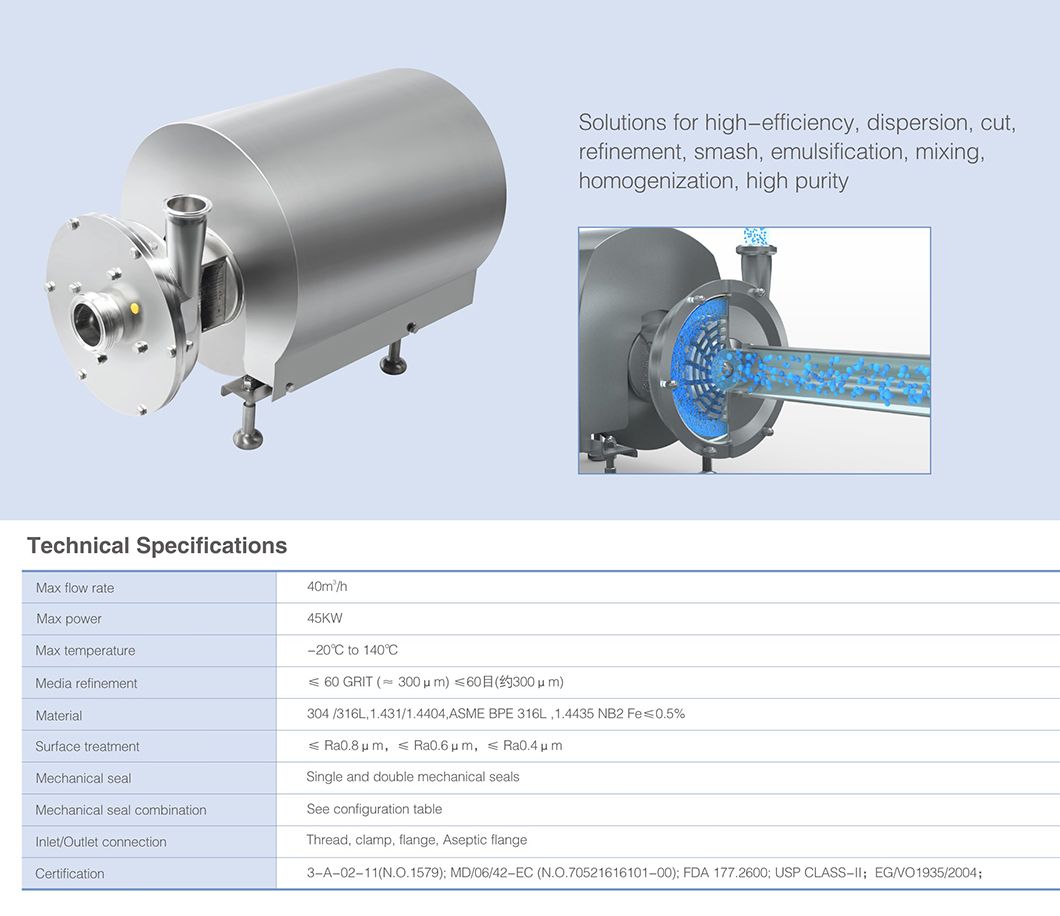

                            Specification:

                            Product Name:Single -Stage Homogeneous Emulsifying Pump
                            Material:Stainless steel 316L/1.4404
                            Seal Material:FPM(Viton)
                            Max. Flow:50 m3/H
                            Max. Power:90KW
                            Temperature:-20~140 degree centigrade
                            Media refinement:≤ 100 GRIT (≈200 μm)

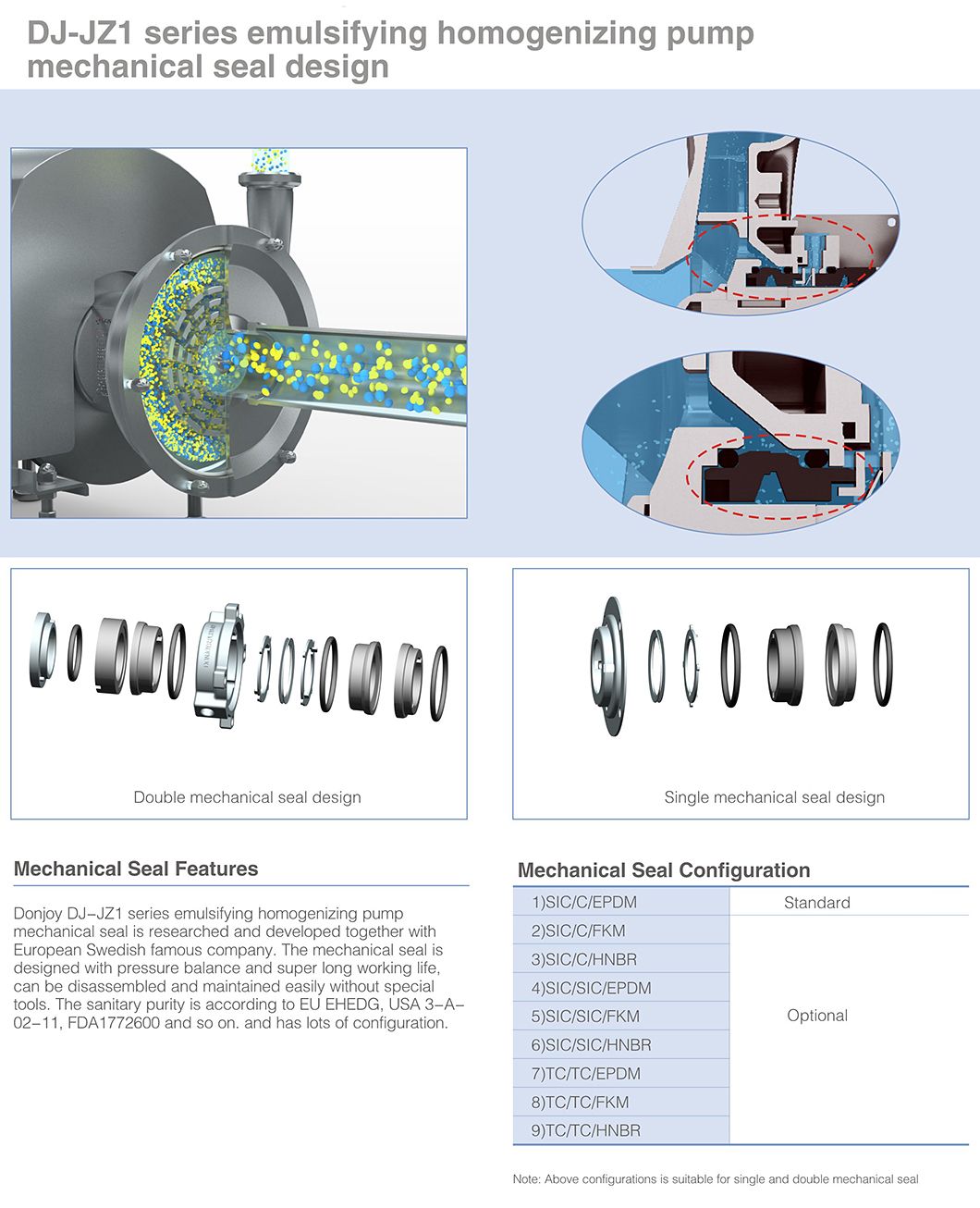

                            Mechanical seal:SIC/C/FKM(Standard), optional: SIC/SIC/FKM, SIC/C/FFKM, SIC/SIC/FFKM
                            Surface treatment:RA≤0.8μm, optianl: 0.6μm/0.4μm
                            Mechanical seal:Double mechanical seal
                            Motor:ABB/domestic
                            Motor Frequency:50HZ, 60HZ

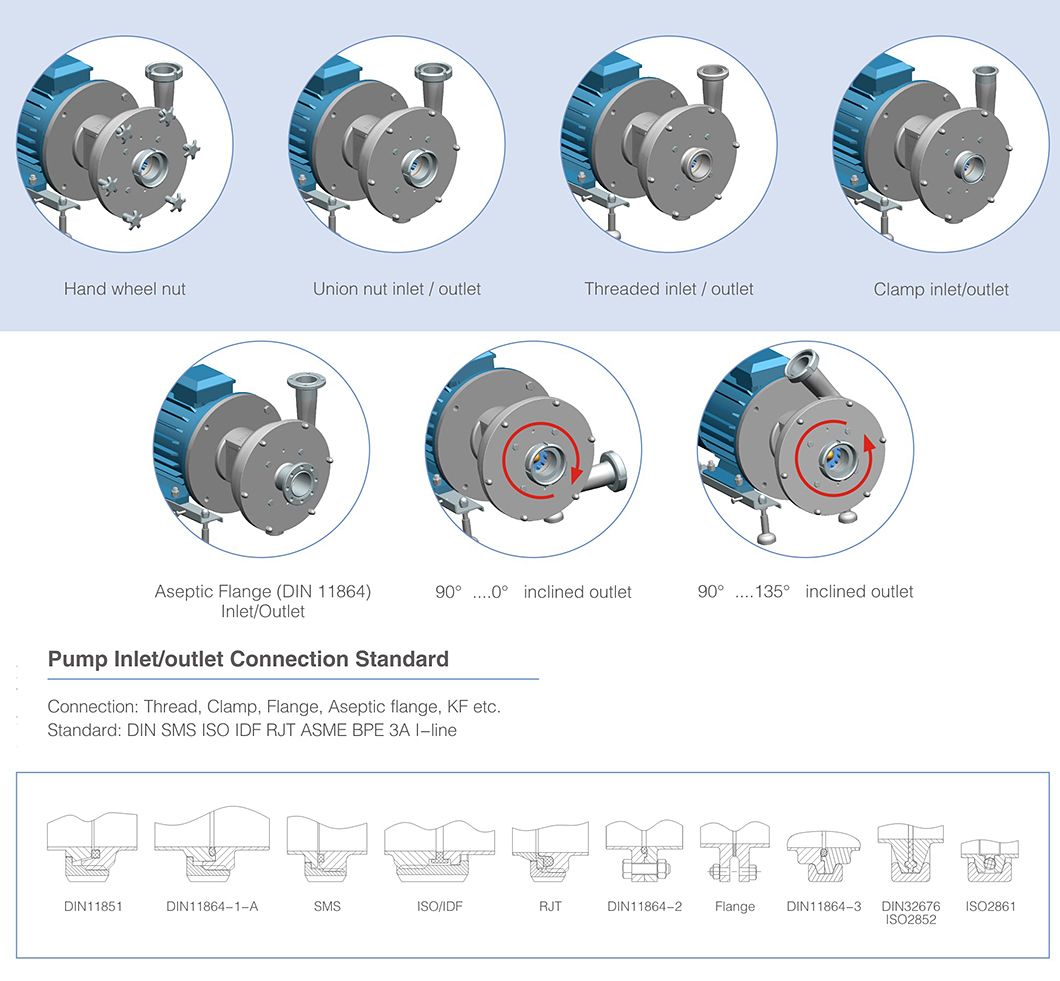

                            Available connection:Tri-Clamped, Threaded, Flanged connection
                            Available standard:DIN, SMS, 3A, RJT, ISO, IDF
                            Operated:By electric motor
                            Low discharge :With bottom drain valve, sampling valve
                            Trolley:Optional
                            Control box:Optional
                            Motor cover:Optional
                            Certification:3-A-02-11(N.O.1579); MD/06/42-EC(N.O.70521616101-00); FDA 177.2600;
                            USP CLASS-II; EG/VO1935/2004;
                            Application scope: Dairy, food, beverage, pharmacy, cosmetics etc
                            Packaging Details:By plywood case

                            Advantage:

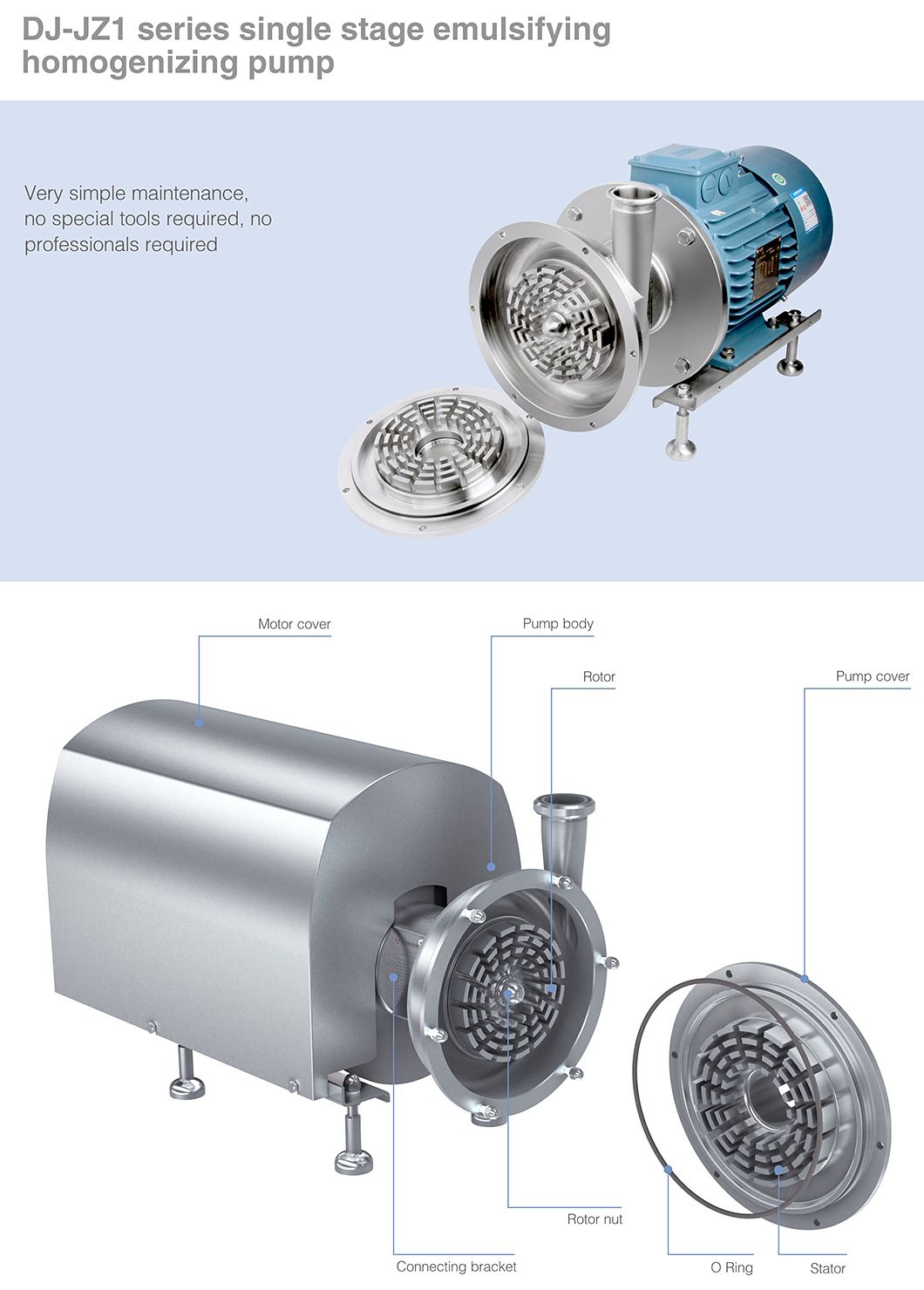

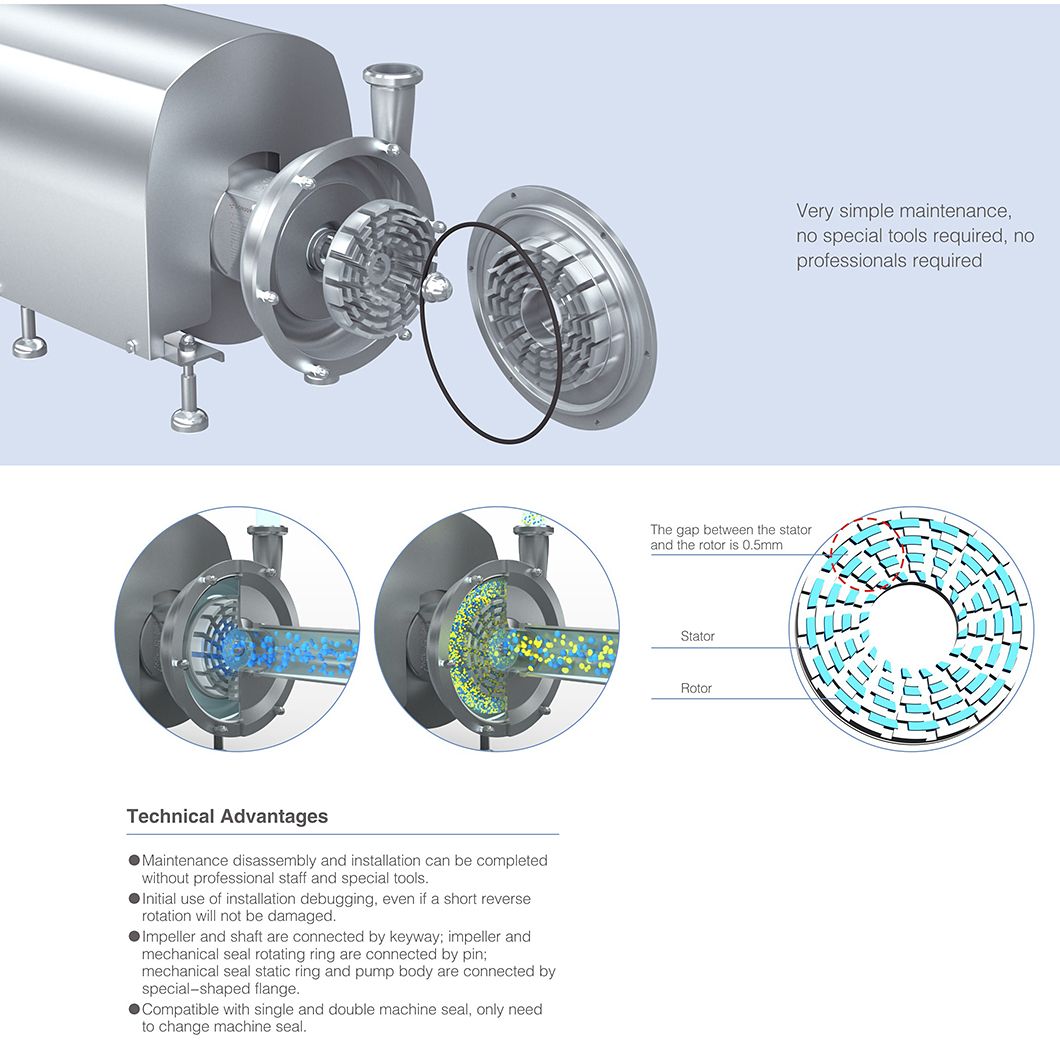

                            1. Maintenance, disassembly and installation can be completed without need of professionals and special tools.
                            2. When in installation and debugging, the motor won't be damaged even if with a short reverse rotation.
                            3. Impeller and shaft are connected by key groove.
