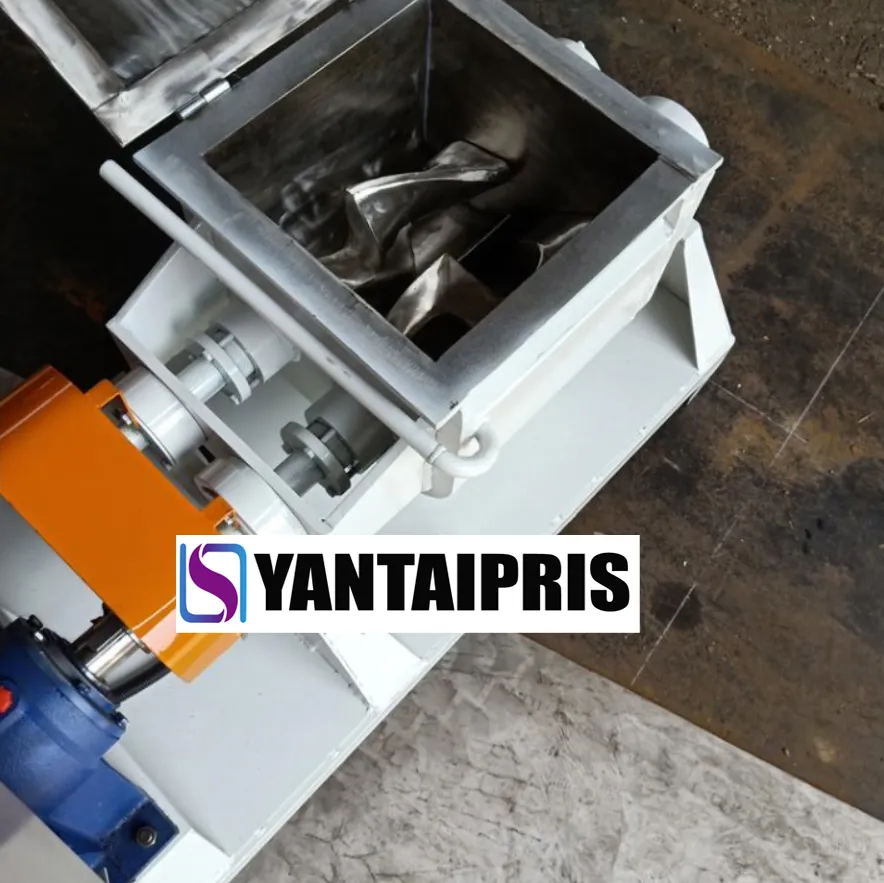

Customized Small Batch 1L/ 2L Electricity Heating Double Z Arm Blades Sigma Mixer
1L/2L/5L/10L/20L/30L Double sigma mixer to meet your demands!Q1:Why do you need a double sigma mixer?Usually speaking,we mostly use the followed types of mixers: V type mixer,ribbon mixer, coulter mixer, paddle mixer, double screw mixer, double sigma kneader, planetary mixer, etc. But only kneader a......
Send Inquiry
Product Description
1L/2L/5L/10L/20L/30L Double sigma mixer to meet your demands!
Q1:Why do you need a double sigma mixer?
Usually speaking,we mostly use the followed types of mixers: V type mixer,ribbon mixer, coulter mixer, paddle mixer, double screw mixer, double sigma kneader, planetary mixer, etc. But only kneader and planetary mixer are suitable for high-viscosity materials mixing. Compared with planetary mixer,the kneader has a wider range of application to the viscosity of the material, but the material remaining and cleaning may not be as thorough as the planetary mixer. When customers have more colors or varieties,he should try to choose planetary mixers.
Q2:double sigma mixer applications:
It is widely used in high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, pulp, cellulose, and also used in batteries, inks, pigments, dyes, medicines, resins, plastics, carbon, electrode pastes , Electrodes, rubber, cosmetics and other industries.
Q3:Applications:
It is widely used in high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, pulp, cellulose, and also used in batteries, inks, pigments, dyes, medicines, resins, plastics, carbon, electrode pastes , Electrodes, rubber, cosmetics and other industries.
Q4: Kneader structure:
According to the number of motors required by the motor stirring blade, it can be divided into single-drive kneader and double-drive kneader.
The main structure of the kneader is composed of a drive system, a kneading system, a heating/cooling system, a support system, a hydraulic system, a vacuum system, and an electronic control system.
Q5:Technical Data:
Q1:Why do you need a double sigma mixer?
Usually speaking,we mostly use the followed types of mixers: V type mixer,ribbon mixer, coulter mixer, paddle mixer, double screw mixer, double sigma kneader, planetary mixer, etc. But only kneader and planetary mixer are suitable for high-viscosity materials mixing. Compared with planetary mixer,the kneader has a wider range of application to the viscosity of the material, but the material remaining and cleaning may not be as thorough as the planetary mixer. When customers have more colors or varieties,he should try to choose planetary mixers.
Q2:double sigma mixer applications:
It is widely used in high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, pulp, cellulose, and also used in batteries, inks, pigments, dyes, medicines, resins, plastics, carbon, electrode pastes , Electrodes, rubber, cosmetics and other industries.
Q3:Applications:
It is widely used in high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, pulp, cellulose, and also used in batteries, inks, pigments, dyes, medicines, resins, plastics, carbon, electrode pastes , Electrodes, rubber, cosmetics and other industries.
Q4: Kneader structure:
According to the number of motors required by the motor stirring blade, it can be divided into single-drive kneader and double-drive kneader.
The main structure of the kneader is composed of a drive system, a kneading system, a heating/cooling system, a support system, a hydraulic system, a vacuum system, and an electronic control system.
Q5:Technical Data:
| Model | Volume | Drive(KW) | Discharging | Heating | ||
| Full(L) | Effective(L) | |||||
| DSM-2 | 2 | 1.2 | 1.1 | Manual tilting | Steam | Electric |
| DSM-5 | 5 | 3 | 1.5-2.2 | Manual tilting | Steam | Electric |
| DSM-10 | 10 | 6.5 | 2.2-3 | Manual tilting | Steam | Electric |
| DSM-50 | 50 | 33 | 5.5-7.5 | Tilting,Screw extruder | Steam | Electric |
| DSM-150 | 150 | 100 | 7.5-11 | Tilting,Screw extruder | Steam | Electric |
| DSM-200 | 200 | 130 | 11-18.5 | Tilting,Screw extruder | Steam | Electric |
| DSM-300 | 300 | 180 | 18.5-22 | Tilting,Screw extruder | Steam | Electric |
| DSM-500 | 500 | 330 | 22-30 | Tilting,Screw extruder | Steam | Electric |
| DSM-1000 | 1000 | 650 | 37-110 | Tilting,Screw extruder | Steam | Electric |
| DSM-1500 | 1500 | 920 | 37-110 | Tilting,Screw extruder | Steam | Electric |
| DSM-2000 | 2000 | 1250 | 55-160 | Tilting,Screw extruder | Steam | Electric |
| DSM-3000 | 3000 | 1950 | 75-220 | Screw extruder | Steam | Electric |
| DSM-4000 | 4000 | 2500 | 90- | Screw extruder | Steam | Electric |
| DSM-5000 | 5000 | 3300 | 110- | Screw extruder | Steam | Electric |
