Cream Paste Lotion Products Making Mixing Homogenizing Machine with Emulsifier
Vacuum Emulsifying Mixer for Shampoo making machine Body Cream Cosmetic Food Processing Mixer Products DescriptionVacuum homogeneous emulsifying machine (top homogenizer) is an ideal option to produce highgrade skin care products, pharmacy ointment, and many other kinds of creams which need to be ve......
Send Inquiry
Product Description

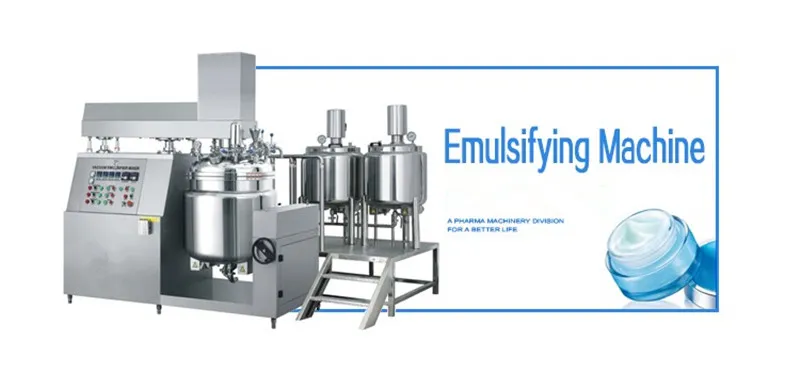

Vacuum homogeneous emulsifying machine (top homogenizer) is an ideal option to produce highgrade skin care products, pharmacy ointment, and many other kinds of creams which need to be very soft and smooth. It has the functions of heating, mixing, scraping, rotating at different speeds and vacuum supply.
It has a very wide application from cosmetics (skin cream, hair gel, lotion etc) and food (jam, chocolate, sauces etc) to pharmacy (ointment, syrup, paste) and chemicals(painting, adhesives, detergents).
.
Principle Feature
1.With hydraulic lifting system, free lifting pan cover and inverted pan reset.
2.The mixing system adopts the advanced three heavy mixer variable frequency speed regulation, which can meet the production of different process requirements.
3.The vacuum can make the material to achieve the aseptic requirements, and the use of vacuum suction, which can meet the different requirements of the production process.
4.The heating method mainly include electric or steam heating for customer's choice
That is very importantFrequency speed control :Siemens
Stirring scrap Material:SUS316L ,Scrap material PTFE/Teflon
Motor : Siemens or ABB
Touch screen : Siemens
ABB brand or Siemens Motor
Frequency control Siemens
homogenizer motor : ABB or Siemens Siemens touch screen and PLC ( button control )
Multiple Choice
Fixed type or lift type
heating method:steam or electric
cotrol:Seimens PLC touch screen or button
homogenizer:bottom or upper
out products:pump or tilting
The reasons for you
1.For heating system(steam or electric heating)
(1)steam heating save cost in the future.The electric heating save cost now
(2)steam heating temperature can reach to 170.4degrees,the electric heating can reach to 100degrees.
(3)steam heating up fast.
2.For homogenizer(upper homogenizer or bottom homogenizer )
(1)upper homogenizer beautiful ,
(2)bottom homogenizer easy cleaning
(3)bottom homogenizer easy maintain
(4)upper homogenizer,bottom seals better that bottom homogenzer
(5)upper homogenizer speed 3000rpm,bottom homogenizer speed3600rpm.
3.control (touch screen control or buttom control )
(1)Buttom control save cost .
(2)According to country habit
(3)buttom control easy maintain
(4)PLC touch screen control intelligentize
4.fixed type or lift type
(1)save cost, fixed type
(2) Small footprint ,lift type
Technical parameter
| Type | Workingcapacity | Homogenizer | Agitator | Vacuum pump | Heating power (KW) | ||||
| KW | r/min | KW | r/min | KW | Limit vacuum | Electrical heating | Steam heating | ||
| SCM-VA-100L | 100L | 4 | 0-3600 | 1.5 | 0~63 | 1.5 | -0.09 | 30 | 12 |
| SCM-VA-200L | 200L | 5.5 | 0-3600 | 2.2 | 0~63 | 2.2 | -0.09 | 45 | 16 |
| SCM-VA-300L | 300L | 7.5 | 0-3600 | 2.2 | 0~63 | 2.2 | -0.09 | 48 | 18 |
| SCM-VA-500L | 500L | 11 | 0-3600 | 4 | 0~63 | 3.85 | -0.09 | 60 | 24 |
| SCM-VA-1000L | 1000L | 15 | 0-3300 | 7.5 | 0~52 | 5.5 | -0.09 | 72 | 30 |
| SCM-VA-2000L | 2000L | 18.5 | 0-3300 | 11 | 0~45 | 7.5 | -0.09 | / | 49 |
| SCM-VA-3000L | 3000L | 22 | 0-3300 | 15 | 0~45 | 7.5 | -0.09 | / | 66 |
| SCM-VA-5000L | 5000L | 22 | 0-3300 | 18.5 | 0~38 | 11 | -0.09 | / | 77 |
Application field
Warmly welcome to vist our company and machines .Welcome to learn more information about machines (picture ,video and specification ).(Turn-key project )
Our Service
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
Company Information
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Warmly welcome to contact with us (pictures ,operation video ,operation book etc )

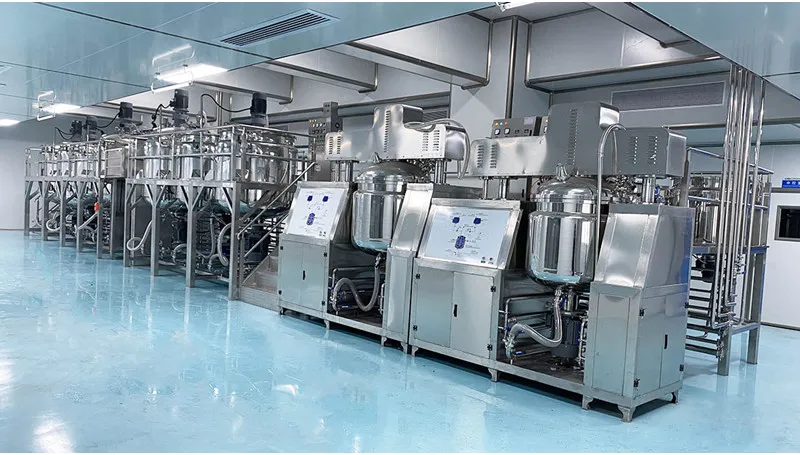

Customer factory

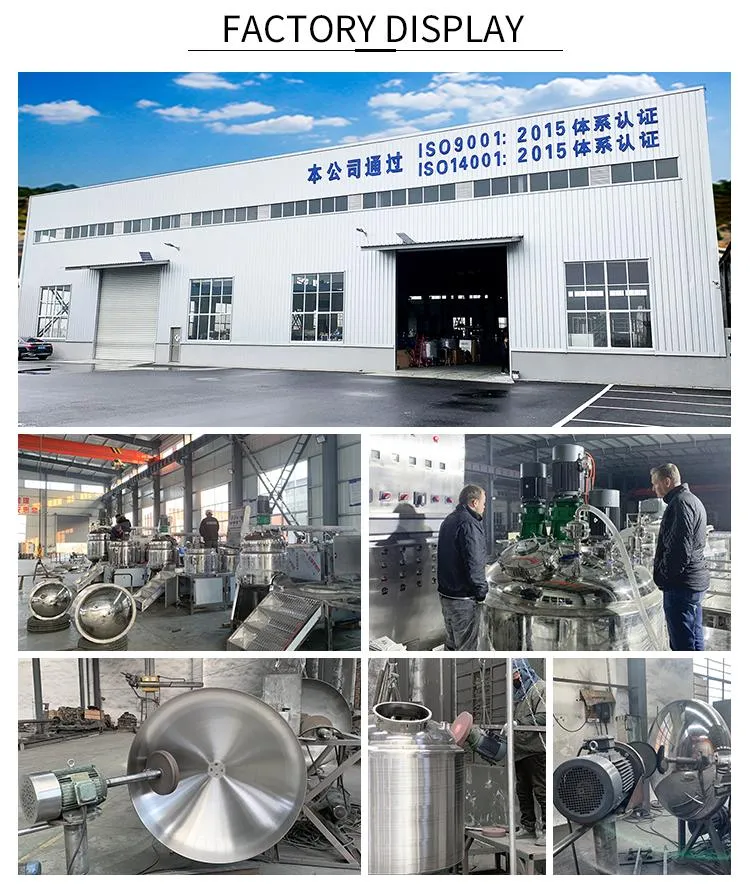

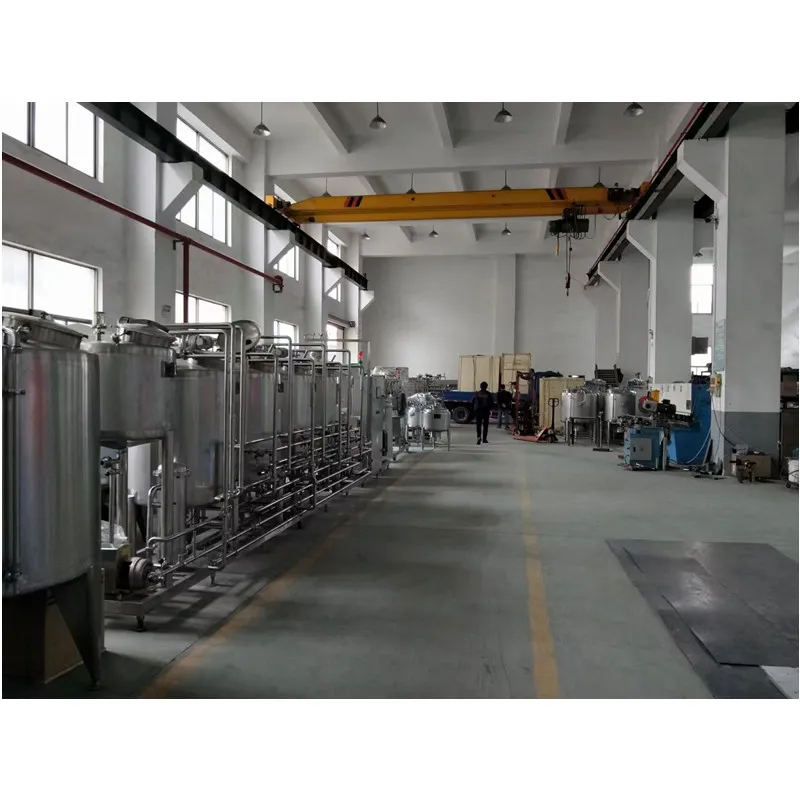

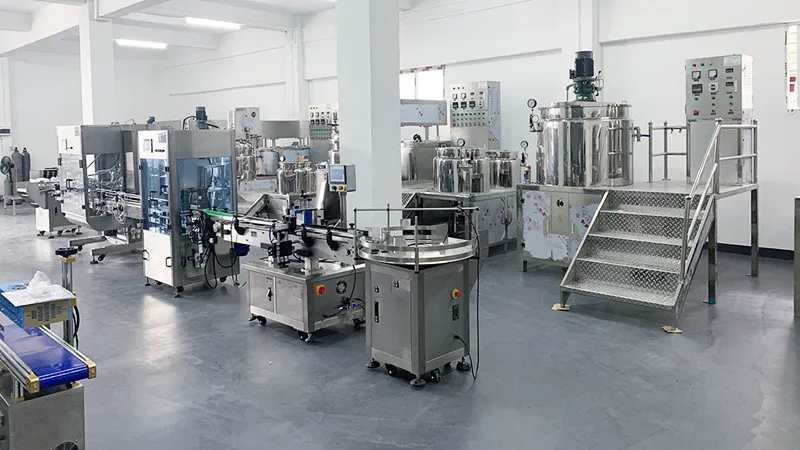

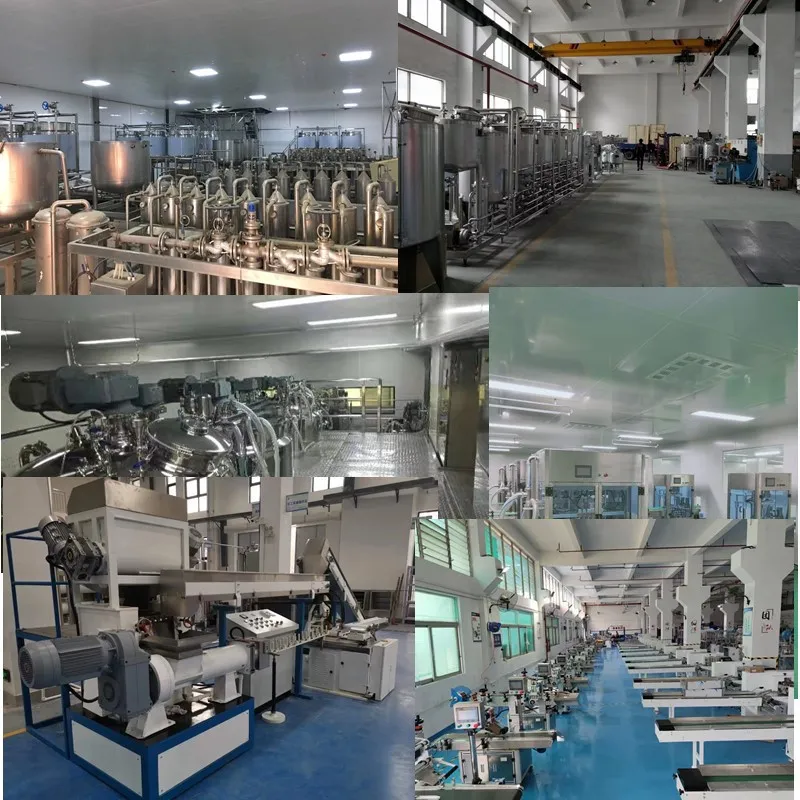

Our factory
Certification
Famous Supplier
FAQ:1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger
(Whatsapp/phone,We Chat).
2.How long can I get feedback after enquiry?
We will reply you within 2hrs.
3.What is the package?
Machines will be packed by plywood case.
