Condiment Mixing Machine

Advantages

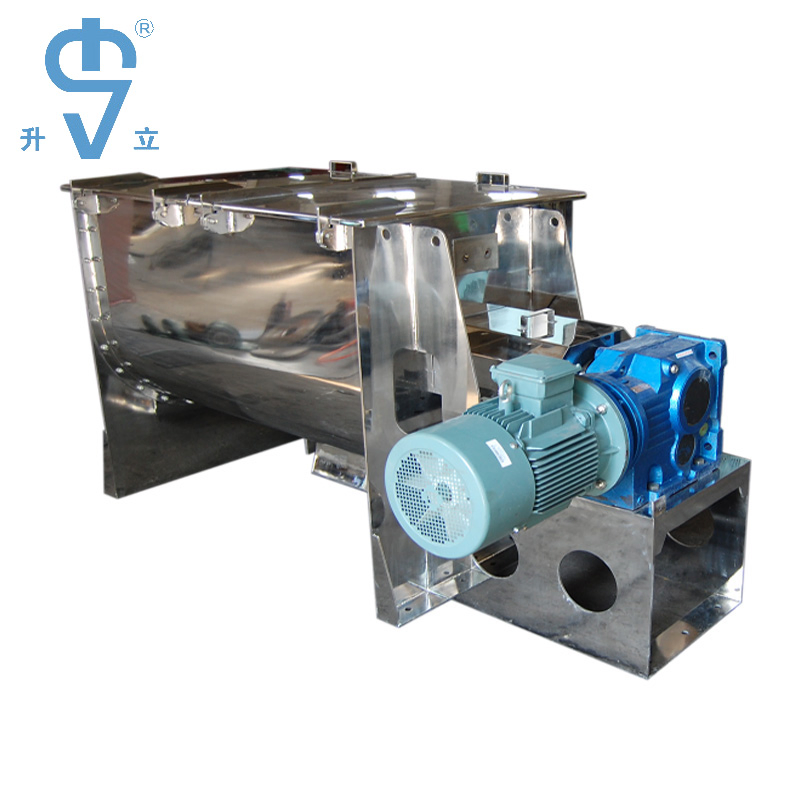

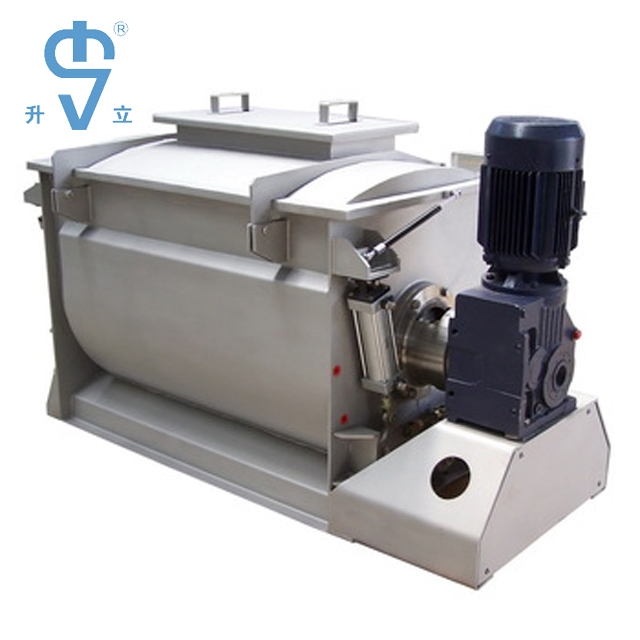

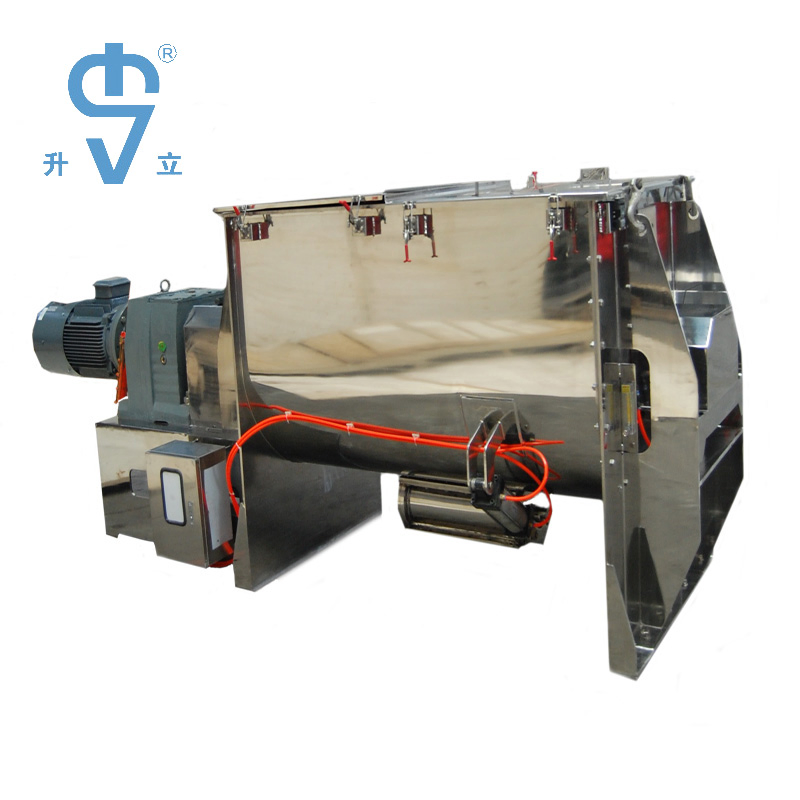

LHY Ribbon Mixer
Best mixing homogeneity
Shortest mixing time
Low failure rate
High mixing efficiency
Repeated batch mixing

Working principles

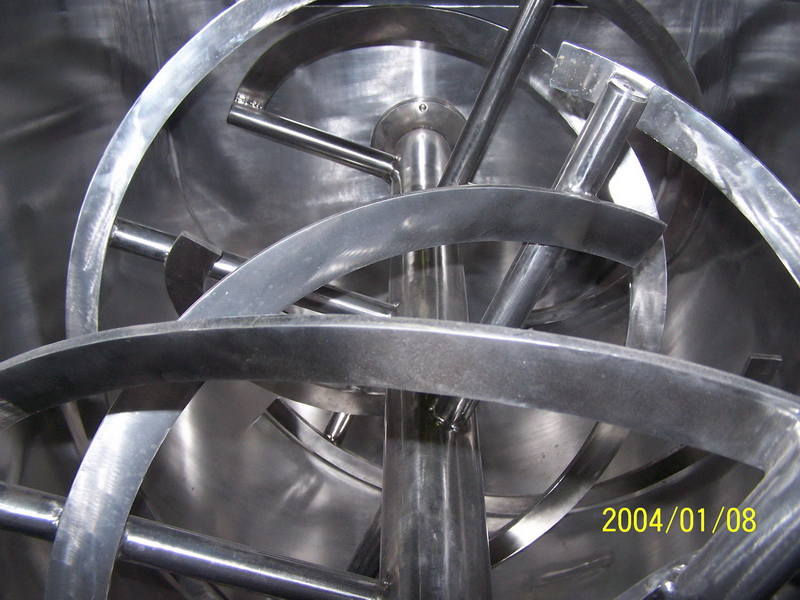

The outer helix combined with rotation direction drive material from two ends of vessel to center; While the inner helix drive materials from center to both ends. The vortex structure of outer helix combined with rotation of main shaft drive material to discharge outlet guaranteeing no dead corner.

Special instruction
Horizontal ribbon mixer is a very popular type for powder material in all industries.
Horizontal ribbon mixer is widely used in chemical, medicine, food and construction industry. It is more used to mix different kinds of powder, powder with a small quantity of liquid, and powder with granule.

Flexible material selection
Material can be chosen from carbon steel, manganese steel, SS304, 316L and 321; Besides, different material can also be used in combination.
Material is different between the part contact with the raw material and the parts don't contact with the raw material.
Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.

Reliable driven unit
The driven unit, power and output speed are varied according to different raw material, starting method, and processing.
Options for motor: General motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor
We commonly used connection: Direct connection, pulley connection, hydraulic coupler connection.

High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials
Materials commonly mixed are: Different kind of powder to be mixed with each other, batches mixing for the same material, powder with a small quantity of liquid, liquid with some powder, like slurry, thickening or diluting slurry, granule with powder, granule with granule, agglomerated material breaking and mixing, and cooling or heating
The main shaft agitator could be: Inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator

Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.
They can be used ad man hole, cleaning door, feeding hole, vent, and dust colleting hole. The top cover can be designed as fully-opened lid for easy cleaning.

Excellent discharging unit
Standard valve for horizontal plough shear mixer is pneumatic planar flap valve. When close the valve, the planar flap match the mixing barrel perfectly, this makes no mixing dead zone and better mixing effect
The drive types of valve are manual, pneumatic, and electric.
Valves for consideration: Powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

Tight shaft sealing
Three type's main shaft sealing for mixer: Packing sealing, combined types air-purged sealing, mechanical sealing are used for granule, powder, micron grade powder, liquid, and slurry material.
