CE Approved Cone Mixer Powder Mixture

Product Description

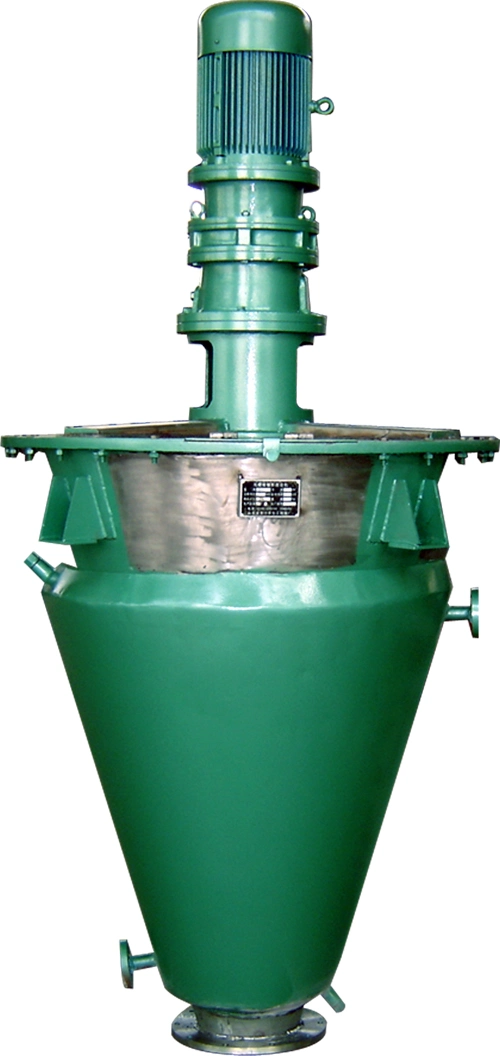

Helix cone mixer applicable features:

1. Applicable material proportion of the poor, the powder particles are relatively large materials;

2. Suitable for ceramic glaze mixing gentle process, the material particles do not pressure-fed or broken;

3. The heat-sensitive materials will not overheat;

4. In the powder - powder mixing process is very easy to add working conditions or providing a liquid to a plurality of spray outlet means;

5. The bottom valve of dislocation convenient material, since the bottom of the spiral no fixtures, so there is no pressure fed phenomenon

Double helix cone mixer is widely used in pharmaceutical, food, chemical, fertilizer, oil fields, oil refineries, pesticides, veterinary drugs, paints, pigments, dyes and chemicals, metallurgy, metallurgy, mining, building materials, electronic plastic, feed, aquaculture, mixing the powder with a solid and powder and powder of biotechnology, health care products, ceramics, glass and new materials, nuclear materials and other industries, solid liquid (ie, powder and liquid) were mixed, liquid liquid (ie, liquid and liquid) mix. The machine adaptability mixture, mixing the composition of the heat-sensitive materials will not produce the phenomenon of segregation. Mixed coarse material, fine and ultrafine powder of various particle, fiber or sheet materials have good adaptability. The aircraft rotation and revolution are a motor and cycloid reducer to complete, using two screws asymmetric mixing, the material was stirred range, mixing speed, proportion of the poor, mixed relatively large mixing materials more appropriate . The machine material contact parts are stainless steel. It is a highly efficient, high-precision new hybrid device.

Technical Parameter

Model	Motor Power	Mixing Speed	Mixing Weight	Dimensions	Total Weight
ZSH-0.1	1.5kw	2-108r/min	<60(kg/m3)	∮750x1580mm	250Kg
ZSH-0.5	3kw	2-108r/min	<300(kg/m3)	∮1150x2320mm	600Kg
ZSH-1	4kw	2-57r/min	<600(kg/m3)	∮1480x2850mm	1200Kg
ZSH-2	5.5kw	2-57 r/min	<1200(kg/m3)	∮1820x3510mm	1500Kg
ZSH-3	7.5kw	1.8-57r/min	<1800(kg/m3)	∮2050x3800mm	2300Kg
ZSH-4	11kw	1.8-57r/min	<2500(kg/m3)	∮2250x4480mm	2500Kg
ZSH-5	15kw	1.8-57r/min	<3000(kg/m3)	∮2350x4720mm	2800Kg
ZSH-6	15kw	1.8-57r/min	<3600(kg/m3)	∮2560x4980mm	3000Kg
ZSH-8	18.5kw	1.8-57r/min	<4200(kg/m3)	∮2780x5360mm	4500Kg
ZSH-10	18.5kw	1.8-57r/min	<6000(kg/m3)	∮3020x5810mm	5500Kg
ZSH-15	22kw	1.8-57r/min	<9000(kg/m3)	∮3460x6510mm	6800Kg
ZSH-20	37kw	1.8-57r/min	<12000(kg/m3)	∮3810x7420mm	9800Kg
ZSH-25	45kw	1.8-57r/min	<15000(kg/m3)	∮4090x7800mm	11000Kg
ZSH-30	55kw	1.8-57r/min	<18000(kg/m3)	∮4350x8200mm	12500Kg
