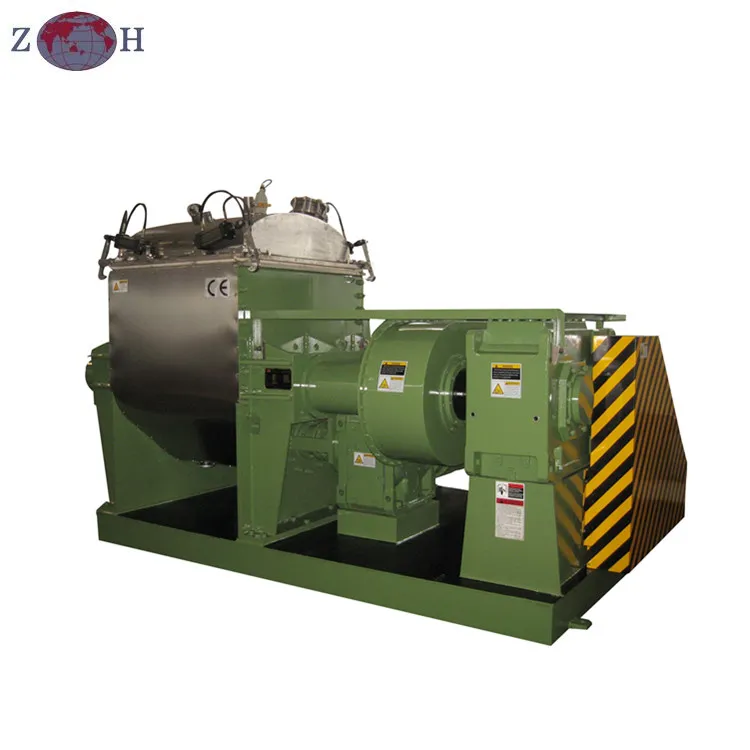

BMC Vacuum Kneader

Product Description

Vacuum kneader/kneader

Vacuum kneader for hot melt adhesive sealant, silicone rubber, BMC, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetic
Kneader is a kind of ideal high-performance equipment for mixing and kneading high viscosity and super high viscosity materials.
Vacuum Kneader is widely used in such industries as high viscosity sealant, silicone rubber, BMC, CMC, battery, ink, dye, pharmacy, resin, plastics and cosmetics, etc.
Kneader temperature adjustment can be done by using heat transfer oil circulation, electric heating, steam and water cooling. It can be made tank body jacket, wallboard jacket, stirrer passing cooling water, passing heat transfer oil and such structures for heating and cooling.

type	Whole capacity(L)	Working capacity (L)	Motor power (kW)	Discharging way	Heating way
NH-1	1	0.6	0.75	manual	Steam or electric heating
NH-2	2	1.2	0.75
NH-5	5	3	1.5
NH-10	10	6	2.2
NH-40	40	24	3 ~ 5
NHZ-100	100	60	5 ~ 7.5	Tilt trough or bottom discharge(ball valve)	steam
NH-200	200	120	7.5 ~ 11
NH-300	300	180	11 ~ 15
NH-500	600	360	15 ~ 22
NH-1000	1200	720	22 ~ 45
NH-1500	1500	900	30 ~ 55
NH-2000	2200	1300	45 ~ 75
NH-3000	3000	1800	55 ~ 90
NH-4000	4000	2400	75 ~ 132	bottom discharge(ball valve)
NH-5000	5000	3000	90 ~ 160
NH-6000	6000	3600	110 ~ 200
