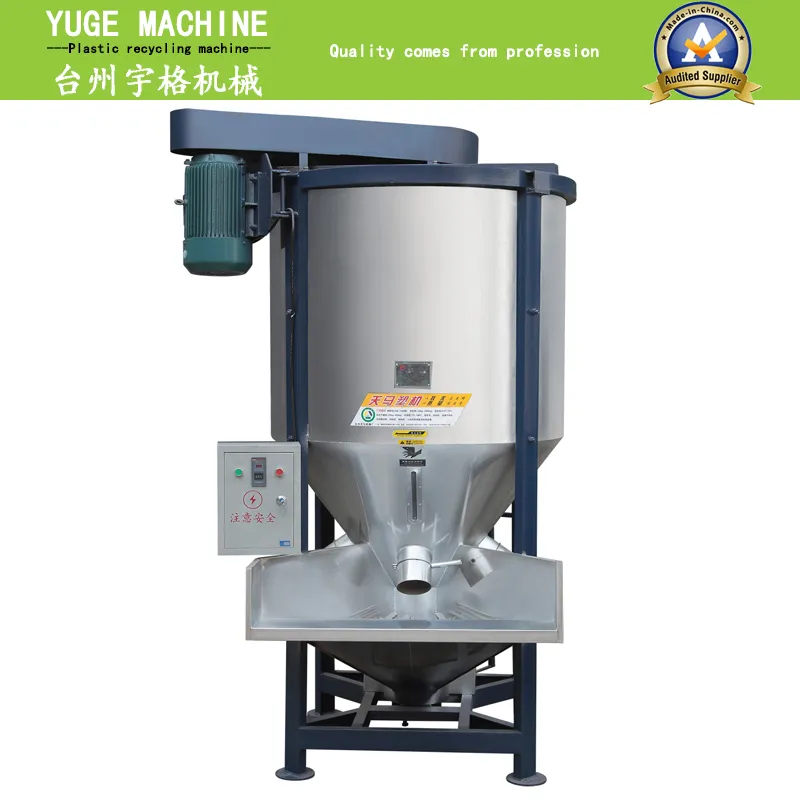

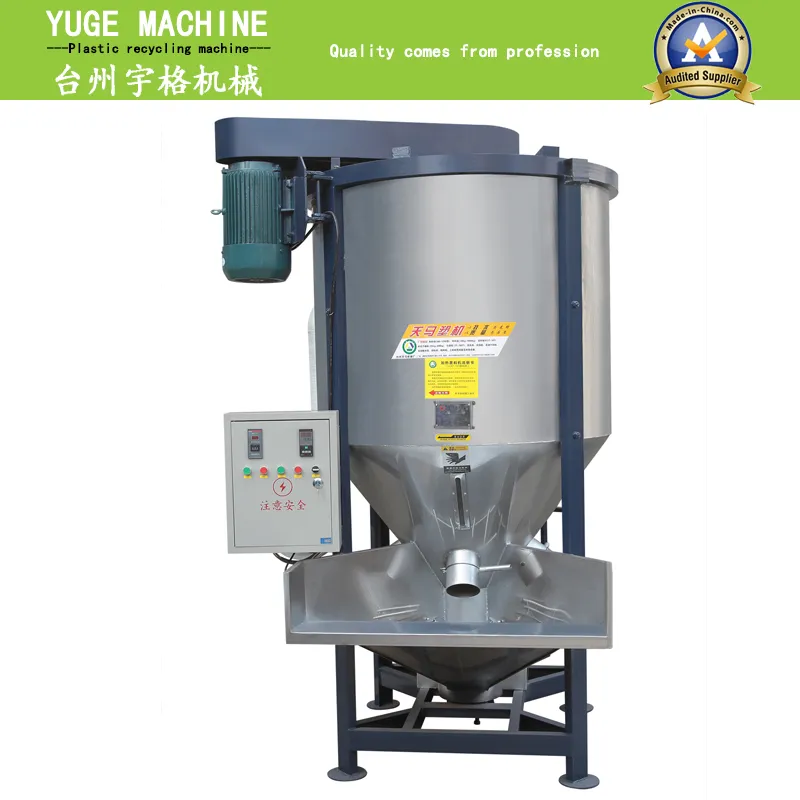

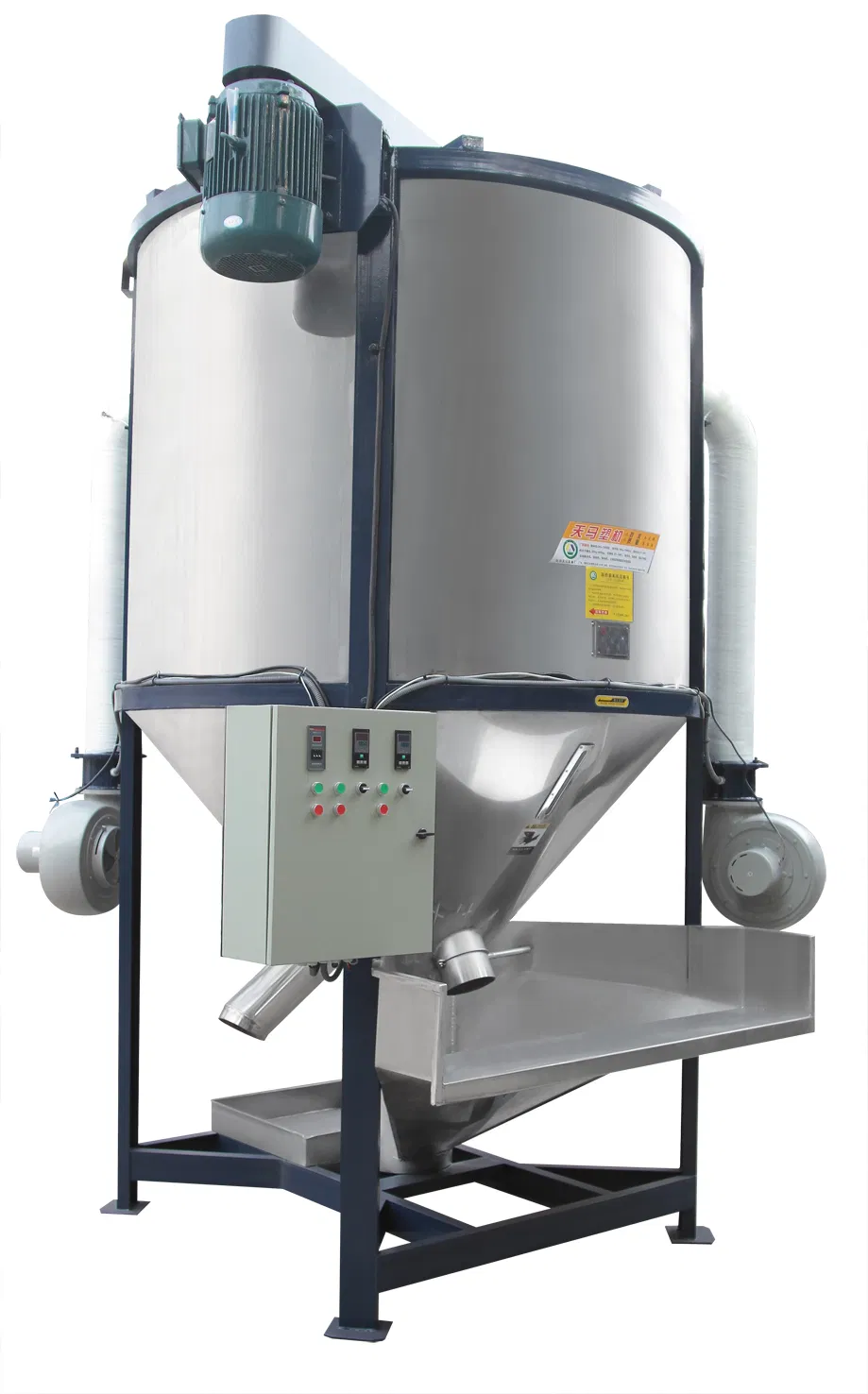

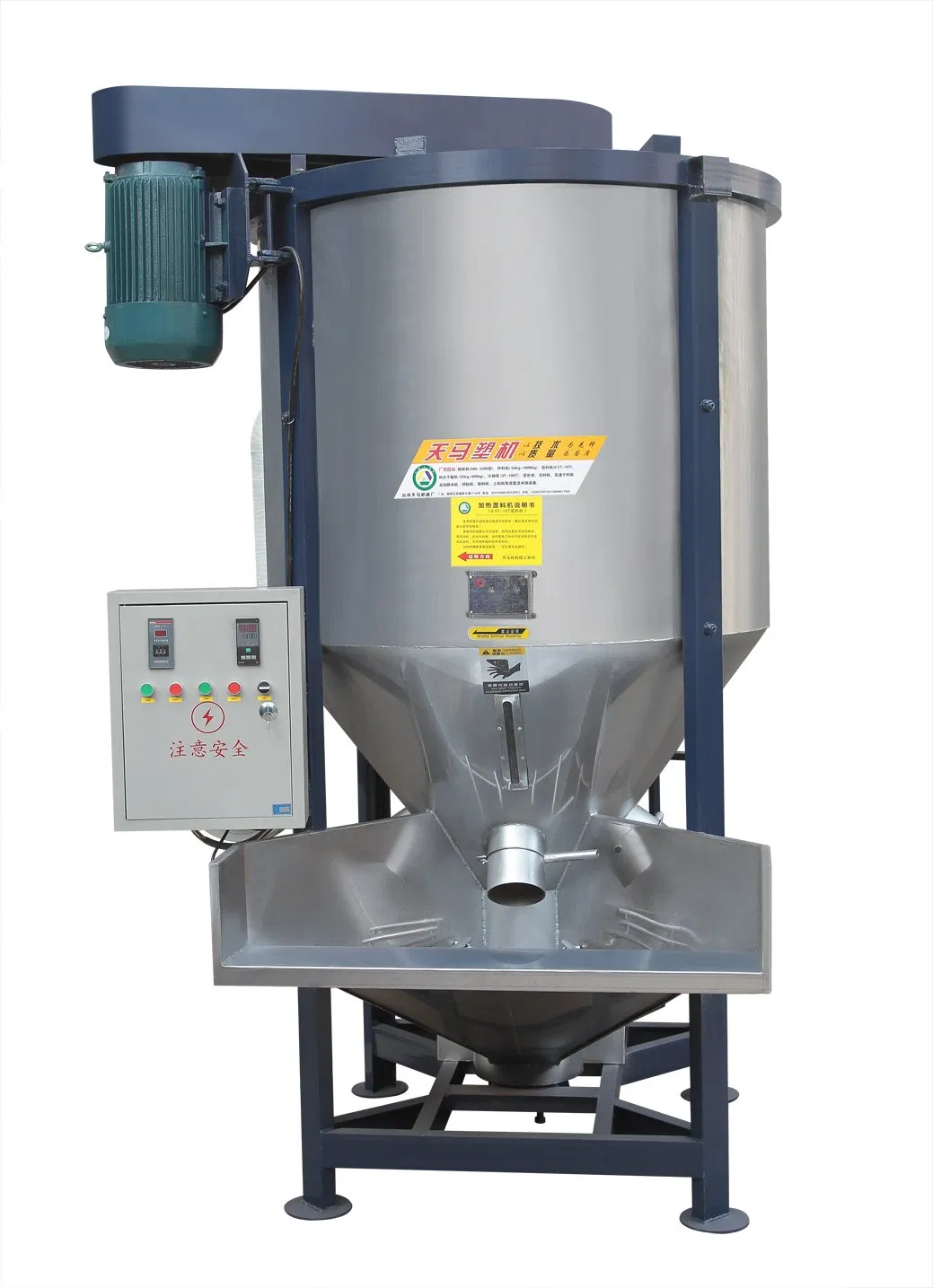

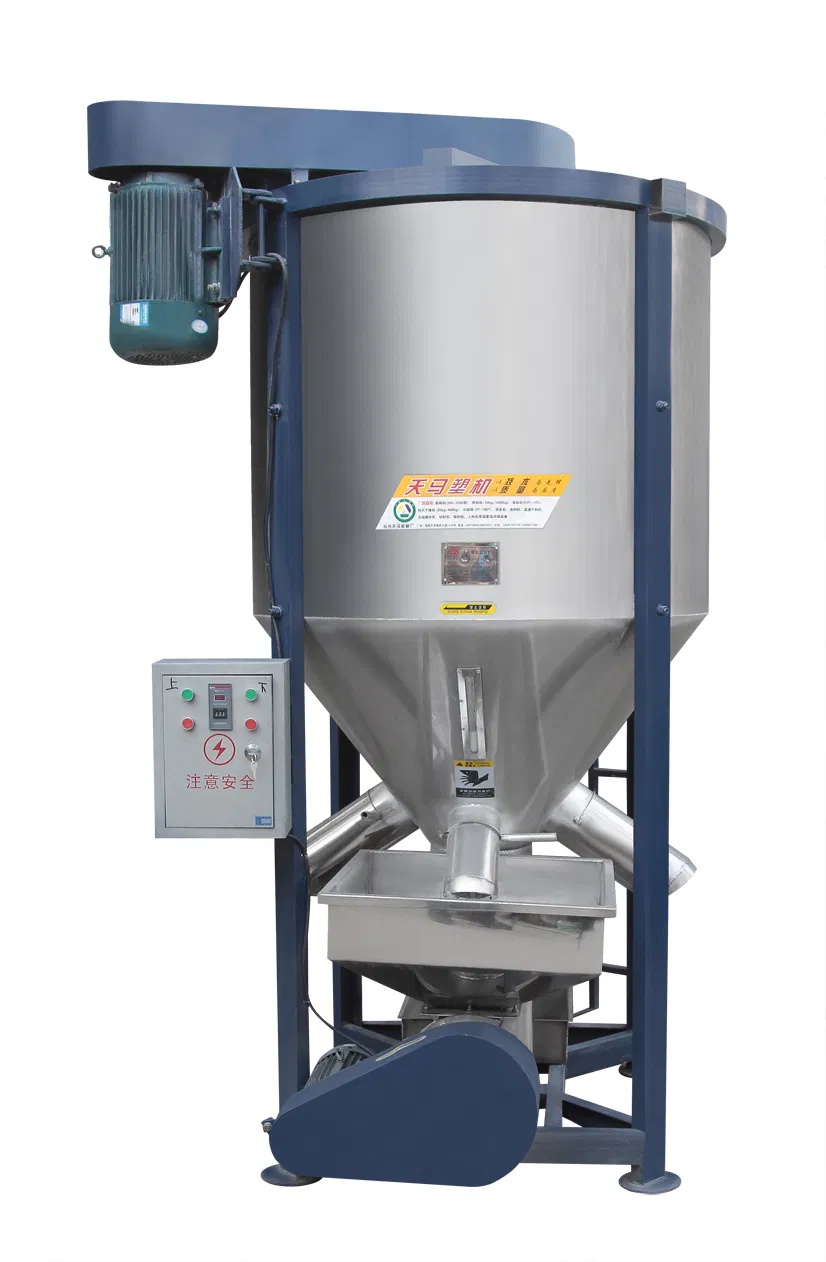

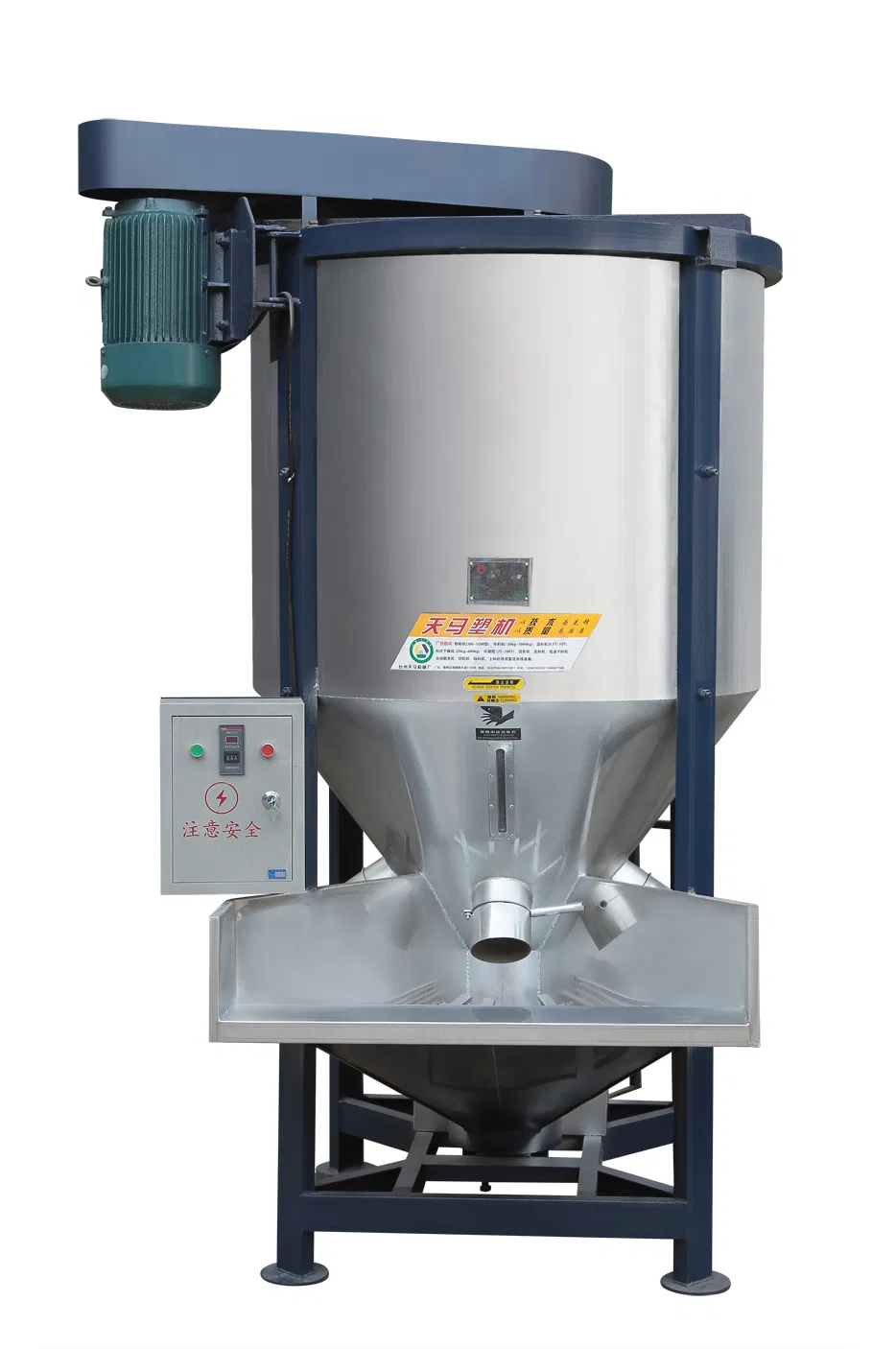

Big Plastic Granules Verticle Color Mixer with Dryer

Product Description

Big Plastic Granules Verticle Color Mixer with Dryer

1.Suitable for all kinds of plastic raw materials and color powder or granules
2.Fully stainless steel or iron contacting parts, rust free and easy to clean Installed with power control device to ensure safety.
3.Customizable for drying type model.

4.Many type you can choose :General type ,powder mixing, only heating , double heating and auto-feeding mixer .Also we can according to your drawing.

WITHOUT HEATING

ITEM	POWER(kw)	R/Min	Volume(M3)	OUTLINE DIMENSION (cm)	NET WEIGHT (kg)
0.5T	3	360	1	170155248	510
1T	5.5	360	2	195185295	640
1.5T	5.5	360	4	210195320	820
2T	5.5	360	4	230215340	1100
3T	7.5	360	6	250230350	1200
5T	11	240	10	280260450	1600
10T	15	240	20	350330520	2200

Big Plastic Granules Verticle Color Mixer with Dryer

WITH HEATING

ITEM	MOTO(kw)	HEATING POWER(KW)	R/Min	Volume(_^m3)	OUTLINE DIMENSION (cm)	NET WEIGHT (kg)
0.5T	3	18	360	1	170155248	610
1T	5.5	32	360	2	195185295	740
1.5T	5.5	32	360	4	210195320	920
2T	5.5	32/65	360	4	230215340	1300
3T	5.5	65	360	6	250230350	1400
5T	11	65/98	240	10	280260450	2500
10T	15	98	240	20	350330520	2200

* Our Service:
• Pre-sale: we give our client the detailed technician offer, sign the sales contract etc.
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• We have 24 hours service line to solve the after sales problem.
• We always update the new technology to every customer.
