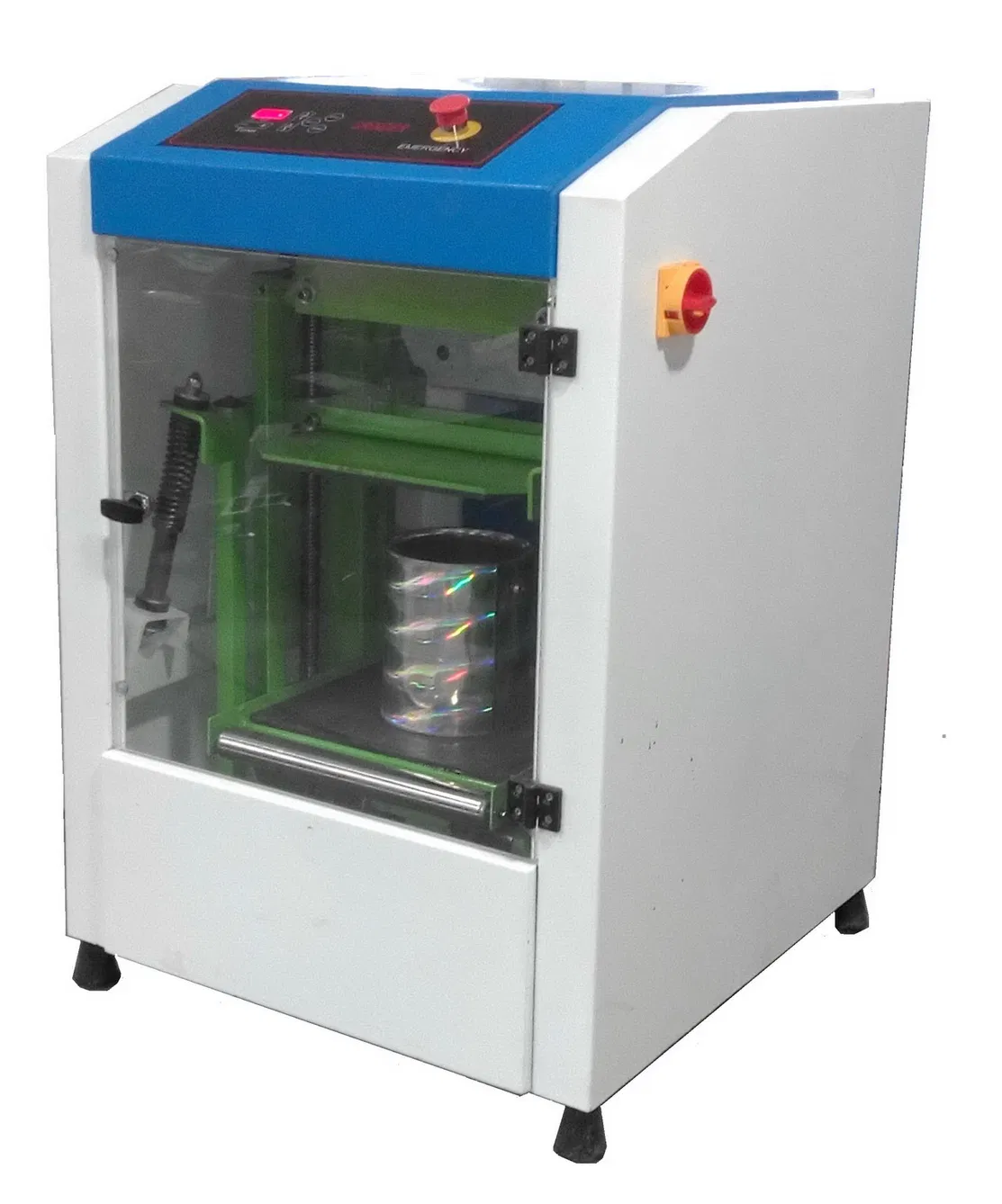

Automatic Clamping Vibration Paint Shaker
Net weight: 200kgGross weight: 240kgSuitable for Can size: 360X360X390MMCan compress-board readjust range: 80-390mmApplicable range: 1-35kgPressure: 3500NPower: 750wSpeed: 1400r/minShaking frequency: 680t/minPower supply: 220V, 50HZ, 10AMachine size: 950 (H) x 820 (W) x 750 (D) mm;Packing size: 1150......
Send Inquiry
Product Description
Net weight: 200kg
Gross weight: 240kg
Suitable for Can size: 360X360X390MM
Can compress-board readjust range: 80-390mm
Applicable range: 1-35kg
Pressure: 3500N
Power: 750w
Speed: 1400r/min
Shaking frequency: 680t/min
Power supply: 220V, 50HZ, 10A
Machine size: 950 (H) x 820 (W) x 750 (D) mm;
Packing size: 1150(H) x 900(W) x 810(D)mm
Features:

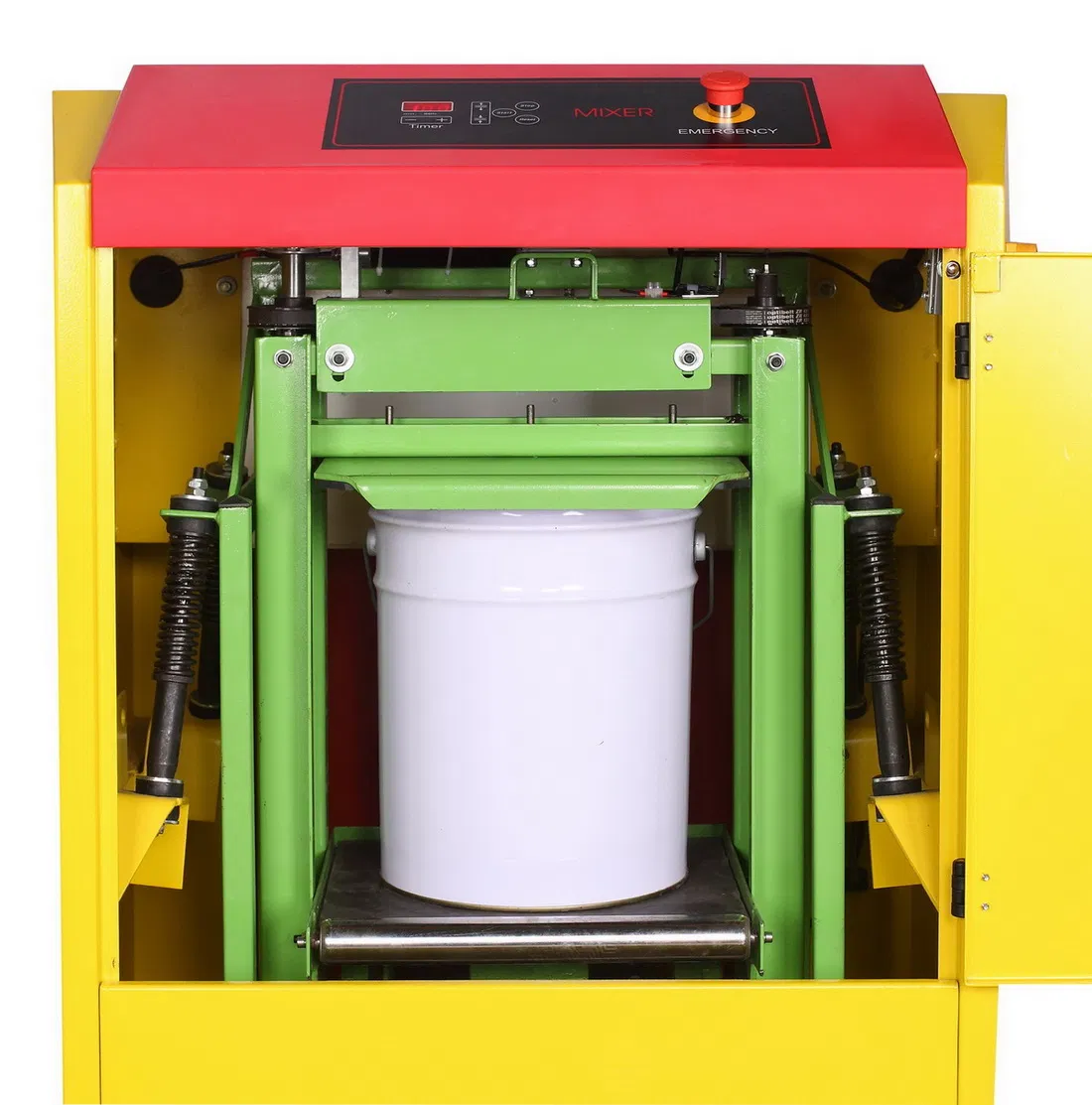

1) Compose with main vibrator, container press cover and microcomputer
controller and so on, is suitable to 1-20L all kinds of can/barrel,
max load weight is 35kg.
2) With PLC microcomputer control---can set the shaking time freely by
the "+" or "-" time key, the longest time can be set is 2hours,
with long use life span.
3) Automatic clamp and bring different pressure to bear on the can
according to the can size, will not squish or stave the can.
4) High speed and thoroughly mixing---with up and down, front and back
continuous multi-shake movement.

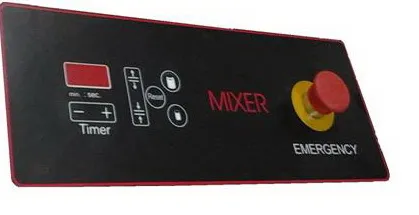

5) With the more clear functions keys on the display panel, such as the
manual clamping and manual opening keys, the start, stop, reset key.
More easy to understand and operation.
6) DC motor,clamping board raise up and press down speed is much faster.
