500ml-30L Vacuum Mixer with Single Axis Helical Blade
500mL-30L Vacuum Mixer with Single Axis Helical BladeTMAX-JKZ system Vacuum Mixer is a high efficient equipment with a set of vacuum mixing and dispersion function together, it is suitable for lithium electricity experiment process for anode and cathode paste mixing process, and also other glue, che......
Send Inquiry
Product Description

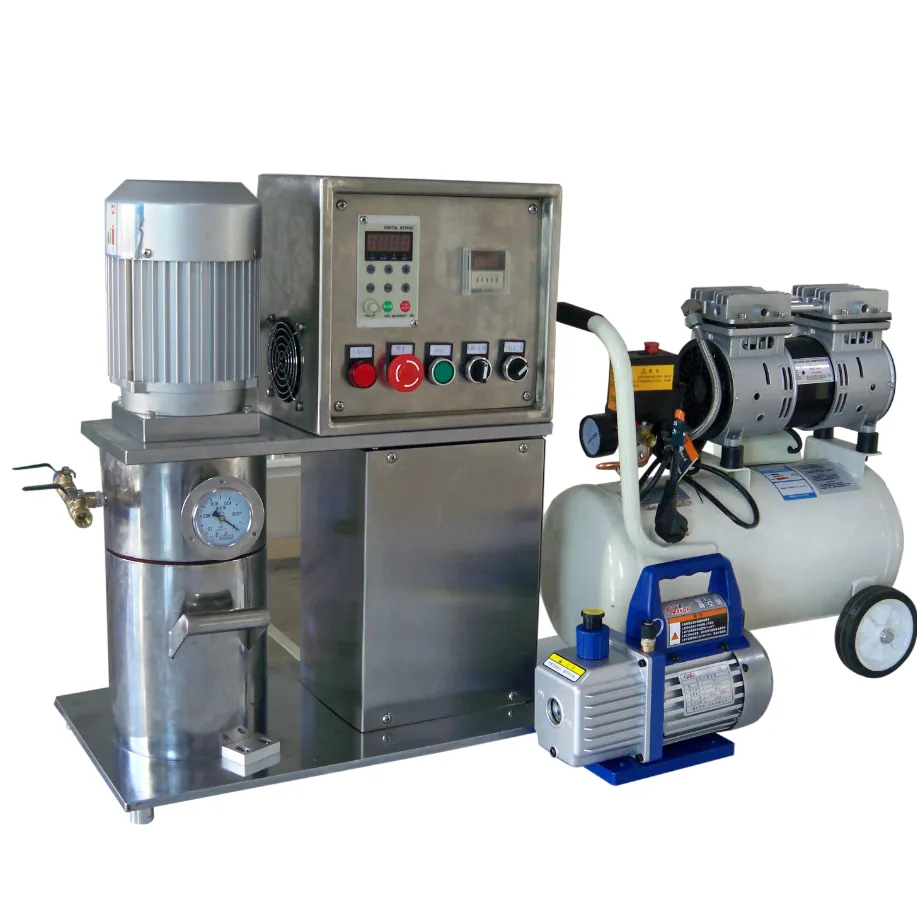

500mL-30L Vacuum Mixer with Single Axis Helical Blade
TMAX-JKZ system Vacuum Mixer is a high efficient equipment with a set of vacuum mixing and dispersion function together, it is suitable for lithium electricity experiment process for anode and cathode paste mixing process, and also other glue, chemical and other industries.2 The vacuum mixer is with handle wheel, which can uplift the cylinder by hand, without connecting with air compressor.
3 The vacuum mixing machine is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.
4 The TMAX-SVM-1L system vacuum mixing machine is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersio
SPECIFICATIONS| Model | Small Size Vacuum Mixer TMAX-SVM-1L |
| Source voltage | AC 220V/110V, 50HZ/60HZ |
| Power | 750W |
| Warranty | One Year limited warranty with lifetime support |
| Mixing speed | 0-2800 r/min, Through the inverter speed control |
| Effective volume | 1L, Can also choose 500ml Mixing Jar |

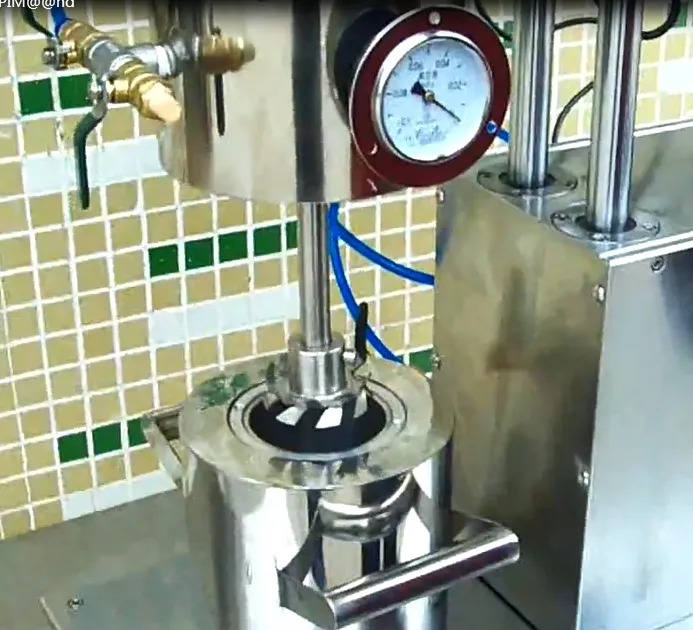

| Mixing barrel opening mode | Arms straight line guide rail hand cover rising, without connecting air compressor |
| Mixing barrel size | Φ100mm(Diameter)*140mm(Hight) |
| Mixing time set | 0-99H can be set, with auto stop when time reach |
| Weight | About 60kg |
| Dimension(H*L*W) | 600*500*300mm, 24″*20″*12″ |
| Advantage | Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours. Double Step Rotary Vane Vacuum Pump, 254L/m, is included for immediate operation, Programmable controller to set time, speed, rotation direction. With time and temperature setting function, Container is opened or closed by electric Hand (no air pump is required any more |
1. We supply machines with battery technology support.
2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
