500L High Quality Vacuum Emulsifying Mixer Machine for Laundry Liquid/Shampoo/Dishwashing Liquid Production Homogenizer Emulsifier
Usage and application field The product is mainly applied in such industries dailt chemical care products , biopharmaceutical industry , food industry , paint and ink , nanometer materials , petrochemical industry , printing and dyeing auxiliaries , pulp&paper , pesticide , fertilizer , plastic&......
Send Inquiry
Product Description
Usage and application field
The product is mainly applied in such industries dailt chemical care products , biopharmaceutical industry , food industry , paint and ink , nanometer materials , petrochemical industry , printing and dyeing auxiliaries , pulp&paper , pesticide , fertilizer , plastic&rubber, electric and electonics , fine chemical industry , etc . The emulsifying effect id more prominent for materilas of high base viscosity and high solid content .
Definition of vacuum homogenizer emulsifier :
It means that when the materials are under the vacuum confition , it makes use of the high shear emulsifier to distribute one ot several phases to another continuous phase repidly and evenly , The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect . By the operation of hydraulic shearing , centrifugal extruding . impacting , breaking and turbulrnce for over 100 thousand times per minute , the materials will be dispersed and emulsified indtantly and evenly . after reciprocation circulation at high frequency , the fine finished products of stable and high quslity without bubbles will be achieved
| Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
| Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
| Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
| Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
| Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
| Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
| Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
| Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
| Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |
Performances and features
1. the vacuum emulsifiers produced by out company include many varieties . the homogenizing systems included upper homogenization, lower homogenization , internal and external circulating homogenization . The mixing systems includ dingle-way mixing , double-way mixing and helical ribbon mixing , the lifting systems include single-cylinder lifting and double-cylinder lifting . Various high quality products can be customized according to customer's requirements
2.The triple mixing adopts the imported frequency converter for speed adjustment , which can meet different technological damands .
3.The homogenizing structure made through German technology adopts the i,ported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4200rpm and the highest shearing fineness can reach 0.2-0.5um ,
4. The vacuum defoaming can make the materials meet the requirment of being aseptic. The vacuum materials sucking is adopted , and especially for the powder materials , vacuum sucking can avoid dust .
5. The emulsifying pot lid can adopt lifting system, easy to clean and the cleaning effect is more abvious , the emulsifying pot can adopt tilt disvharge .
6. The pot body is welded by imported three-layer stainless steel plat . The tank body and the pipes adopt mirroe polishing , ehich fully conforms to GMP requirements
7. According to technological requirements , the tank body can heat or cool the materials the heating modes manily included steam heating or electric hetaing .
8. To esure the conmtrol of the whole machines is more stable , the electric appliances adopt imported configurations , so as to fully meet the internatonal standards.
Main composition :

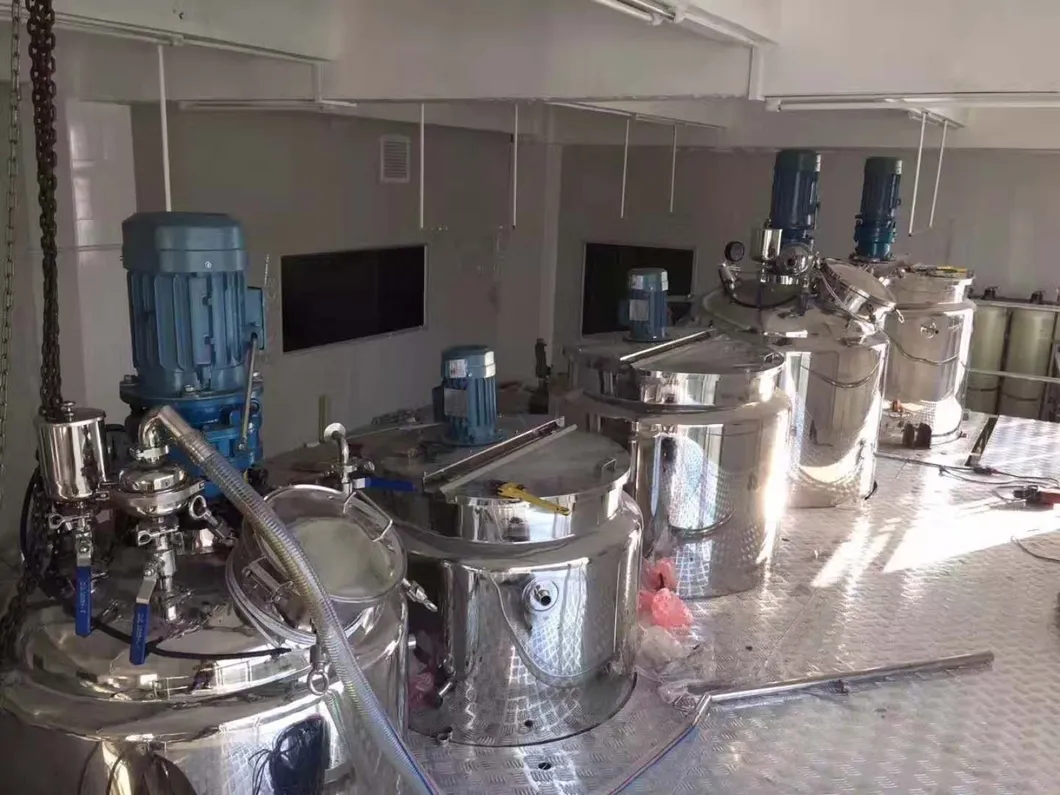

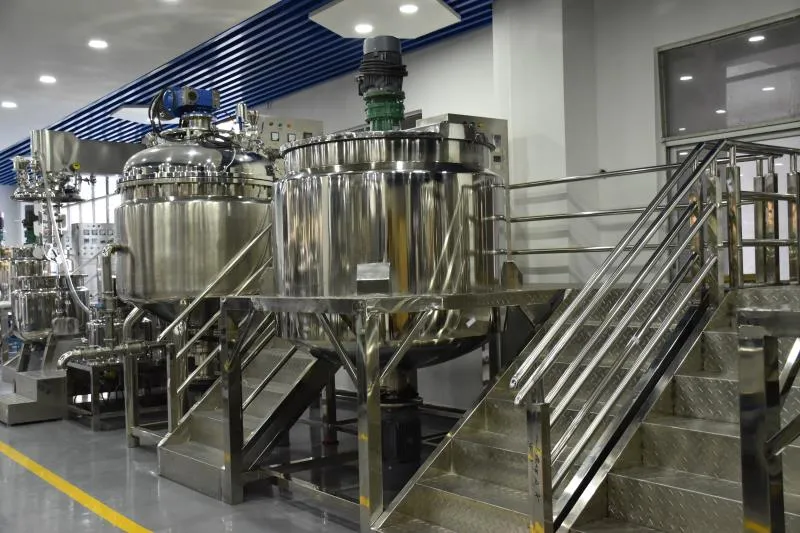

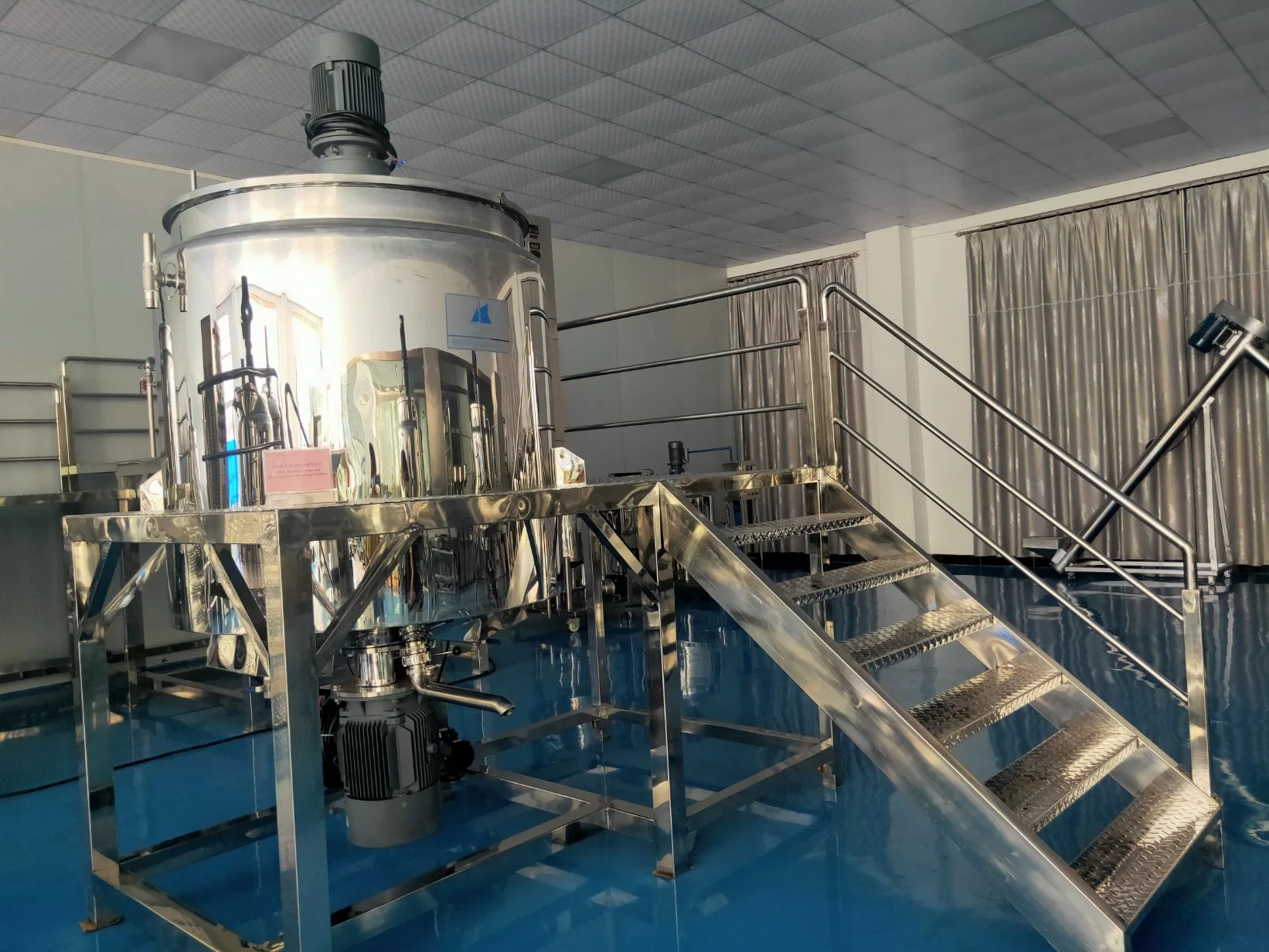

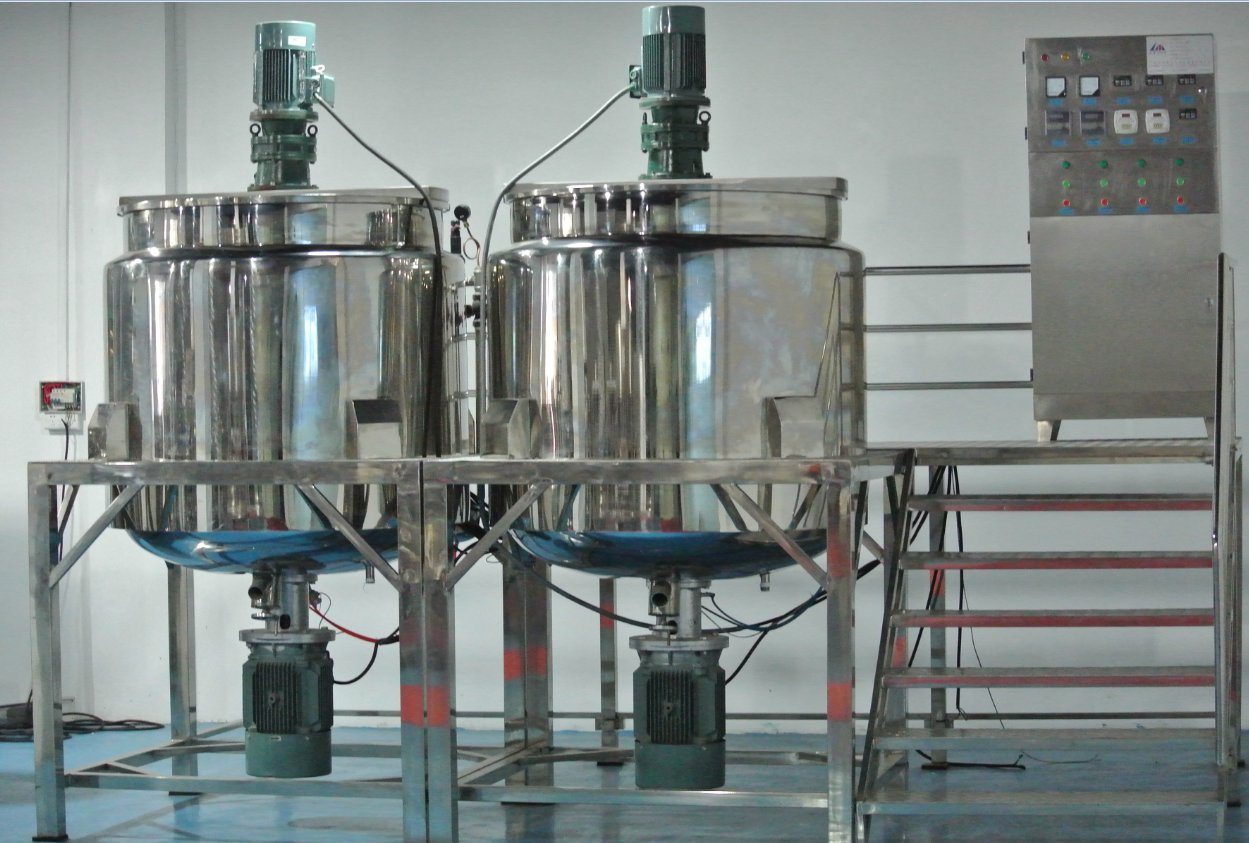

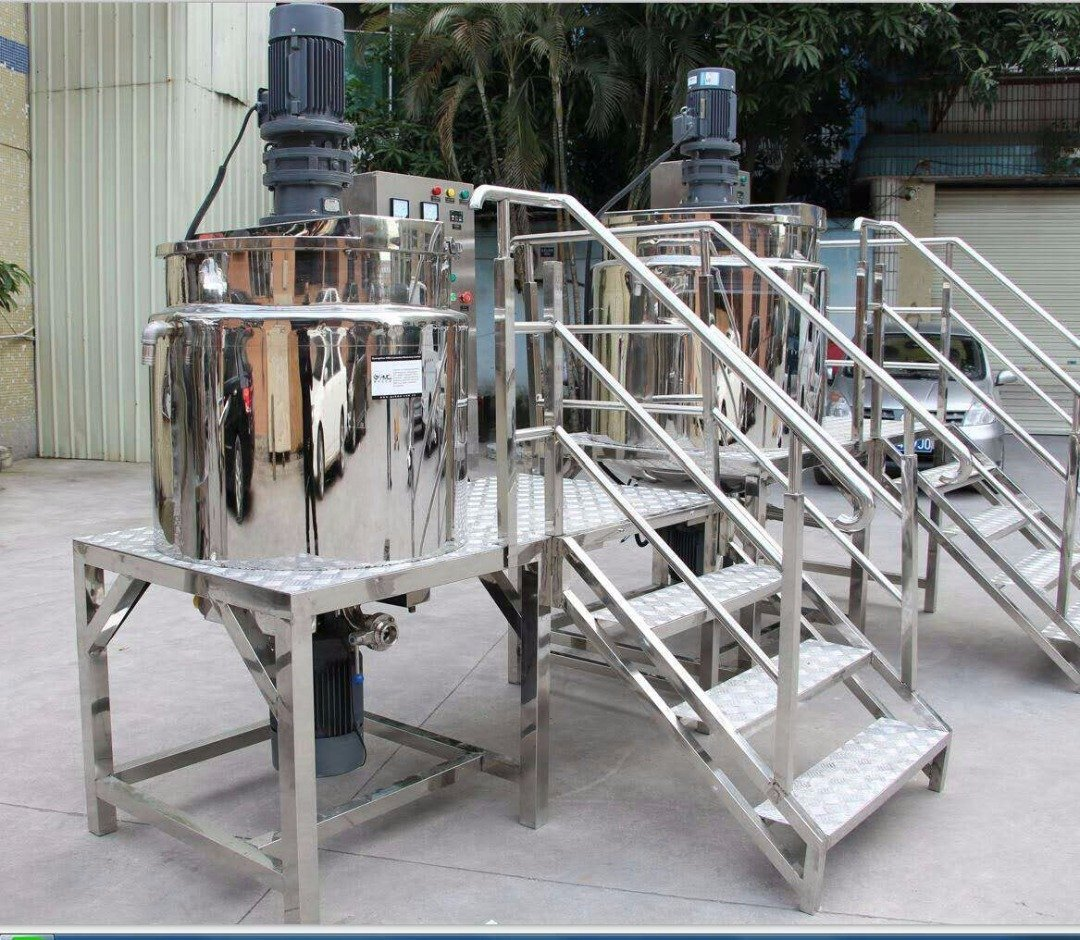

The vacuum emulsifying mixer is mainly composed of water pot , oil pot , emulsifying pot , vacuum system , lifting system (optional), electric contorl system (PLC is opetional ) operation platform etc .
Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
Q : Why does it take at least 20 days to finish the machine ?
A : Once receipt the deposit from you , we will design the drawings and make out the list of the materials and accessories for the production . Once the drawings are finished , our workers will start the production , from welding , polishing , assembling debugging , detection and so on . After finish , they need time to check the machines , if found any possible defect parts , they will return to the production until every part is 100% approved.
Q : Can we pay the balance after we receive the machines and test without problem.
A : It's unnessary to worry about the quality of our machines , we are confident in that . After the machine is finished . we can install and test the machine for you ( if you can not come to our factory ,we can record a video and send to you ) . Only after you check without problems , we will effect shipment .
