Product Description

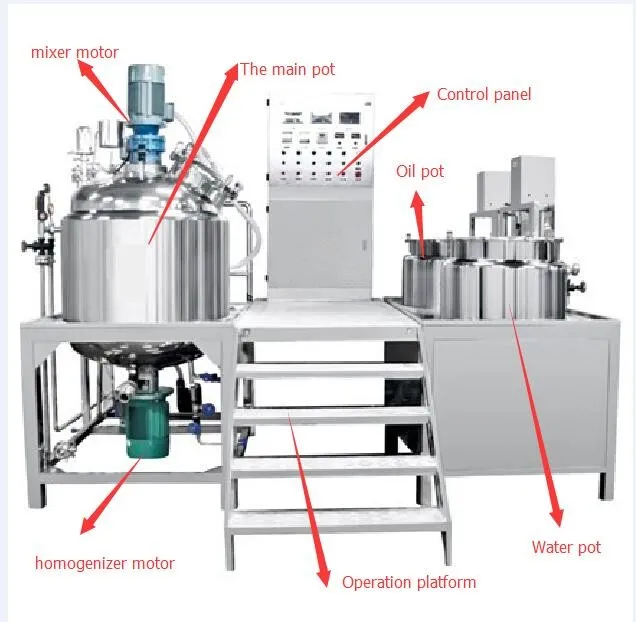

Main pot

No.	Method	Specification	Remarks
1	Stirring method	1.one way scraping agitator blade ,power 4 KW,speed 0-63r/min	frequency control scrap wall material :polytetrafluoroethylene
1	Stirring method	2.homogenizer power 7.5KW, speed 0-3000r/min	Frequency control
2	Sealing process	Machinery Seal
3	Inlet material	Vacuum suction
4	Discharge material	Pneumatic or direct ball valve
5	Temperature shows	resistance thermometer(≤200ºC)
6	Pressure and vaccum	Vacuum gage ,max-0.08Mpa
7	Heating cooling method	Bottom electric heating, jacket water cooling, heating power: 18kw.
8	Main technique	1.working pressure of jacket 0.1Mpa
		2.design volume 625L
		3.working volume 200-500L
9	Material	1.contact material all is 316L,Thickness 5mm	Inside polishing
		2.jacket SUS316L,thickness 4mm	Insulation temperature :aluminum fiber cotton
		3.out shell pot material 316L,thickness 3mm	Outside polishing
10	Polishing process	More than 300m on polishing
11	Cover area	3350mm3250mm2710mm
12	Higher	2710mm
13	Others	The parts contact material all is imported 316l ss

Oil pot

No.	Method	Specification	remarks
1	Stirring method	Bottom dispersion,power 1.5KW,speed 960r/min
2	Boil pot open	Half open
3	Discharge method	By ball valve
4	Temperature shows	resistance thermometer(≤200ºC)
5	Main technique	1.bottom electric heating,heating power :18kw working pressure<0.1Mpa
5	Main technique	2. design volume 275L, working volume 200L
6	Material	1.inside pot 316L	Inner polishing
		2.jacket material 304	Insulation temperature :aluminum fiber cotton
		3.outside material 304	Outside polishing
7	Polishing	More than 300m polishing result

water pot

No.	Method	Specification	Remarks
1	Stirring method	Bottom dispersion,power 1.5kw, speed 960r/min
2	Boil pot open	Half open
3	Discharge method	By ball valve
4	Temperature shows	resistance thermometer(<200ºC)
5	Main technique	1.bottom electric heating,heating power :18kw working pressure<0.1Mpa
5	Main technique	2. design volume 45L; working volume 300L
6	Material	1.inside pot 316L,	Inner polishing
		2.jacket material 304	Insulation temperature :aluminum fiber cotton
		3.outside materail 304	Outside polishing
7	Polishing	More than 300m polishing result

Assemble mixed platform

No.	Name parts	Specification	Remarks
1	Stand hold and platform	ss stand hold ,decorative pattern ss sheet
2	Emulsifying pot	Include inlet outlet ,manhole,thermometer ,material filter, spice bucket etc
3	Pipe	Contact materail pipe all 316l ss
4	Electric control cabinet	Whole ss make ,control main pot ,oil ,water pot	Push buttom by hand

Power consumption

Name	Specification	Remarks
500Lemusifying pot	1.framed scraping wall paddle4KW
500Lemusifying pot	2.homogenizer7.5KW,bottom homogenizer, heating power :18kw
500L oil pot	Pulwheel propeller,1.5KW,heating power :18kw
500L water pot	Pulwheel propeller ,1.5KW,heating power:18kw
Vacuum pump	2.85KW
Voltage	380V/50HZ 3Phase
