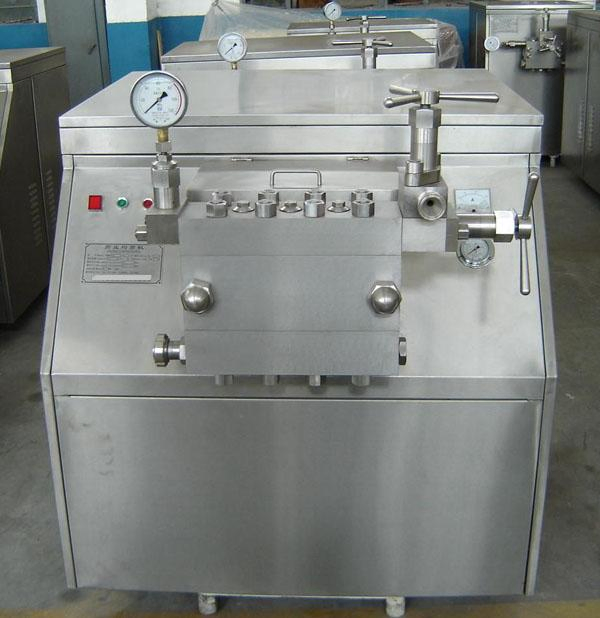

3000L Juice High Pressure Homogenizing Machine for Sale (GJJ-5000)
The GJJ series high pressure homogenizer is used to homogenize,emulsify,atomize and transport liquid materials whose viscosity. The GJB series high pressure homogenizer is used to homogenize, emulsify, atomize and transport liquid materials whose viscosity is lower than 0.2P. As temperature is low......
Send Inquiry
Product Description
The GJJ series high pressure homogenizer is used to homogenize,emulsify,atomize and transport liquid materials whose viscosity.
The GJB series high pressure homogenizer is used to homogenize, emulsify, atomize and transport liquid materials whose viscosity is lower than 0.2P. As temperature is lower than 80 degree(liquid-liquid phase or liquid -solid phase).
In working, with the advance and return movement of plunger piston, open and close of rebound valve and covered core inside the pump, to control the slight clearance between the valve head and valve base inside the adjusting valve effectively, so as to form strong high-pressure energy. The materials could fulfill the purpose of homogenization and emulsification under the instant action of combined force of turbulent flow, shearing, collision and cavity.
Main Technology Parameter:
Model: GJJ-5000
Flow: 5000L/H
Working pressure: 25Mpa
Power: 45Kw
Weight: 1600Kg
Overall dimension:1700mm×1200mm×1600mm
| Model | Flow Rate(L/H) | Pressure(Mpa) | Power(KW) | Dimensions(mm) |
| GJJ-0.8/60 | 0.8 | 60 | 18.5 | 1410X850X1190 |
| GJJ-1/25 | 1 | 25 | 7.5 | 1100X676X1065 |
| GJJ-1/32 | 1 | 32 | 11 | 1100X770X1100 |
| GJJ-1/40 | 1 | 40 | 15 | 1410X850X1190 |
| GJJ-1/60 | 1 | 60 | 22 | 1470X960X1280 |
| GJJ-1/70 | 1 | 70 | 22 | 1410X850X1280 |
| GJJ-1/100 | 1 | 100 | 37 | 1605X1200X1585 |
| GJJ-1.5/25 | 1.5 | 25 | 11 | 1100X770X1100 |
| GJJ-1.5/32 | 1.5 | 32 | 15 | 1100X770X1100 |
| GJJ-1.5/40 | 1.5 | 40 | 22 | 1410X850X1280 |
| GJJ-1.5/60 | 1.5 | 60 | 37 | 1605X1200X1585 |
| GJJ-1.5/70 | 1.5 | 70 | 37 | 1605X1200X1585 |
| GJJ-1.5/100 | 1.5 | 100 | 55 | 1671X1260X1420 |
