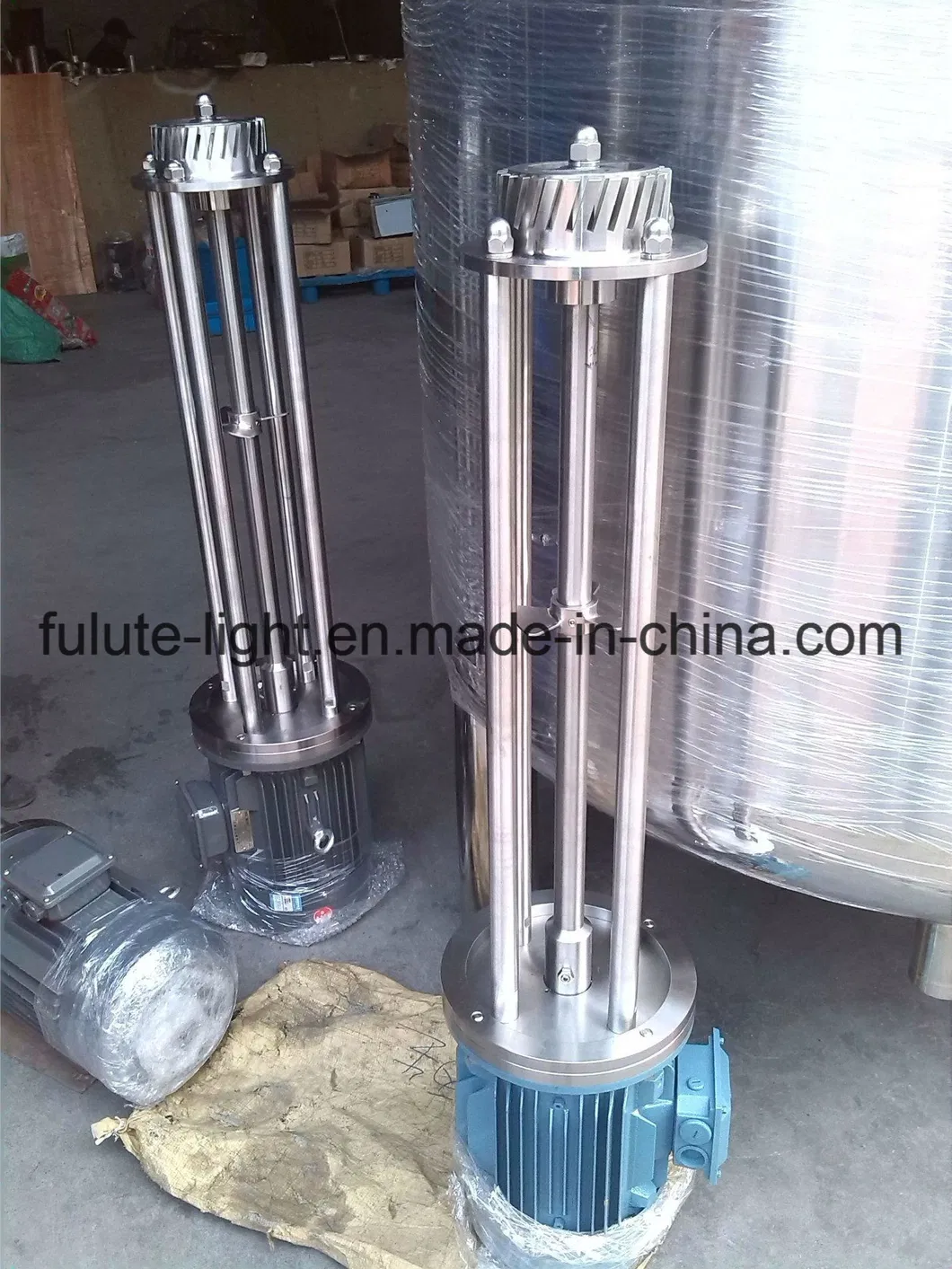

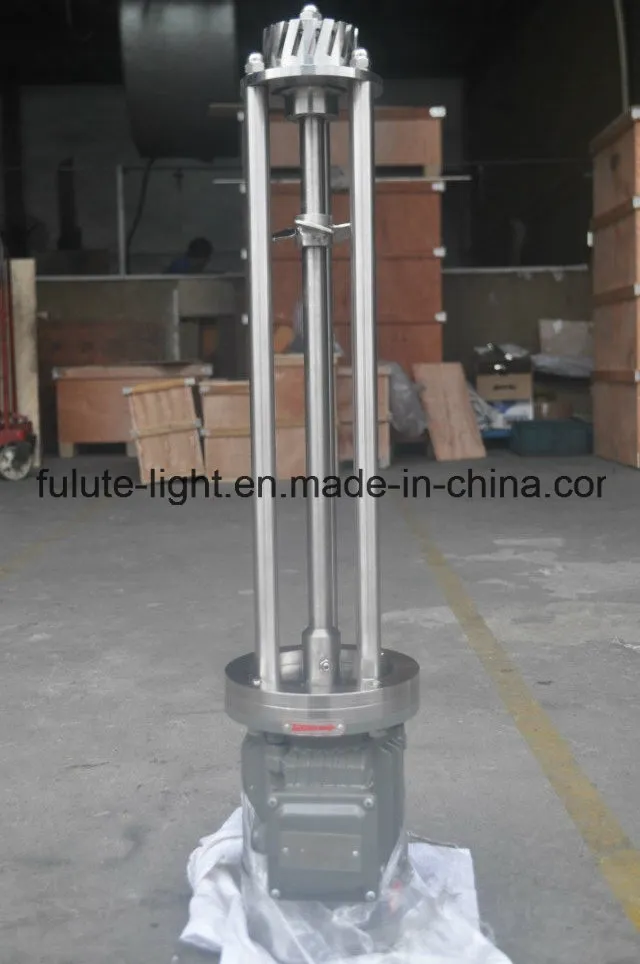

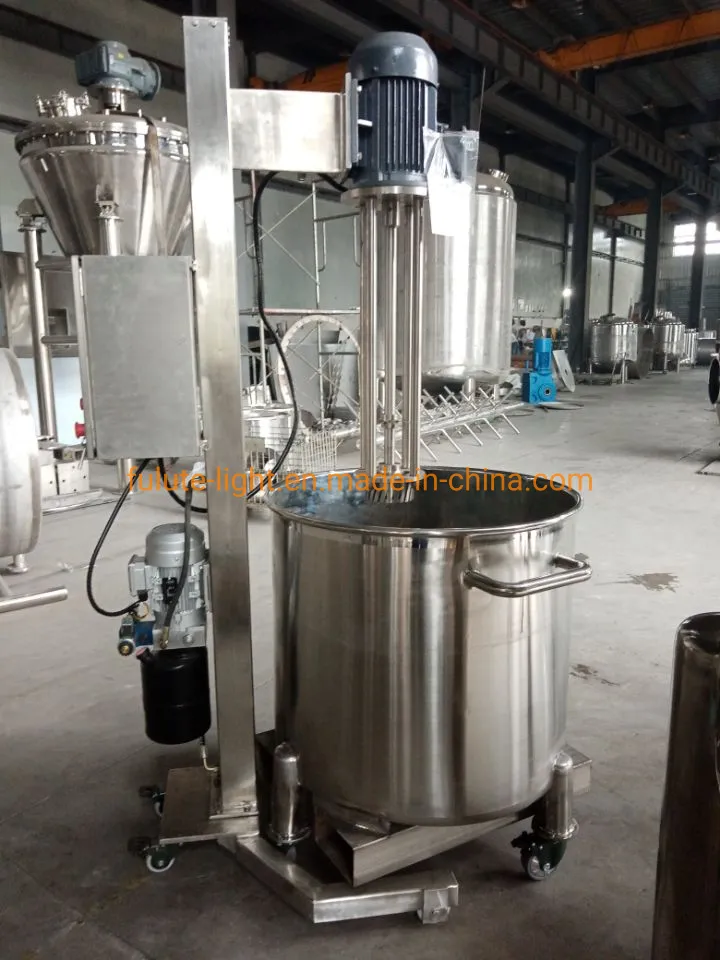

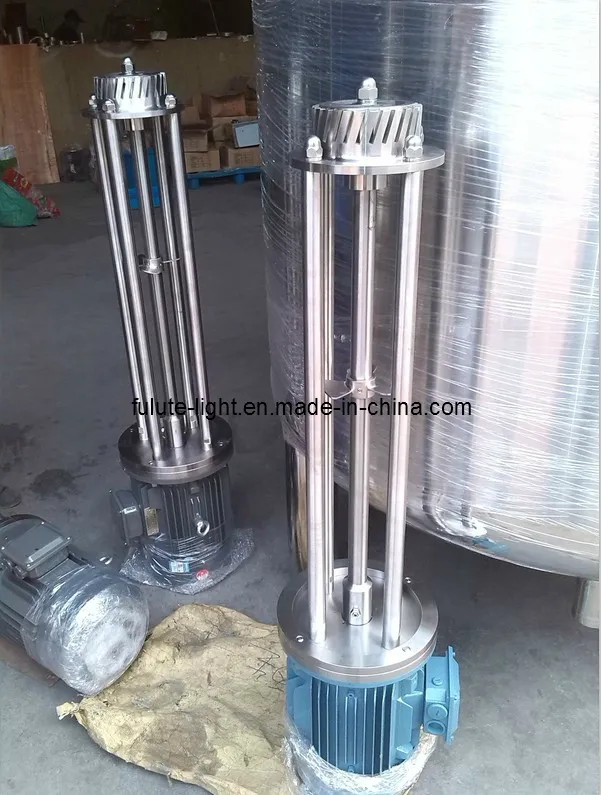

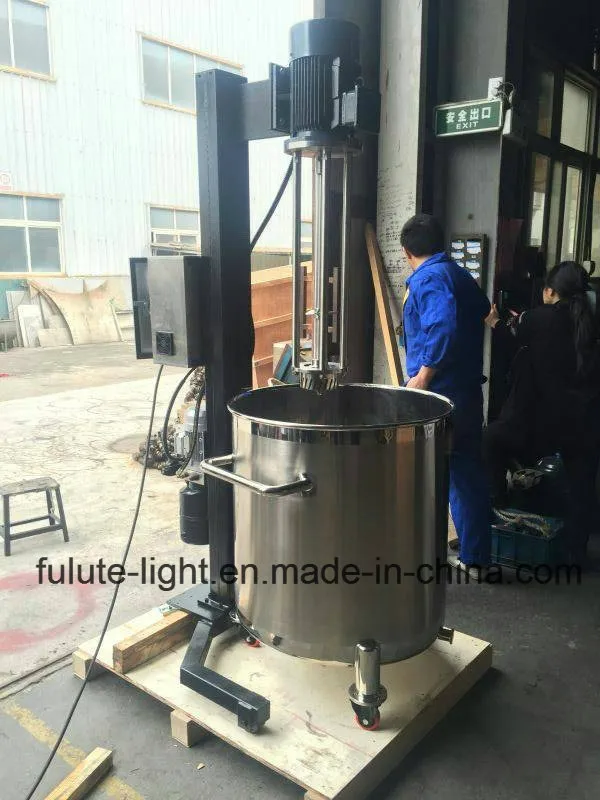

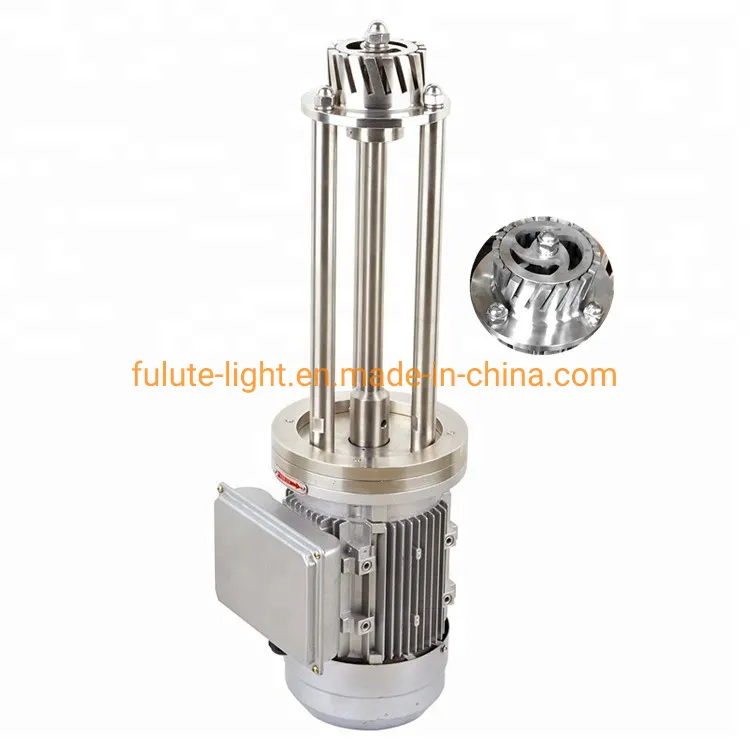

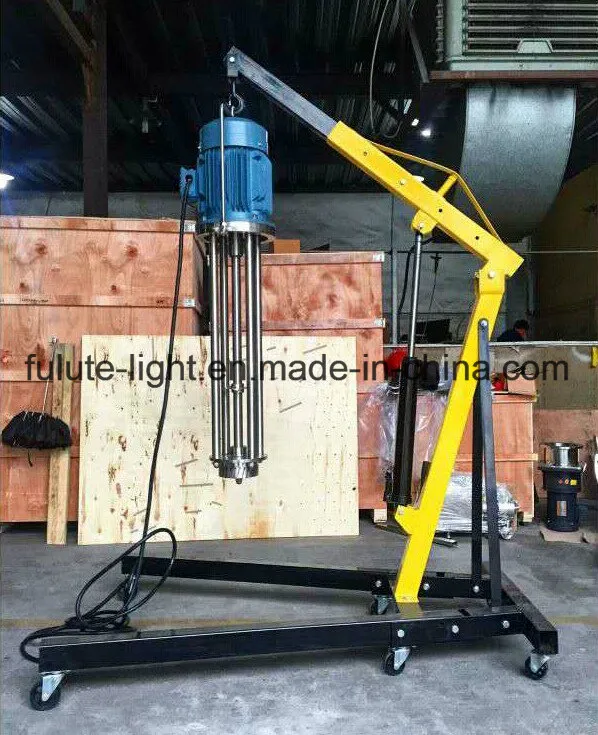

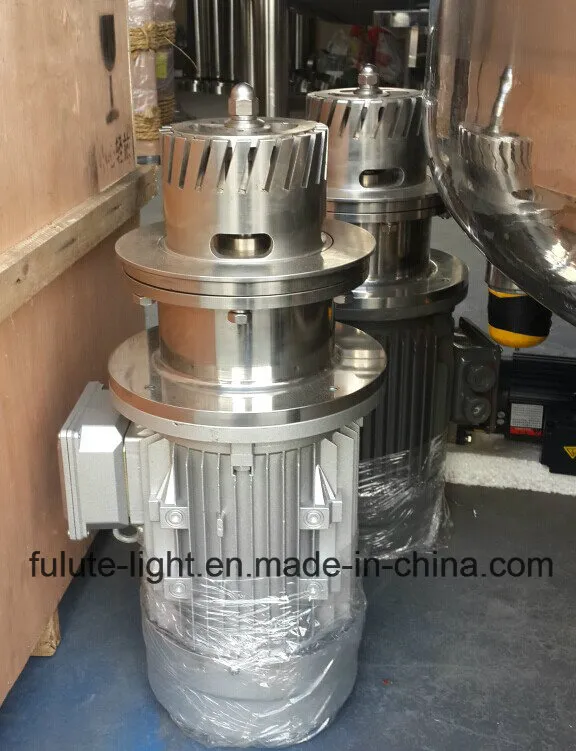

2800rpm High Shear Batch Homogenizer

Product Description

Product Name: High Shear Batch Emulsifier (mixer)
Brand: Flowtam
Material: 304(L) or 316(L)
Finish: Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001: 2000

Working Method:
High Shear Batch Emulsifier(mixer) is suitable for mixing, Dispersing, Shearing and Homogenizing all kinds of viscous liquid and pastes. The products could be applied in Food, Beverage, Chemical, Pharmaceutical, Paint& ink industry etc. The Unit consists of a centrally located shaft, connected to a flanged type motor mounted on a steel housing. We have four types of different stators to suit different working condition.

Features of Batch Emulsifier
All wetted parts are grade 304 or 316 Stainless steel
Mechanical Seal for Sanitary Operation
Quick opening for easy cleaning
Hygienic Design.
Explosion-proof ABB Motor 3 Phase

Model	Power(kw)	Speed(rpm)	Standard Length (mm)	Capacity(L/H)
BRH-80	1.1	2800	350	10-40
BRH-90	1.5	2800	350	10-50
BRH-100	2.2	2800	650	50-100
BRH-120	3	2800	750	100-200
BRH-120A	4	2800	750	100-300
BRH-140	5.5	2800	900	200-600
BRH-140A	7.5	2800	900	200-800
BRH-160	11	2800	1050	500-1500
BRH-180	18.5	2800	1200	600-2000
BRH-200	22	1400	1200	800-2500
BRH-220	30	1400	1355	1000-3500
BRH-240	45	1400	1395	1500-5000
BRH-270	55	1400	1600	2000-8000
BRH-290	75	1400	1650	3000-10000
