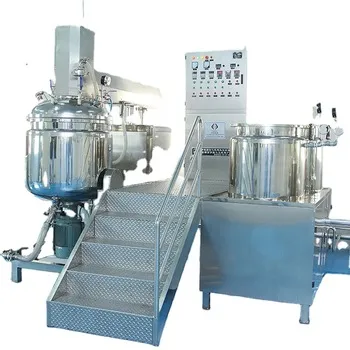

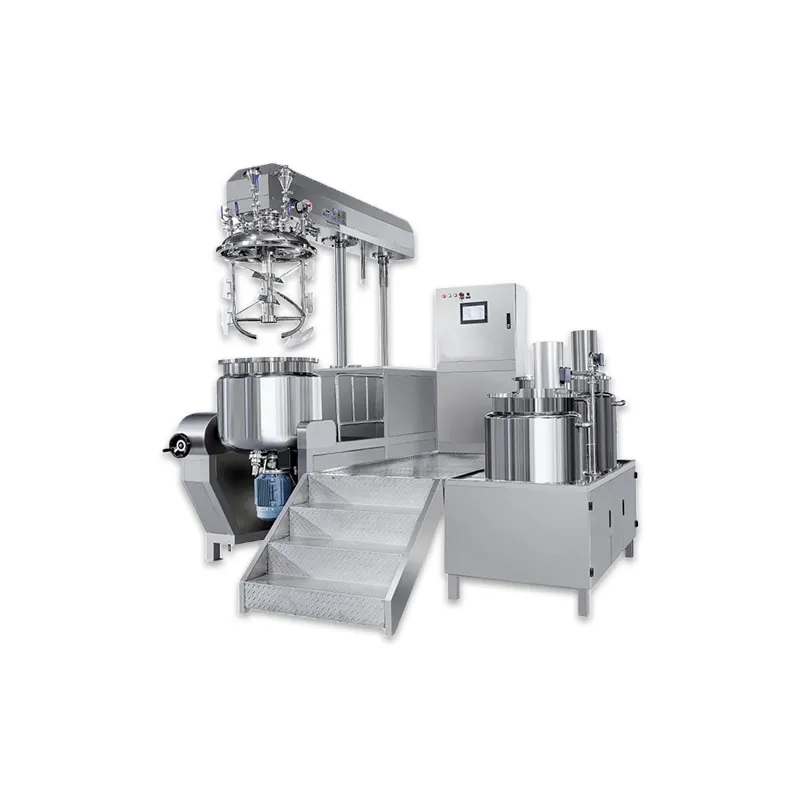

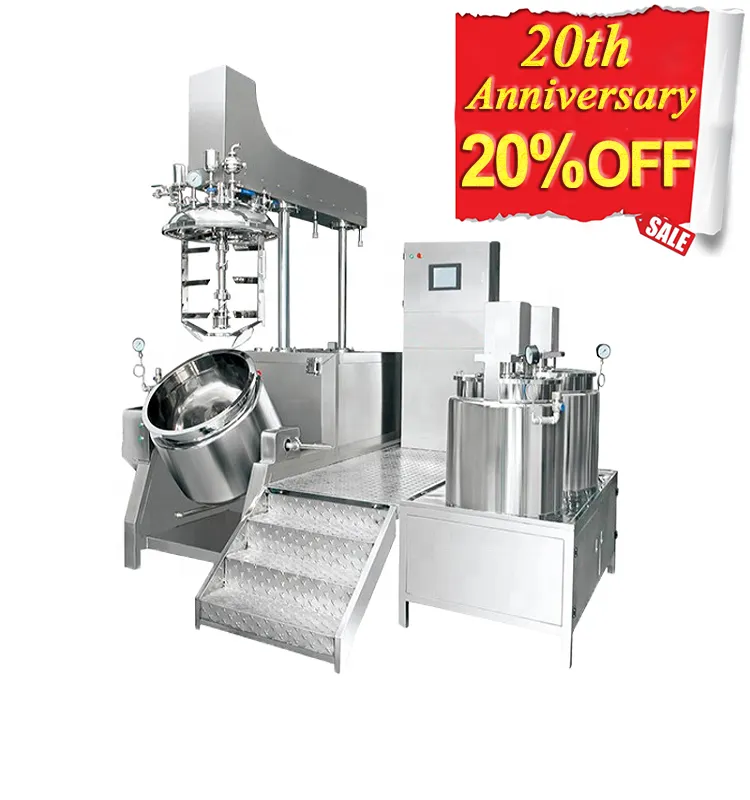

200L Batch Mixer Cosmet Emulsifying Mixer Cosmetic Homogenizer Mixer

Product Description

Description

♦ The vacuum emulsifiers produced by our company include many varieties. The homogenizing systems include top homogenizer , bottom homogenizer, internal and external circulating homogenization. The mixing systems include single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. Various high quality products can be customized according to customer requirements.

♦ The triple mixing adopts the imported frequency converter for speed adjustment, which can meet different technological demands.

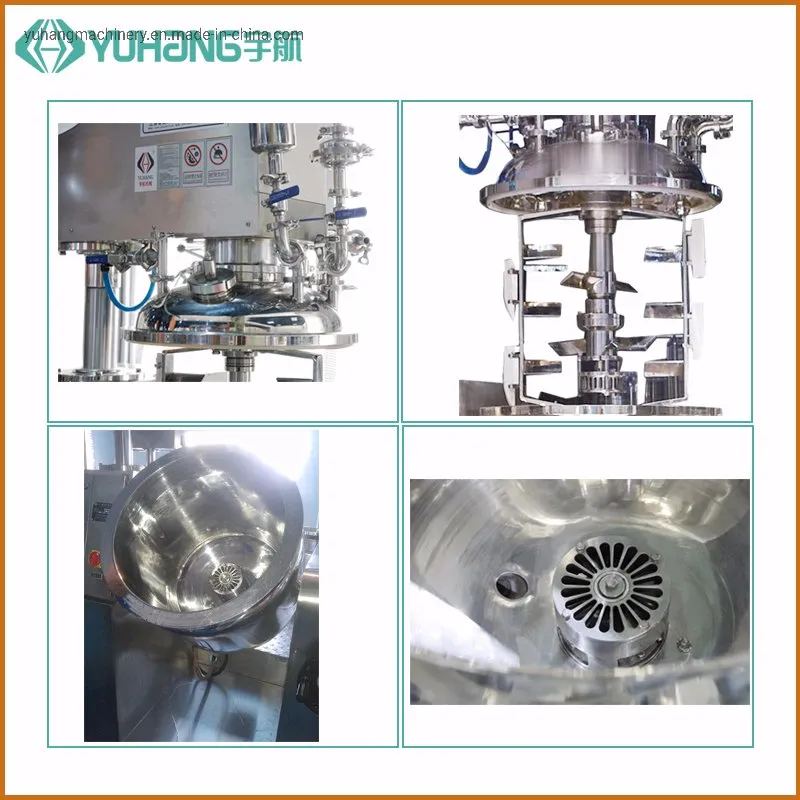

♦ The homogenizing structure made through German technology adopts the imported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach3,500rpm and the highest shearing fineness can reach 0.2-5um.

♦ The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum material sucking is adopted, and especially for the powder materials, vacuum sucking can avoid dust

.

♦ The emulsifying pot cover can adopt lifting system, easy to clean and the cleaning effect is more obvious, the emulsifying pot can adopt tilt discharge.

♦ The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.

♦ According to technological requirements, the tank body can heat or cool the materials. The heating modes mainly include steam heating or electric heating.

♦ To ensure the control of the whole machine is more stable, the electric appliances adopt imported configurations, so as to fully meet the international standards.

Application:

The lift-type machine was design by Yuhang Machinery in order to suit for all kinds of cream& paste material with high viscocity in industres line of cosmetic, daily-use commodity and pharmacy, medicine and food industries such as skin cream, BB cream, shampoo, ultrasound gel, wax, ointment, detergent, honey, sauce, serum and ointment etc .

The raw material (similar to same viscosity of cream and paste ) will be completely mixed with mixing system : The molecule of raw material will be high sheared and cracked by the gap beteween rotor and stator of homogenizer that will make the granual material to be tiny and exquisite material gradually . the liquidity of raw material will be increased. A effective molecule combination with this rebuilding shearing process. The smoothness of granule below 2um .

Technical Specification:

Model	Volume	Motor	Blender Speed	Homogenizer Power	Homogenizer Speed	Vacuum Pump Power
YHRHJ-SX-50	50L	1.1KW	0-120r/min	3KW	0-3040rmp	0.75KW
YHRHJ-SX-100	100L	1.5KW	0-120r/min	4KW	0-3040rmp	1.1KW
YHRHJ-SX-200	200L	2.2KW	0-120r/min	5.5KW	0-3040rmp	1.5KW
YHRHJ-SX-500	500L	4KW	0-120r/min	7.5KW	0-3040rmp	4KW
YHRHJ-SX-1000	1000L	7.5KW	0-120r/min	11KW	0-3040rmp	5.5KW
