Product Description

JIANGSU ERIC ENERGY STORAGE EQUIPMENT CO.,LTD.

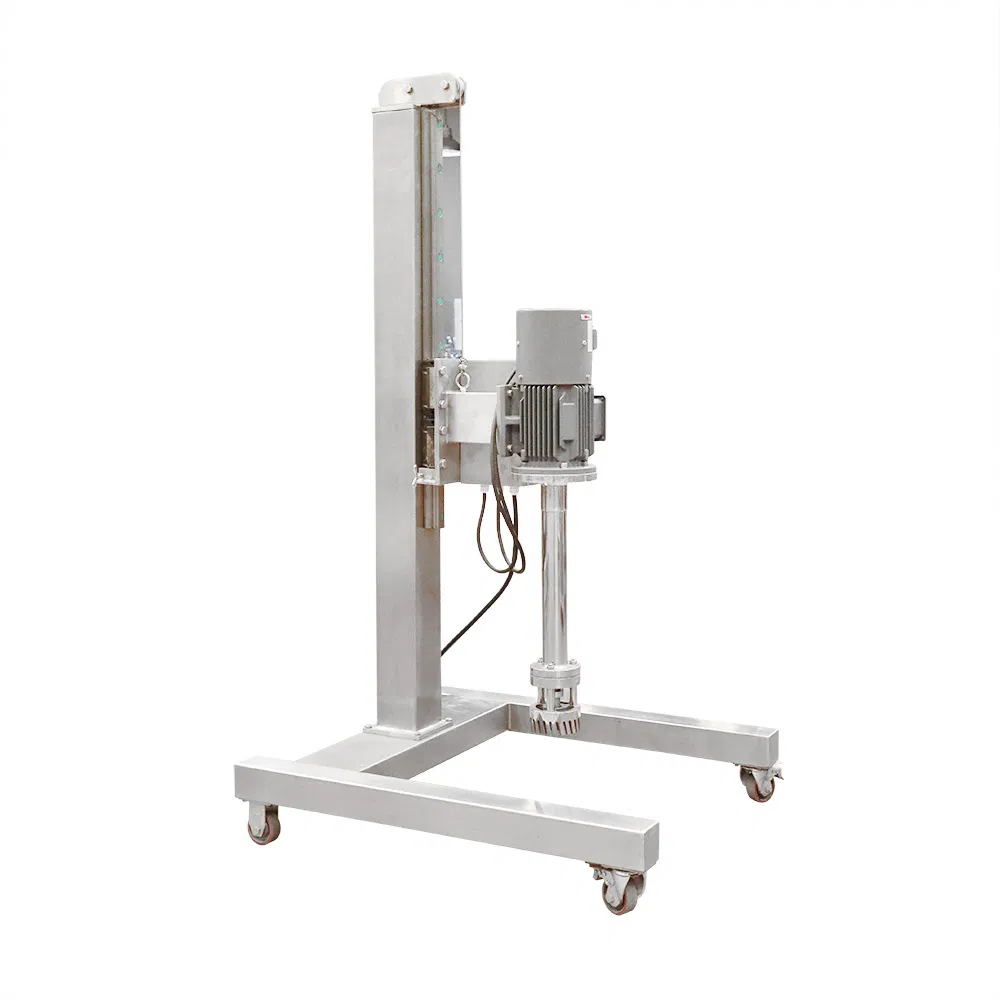

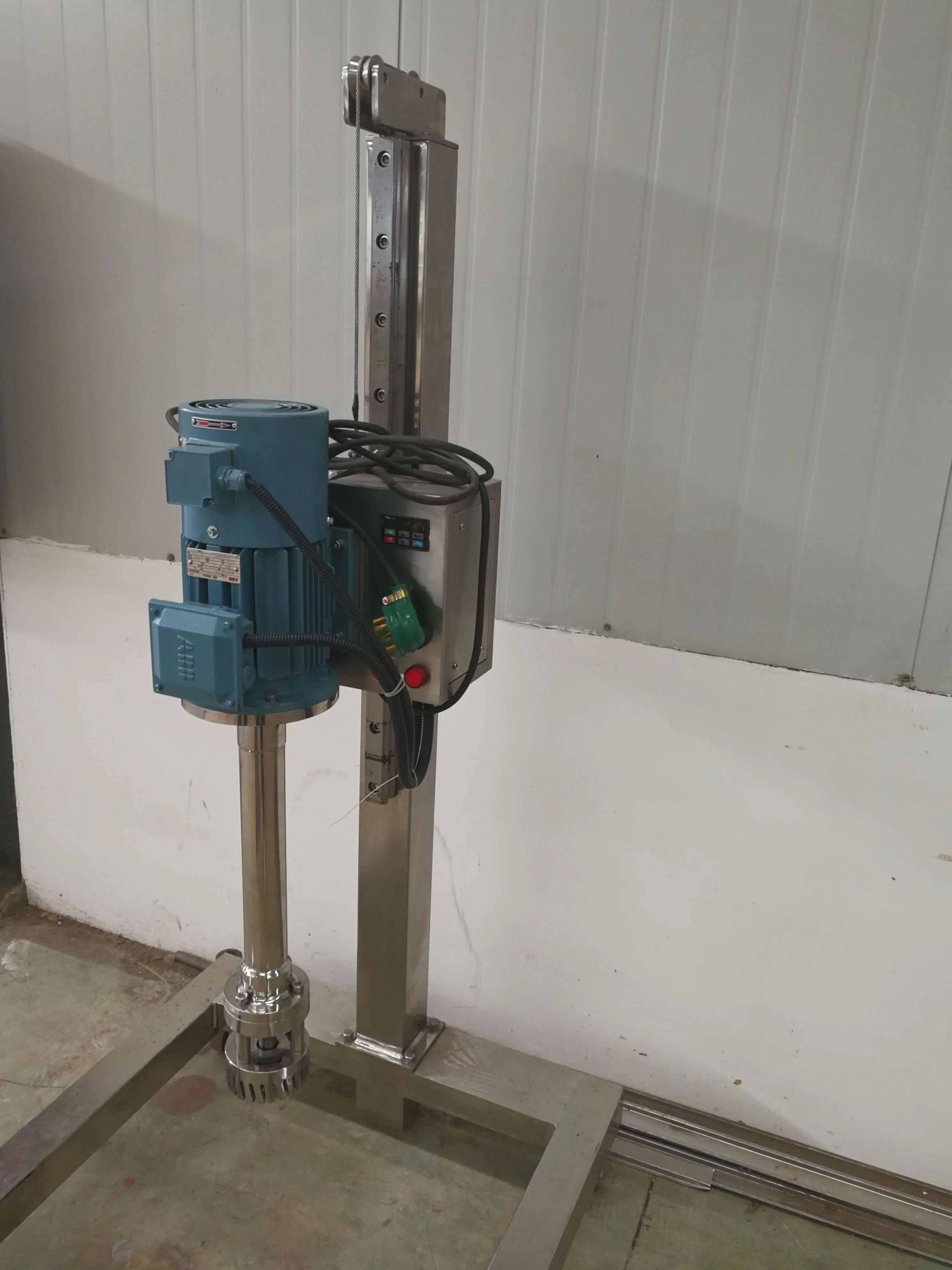

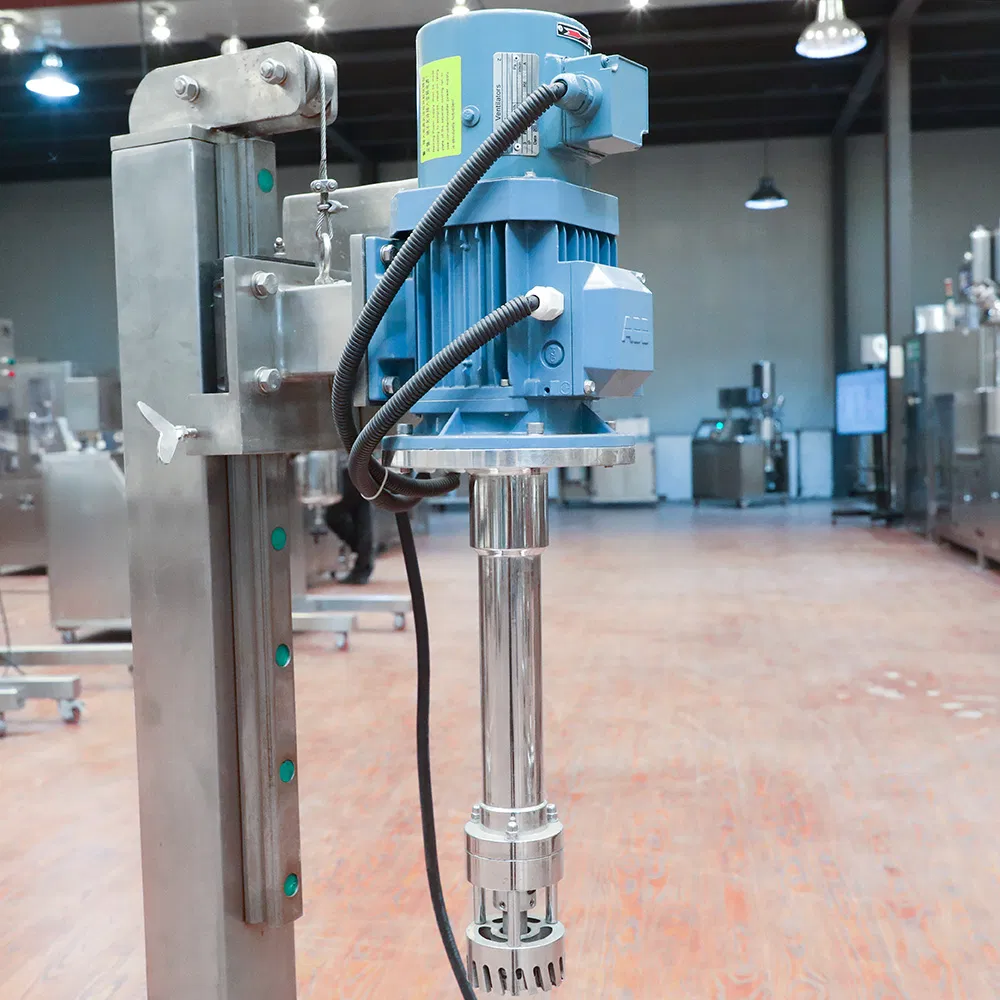

ERIC-20L high shear dispersing emulsifier

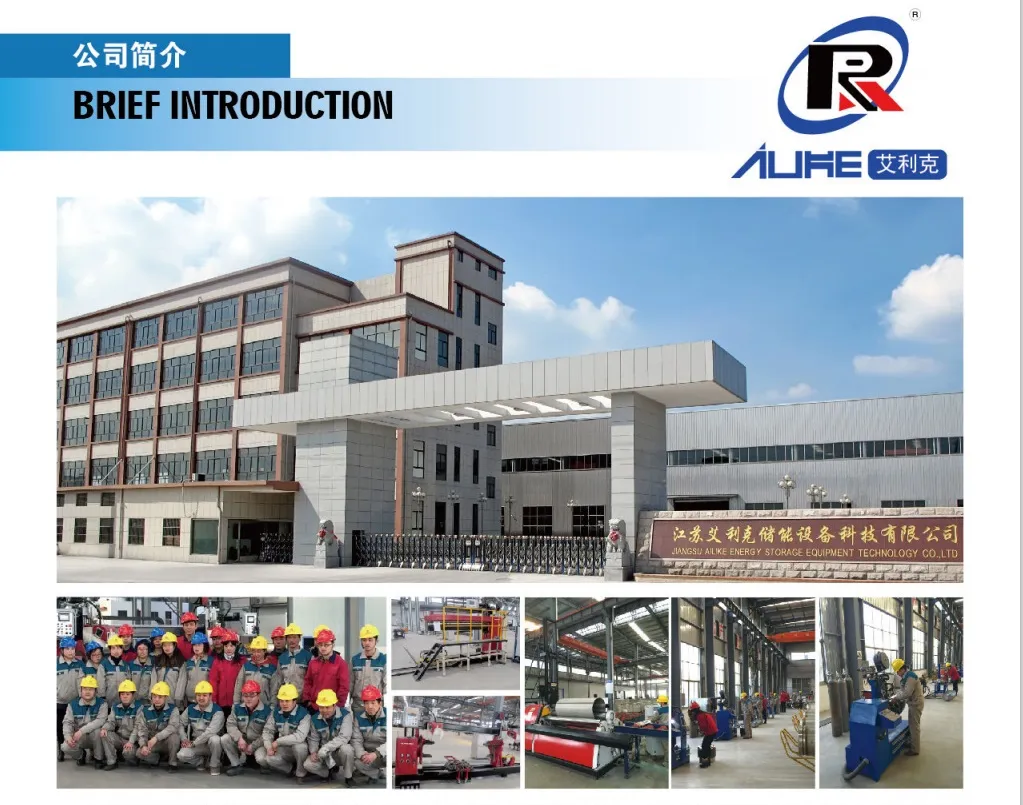

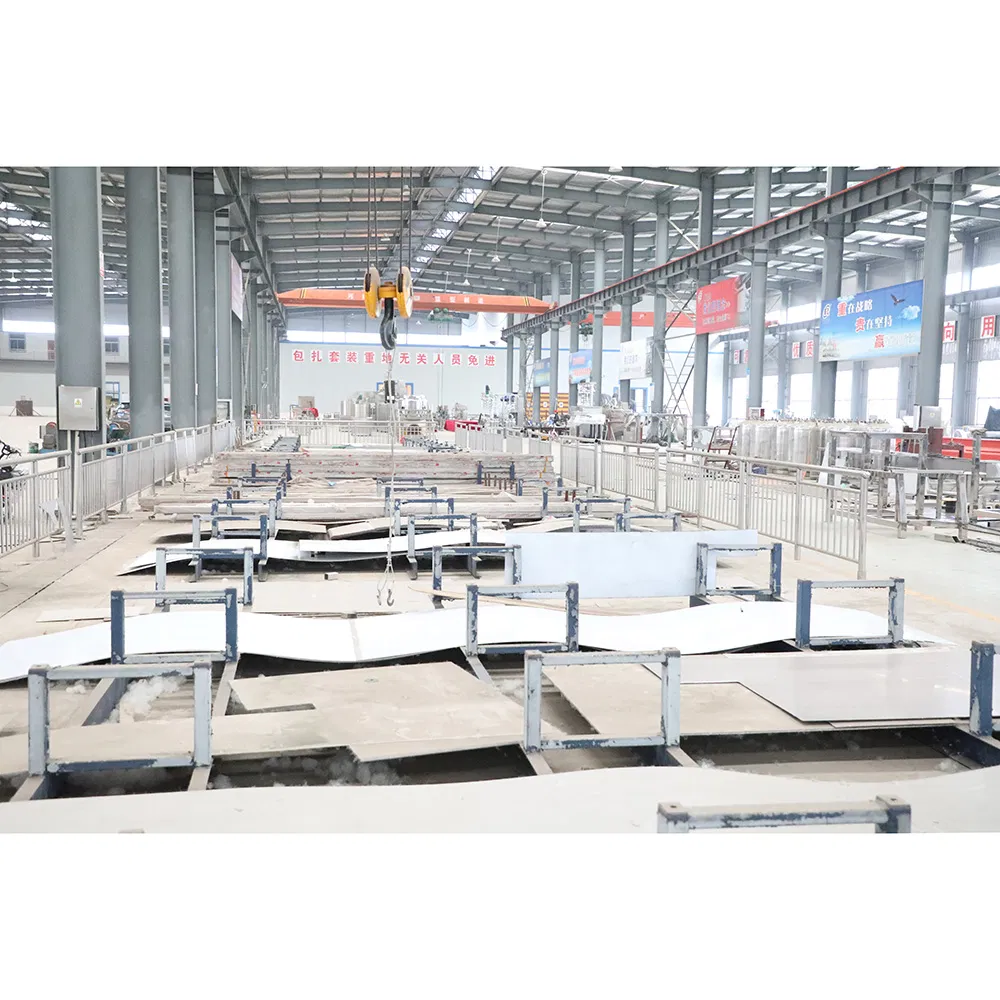

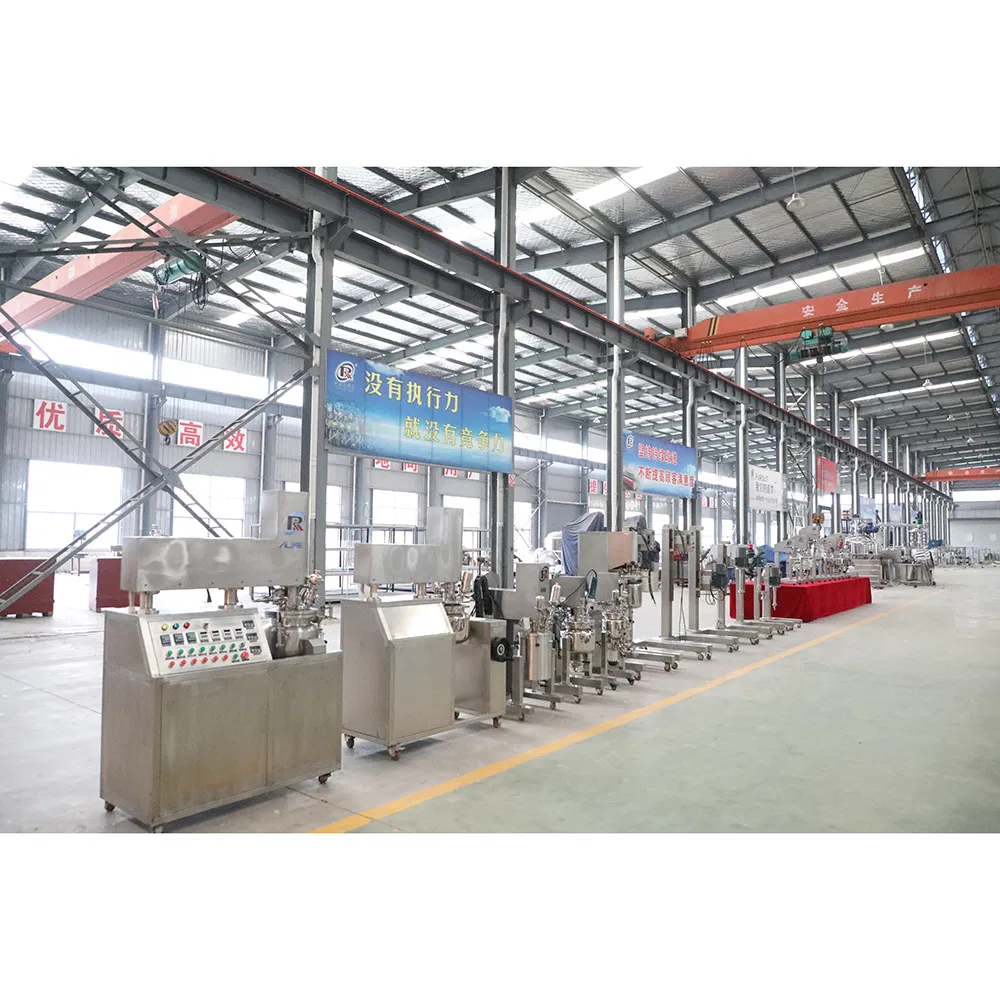

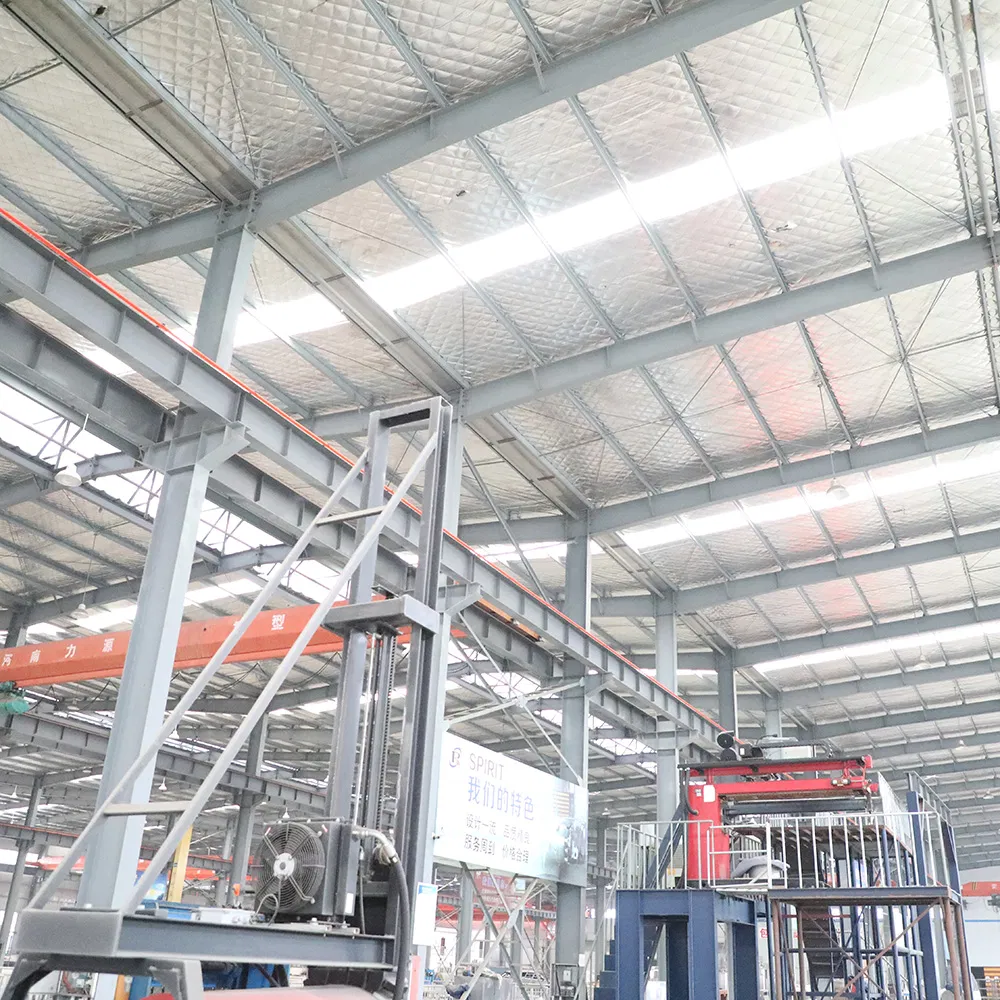

With a land area of 68000 m2 and a construction area of 58000 m2, Jiangsu ERIC Energy Equipment Technology Co.,Ltd. is located in Gaoyou, Yangzhou, a historically and culturally famous city in China. We have more than 100 sets of professional TIG/MIG welding machines, imported CNC rolling machines, CNC plasma cutting machines and milling machines. With a registered capital of RMB 60 million Yuan, our company has more than 280 employees including three professors from Shanghai Jiao Tong University, two professors from Harbin Institute of Technology and more than 40 professional technicians engaged in technical design and product development, enjoying powerful technical R&D and production strength. Now our company specializes in designing, manufacturing and selling equipment for daily chemical industry, medicine and chemical industry, heat exchange equipment and LNG vehicle cylinders as well as providing related technical service. Our company has been issued the manufacturing license for pressure vessels of classes A1, A2 and B3 by general Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China.

I. equipment introduction

High shear homogenizer is a process that one or more phases (liquid, solid, gas) are efficiently, rapidly and uniformly transferred into a continuous phase (usually liquid) which is not mutually soluble. In general, each phase is immiscible. When external energy is input, two groups of materials form a phase again. Due to the high shear speed and high frequency mechanical effect generated by the high-speed rotation of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal extrusion, liquid layer friction, impact tear and turbulence in the narrow clearance of the stator and rotor, resulting in suspension (solid / liquid), emulsion (liquid / liquid) and foam (gas / liquid). In this way, the immiscible solid phase, liquid phase and gas phase can be uniformly and finely dispersed and emulsified in a moment under the joint action of the corresponding mature process and appropriate additives, and finally stable high-quality products can be obtained after high-frequency cycling.
200L-500L High Quality New Homogenizer for Milk Fruit Juice Batch Facial Cream High Shear Dispersing Emulsifier High Speed Shear Mixer

200L-500L High Quality New Homogenizer for Milk Fruit Juice Batch Facial Cream High Shear Dispersing Emulsifier High Speed Shear Mixer

The equipment is mainly used in daily chemical care products, biomedicine, food industry, coating ink, nano materials, petrochemical industry, printing and dyeing auxiliaries, paper industry, pesticide and chemical fertilizer, plastic rubber, power electronics, other fine chemicals, etc., especially for material emulsification configuration with high matrix viscosity and solid content.

II. Equipment features

★ according to the customer's requirements, make a kind of qualified and high-quality product;

★ the imported frequency converter is used for speed regulation, which can meet the production requirements of different processes;

★ the homogeneous structure of German technology adopts the imported double face mechanical seal effect, the emulsification speed is 0-2800 rpm, and the maximum shear fineness can reach 2.5-5 η u;

★ in order to ensure more stable control of the whole set of machines, the electrical appliances are imported, which can completely meet the international standards.

	Method	Specification	Remarks
1	SIZE	600MM	LENGTH
1	SIZE	520MM	WIDEN
2	HIGHT	1320MM
3	ELECTRIC POWER	1.1KW
4	HOMOGENIZER SPEED	0-2800r/min
5	VOLTAGE	380V/50Hz
6	MATERIAL	CONTACT MATERIAL ALL IS 316L
7	OTHER MATERIAL	SS304
8	HOMOGENIZER	HIGH SHEARING HOMOGENIZER
9	CONTROL METHOD	Manual lifting, manual button, frequency control
10	VOLUME	MAX HOMOGENIZER 30L
10	VOLUME	MIN HOMOGENIZER 10L
11	LIFTING HEIGHT	390MM

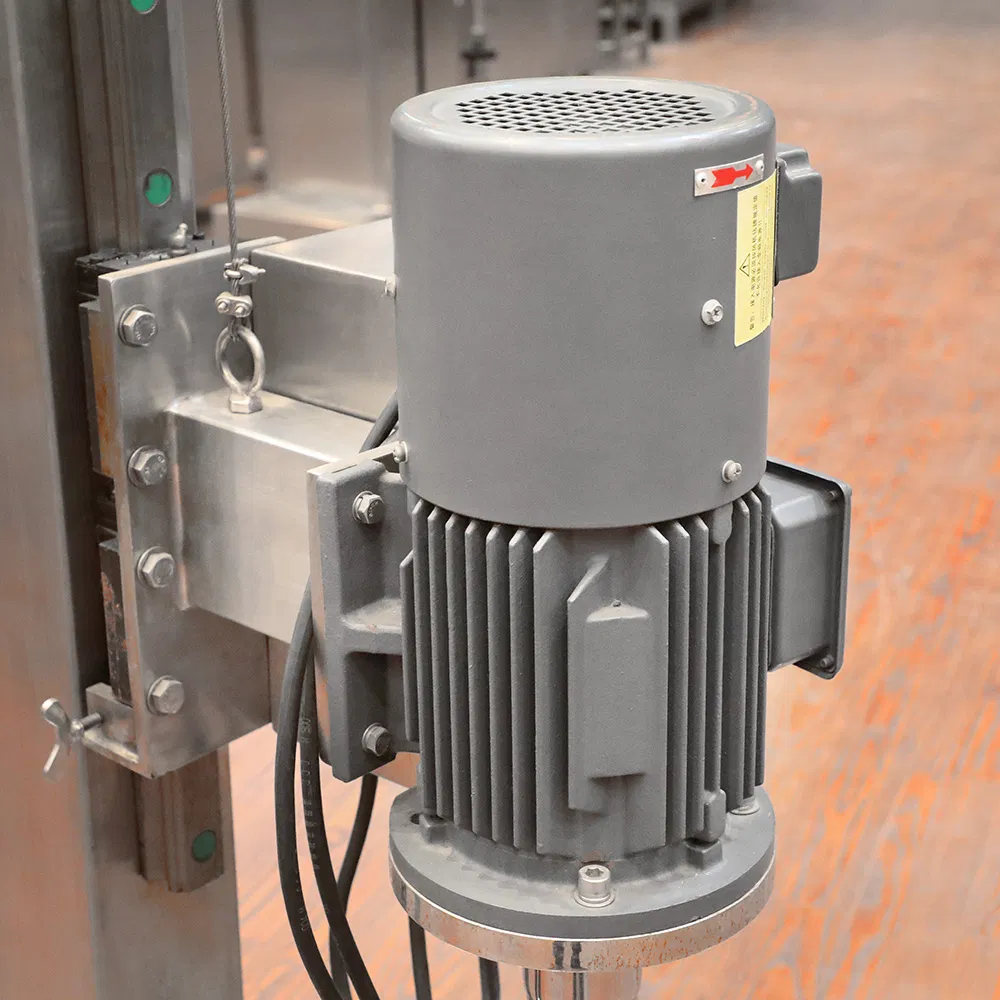

ELECTRIC MOTOR SIEMENS

200L-500L High Quality New Homogenizer for Milk Fruit Juice Batch Facial Cream High Shear Dispersing Emulsifier High Speed Shear Mixer

FAQ

1. Is your company a manufacturer or trading company?

A1: We are a professional manufacturer, specializing in designing and manufacturing whole set of equipment for daily chemical, pharmaceutical and chemical industry, and we also supply heat exchanger, LNG vehicle cylinders, as well as related technical service.

2. Where is your company? How can I get there?

A2: We are in Gaoyou City, Jiangsu Province, China. It takes about 4 hours By car or bus from Shanghai Airport, and High speed train rail way station will be put in use at the end of 2020, which will be helpful to shorten the time to Shanghai.

3.What is your quality control procedure?

A3: We strictly follow ISO9001 QC procedure and we have got the TUV and ISO certificates. Moreover, before shipment, we carry out tests and inspections for each machine. Customers can also come for supervising.

4.What are your core business?

A4: We are a specializing in designing and manufacturing whole set of equipment for daily chemical, pharmaceutical and chemical industry, and we also supply heat exchanger, LNG vehicle cylinders, as well as related technical service.

5.How long is your lead time if I place order?

A5: Usually no longer than 30 days.

6.What is your payment term?

A6: 30% advance payment against PO, 70% balance after testing and before shipment. We accept LC at sight, TT, PayPal, etc.

7.What is your warranty? And how is your after-sales service?

A7: We offer one-year warranty. During this warranty, if there is any part with issue due to machine itself and isn't caused by improper operation, we will provide new spare part at our cost. Furthermore, we provide lifelong after-sales services for our machines and we supply spare parts with cost prices for future maintenance/repairs.
