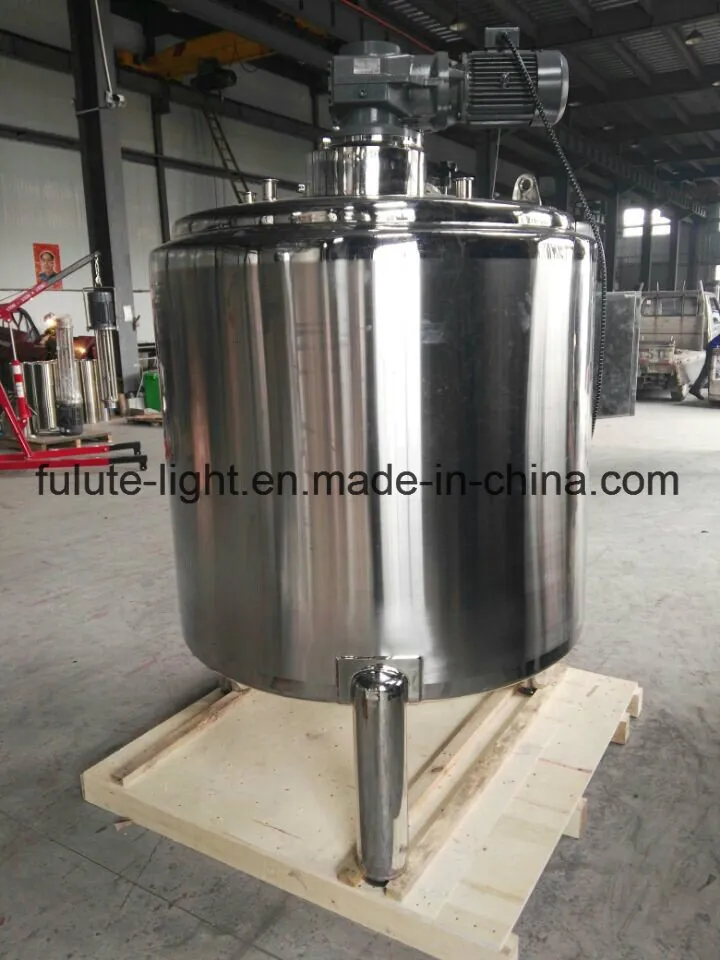

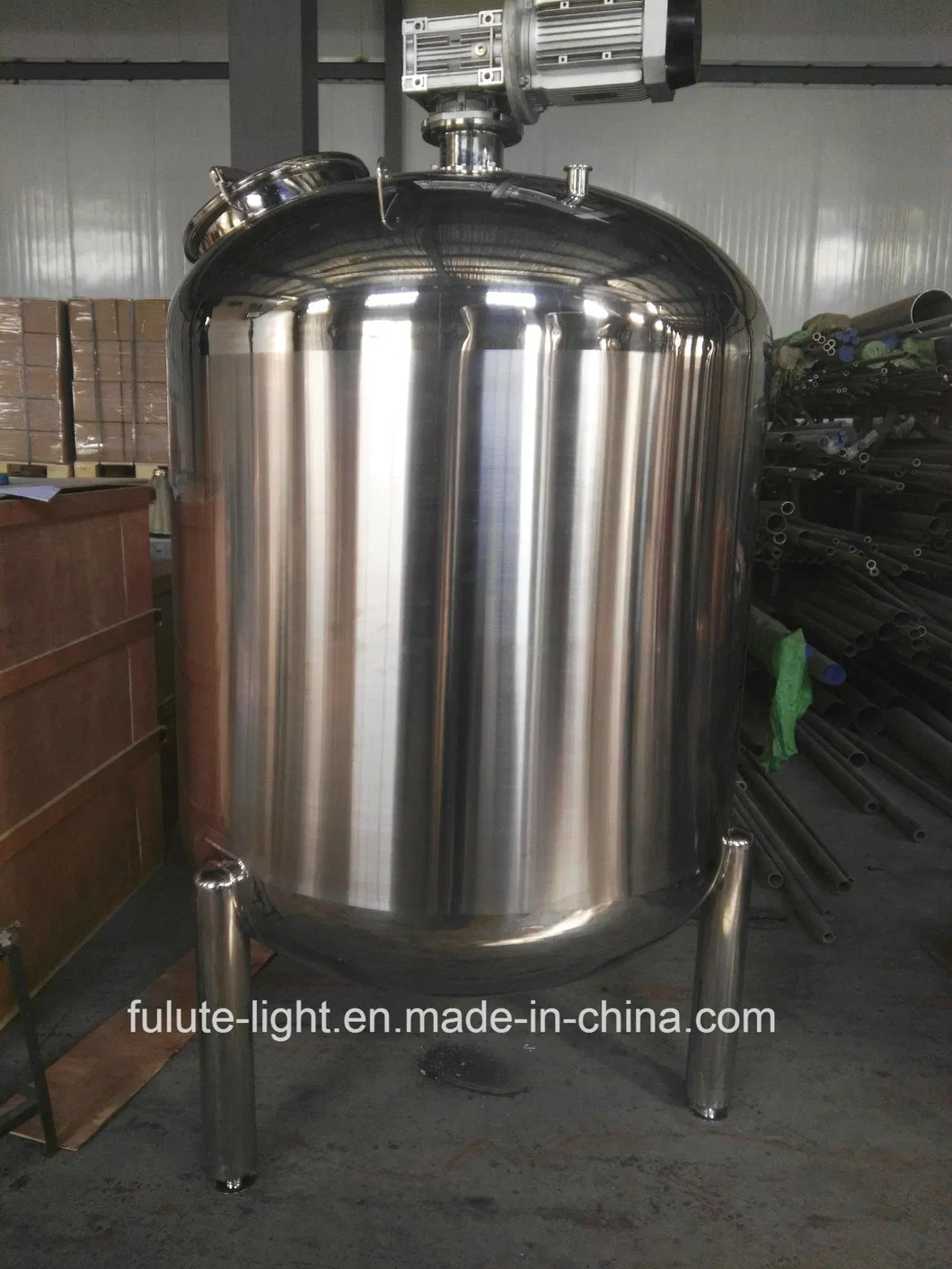

1500 Liter Double Jacketed Stainless Steel Agitated Tank

Product Description

Main information
Name: Stainless steel mixing tank
Material: SS304, SS316(L)
Volume: 50L-10000L
Agitator and insulated jacketed
Experienced factory

Applicable range:
1. Used as blending tank, mixing tank, preparation tank fermentation tank, disinfection tank and ageing tank tank, etc
2. Widely use in foods, dairy products, fruit juice beverages, chemical process, etc

Structural characteristics:
1. Adopt structure of internal tank and external package, with heat preservation materials inside.
2. All food grade hygienic stainless steel
3. Humanized structure design and easy operate
4. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of tank
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Paddle blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
Customized and Non-standard products also welcomed.

Volume	Dimension of tank	Total Height	Insulated Layer	Inlet&Outlet
(L)	(mmxmm)	(mm)	(mm)	(mm)
100	600x550	1250	50	38
500	840x1000	1950	50	38
1000	1060x1220	2500	50	51
1500	1160x1500	2600	50	51
2000	1340x1500	3000	50	51
3000	1410x2000	3500	50	51
5000	1810x2000	3800	50	51
10000	2300x2440	4800	50	51
