                            Product Description




                            1000L Hydraulic lifting Variable speed Dissolver for Water-based Paint/Acrylic Paint




                            Product Description

                            Brief introduction:

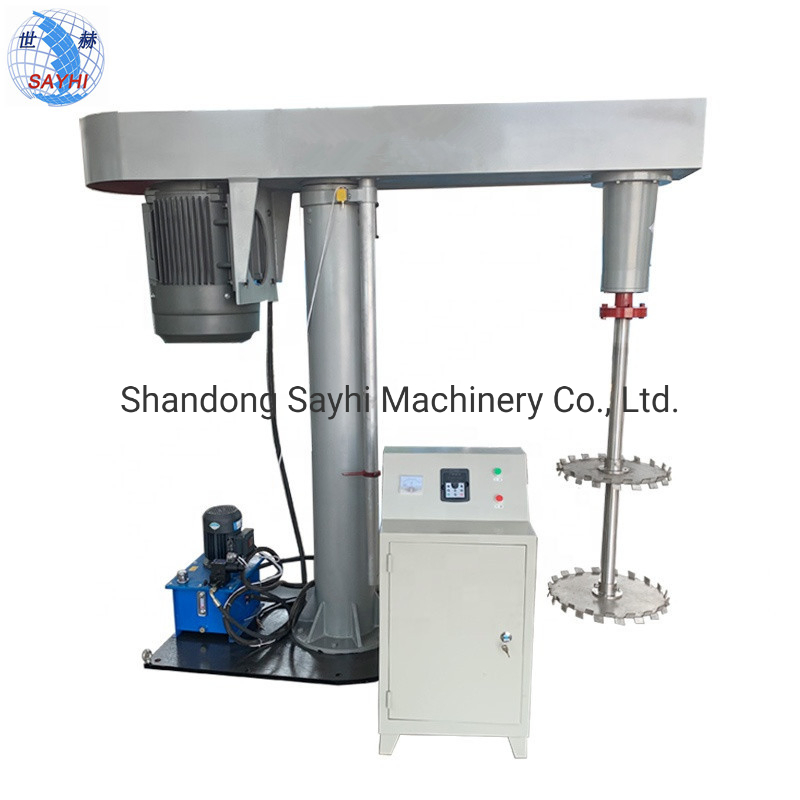

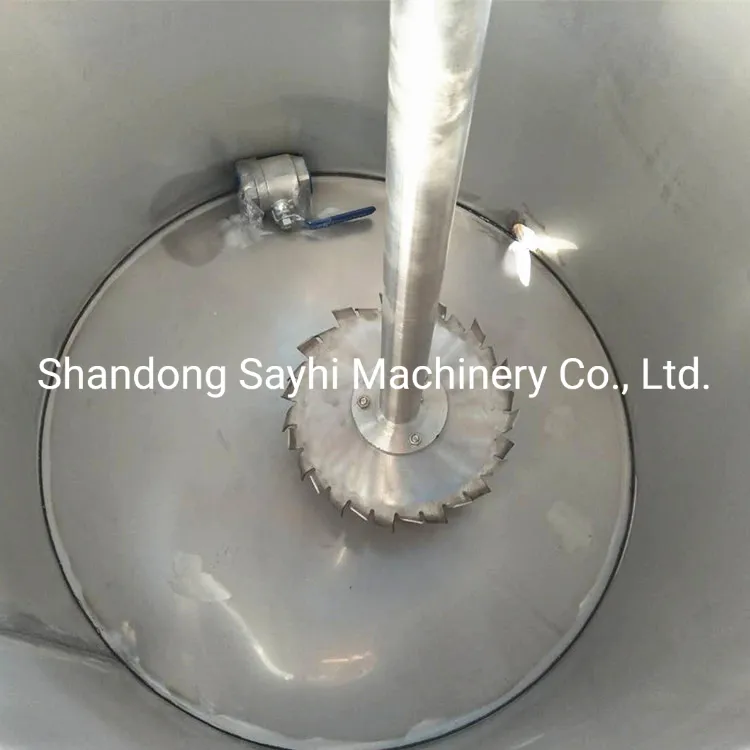

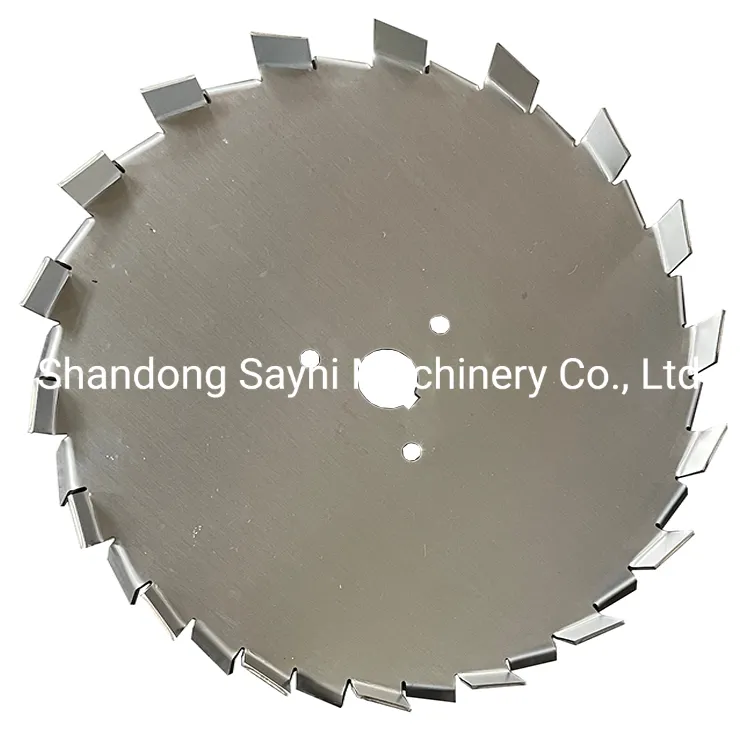

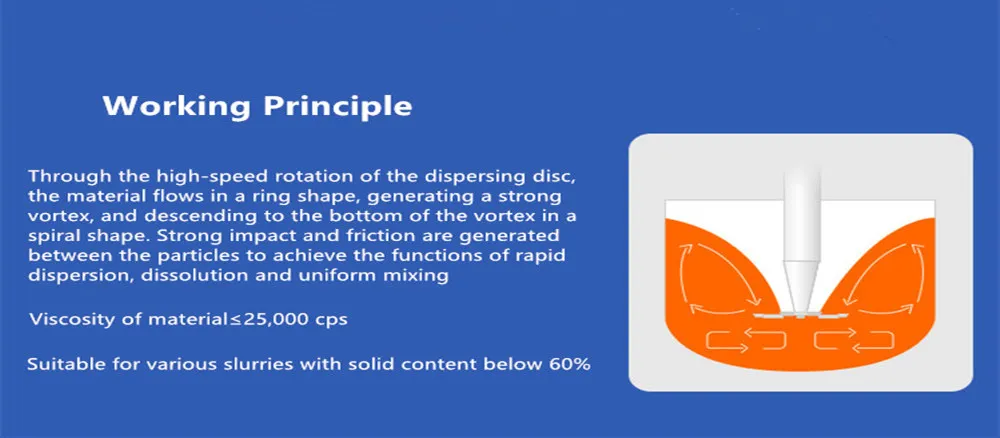

                            High speed Disperser, it adopts high speed agitator (usually a disc sawtooth agitator) that can form a strong vortex locally, reaching an excellent dispersing and emulsifying effect to the processed material.


                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint


                            Application:

                            It can be widely used to process Paint, Printing ink, Coating, Color paste, Cosmetic, Pesticide etc.


                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint

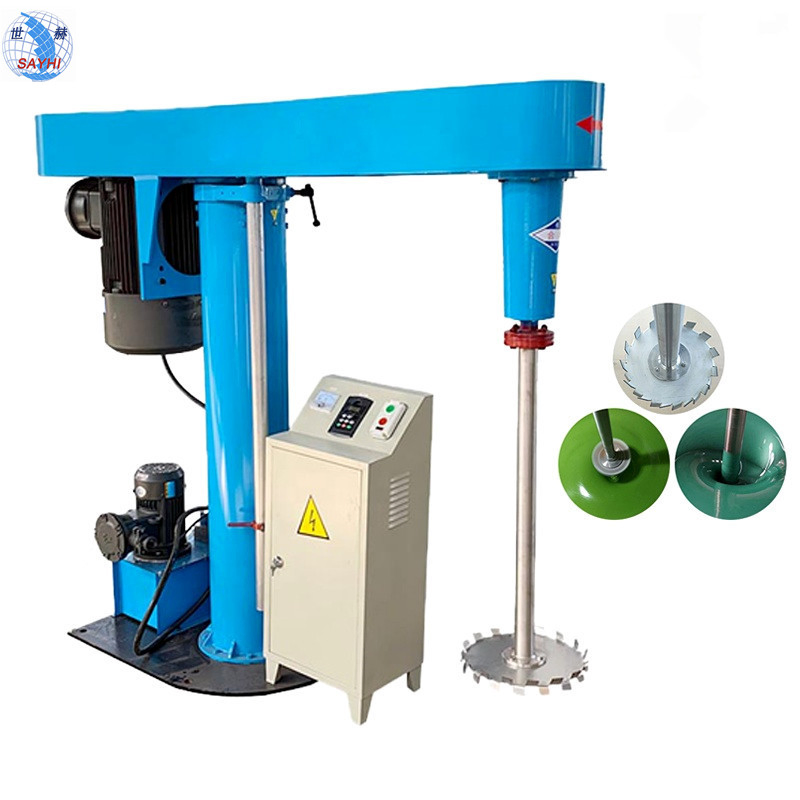

                            Structure at a Galance:

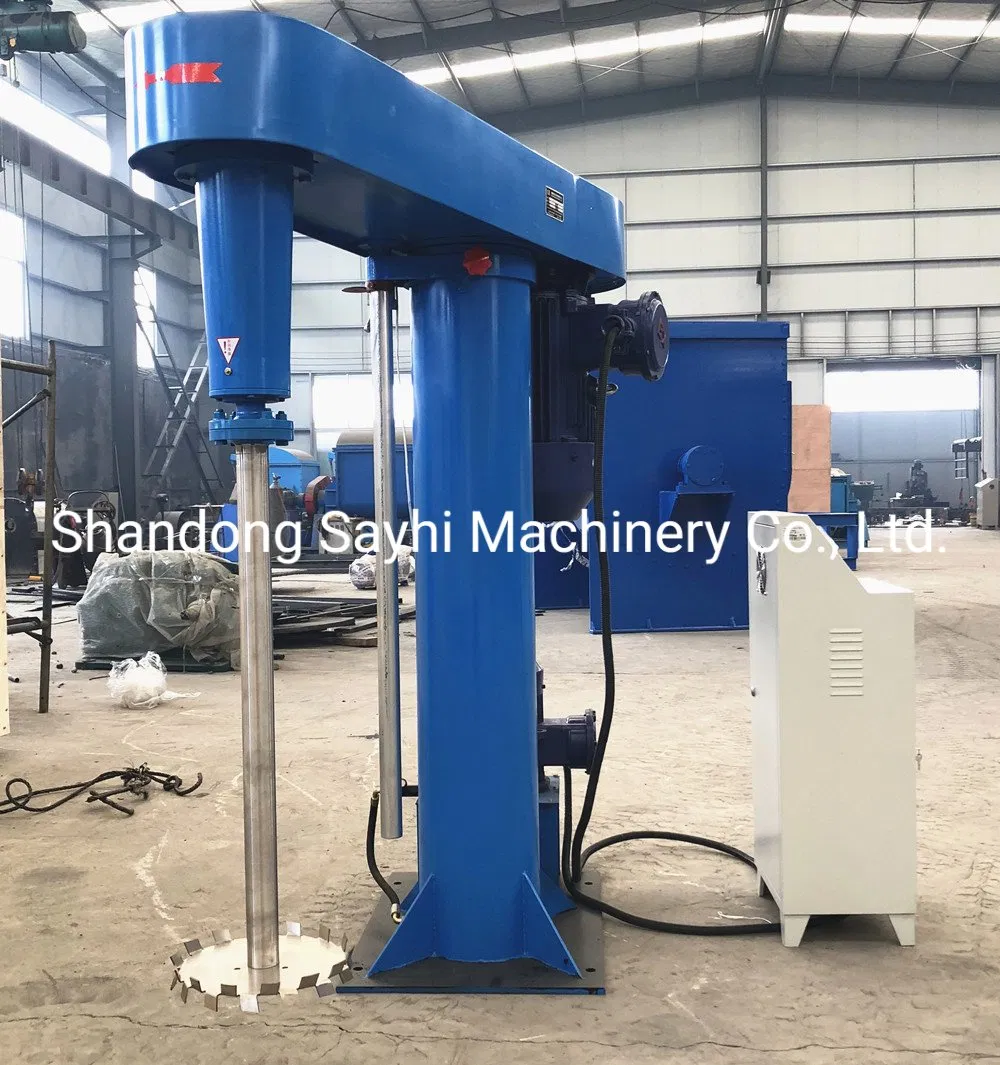

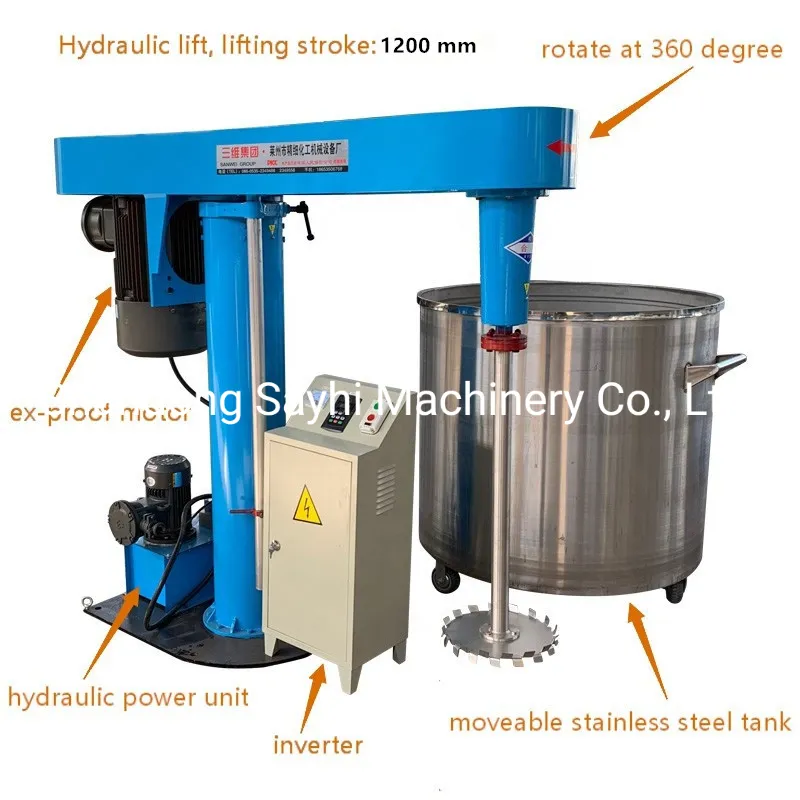

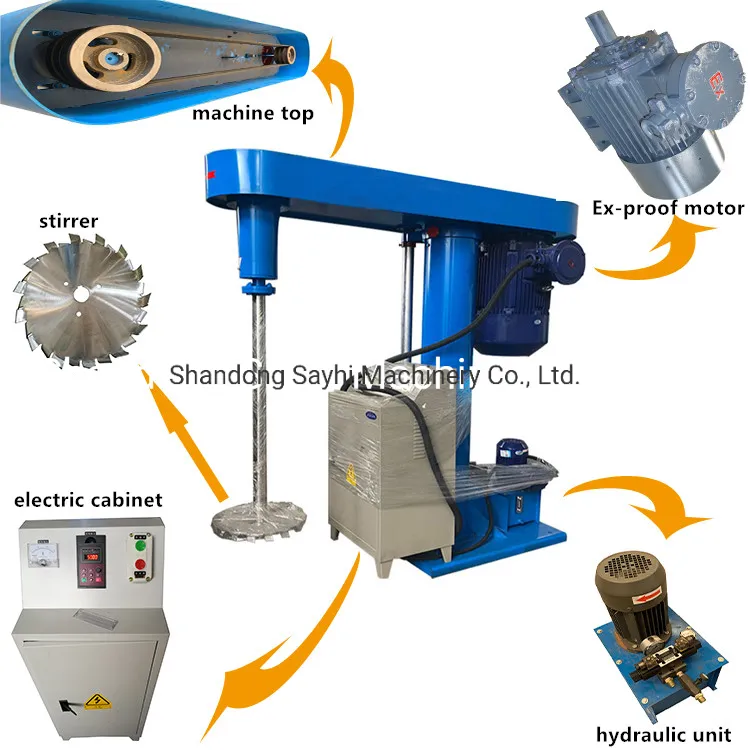

                            This is a "Hydraulic lifting" type, mainly consist of: Mixing part (shaft and disc) , Frame part, Hydraulic system, Driving system ( Motor, Inverter and belt etc) and Electric control system ( control cabinet)


                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint

                            Product Parameters


                            Item ContentTechnical Parameter
                            Model FS-22
                            Processing capacity 500-1000L
                            Driving motor  22KW Explosion proof, motor equipped with Frequency Inverter
                            Shaft liftingHydraulic Lift & 1.2m lifting height;
                            Material Contact part ( stirring impeller + shaft ): 304 stainless steel polished;
                            Non-contact part: carbon steel

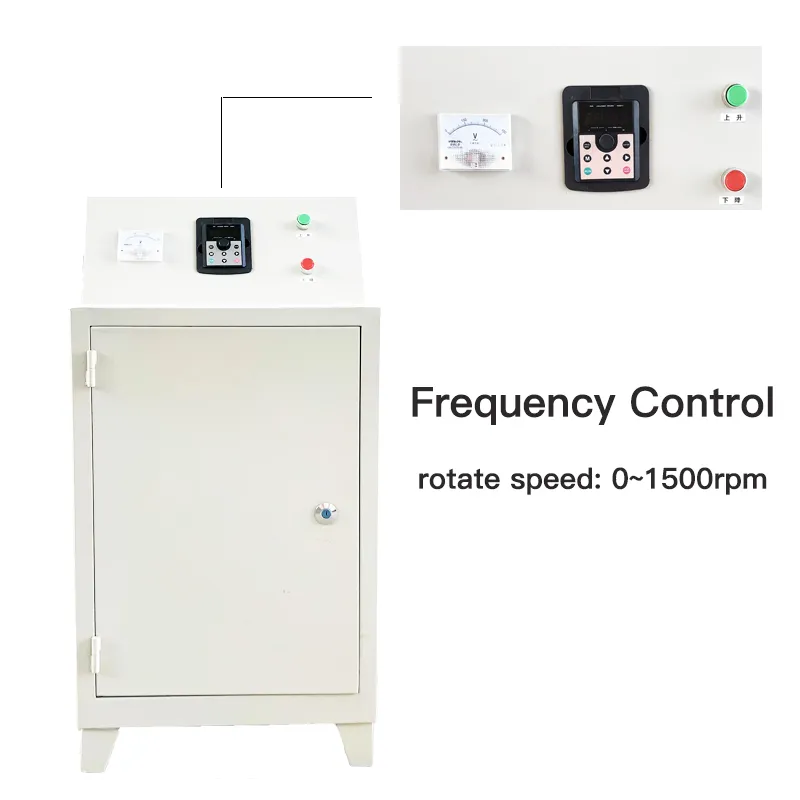

                            Rotate speed 0-1450  RPM controlled by Inverter
                            Shaft rotate angle 360°
                            Electric control cabinet1 set
                            Overall dimension1750 * 600 * 1800 mm
                            Weight 650 KGS

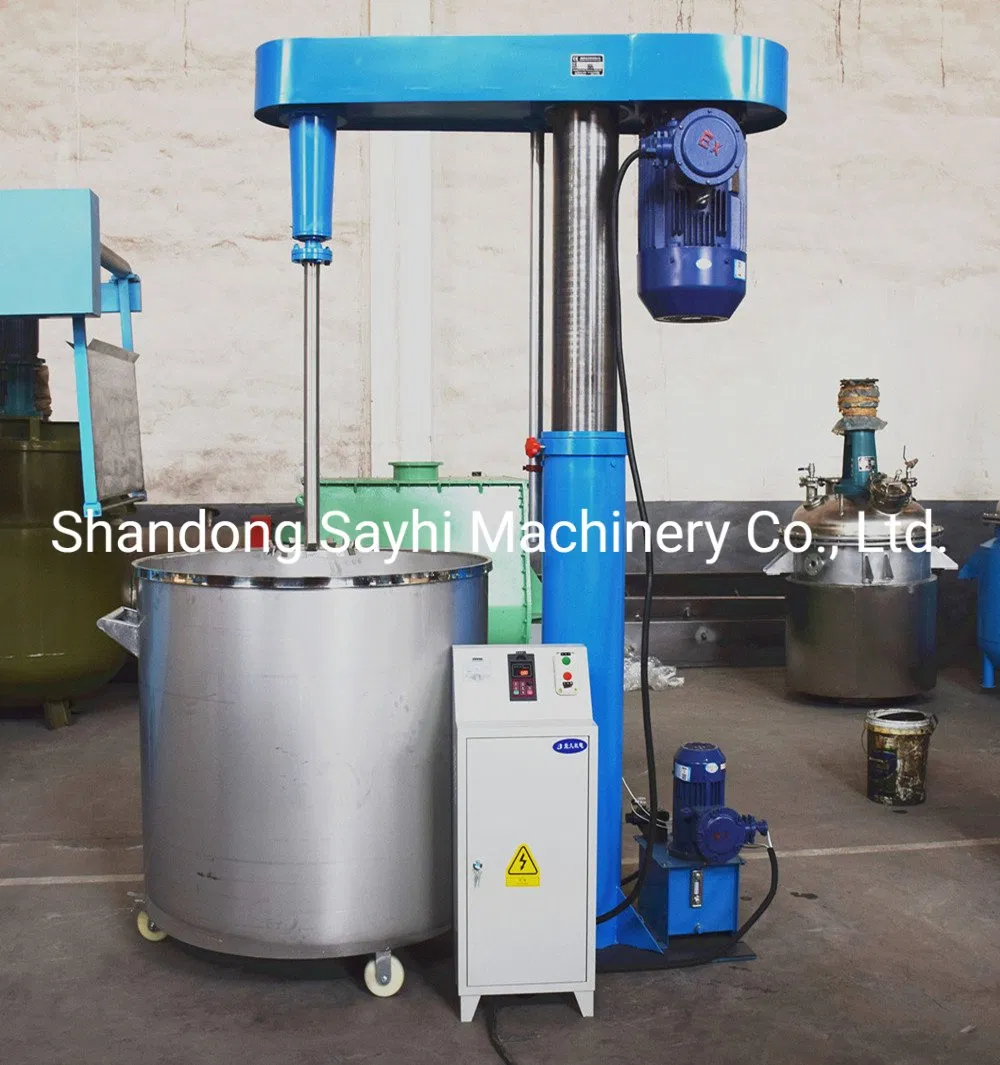

                            Detailed Photos


                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint
                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint
                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint
                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint
                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint
                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint



                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint

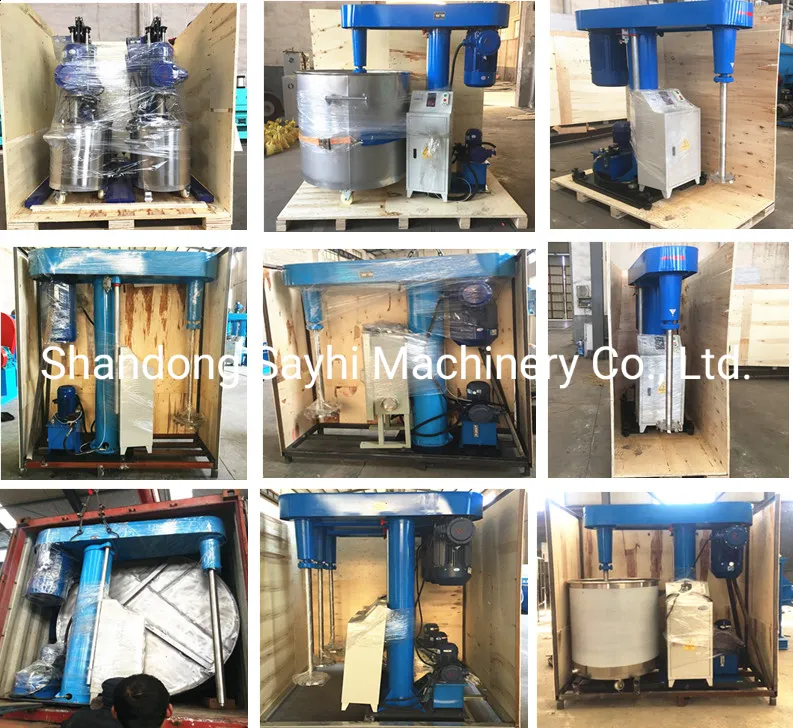

                            Packaging & Shipping

                            It will be packed in standard plywood case, for transportation by sea, or by train optional.

                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint


                            Company Profile

                            Welcome to Shandong SayHi Machinery Co.,Ltd, we established in year of 1996, is comprehensive enterprise focusing on design, manufacture and sales of Chemical Machinery, including Reactor, Sigma Kneader, Ribbon Mixer, Paint Mixing Machine, Bead Mill, Basket Mill, Three roller Mill, Paint Production Line and Polyester Resin Production Line and so on.

                            After decades of development, we have established a complete modern enterprise organization system, including domestic and international marketing teams, strict QC&QA system, technology research and development center and manufacturing department.

                            1000L Hydraulic Lifting Variable Speed Dissolver for Water-Based Paint/Acrylic Paint

                            Want to say Customer-----FAQ

                            Q: What's your company strength? Because I saw most products their appearance are very similar.
                            A: Yes, you are right, similarity in appearance of products is indeed a question.

                            For this matter, we mainly do two aspects: First of all, insuring product quality; On the other hand, increase the professionalism of sales rep and improve their communication ability, to provide customers more extra value besides product.

                            Q: How can I trust you?  After all, this is our first cooperation, but I have to give you the money before you ship the goods.
                            A: Yes, it's really not easy to choose a reliable supplier among many suppliers.

                            Because you may have to consider many factors, for quality, safety, price, delivery, after sales service, and so on. But please don't worry, our company with more than 20 years experience in this field, we have thought about all considerations for you.

                            The only thing you need to consider is how to continue to develop and grow in your market and leave the rest to us.

                            Q: What about your guarantee?
                            A: Firstly, before delivery, our internal QC will do a general inspection, showing the condition of goods, through test running or trial operation .

                            Secondly, our guarantee period is 12 months, starting from the arrival of goods: Under normal using condition, if the equipment is faulty, for example the damage of motor, reducer or inverter, we will provide replacement on our account. If the damage is caused by operating error, we will provide customers with technical guidance for replacement and repairing free of charge.

                            Q: Is the customization available?
                            A: Yes, equipment can be customized based on clients' request.


                            Hope our professional team can meet a professional company like you with the largest luck and bring with you an extraordinary experience as well.

                            Waiting for your kind inquir~
