China Yulong Output 3-4t Rice Husk Hammer Mill

Product Description

Model	Rpm of shaft(r/min)	Qty of hammers	Power(kw)	Capacity(t/h)
GXP65×27	2940	24	22	0.5-1
GXP75×55	2950	48	55	1-2
GXP75×75	2970	72	75	2-3
GXP75×75	2970	72	90	3-4
GXP75×100	2980	96	90	4-5
GXP75×100	2980	96	110	5-6
GXP75×120	2980	120	132	6-7
GXP75×120	2980	120	160	7-8
GXP75×150	3200	148	200	8-9

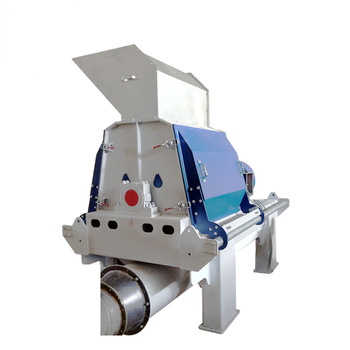

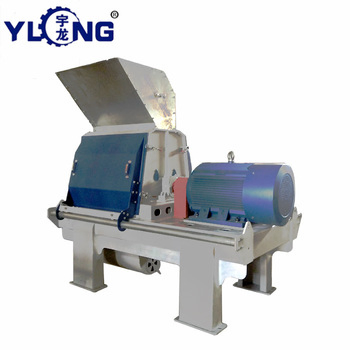

The motor and rotor of this series hammer mill installed on the same base. They are directly connected by coupling. The rotor has been checked by dynamic balance test can rotate in both of forward backward direction.
There are symmetrical operation door and safety interlock in both side. The operation doors are helpful to renewal thieve plate and hammers, also helpful for checking up and debugging. Feed inlet is placed in the top of crusher which can be matched with all kind of feed equipment.

There is one piece of sieve plate installed at the bottom of wood hammer mill. The size of crushed material could be changed by changing different sieve plate with different hole. Normally, the finished size is from 2mm to 30mm adjustable.
Spare parts of hammers and sieve plate are made by our CNC system, through high technical heat treatment.
This series hammer mill has reasonable structure, sturdy and durable using, safety and dependable, simple installation, easy operation, tiny vibrating, high efficiency etc. advantages, which is the most ideal grinding equipment of all kinds of wood chips,wood shavings, grass, straw, stalk, corn, weeds, soybean, PVC foaming board, rubber and so on.

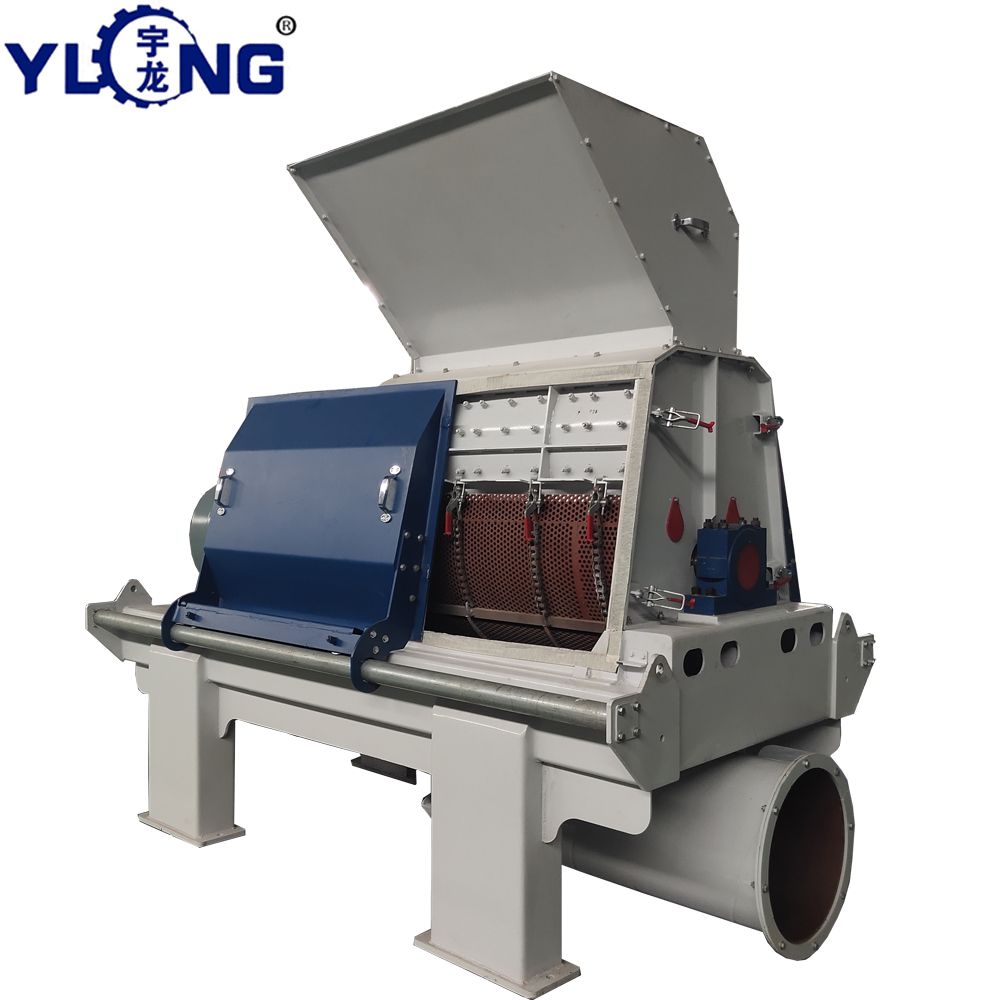

Yulong Output 3-4t Rice Husk Hammer Mill
