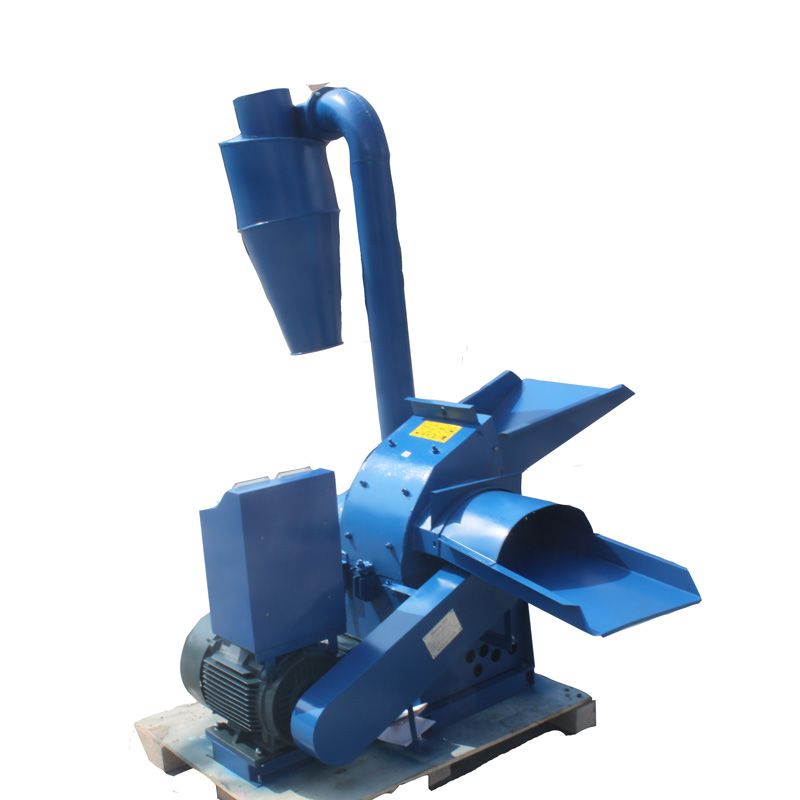

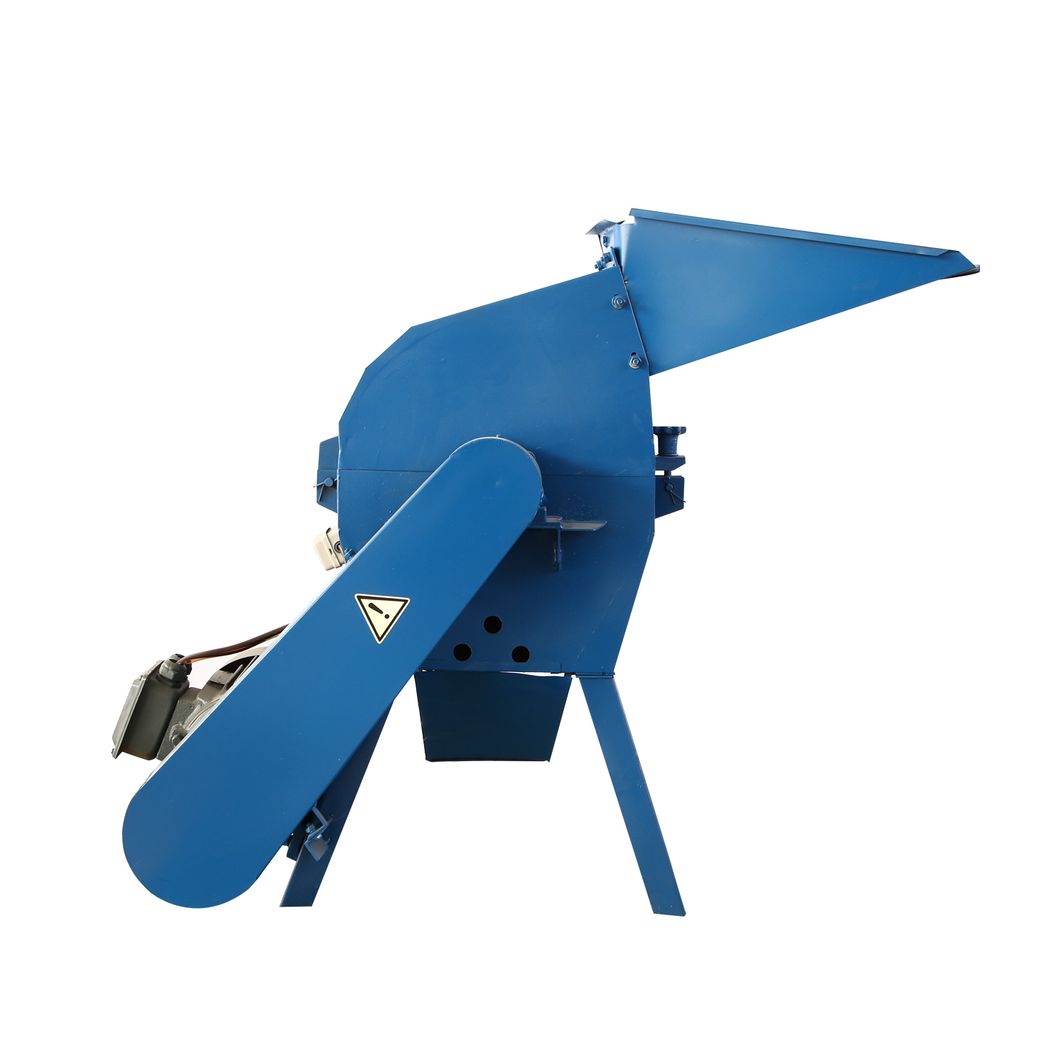

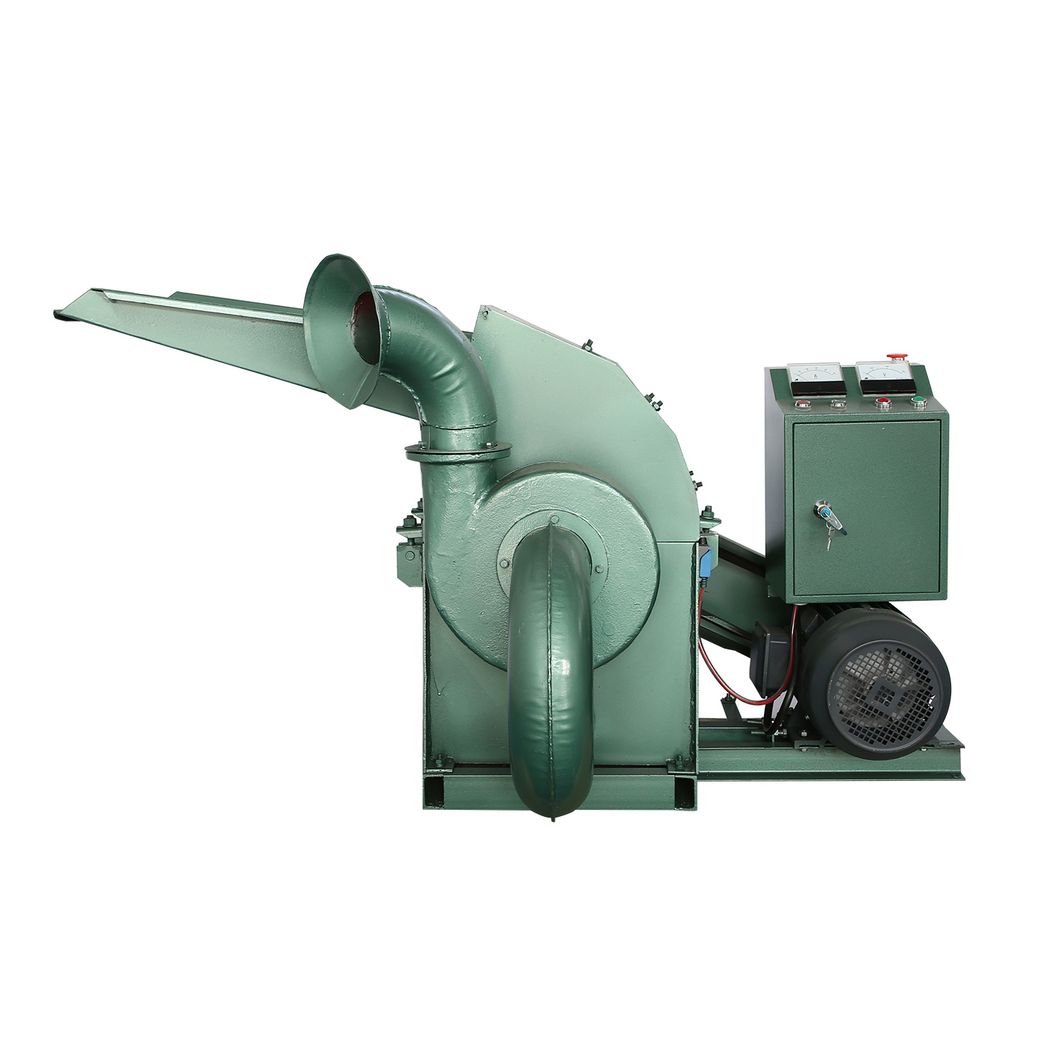

Tree Branches Wood Sawdust Hammer Mill

Product Description

Specifications

1.power: Diesel engine /Emotor
2.capacity:600-1500kg/h
3.raw material diameter:below 50mm
4.final powder below5mm

Advanced Technology Wood Hammer Mill

wood hammer mill are used for grinding the bio-mass like straw /stalk / wood chips / tree branches and forest waste into small granular material of less than 3-5mm,which is perfect size before pelletizing and briquetting.

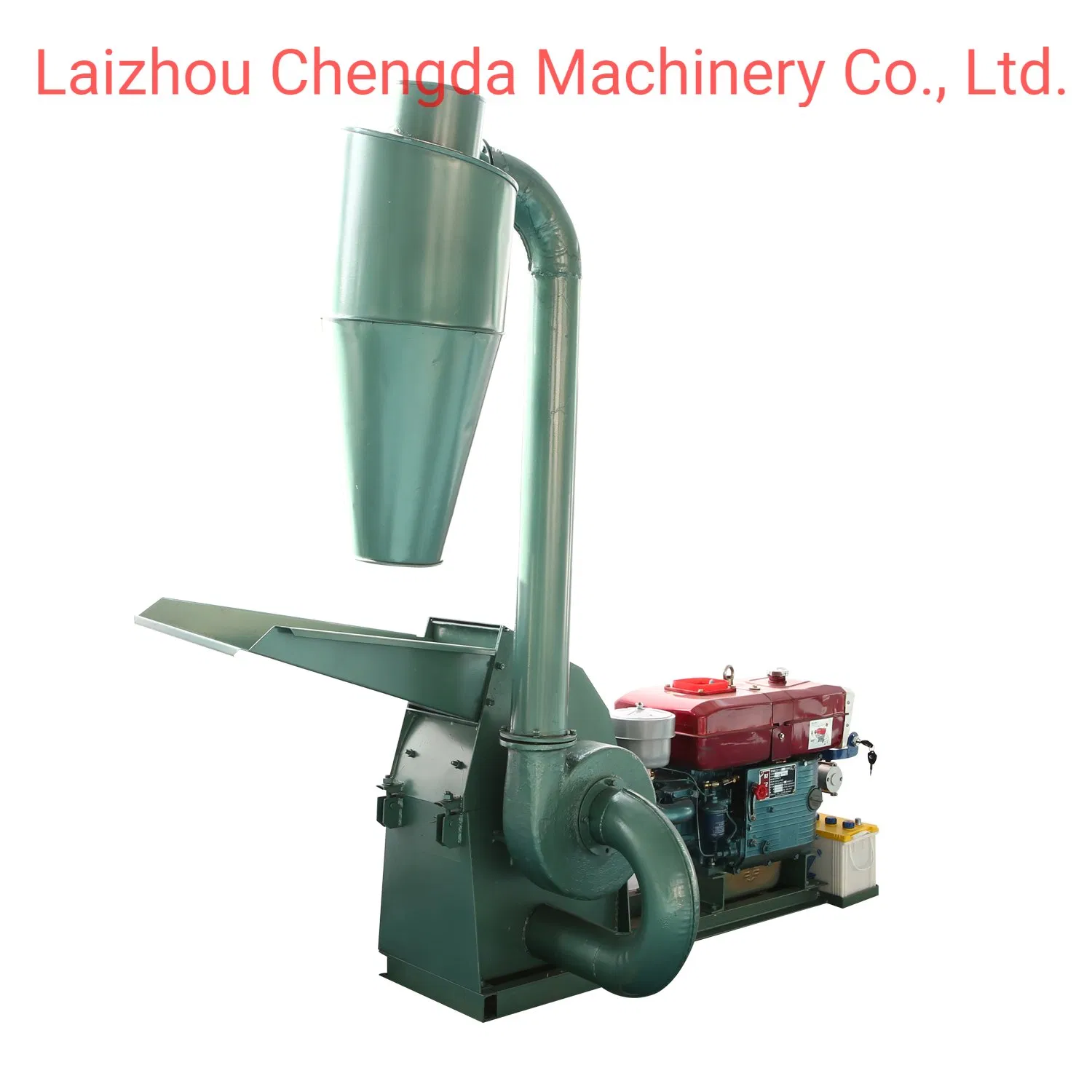

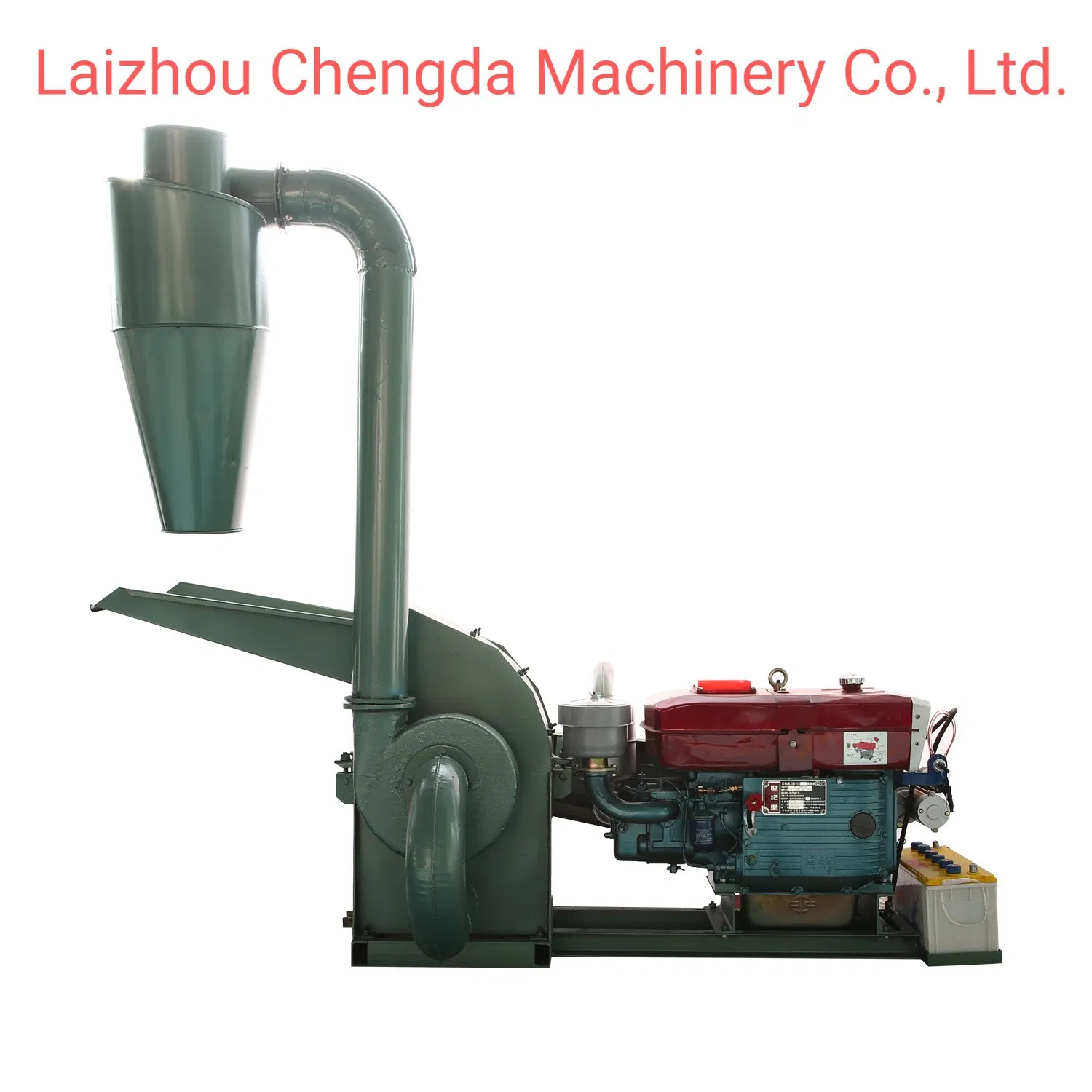

The machine could be driven by the diesel engine, motor, tractor, etc.it is equipped with high carbon steel blade and works with high efficiency. Widely used in swine farm, wood factory, etc

we have the hammer mill capacity from 100kg/h to 1500kg/h.

we have the power Emotor and Diesel engine

we also have the wood cutter machine,that can cut the big diameter into small pieces

we have the pellet machine ,can make your powder into the sawdust pellet and fodder pellet.

we have the pellet cooler ,can make the hot pellet turn into the ordinal tempeter.

the hammer mill technical data as below:

MODEL	POWER	OUTPUT(KG/H)	N.W/G.W(kg)	PACKING SIZE(cm)

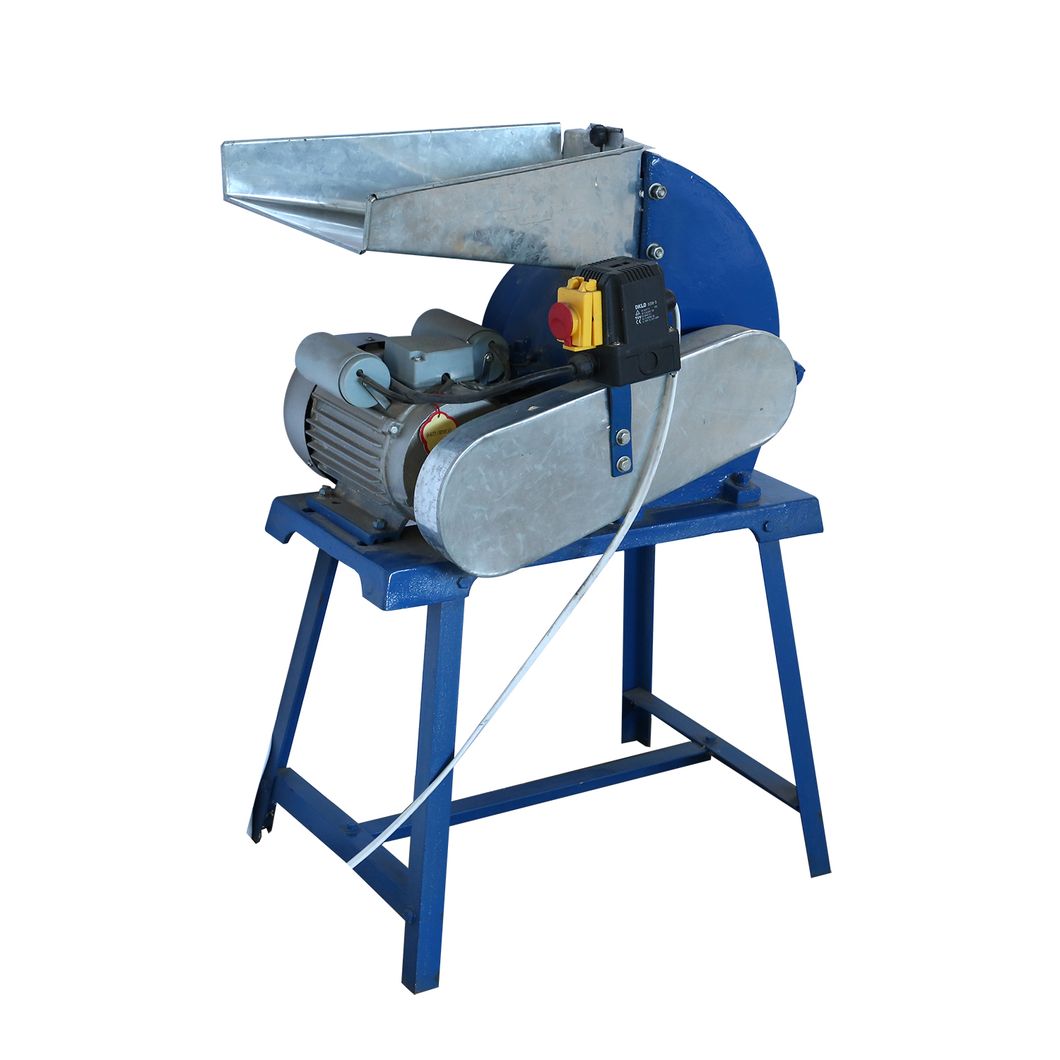

CF158	2.2kw SINGLE/3 PHASE	60-120	75/95	485863

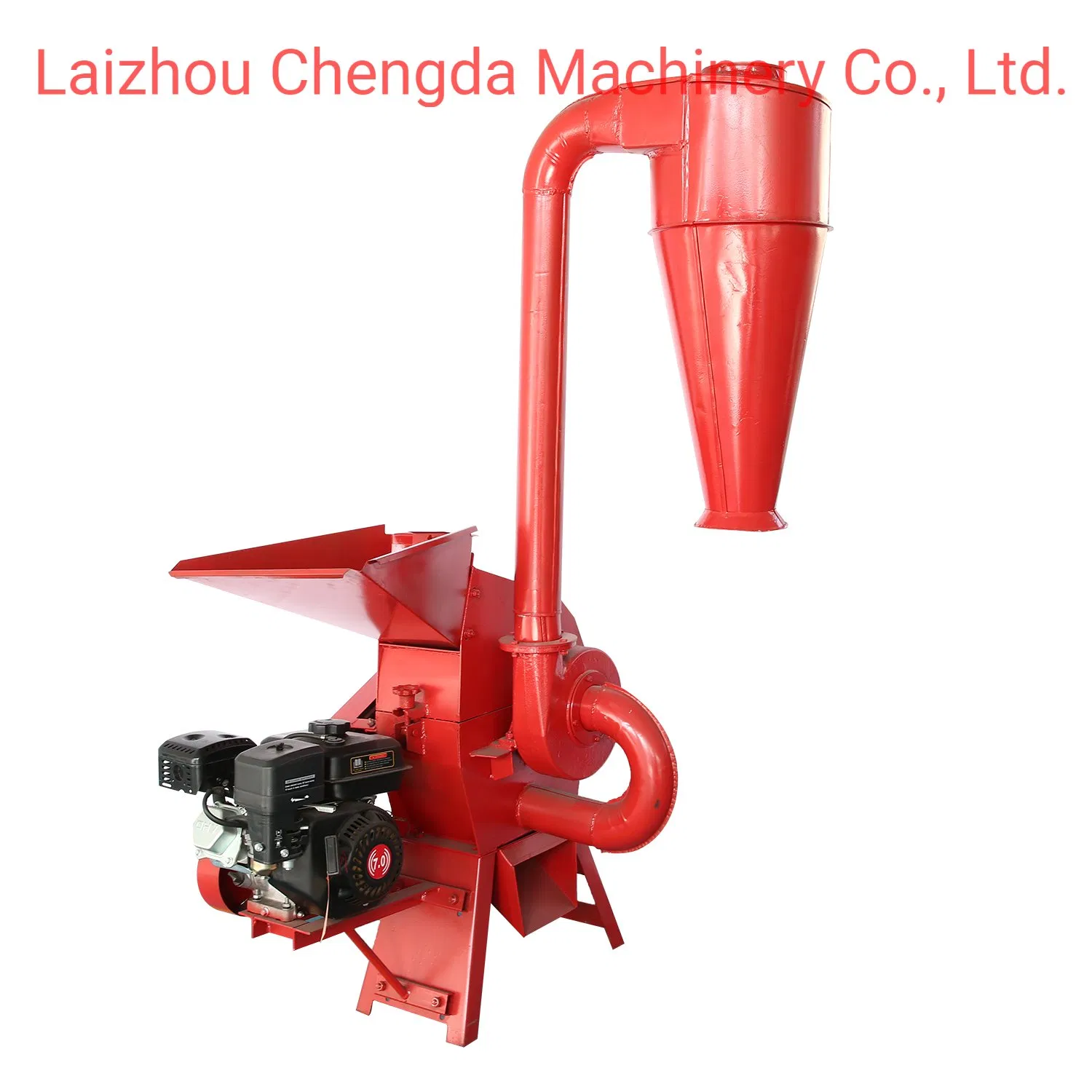

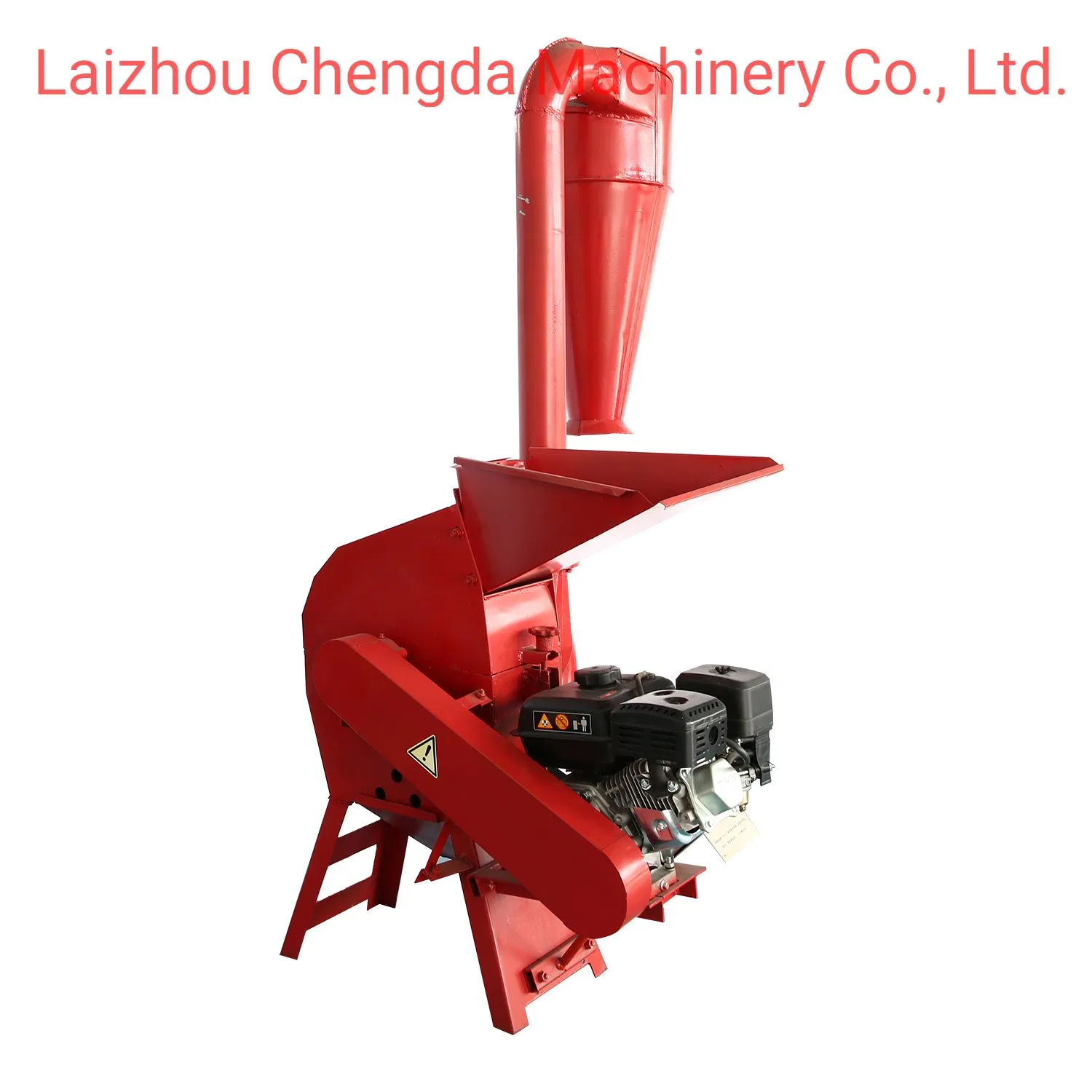

CF198	7.5HP GASOLINE	200-300	120/140	9058102
CF198	4KW	200-300	120/140	9058102
CF420B	7.5KW	400-600	260/320	11282107
CF420C	11KW		320/360	11282107
CF420A	15HP DIESE		330/360	14773109
CF420A	22HP DIESE		350/390	14774111
CF500A	55HP DIESE	800-1100	800/840	150142123
CF500B	22KW	800-1100	600/630	12497106

Tree Branches Wood Sawdust Hammer Mill

FAQ

1. How to order?

After you decide to purchase, we will send you proforma invoice with our bank information,
bring this PI to the bank, and ask to make T/T for the payment. For single set, your machine can be ready within 30-45 days after we getting the payment, we will send to the port and deliver to you by sea.

2. Related products?

CF158

3. How to get to your factory?

Our company is located in Sanlihezi Village, Wenfeng Road, Laizhou, Shandong province, near Qingdao, if you arrive in Qingdao Liuting Airport, we can drive to Qingdao to pick you up to our factory.

4. How long is your warranty period?

One year

5. How does your factory do quality control?

Our factory has gained CE certificate and ISO certificate. " Quality is priority" we always pay great attention on quality controling from the begining to the end.

Our Services

1. We provide 1 year guarantee.
2. We provide English manual and video for installation & operation.
3. If required, we could send technicians for installation and commissioning, training.
4. We provide feed formula and free spare parts.
