Sawdust Making Machine Hammermill for Biomass Price Wood Crusher Hammer Mill
Product Description1. Brife Introduce about Wood Hammer Mill/Wood Crusher MachineWood hammer mill , also called wood crusher machine, it is a special equipment which is used to grinding small size wood chips into sawdust.When the raw material go into the milling room, hitted by high speed rotation o......
Send Inquiry
Product Description
1. Brife Introduce about Wood Hammer Mill/Wood Crusher Machine

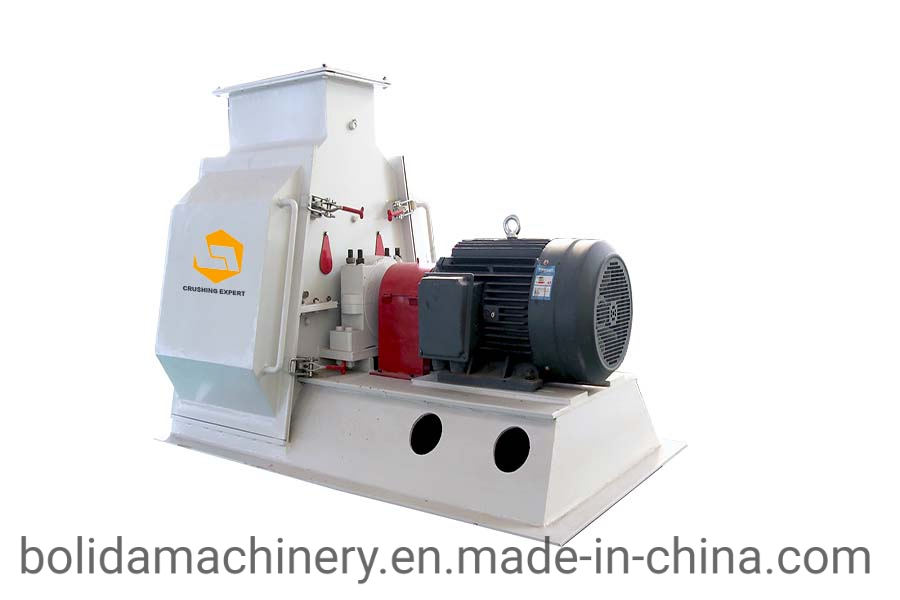

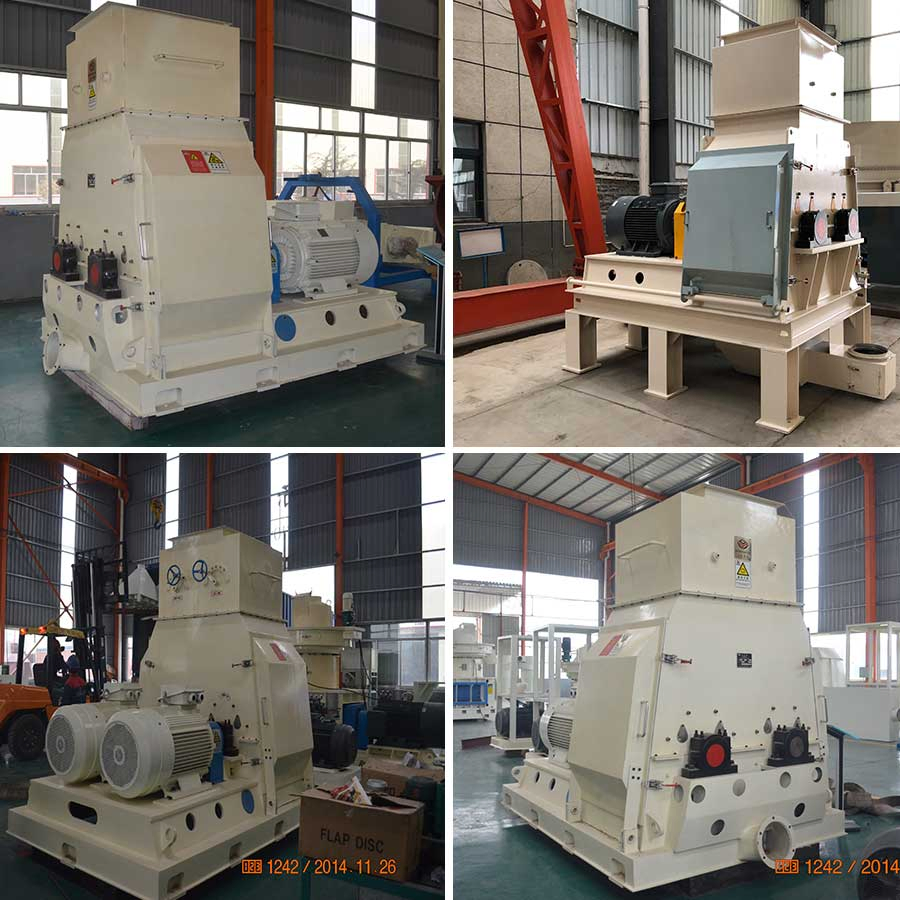

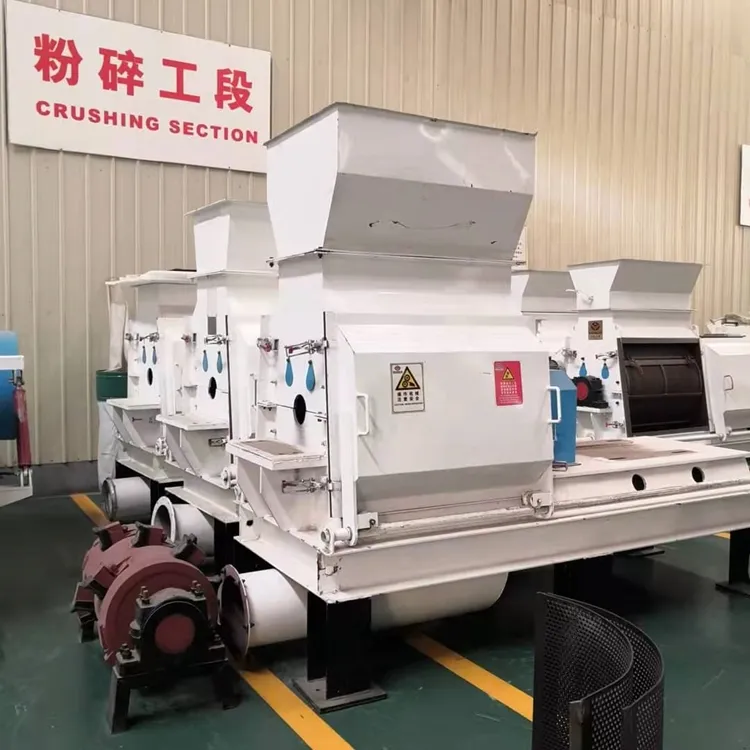

Wood hammer mill , also called wood crusher machine, it is a special equipment which is used to grinding small size wood chips into sawdust.
When the raw material go into the milling room, hitted by high speed rotation of hammers.

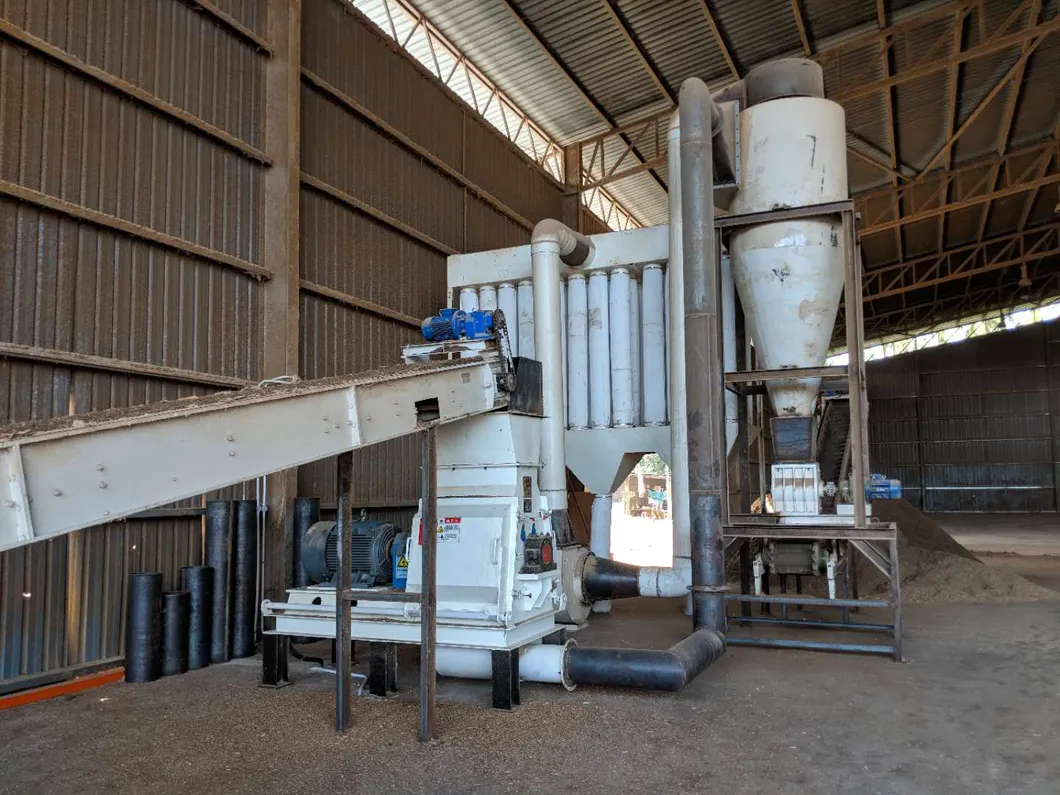

Wood hammer mill always comes with cyclone, air lock, stean fan, and bag dust collector .
2.Technical Parameter of Wood Hammer Mill/Wood Crusher Machine
Model | Power(kw) | Capacity(t/h) | Hammer Qty. |
YSG65*27 | 22 | 0.8-1.5 | 24 |
YSG65*55 | 37/45 | 1-2 | 48 |
YSG65*75 | 55/75 | 2-3 | 72 |
YSG65*100 | 90/110 | 3-4 | 96 |
YSG130*55 | 110/132 | 5-6 | 80 |
YSG130*100 | 160 | 7-8 | 160 |
YSCD65*75 | 55/75*2 | 4-6 | 114 |
YSCD*65*100 | 90/110*2 | 6-8 | 192 |
YSCD75*100 | 110/132*2 | 8-10 | 192 |

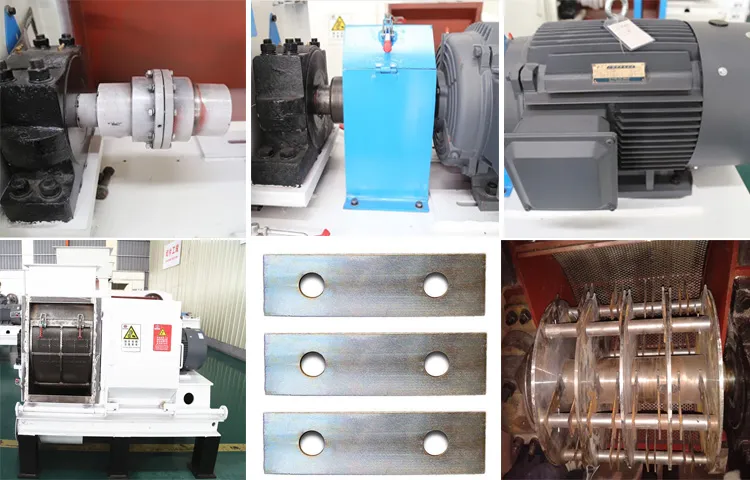

3.Feature of Wood Hammer Mill/Wood Crusher Machine
(1). Heavy body, carbon steel material, long using life and machine running stable.
(2). Hammer mill material is tungsten carbide spot welding, long wear parts service life will save your money and save your time.

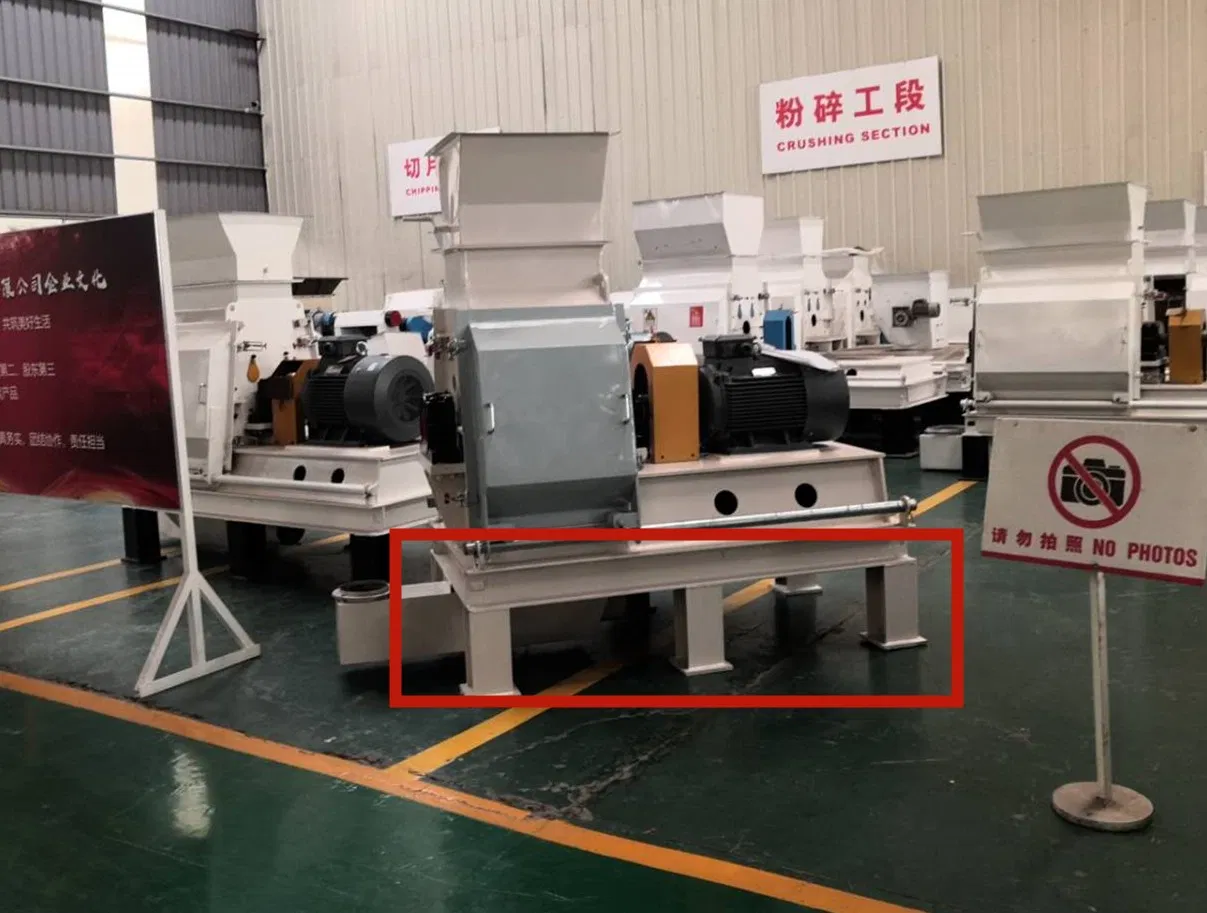

(3). Rotor thickness is larger than others, and weight is heavy. Better protection of machines.
(4). Cyclone and bag dust collector system.
(5).Stable structure, reliable, easy to install and operate, no vibration, high output.
(6). All of our rotors pass an accurate dynamic balancing test, low noise and smooth running. Per tested, double rotor hammer
mill no-load noise is 102 decibels, load noise is 95 decibels.
(7). SIEMEN'S brand motor.
Raw Material
Contact Us
Want to know more about machine price and technolgy data, video , picture. Can through Made-in-China or Email or Whatsapp/wechat. Within 2 hours send to you on working days.
Welcome come to visit our factory and purchase our product.
We always provide equipments with best quality and perfect after-sale service.
