Portable Good Quality Supply Vibrating Feeder for Crushing Hard Stone

Product Description

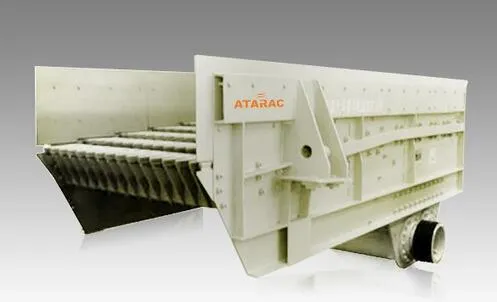

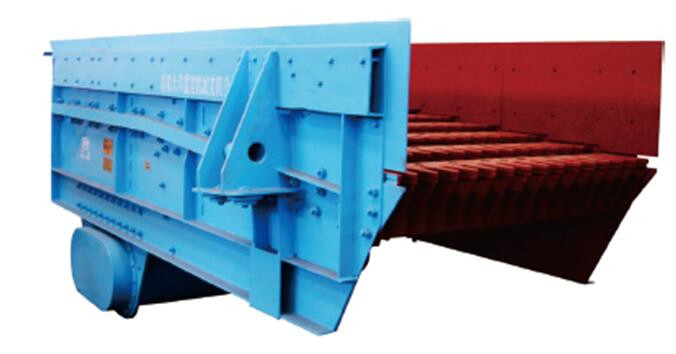

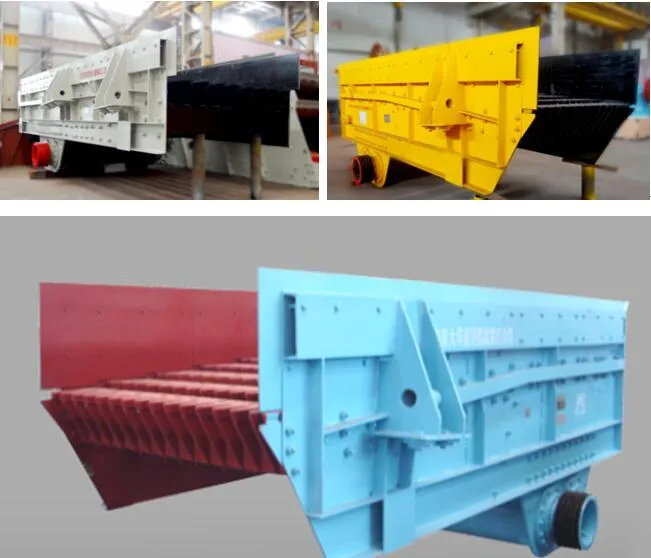

AHF Series Vibrating Feeder INTRODUCTION:
AHF Series Vibrating Feeder is a kind of high efficiency feeder that made by using foreign advanced technology. It is designed to strengthen the frame which can meet the extremely harsh and complicated working conditions so as to ensure that the equipment is highly reliable.
Product Features:
Strong heavy-duty tank body structure, reliable strength, impact resistance, high processing capacity, wider scope of application.
Zigzag grate cascade arrangement, with self-sweeping function, and easy to replace and adjust the gap.
High amplitude, high feeding capacity, large pre-screening effective area, good pre-screening performance.
Adopt vibration suppression technology to avoid the lateral shake caused by resonance when starting and stopping the machine.
Frequency conversion motor is optional , which is easy to control the feeding volume.
Technical Parameters:

Model	Feed Surface Size(mm)	Pre-screening Part length(mm)	Feed Size(mm)	Dip Angle	Frequency	Amplitude(mm)	Capacity(t/h)	Power (kw)
AHF-3	900*3000	1500	500	5^o	500-900	9.5	200	11
AHF-4	1200*3600	1800	600				300	15
AHF-5	1500*4200	2100	800				400	22
AHF-6	1800*4800	2400	900				600	30
AHF-7	2100*5400	2700	1000				800	37
AHF-8	2100*6000	3000	1200				1000	45

Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts)for a period of one year from the date of trial run finish under our technician's guidence, but not exceed 15 months from date on which machine leaves the factory
