Ormosia Powder Crusher Mill
Main uses:The machine consists of main engine, feeding engine, grading engine, electric box and pulse dust collector box and discharge engine. The machine is widely used for fine material grinding in pharmaceutical, chemical, foodstuff industries materials smashing.Working principle:Material in hopp......
Send Inquiry
Product Description
Main uses:
The machine consists of main engine, feeding engine, grading engine, electric box and pulse dust collector box and discharge engine. The machine is widely used for fine material grinding in pharmaceutical, chemical, foodstuff industries materials smashing.
Working principle:
Material in hopper is conveyed via screw into grinding room, smashed by high-speed rotating blade, to convey the material into cyclone separator, bag filter, ejection material is reach the product requirements by method of overpressure.
Technical Parameters:
Our Advantage:

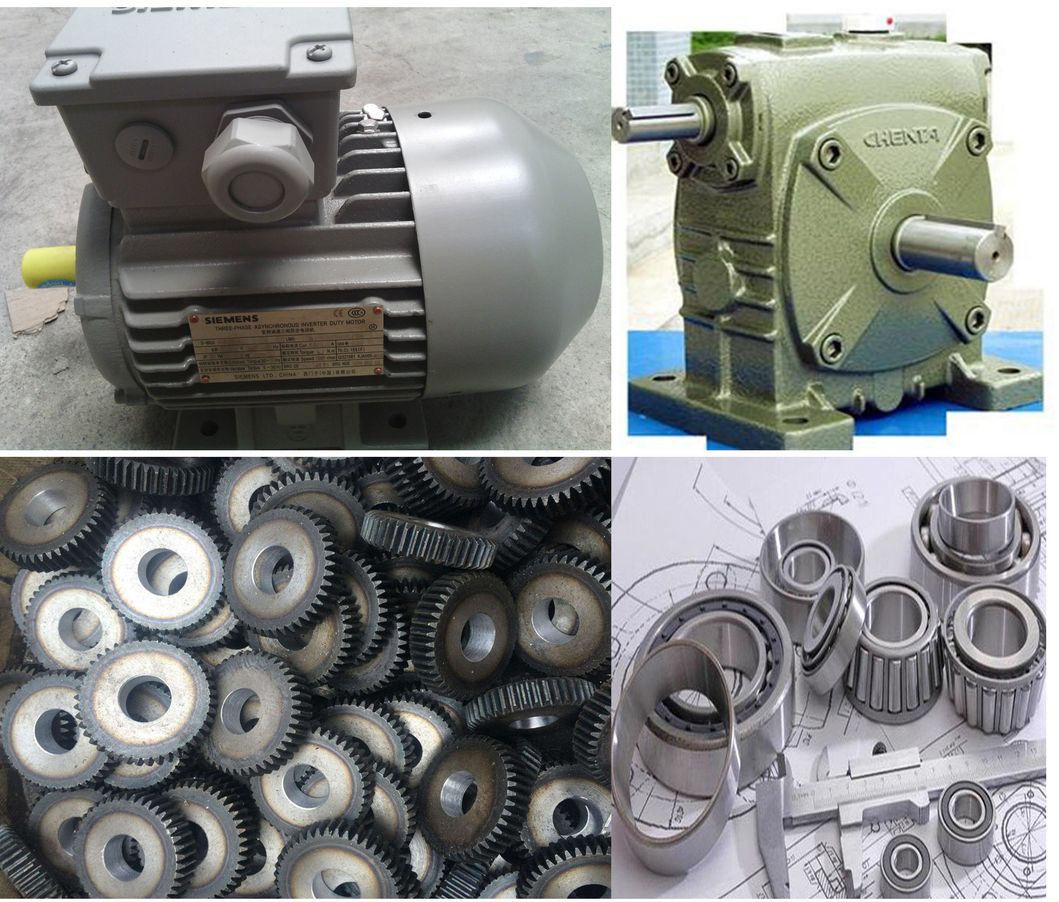

1. Reliable And High Quality Drive System
2.Professional And Strong Packing
3.Good After-Service
4.Sale Network And Exhibition
The machine consists of main engine, feeding engine, grading engine, electric box and pulse dust collector box and discharge engine. The machine is widely used for fine material grinding in pharmaceutical, chemical, foodstuff industries materials smashing.
Working principle:
Material in hopper is conveyed via screw into grinding room, smashed by high-speed rotating blade, to convey the material into cyclone separator, bag filter, ejection material is reach the product requirements by method of overpressure.
Technical Parameters:
| Model | Production | Feeding size | Output size | Total power | Main speed | Overall size | Weight |
| CWF-15 | 30-150kg/h | 10mm | 60-450 mesh | 13.5kw | 5800r/min | 4200*1200*2700(mm) | 1000kg |
| CWF-20 | 100-250kg/h | 10mm | 60-450 mesh | 19.3kw | 5200r/min | 4300*1350*2700(mm) | 1500kg |
| CWF-30 | 200-400kg/h | 10mm | 60-450 mesh | 39.05kw | 5000r/min | 7920*1480*3290(mm) | 2500kg |
| CWF-60 | 400-1000kg/h | 10mm | 60-450 mesh | 75.3kw | 4500r/min | 9500*1800*3730(mm) | 3200kg |
Our Advantage:
1. Reliable And High Quality Drive System
2.Professional And Strong Packing
3.Good After-Service
4.Sale Network And Exhibition
