Hydraulic Wood Splitting machine, Vertical splitting machine

Product Description

Hydraulic Wood Splitting Machine,Vertical Splitting Machine

Wood splitting machine can be used to pry the stumps, large tree stalks, large round logs and harder wood to meet the feed size requirements of the chipper or to smash the raw materials into other uses.
  The splitting machine is an important auxiliary equipment for the wood chip processing industry. It adopts hydraulic working principle and mainly has two series of vertical and horizontal. The general stroke specifications are 1000mm, 1100mm, 1200mm, the nominal pressure is 30 tons, 35 tons, 50 tons, etc. It is more convenient to use vertical type, and can be made into traction mobile machine according to user requirements.
  Vertical splitting machine, scissors splitting machine: It is suitable for manufacturers of wood chips for making plates, paper, etc. It is an ideal product for auxiliary production of wood chip equipment, and it is the latest series of shovel machine products in China.
  Wood splitting machine working principle
  The wood splitter is the simplest hydraulic equipment that is now in common use. The wood splitter contains all the basic components of the hydraulic machine:
  The engine, usually a small four-stroke gasoline engine, powers the entire system. The engine is connected to a hydraulic oil pump.
  The hydraulic oil pump produces a high pressure oil stream that is injected into the valve.
  The operator can actuate the valve to activate the hydraulic cylinder coffin.
  At the same time, there is also a tank containing hydraulic oil to replenish the oil pump at any time, and a filter is installed to keep the oil clean.
  Wood splitting machine parameters
   The general stroke specifications are 1000mm, 1100mm, 1200mm, the nominal pressure is 30 tons, 35 tons, 50 tons, etc. It is more convenient to use horizontal type, and can be made into traction mobile machine according to user requirements.

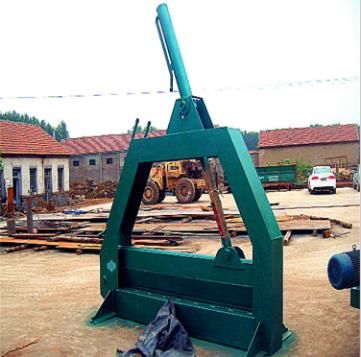

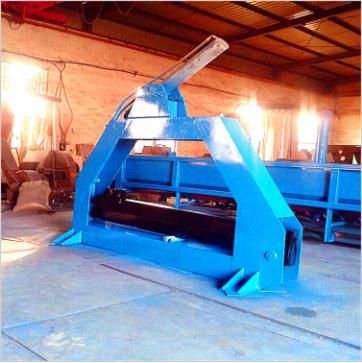

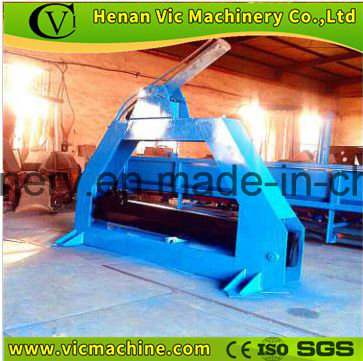

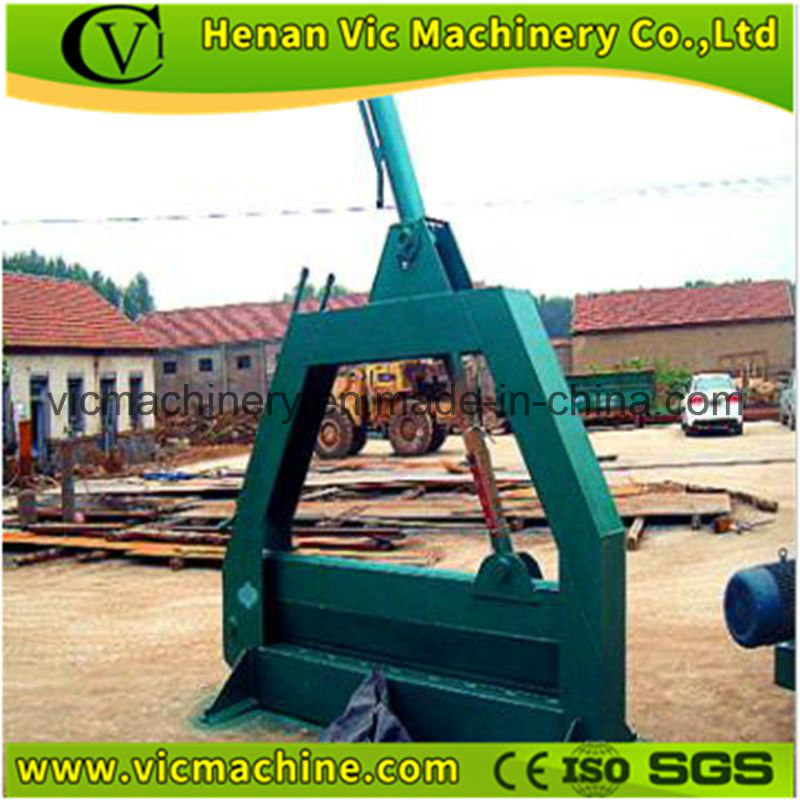

   Vertical wood splitter:
  1, motor power 15-30kw
  2. The coffin machine runs flexibly and smoothly, and the coffin is efficient.
  3, small footprint, easy maintenance
4, 3-5 tons of eucalyptus per hour

Model	PMJL1500
Power(KW)	22
High pressure gear pump	80ml/r
Pressure (Mpa)	20
Oil cylinder inside diameter	180mm
Diameter of piston rod	1000mm
Max thrust (t)	50
Machine size (mm)	40001200600
Weight(kg)	3200

Product features:,
reasonable structure, sturdy and durable, high output, easy to operate, safe and so on, is an ideal product to replace the band saw.
Safety operation of the machine:
Check the machine for any foreign matter blockage before use to avoid the danger of the card machine; safety protection facilities should be set during use, and the body balance finger should be 5cm higher than the cutter head; When the blade of the coffin machine needs to be replaced, the power lamp should be turned off first, and the machine stops running and closes.
