Hydraulic Wood Splitting machine, log splitter

Product Description

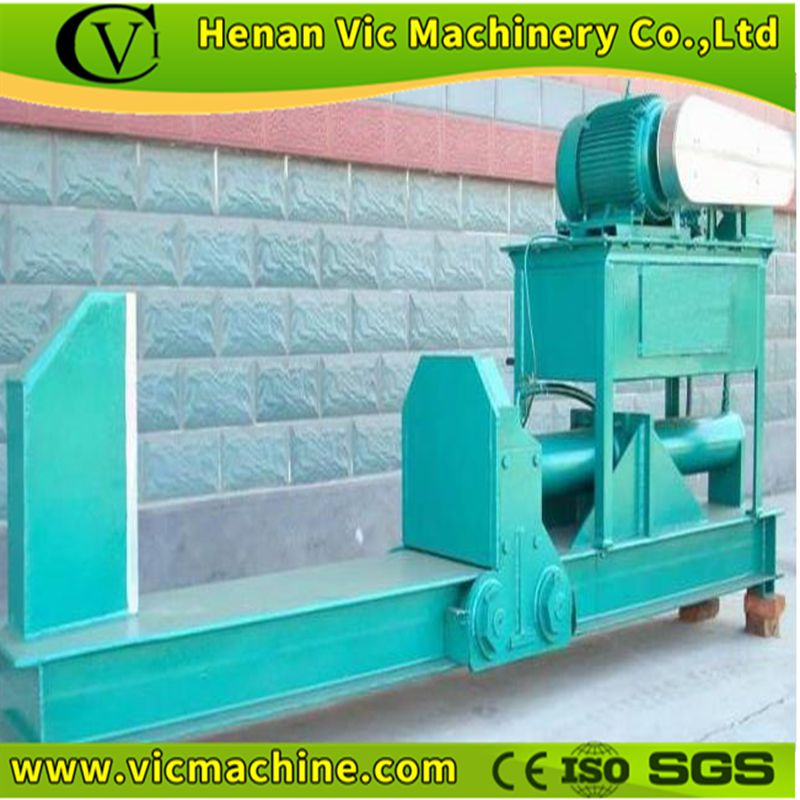

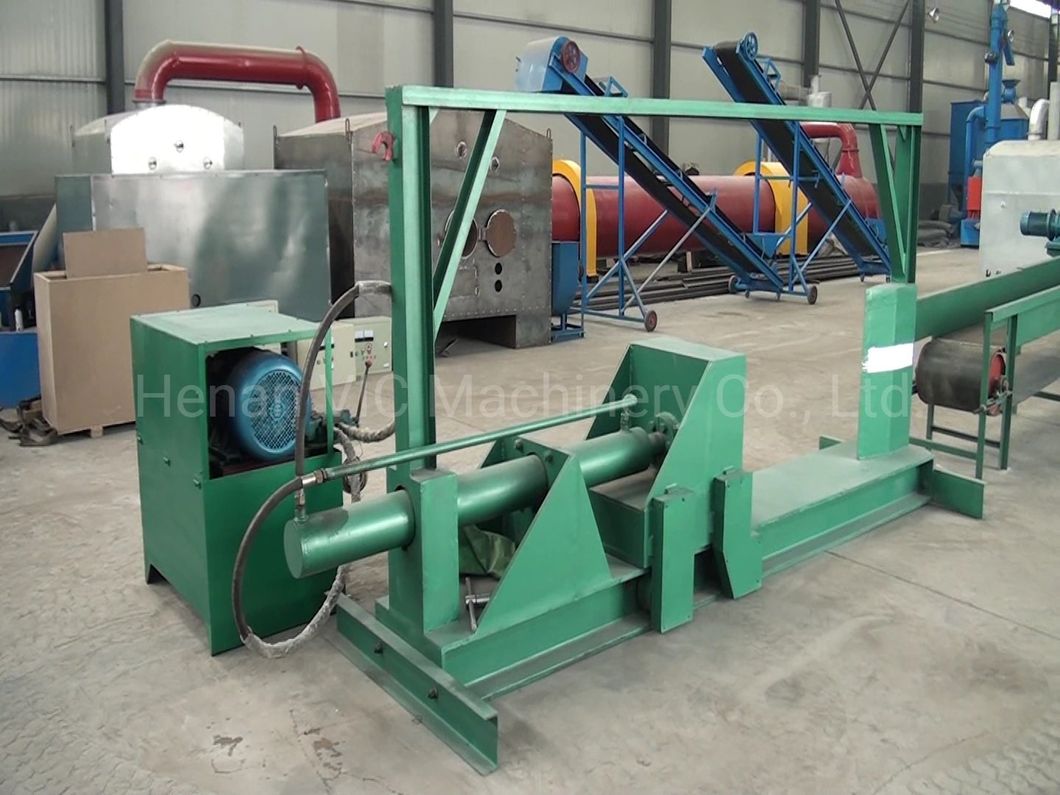

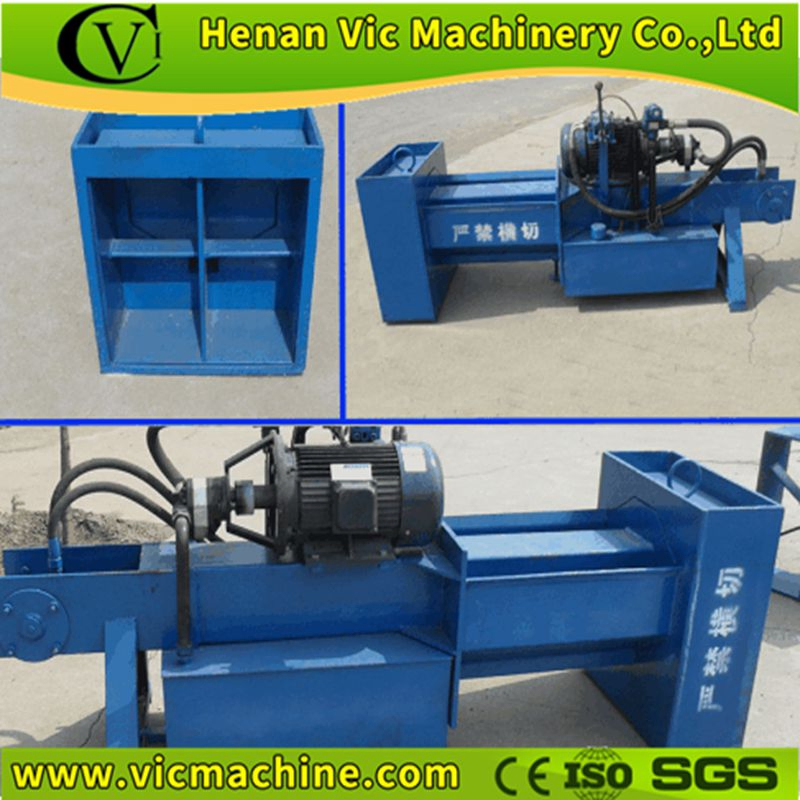

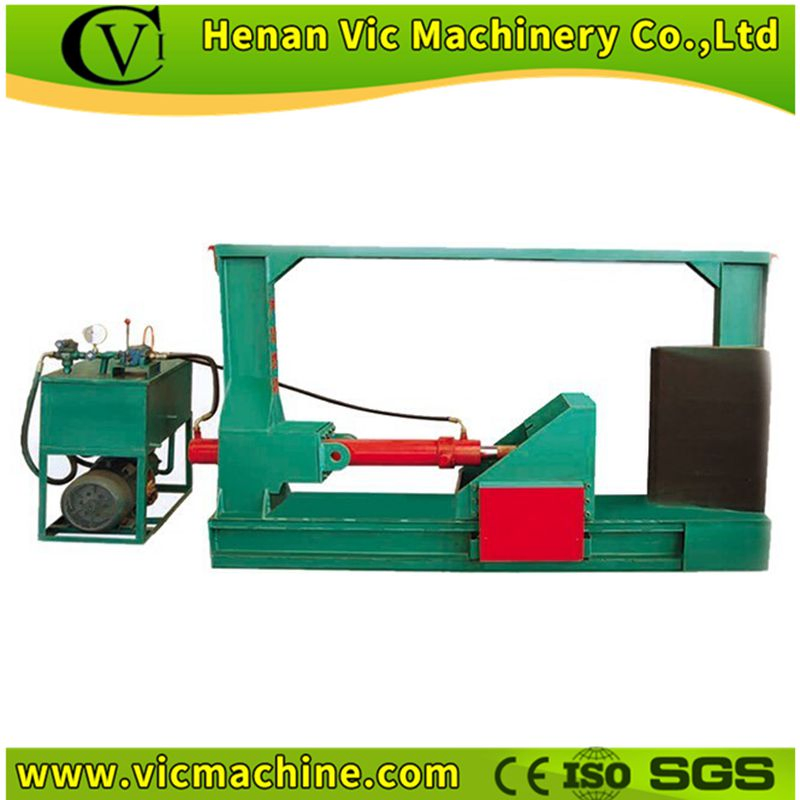

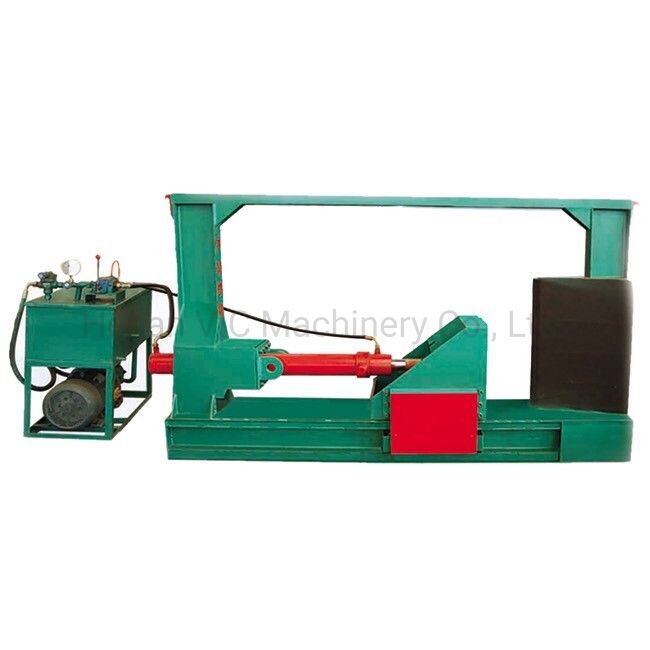

Hydraulic Wood Splitting Machine,Log Splitter

Introduction

Wood splitting machine can be used to pry the stumps, large tree stalks, large round logs and harder wood to meet the feed size requirements of the chipper or to smash the raw materials into other uses.
  The splitting machine is an important auxiliary equipment for the wood chip processing industry. It adopts hydraulic working principle and mainly has two series of vertical and horizontal. The general stroke specifications are 1000mm, 1100mm, 1200mm, the nominal pressure is 30 tons, 35 tons, 50 tons, etc. It is more convenient to use horizontal type, and can be made into traction mobile machine according to user requirements.

Working principle
  The wood splitter is the simplest hydraulic equipment that is now in common use. The wood splitter contains all the basic components of the hydraulic machine:
  The engine, usually a small four-stroke gasoline engine, powers the entire system. The engine is connected to a hydraulic oil pump.
  The hydraulic oil pump produces a high pressure oil stream that is injected into the valve.
  The operator can actuate the valve to activate the hydraulic cylinder coffin.
  At the same time, there is also a tank containing hydraulic oil to replenish the oil pump at any time, and a filter is installed to keep the oil clean.

Advantage
1.reasonable structure, sturdy and durable
  2. The coffin machine runs flexibly and smoothly, and the coffin is efficient.
  3, Easy to operate,small footprint, easy maintenance
4, High output,3-5 tons of eucalyptus per hour

Main date

Model	PMJ1200
Power(KW)	18.5
High pressure gear pump	63ml/r
Pressure (Mpa)	20
Oil cylinder inside diameter	150mm
Diameter of piston rod	90mm
Max thrust (t)	35
Machine size (mm)	3800950460
Weight(kg)	2200
