China Easy Operation, Rotary Cutting, Finished Size Adjustable Tree Root Chipper

Product Description

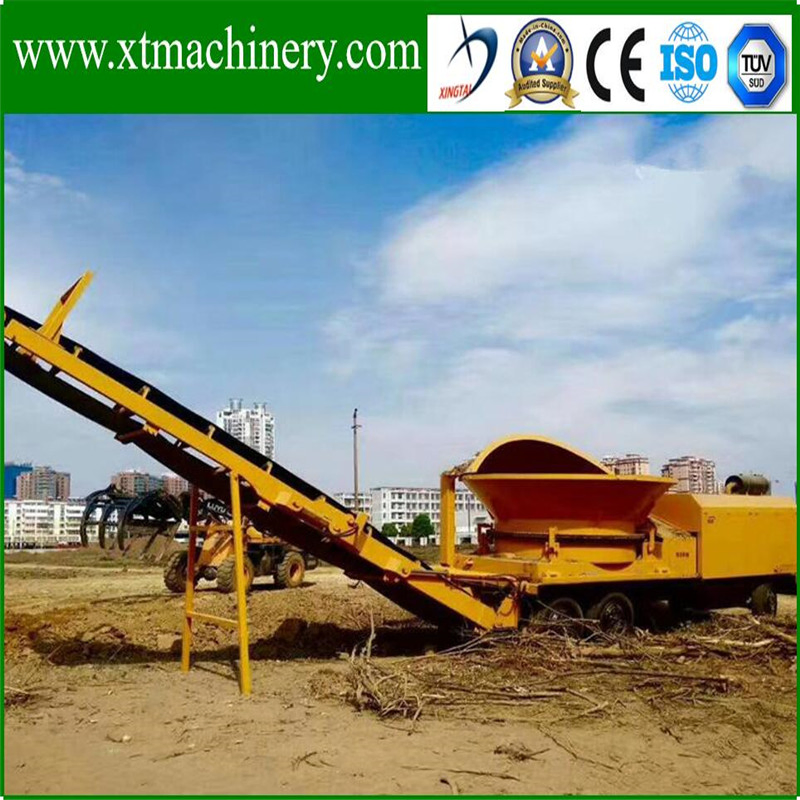

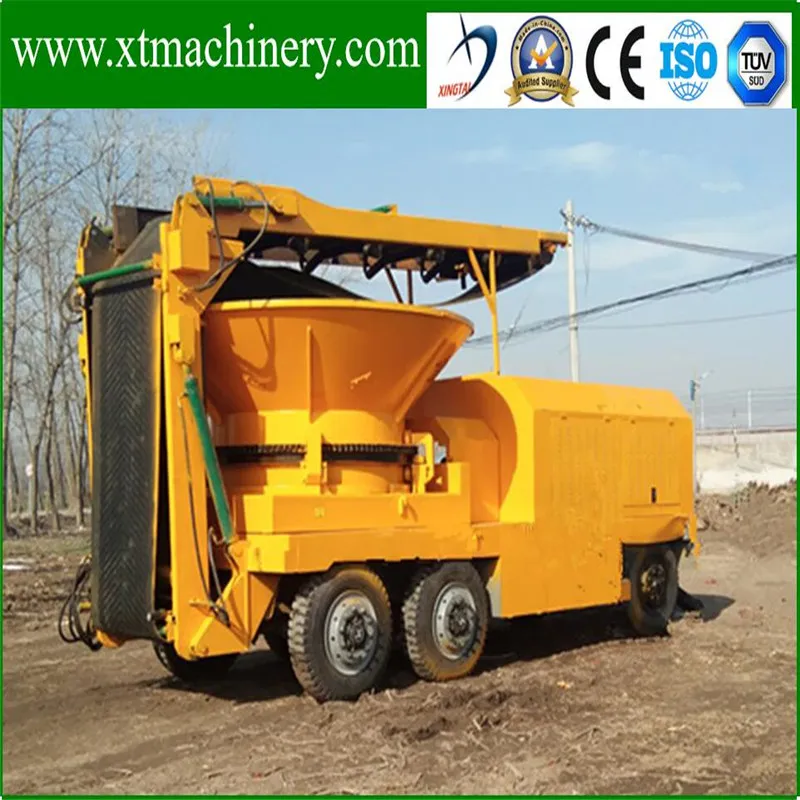

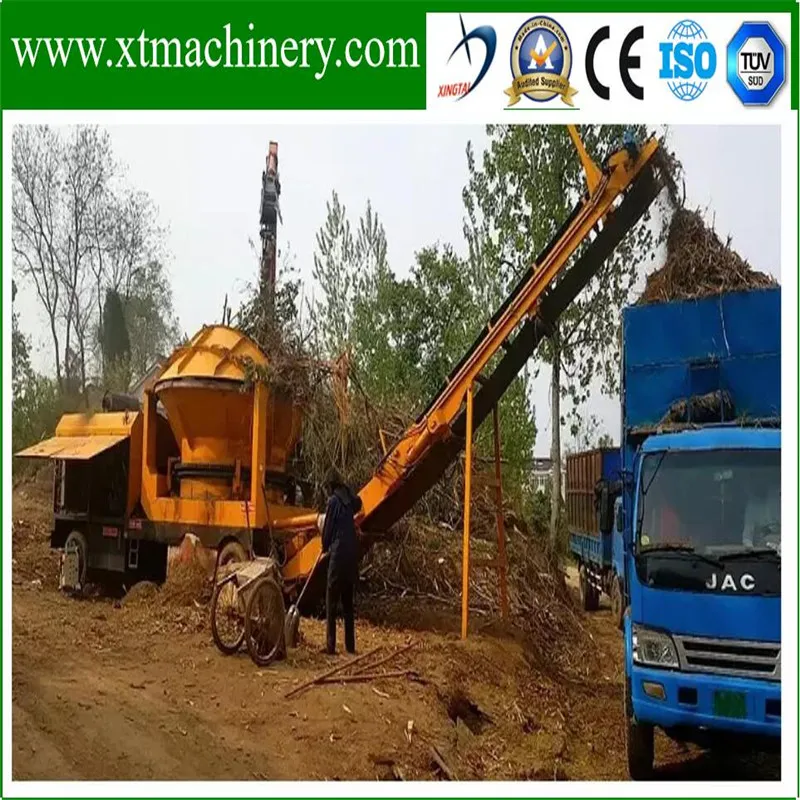

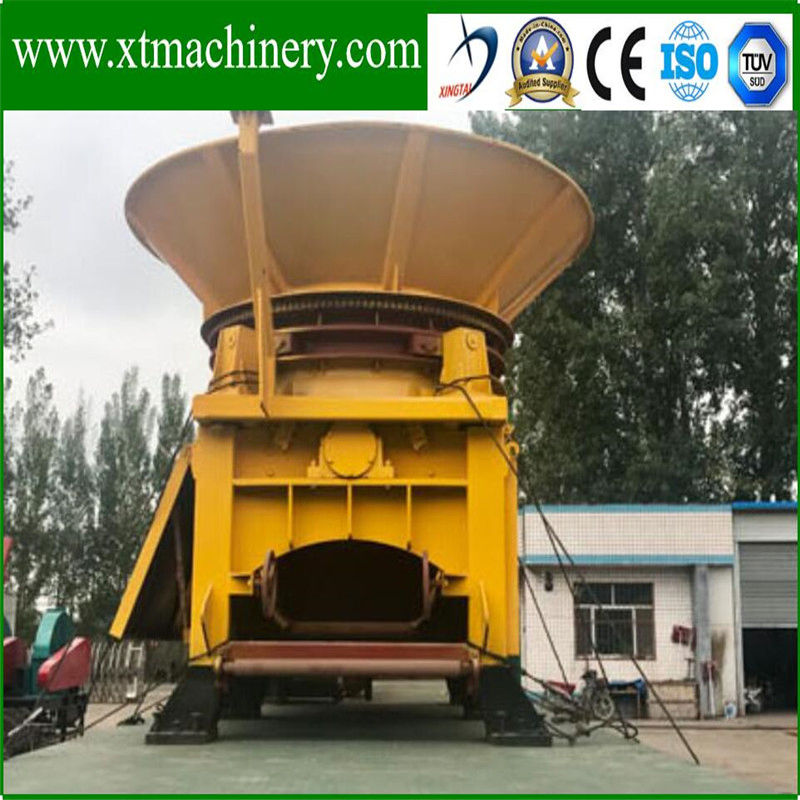

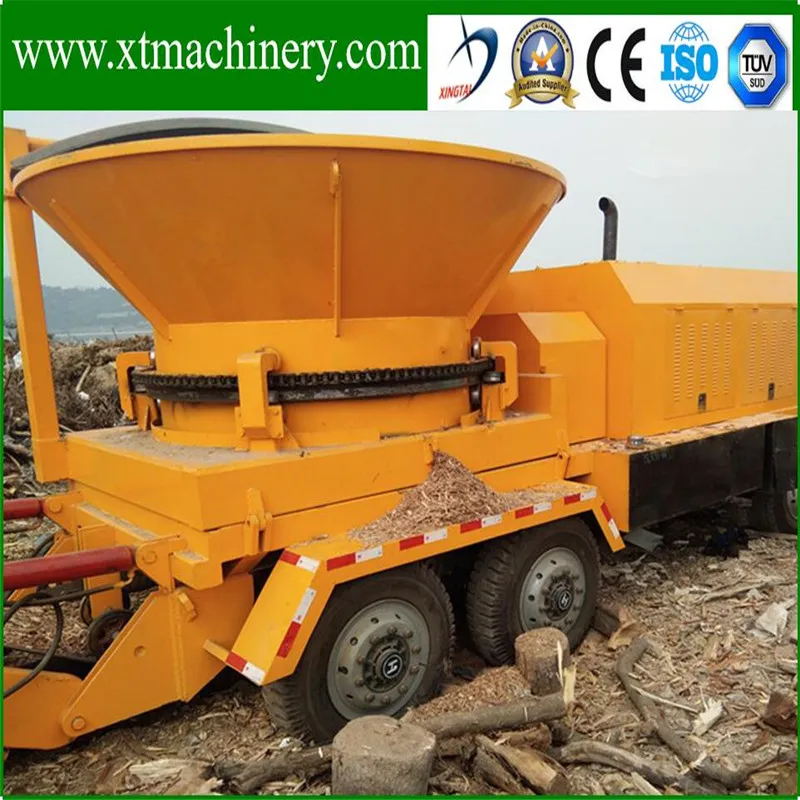

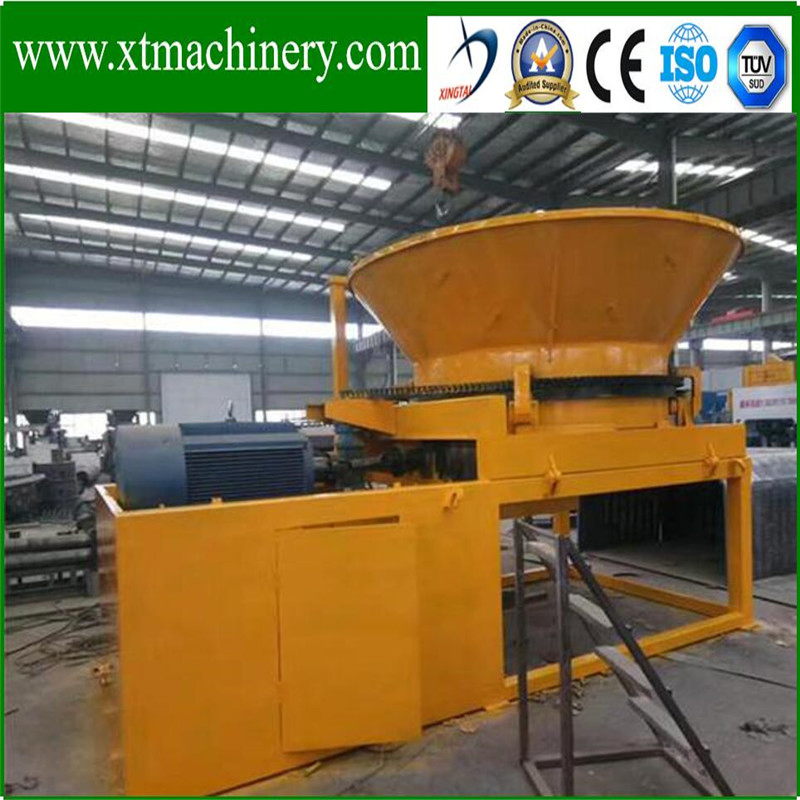

Wood Stump Chipping machine brief introduction

Stump grinder is mainly used for producing wood chips from tree roots, stump, which is the main raw material of biomass factories and also curhsing baled straw.

Characteristics

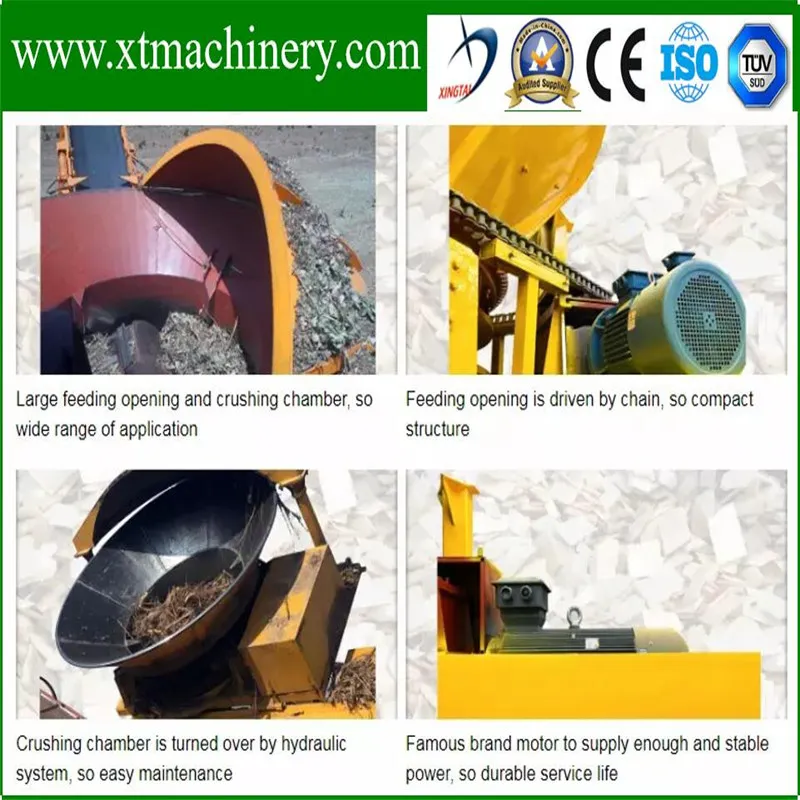

Tree stump shredder is a special equipment for cutting tree stumps in biomass power plant.It is widely used in the material preparation section of biological power plant.The main cutting material of this machine is wooden block.The machine has reasonable structure, simple operation, high production capacity, safe and reliable and convenient maintenance.Is a relatively advanced domestic stump crushing equipment.The company can also according to customer requirements to improve the product and design.

Application

Scope: wood raw material: timber, processing residue (branches, batten, log core, building templates, roots waste veneer etc.) particle board, fiber board.
Non-wood raw material: sugarcane, reed, straw, etc.
Purpose: particle board factory, high density fiberboard, stubble factory, biomass power plant, wood factory,wood pellet manufacture.

Detailed Models For Wood Stump: Specially cut the wood stump into small mulch or chips with size 20mm-50mm
Model	XT-3000	XT-3300	XT-3600
Rotor diameter	650mm	750mm	750mm
Blade numbers	2-6 pieces	2-6 pieces	2-6 pieces
Running speed	960r/min	960r/min	1405r/min
Mesh screen size	Φ 50 or customerized	Φ 50 or customerized	Φ 50 or customerized
Main power	160KW	220KW	250KW
Feeder power	5.5KW	7.5KW	7.5KW
Discharge power	5.5KW	7.5KW	7.5KW
Oiling Power	3KW	3KW	3KW
Top feed-inlet size	3000mm	3300mm	3600mm
Bottom feed-inlet-size	1600mm	2000mm	2300mm
Maximum stump diameter available	1200mm	1600mm	2100mm
Output capacity	10-15Ton/Hour	15-20Ton/Hour	20-25Ton/Hour
Machine weight	8.9Tons	18.7Tons	24.8Tons
