Product Description

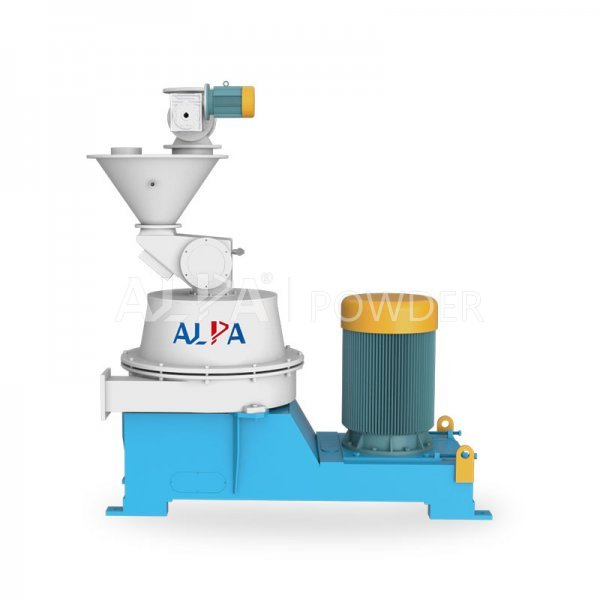

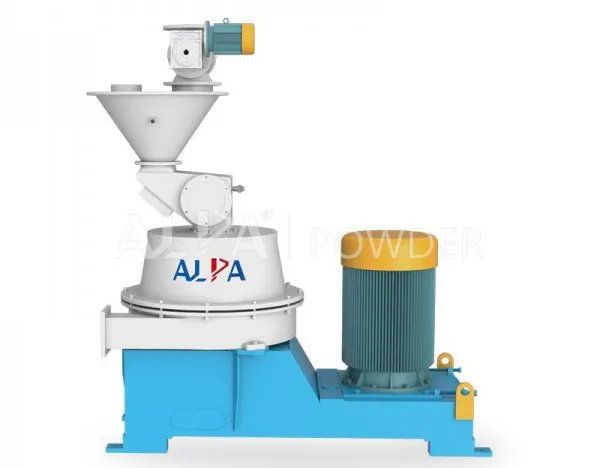

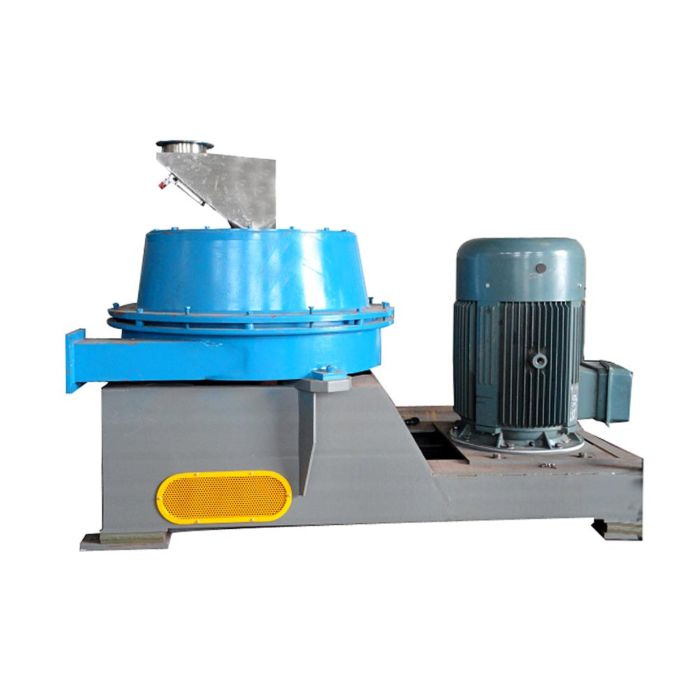

Asbestos Powder Dry Grinding Impact Turbo Mill for Mineral Grinding
Features and Advantages:
| 1. | Available D50:1~250μm |
| 2. | The linear speed of grinding rotor can be up to 130m/s, high grinding effect. |
| 3. | Large air volume and low grinding temperature, suitable for sensitization of heat sensitive and fibrous materials, uniform product size |
| 4. | Powerful eddy current flow field, material is grinded instantly, material retention time in the chamber is short, no temperature rise |
| 5. | Adjustable the gap between grinding rotor and ring gear, to achieve different grinding force |
| 6. | Suitable for depolymerizing nano and micron material. |
| 7. | Alloy material rotor, high-speed dynamic balance, up to 6 layers of wear-resistant powder plate, guarantees excellent grinding effect. |
| 8. | Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials. |
WORKING PRINCIPLE
The material is uniformly fed into the grinding zone by feeding system and strongly impacted by the high-speed rotating grinding disc.

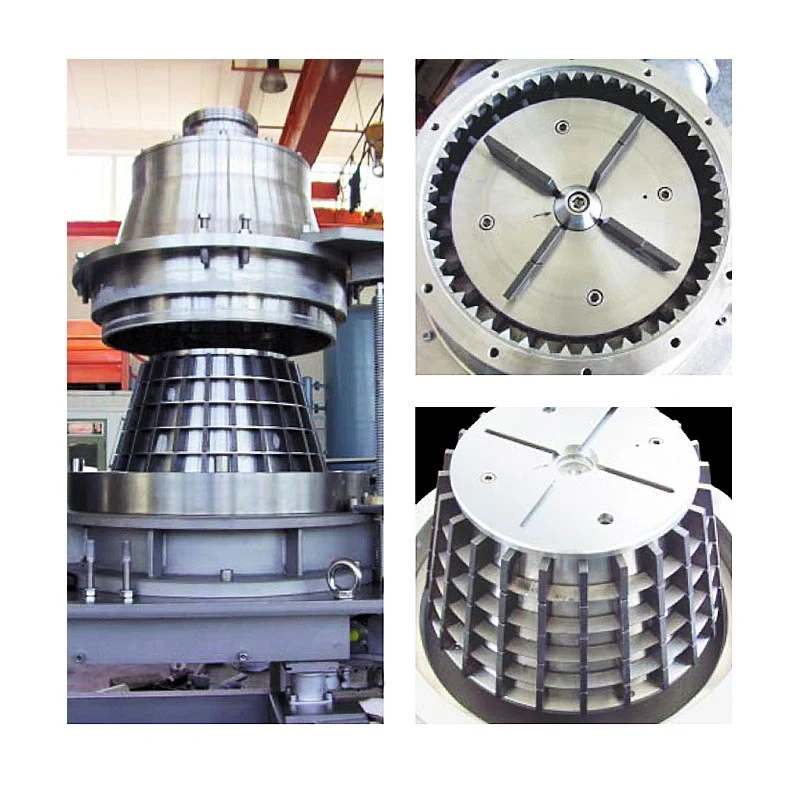

The grinding rotor is composed of a multi-layer grinding disc and a plurality of grinding blades, the material is subjected
to various grinding forces such as shearing, collision, friction etc and finished grinding.

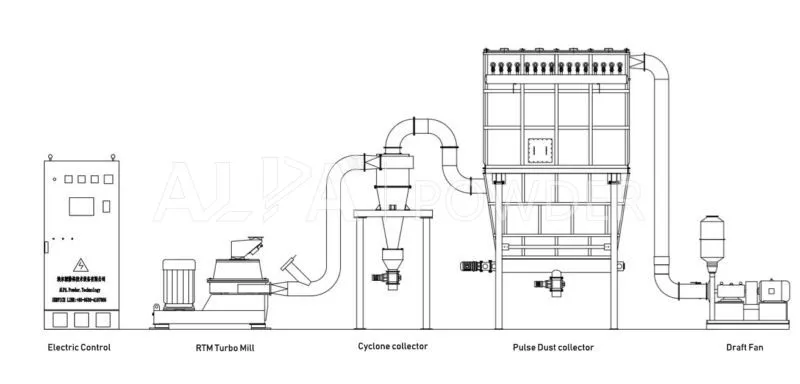

The qualified materials are collected into the collection zone with the ascending airflow, the coarse materials are returned to the grinding zone for secondary grinding.
TECHNICAL PARAMETERS
| Parameters/ specifications | Rotor Diameter(mm) | Power (kw) | Rotate Speed (Max r/min) | Maximal Air Volume(m3/h) | Fineness (um) | Output (kg/h) |
| RTM-300H | 300 | 18.5~22 | 7550 | 1600 | 5~250 | 30~800 |
| RTM-500H | 500 | 45 | 4700 | 2400 | 5~250 | 80~2000 |
| RTM-750V | 700 | 55~75 | 3000 | 3600 | 5~250 | 100~3000 |
| RTM-1000V | 1000 | 90~110 | 2250 | 4800 | 5~250 | 200~4500 |
| RTM-1250V | 1250 | 110~132 | 2250 | 6000 | 5~250 | 300~6000 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
WHO CHOOSE US
Q: What service do you supply?
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
