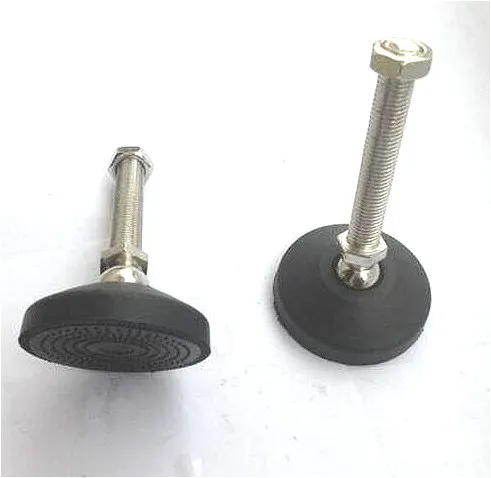

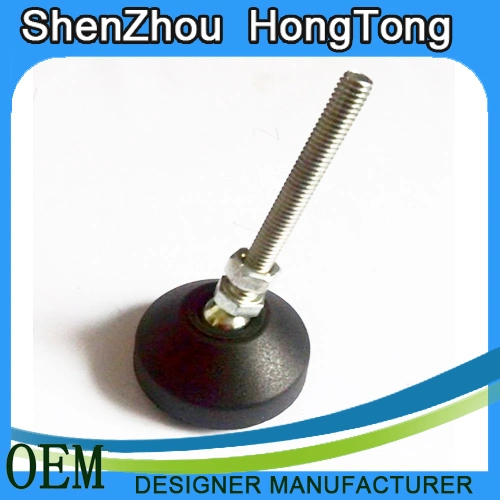

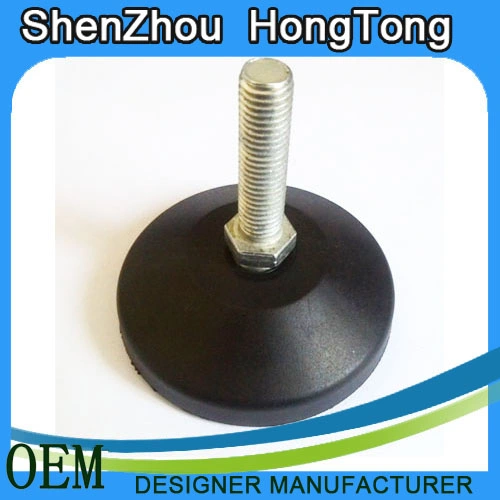

China Adjustable Universal Hooves for Machine Leveling Table Feet

Product Description

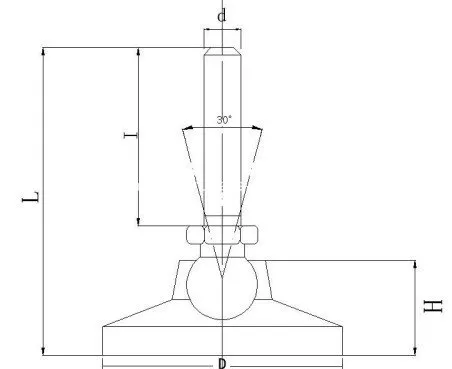

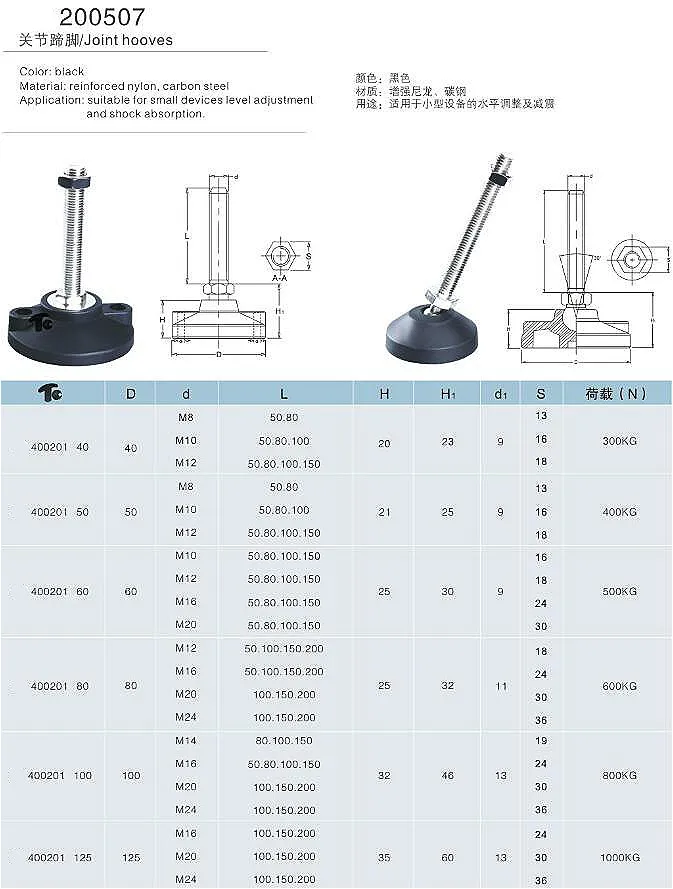

Plastic base size		Screw thread rod		Standard load	Peak load
D	H	d	I	kg	kg
38	19	M8	50	50	150
			80
		M10	50
			100
		M12	50
			100
			150
50	20	M8	50	150	500
			80
		M10	50
			100
		M12	50
			100
			150
60	22	M12	50	300	800
			100
			150
		M16	50
			100
			150
		M20	100
			150
		M24	100
			150
70	24	M10	50	500	1000
		M12	50
			100
			150
		M16	50
			100
			150
		M20	100
			150
		M24	100
			150
80	20	M12	50	800	1500
			100
			150
		M16	50
			100
			150
		M20	100
			150
		M24	100
			150
100	30	M16	50	1000	2000
			100
			150
		M20	100
			150
		M24	100
			150
125	37	M20	100	1500	2600
			150
		M24	100
			150

1) The order parameters: D*d*I
2) base material: PA
shock pad:rubber

screw thread: carbon steel or stainless steel
surface: galvanizing or nickeling or chrome-plating

We have the technician with 30 years of experience of plastic parts producing and developing, especially in the design of mechanical plastic parts.Meantime as our factory are northern countryside of China , our price is competitively.

Mold development ability	We can make mold by ourselves,during producing we can maintain mold in time, can help customers to develop new products.
The weight of plastic we can produce	5 kg
The size of plastic we can produce	10 mm to 2500 mm

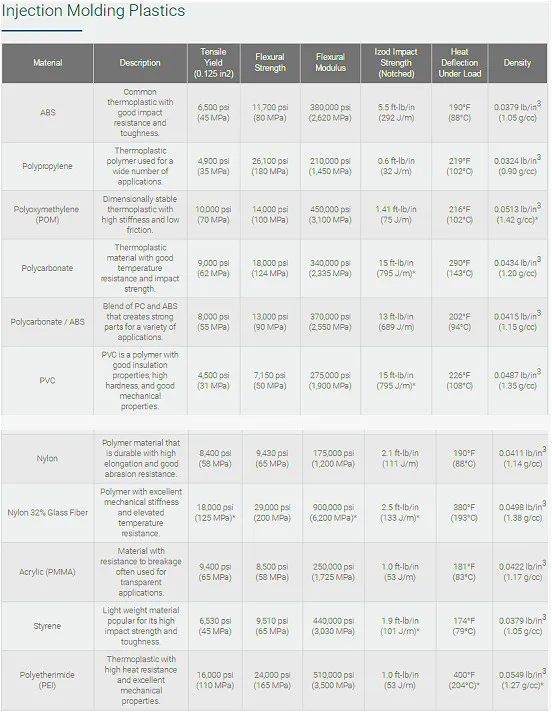

The material we can process	PA+glass fiber, various engineering plastic,PC, ABS, PP, PU, HDPE,LDPE, PVC, TPE, TPO
Production experience about plastic article	We have more than 25 years experience of produce plastic parts. We know characteristics of various materials very well,handle the inject and material very skillfully.
