Acm Grinder Grinding Machine Air Classifier Mill for Battery Materials
ACM Grinder Ultrafine Grinding Machine Air Classifier Mill for Battery MaterialsFeatures and Advantages1.Available D50:2~45μm2.Two-In-One shaft of grinding disc and classifier wheel, compact structure3.Especially suitable for ultra-fine grinding in pharmaceutical, food and chemical industries......
Send Inquiry
Product Description

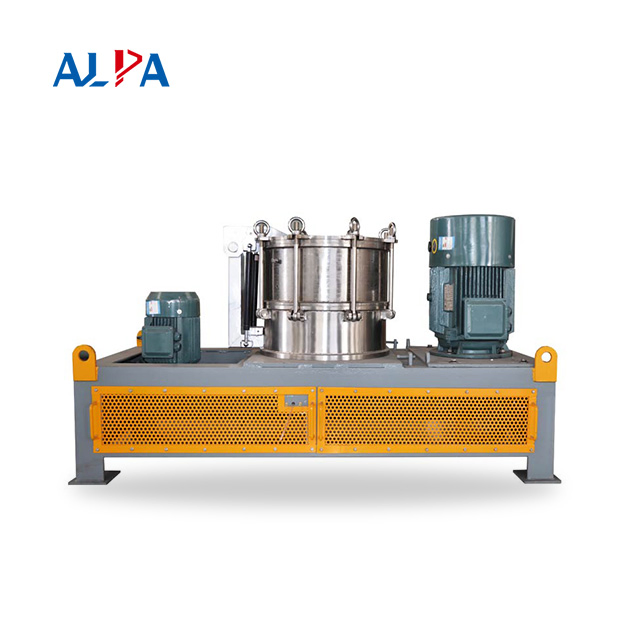

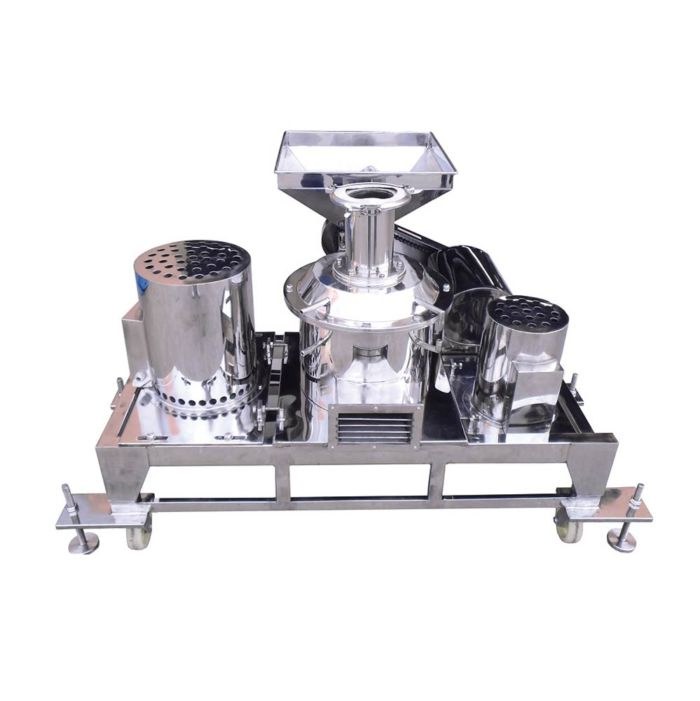

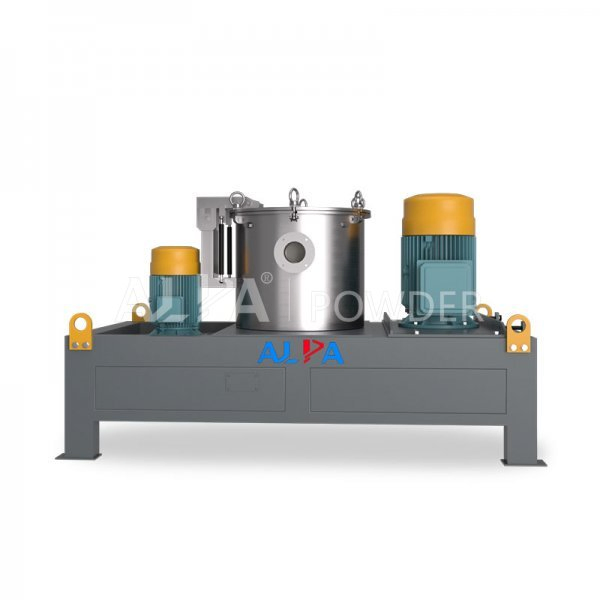

ACM Grinder Ultrafine Grinding Machine Air Classifier Mill for Battery Materials
Features and Advantages
| 1. | Available D50:2~45μm |
| 2. | Two-In-One shaft of grinding disc and classifier wheel, compact structure |
| 3. | Especially suitable for ultra-fine grinding in pharmaceutical, food and chemical industries |
| 4. | Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency |

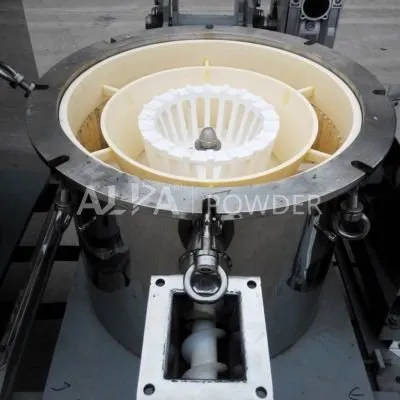

| 5. | Key parts like the hammer, gear ring and classifying wheel are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product |
| 6. | Grinding is in closed system, low dust and noise, clean and environmentally friendly production process |
| 7. | PLC control system, easy operation |
| 8. | Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials |
| 9. | High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different grinding requirements of different materials. |

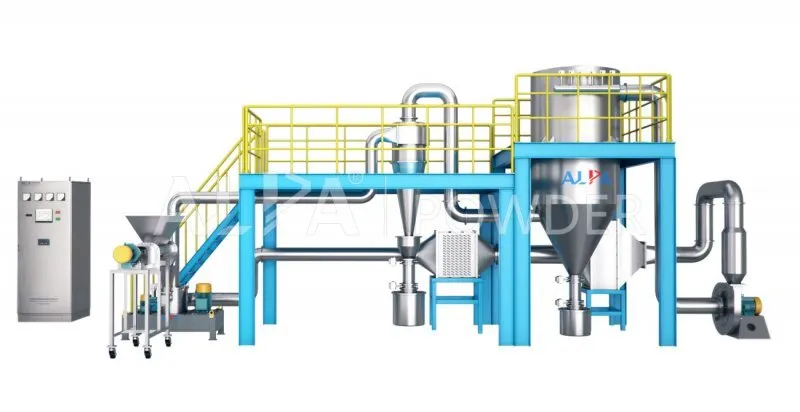

Working Principle

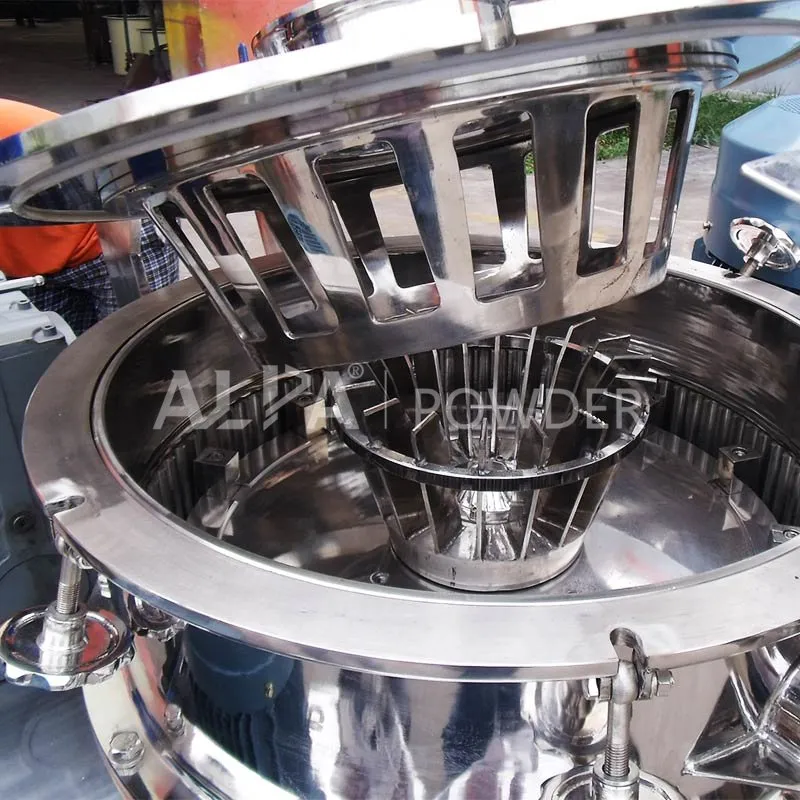

The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc.
At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various
comprehensive forces such as shearing, friction and collision to finished grinding.
The grinded material moves to the classifying zone with the airflow.
The classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.
Technical Parameters
| Parameter | CSM-280VD | CSM-350VD | CSM-510VD | CSM-710VD | CSM-1100VD | CSM-1250VD | |
| Power (kw) | Grinding Disc | 7.5 | 11~15 | 22~30 | 45~55 | 90~110 | 132~160 |
| Classifier Impeller | 1.5 | 2.2 | 4~5.5 | 7.5~11 | 15 | 18.5~22 | |
| Feeder | 0.55~1.1 | ||||||
| Rotate Speed (r/min) | Grinding Disc | 7500 | 6200 | 4200 | 2800 | 2100 | 1700 |
| Classifier Impeller | 500~4500 | 500~4000 | 400~3000 | 300~2500 | 250~2000 | 200~1600 | |
| Feeder | 20~100 | ||||||
| Max Air Flow(m3/h) | 700 | 900 | 3000 | 5400 | 10000 | 15000 | |
| Product Size(um) | 5~300 | 10~300 | |||||
| Production Capacity(kg/h) | 2~100 | 10~400 | 15~600 | 30~1200 | 60~1500 | 300~3000 | |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Product details
 |  |
ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
WHO CHOOSE US
Q: What service do you supply?
2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.
3). We supply project engineering, automation engineering and civil engineering.
4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.
Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.
2). We supply one year warranty for all equipment and lifelong after-sales service.
3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.
4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.
Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.
Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
