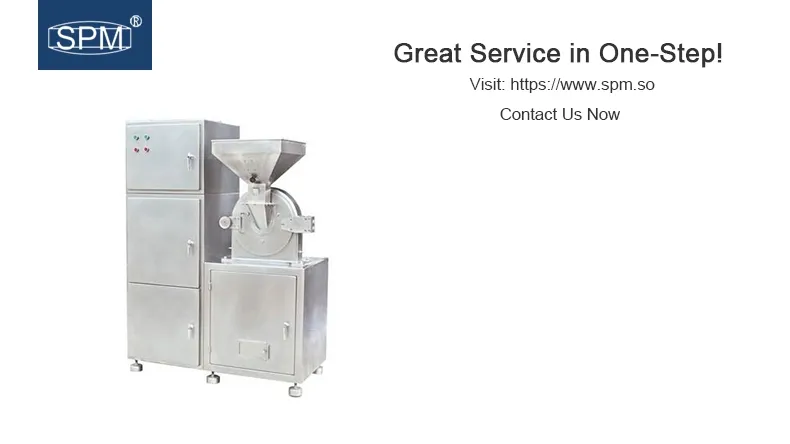

60b IV. V. VI Universal Pulverizer

Product Description

Main Application:
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc..

Technical Parameters:

Model	Production Capacity	Feeding Size	Crushing Fineness	Spindle Speed	Motor Power	overall dimension	weigh
15BIV.V.VI	10-50kg/h	6mm	20-120mesh	6000r/min	2.2kw	550400850mm	100kg
20BIV.V.VI	60-150kg/h	6mm	20-120mesh	4500r/min	4kw	5506001250mm	280kg
30BIV.V.VI	100-400kg/h	6mm	20-120mesh	3800r/min	5.5kw	6007001450mm	350kg
40BIV.V.VI	160-1000kg/h	10mm	20-120mesh	3400r/min	11kw	8009001550mm	550kg
60BIV.V.VI	500-2000kg/h	12mm	20-120mesh	2800r/min	18.5kw	9009001880mm	680kg
80BIV.V.VI	1000-5000kg/h	12mm	20-120mesh	2000r/min	37kw	11009501960mm	1500kg
100BIV.V.VI	2000-8000kg/h	12mm	20-120mesh	1500r/min	55kw	135010002100mm	2500kg

Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. Designed according to GMP standard and wholly made of stainless steel, with simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment at present.
